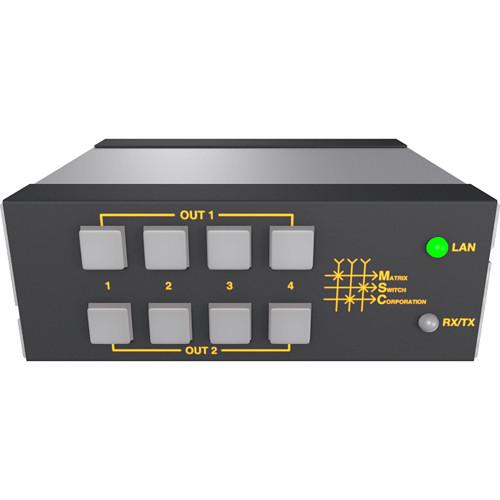

Product description The Matrix Switch Corporation MSC-HD42L 4x2 Mini 3G/HD/SD-SDI Video Router Switch features 4 inputs with 2 outputs. This mini video router switch is suitable for applications that do not need rack mounting and need a compact size.
This router does not skimp on either technical performance or control features and employs high reliability components. It offers flexible and user-friendly control, including a built-in Javascript-enabled web page interface and simple yet powerful text-based control protocol which can be sent via the TCP/IP, RS-232 serial port, or the web page interface. - Re-clocking of standard SD, HD, and 3G SDI data rates
- Auto bypasses non-standard SDI rates from 20 Mb/s to 3 Gb/s
- Video mute on every output
- Passes SDI-embedded audio and ancillary data
- Interactive web page interface
- Vertical interval switching
- Store and recall up to 10 presets (complete or partial matrix state recall)
- Low power consumption (7VA)
- Software updates via Ethernet port
- Flexible control using the MASCOT text-based protocol via TCP/IP, serial port, or Web page interface
- Can be used with one or more Matrix Switch Corporation TCP/IP Remote Panels
In the Box Matrix Switch MSC-HD42L 4x2 Mini 3G/HD/SD-SDI Video Router Switch Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch MSC-HD42L 4x2 Mini 3G HD SD-SDI Video Router Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HD42L Specs | Control | Serial RS232: 9,600 Baud 8N1
Ethernet: 10 BaseT TCP/IP
Panel Control: Local and remote button control panel options | | Connector Type | SDI Video: BNC
Reference Signal: Analog BNC with pass-through | | Data Type | SMPTE 259/292/424 | | Data Rates | 19 Mb/s through 3.0 Gb/s
Re-Clocking: 270 Mb/s, 1.485 Gb/s, 2.97 Gb/s | | Return Loss | Input/Output: >15 dB @ HD, > 12 dB @ 3G | | Input Level | 800 mVpp, ±20% | | Input Impedance | 75 Ω ±1% | | Cable Equalization | 1,148.29' (350.00 m) @ SD, 574.147' (175.00 m) @ HD, 328.08' (100.00 m) @ 3G (1694A coax) | | Output Level | 800 mVpp ±5% | | Output Impedance | 75 Ω ±1% | | Output Jitter | <0.2 UI | | Format | Reference Signal: NTSC, PAL, and Tri-level sync | | Temperature | Storage: 14 to 122°F (-10 to 50°C)
Operating: 32 to 104°F (0 to 40°C) | | Humidity | 0 to 90% non-condensing | | Power | 5 VDC | | Dimensions (W x H x D) | 5.00 x 1.75 x 5.00" (127.00 x 44.45 x 127.00 mm) | | Weight | 2.00 lb (0.91 kg) | | | | Package Weight | 1.645 lb | | Box Dimensions (LxWxH) | 8.0 x 7.5 x 3.5" |
