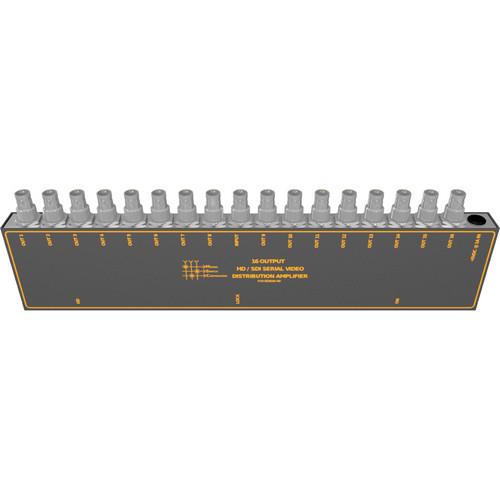

Product description The Matrix Switch Corporation MSC-HDDA16 HD-SDI/SDI Distribution Amplifier accepts a single HD/SDI signal over 1 input port and switches it over 16 output ports. In addition to supporting data transfer rates from 270 Mbps to 2.97 Gbps, the switcher ensures automatic cable loss compensation for error-free transmission of signals up to 1000’ (304.8 m).
Auto rate detection capabilities allow this amplifier to offer data transfer speeds of 143 Mbps, 270 Mbps, 1.484 Gbps, and 2.97 Gbps at 1080p. The HD-SDI / SDI Distribution Amplifier bypasses embedded audio and supports digital AES audio, allowing separate paths for audio and video signals. The compact-sized (less than 7 cubic inches) Distribution Amplifier consumes less than 2 W power, and provides an indication for power OK, lock and HD signals. - Signals Supported
-
- Accepts multiple HD and SDI inputs across single input port and switches a source across 16 output ports
- Supports DVB-ASI signals
- Speed
-
- Data transfer rates from 270 Mbps to 2.97 Gbps
- Lossless Transmission
-
- Jitter-free operation thanks to re-clocked outputs
- Automatic cable loss compensation
- Bypasses embedded audio
- Wide Range Circuit
-
- Accepts signals from 100 MV P-P up to 5V P-P and provides 4 individually buffered 1 V P-P outputs
- Clean Installation
-
- All external connections lined up on a single side for a neat installation
- Compact Size
-
- Up to 2 amplifiers mountable in 1RU rack space
- Applications
-
- Ideal solution for any HD and SDI video environment
- Suitable for applications involving transmission of reference signal from a same source to multiple destinations
In the Box Matrix Switch MSC-HDDA16 HD-SDI/SDI Distribution Amplifier 2-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch MSC-HDDA16 HD-SDI SDI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HDDA16 Specs | Input | 1 | | Output | 16 | | Transfer Rate | 270 Mbps to 2.97 Gbps | | Input Impedance | 75 ohms +/- 1% | | Input Return Loss | > -15 dB at 1.5 GBPS > -12 dB at 2.97 GBPS | | Input Level | SDI HD DA: 800 mV P-P ±20% AES/SPDIF DA: 200 mV - 8V P-P | | Output Impedance | 75 ohms +/-1% | | Output Return Loss | > -15 dB at 1.5 GBPS > -12 dB at 2.97 GBPS | | Output Level | SDI HD DA: 800 mV P-P +/-5% AES/SPDIF DA: 800 mV P-P +/-5% | | SDI (143 - 540 MBPS) Cable Equalization | 13,779.53" (350 m) for Belden type 1694A cable | | HD (1.483 - 2.97 GBPS) Cable Equalization | 6889.76" (175 m) for Belden type 1694A cable at 1.5 GBPS 3937" (100 m) for Belden type 1694A cable at 2.97 GBPS | | Input Cable | AES/SPDIF DA: up to 7874.02" (200 m) | | Embedded Audio | SDI/HD DA: clean pass through | | Power Consumption | Less than 2 W | | Size | Less than 7 cubic inches | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.5 x 10.5 x 4.7" |
