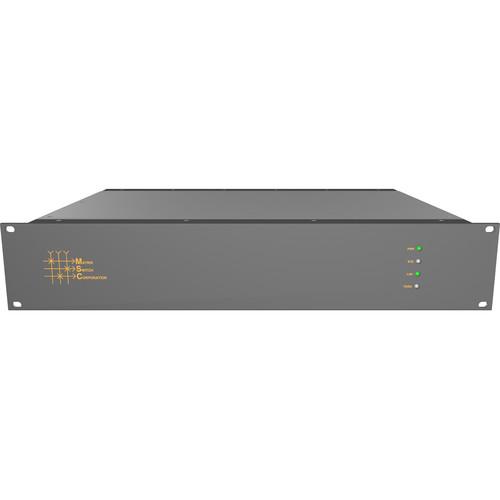

User Manual for Matrix Switch MSC-V3248 32 x 48 Composite Analog Video Router with Status Panel

Click to enlarge the picture
Matrix Switch MSC-V3248 32 x 48 Composite Analog Video Router with Status Panel Contents of the user manual for the Matrix Switch MSC-V3248 32 x 48
  • Product category: Routers & Switchers Matrix Switch
  • Brand: Matrix Switch
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Matrix Switch Routers & Switchers

User manual for the Matrix Switch MSC-V3248 32 x 48 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Matrix Switch product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!



Product description

The MSC-V3248 32 x 48 Composite Analog Video Router with Status Panel from Matrix Switch Corporation features 32 inputs and 48 outputs. It can be used standalone or combined with additional analog video routers to produce a 2-channel YV router or 3-channel YUV or RGB router. When used in conjunction with the MSC-GCP2U32 LCD remote control panel, it can combine multiple analog video routers to expand the available input or output channels, using cascaded systems or input replication.

A D25 connector provides the capability to hook up a second matrix level directly to this router with a 25-pin straight through cable, for adding AES digital or analog stereo audio format support. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. Additional control interfaces include RS-232 and TCP/IP over the Ethernet interface.
  • Inputs can be switched to multiple outputs without restriction
  • Minimum signal bandwidth of 50 MHz
  • Shielding and low-noise linear on-board power supply regulation result in systems with low crosstalk and noise levels
  • Features powerful yet easy-to-use MASCOT protocol
  • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
  • Store and recall up to 10 preset salvos
  • Features panel with status lights
  • Supports Matrix Switch Corporation remote panels
  • Ethernet port for control via built-in web page interface or TCP/IP ports
  • Interactive web page interface
  • Serial control via RS-232 port
  • Supports some common third-party protocols for added integration flexibility
  • System software updates over Ethernet port
  • External DC power supply
  • Complies with FCC, U/L, CE, and RoHS requirements
  • Additional audio level can be connected to D25 connector, with break away from video support
In the Box Matrix Switch MSC-V3248 32 x 48 Composite Analog Video Router with Status Panel
  • 12 VDC, 5A Power Supply
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Matrix Switch MSC-V3248 32 x 48 Composite Analog Video Router with Status Panel in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Matrix Switch MSC-V3248 Specs

    Inputs 32 channels
    Outputs 48 channels
    Enclosure Type 2 RU
    Power Type 12 VDC 5A adapter
    Power Connector D9 Male
    Panel Type Status
    Ethernet 10 Base-T
    Connector Type BNC
    Input/Output Level Nominal: 1 V p-p
    Maximum: ± 2 V p-p
    Impedance Input/Output: 75 Ohms
    Input Return Loss < 40 dB at 5 MHz typical
    Output Return Loss < 35 dB at 5 MHz typical
    Overall Gain Overall Gain Unity: ±1% into a 75 Ohms termination
    Frequency Response ±0.1 dB to 5 MHz +0 -3 dB to 60 MHz
    Crosstalk > 60 dB at 5 MHz all hostile
    Differential Phase < 0.2° at 3.58 MHz @ 4.43 MHz
    Differential Gain < 0.2% at 3.58 MHz @ 4.43 MHz
    S/N Ratio > 75 dB 0 to 10 MHz
    Dimensions 19.0 x 3.5 x 11.0" (48.3 x 8.9 x 27.9 cm)
    Weight 12.0 lb (5.4 kg)
