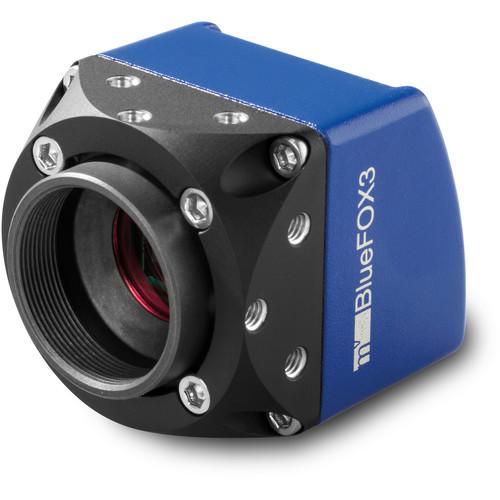

Product description The BlueFox3 USB3 Vision Camera from MATRIX VISION is an area scan machine vision camera for inspecting products on assembly lines, gauging and measuring quality, inspecting defects, label inspection on bottles, and more. It allows you to get a physical image of a product onto the computer in two-dimensional space and measure accuracy/inaccuracy by counting the number of pixels. Featuring a C-mount lens mount, the BlueFox3 supports any C-mount lens, including a wide range of MATRIX VISION telecentric lenses. MATRIX VISION is part of the AIA Machine Vision Trade Association.
This version of the camera features a 2.4MP, 1/1.2" sensor, 161 Hz frame rate, and on-board color processing. The camera captures images at a resolution of 1936 x 1216 but also allows for area of interest selection, as well as binning, and decimation via software. This high frame rate version also has a burst mode function that buffers the acquired images and decouples the acquisition from the image output, allowing the sensor's maximum frame rate to be used independently of the available bandwidth.
The camera has large RAM and FPGA (field-programmable) integrated boards that provide for reliable processing and customization. The FPGA board reduces the CPU load and allows for more functions to be added. The camera also has a fully GenICam compliant mvIMPACT SDK that enables even more flexibility -- complete documentation of the SDK gives you access to many special camera features that could simplify your vision system development. The camera's driver is also compatible with a wide range of 3rd-party software, including those from Halcon, Matlab, and Labview. Note: Lens is not included. Key Features - Area scan machine vision camera
- 2.4MP, 1/1.2" Sony Pregius IMX174 CMOS sensor with a global shutter
- 1936 x 1216 resolution (with area of interest selection, binning, and decimation)
- 161 Hz frame rate (with burst mode)
- On-board color processing
- Large RAM and FPGA boards
- GenICam compliant mvIMPACT SDK
- Driver is compatible with many 3rd-party software
- Sequence recording using parameter sets
- Support for additional information via data streams
- Member of AIA Machine Vision Trade Association
- Compatible MATRIX VISION Lenses
- TC2MHR, TC4MHR, TCCR2M, TCCR4M, TCDP Plus, TCCX2M, MZMT, EN2M, ENUV2M, EN4K
In the Box MATRIX VISION BlueFox3 USB3 Vision Camera (2.4MP, 161 Hz, Color) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MATRIX VISION BlueFox3 USB3 Vision Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMATRIX VISION BlueFox3 USB3 2.4MP Color Specs | Sensor | 2.4 MP, 1/1.2" Sony Pregius IMX174 CMOS sensor (global shutter) | | Resolution | 1936 x 1216 (area of interest selection, binning, and decimation supported) | | Pixel Size | 5.86 μm | | Frame Rate | 161 Hz | | Lens Mount | C-mount | | I/O Connector | None (please see similar models with 12-pin Hirose connector) | | Interface | USB 3.0 |
