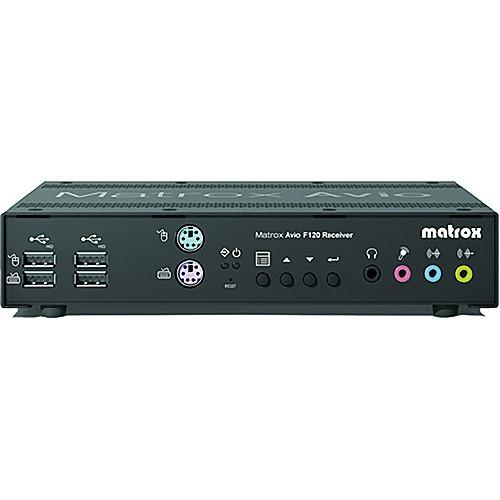

User Manual for Matrox AV-F120RXF Avio F120 Receiver Unit with Multimode Transceivers Click to enlarge the picture
Contents of the user manual for the Matrox AV-F120RXF Avio F120 Receiver Unit
- Product category: KVM Extenders Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox KVM Extenders
 |
User manual for the Matrox AV-F120RXF Avio F120 Receiver Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|

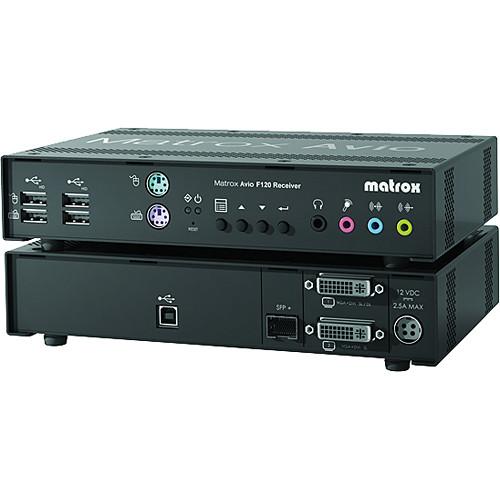

Product description The Matrox AV-F120RXF Avio F120 Receiver Unit with Multimode Transceivers is a part of the Avio F120 KVM Extender and is paired with the AV-F120TXF transmitter (sold separately). The AV-F120TXF transmitter unit captures input / output functionality of the host computer and sends it uncompressed over a single duplex LC-LC fiber optic cable to the AV-F120RXF receiver unit, thus allowing you to separate the computer from the user environment and place it in a climate-controlled machine room. - Uncompressed transmission delivers high performance and image quality
- Smooth HD, 2K, and 4K video playback without any dropped frames
- Extends 2 DVI single-link video with a maximum resolution of 1920 x 1200 at 60 Hz on each display
- Extends 1 dual-Link DVI video with a maximum resolution of 2560 x 1600 at 60 Hz or 4096 x 2160 at 30 Hz
- It features 4 USB HID ports for keyboard, mouse, touch-screens, and other HID devices
- Maximum distance of 984' (300 m) in multi-mode and 13,123' (4000 m) in single-mode 1
Please Note: Matrox Avio SFP+ Single-mode upgrade kit required (AV-SFP10G-2SMF) (sold separately) close - Built-in digital-to-analog conversion enables support for 2 x VGA monitors with a maximum resolution of up to 1920 x 1200 at 60 Hz
- Extends analog stereo audio to place audio devices such as speakers, microphones, and headphones away from the system
- DDC compliance and advanced EDID management ensure a reliable communication between the system and remote displays
- PS/2 keyboard and mouse support for industrial or legacy systems
- Local outputs on the Avio F120 transmitter serves as a secondary user access to the host computer for maintenance or share the remote desktop on a collaborative wall
- Passive cooling (heat sink with no fan) for silent operation and extra reliability
- Status LED indicators for troubleshooting and monitoring
- OSD (On-Screen Display) to view diagnostic information and access advanced configuration options
- Rack mountable or stand alone unit
- Easy to deploy and extensive operating system support for Windows, Mac OS X, and Linux / Unix

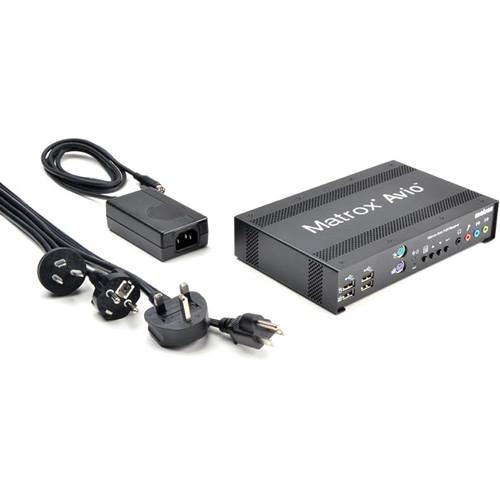

UPC: 790750241753 In the Box Matrox AV-F120RXF Avio F120 Receiver Unit with Multimode Transceivers Multimode Transceivers Power Supply Unit 4 x 6' (1.83 m) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox AV-F120RXF Avio F120 Receiver Unit with Multimode Transceivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox Avio F120 Specs | Connectors | Connection to Local Devices
Video
1 x DVI-I VGA / SL / DL
1 x DVI-I VGA / SL
USB
4 x HID type A
1 x type B (debug port)
PS/2
1 x keyboard
1 x cable
Microphone
In: 1 x 3.5 mm
Headphone
Out: 1 x 3.5 mm
Line In / Out
In: 1 x 3.5 mm
Out: 1 x 3.5 mm | | Video Resolution | Maximum Output
DVI Single Link (SL)
2 x 1920 x 1200 & 2048 x 1080 (60 Hz)
DVI Dual Link (DL)
1 x 2560 x 1600 (60 Hz)
1 x 4096 x 2160 (24 Hz, 30 Hz)
Analog VGA
2 x 1920 x 1200 (60 Hz) | | LED Indicators | 2 | | OSD Menu | Yes | | Mounting | Standalone or rack mountable | | Power | Power Supply Unit (PSU):
1 x external 12 V | | Cables | 4 x 6' (1.83 m) power cord
North America / Japan, UK, Australia / China, Continental Europe / China | | Connection | Between Transmitter and Receiver Units
LC Connectors: 2
Maximum Distance in Multi-mode (MM)
984' (300 m) OM3, OM4 multi-mode 50/125 μm
269' (82 m) OM2 multi-mode 50/125 μm
108' (33 m) OM1 multi-mode 62.5/125 μm
Maximum Distance in Single-mode (SM)
13,123' (4,000 m) OS1, OS2 single-mode 9/125 μm | | Certification | EMC Certification: Class A: ACMA, CE, FCC, VCCI, KCC
Laser Emissions: 850 µm laser compliant to 21CFR, Subpart J, Class 1 | | Dimensions | Enclosure: 8.5 x 1.65 x 5.34" (215.9 x 41.91 x 135.64 mm) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 17.8 x 8.9 x 5.2" |
