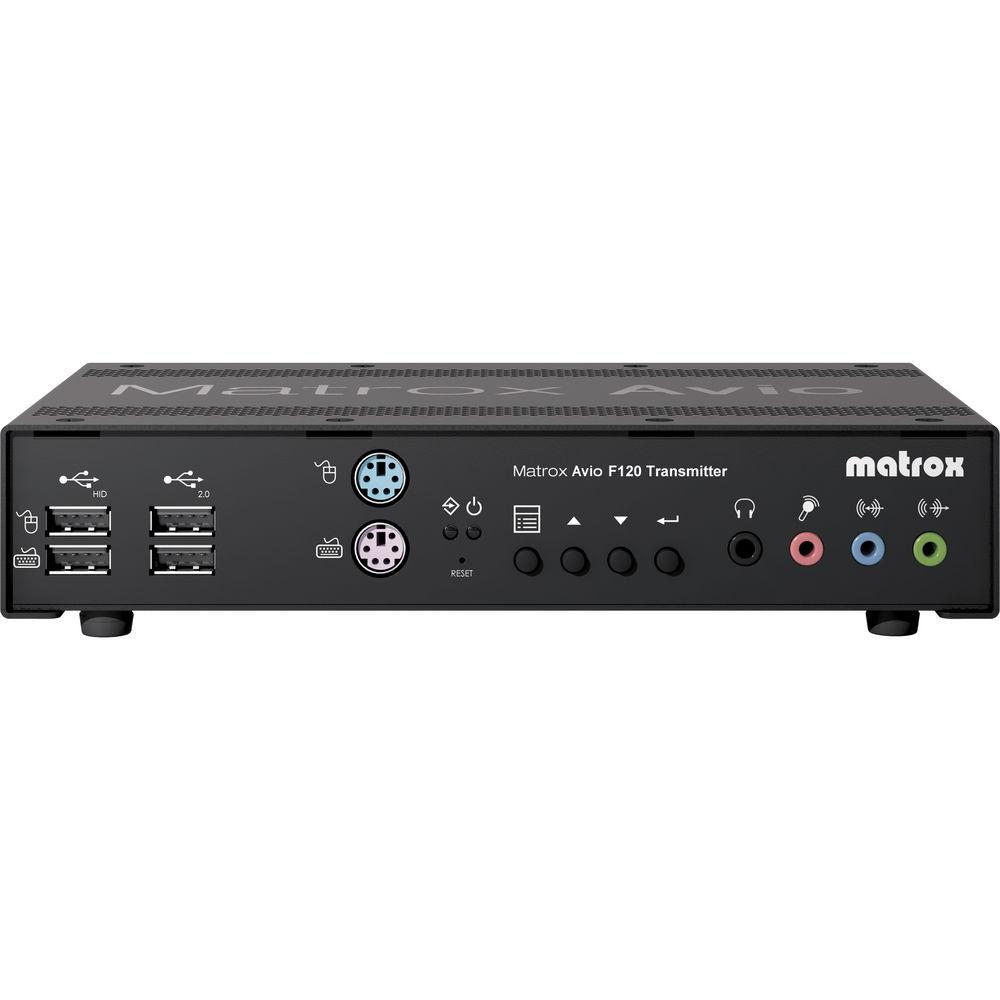

Product description The Avio AV-F125TXF Dual-DVI Fiber Optic KVM Transmitter from Matrox is used in tandem with an Avio AV-F125RXF Dual-DVI Fiber Optic KVM Receiver and allows you to remotely or locally control a computer over fiber optic cables. This transmitter unit captures the I/O functionality of the host computer and sends it uncompressed over a single duplex LC-LC fiber optic cable to the receiver unit, letting you separate the computer from the user environment and place it in a climate-controlled machine room.This device transmits audio, dual digital video, and USB signals, and is suitable for design, 3D visualization, process control, broadcast, post-production, industrial, and military applications where system performance and security are key requirements. Its high-bandwidth transmission maintains system performance and does not introduce any latency or dropped frames. Note: AV-F125RXF Receiver and fiber optic cable sold separately. - 10Gb/s SFP+ unit enables uncompressed video transmission at full frame rate across a single duplex LC-LC fiber optic cable
- Smooth HD, 2k, and 4k video playback without frame drops
- Support for 2 single-link DVI monitors or one dual-link DVI display
- Digital-to-analog conversion enables support for 2 VGA monitors with a maximum resolution of 1920 x 1200 at 60 Hz
- USB HID ports for keyboards, mice, touchscreens, and other HID devices
- USB 2.0 high-speed support for touchscreens, printers, scanners, hard drives, and isochronous USB 2.0 audio & video devices
- Maximum transmission range of 1,312' (400m) in multi-mode and 2.5 mi (4.0km) in single mode 1
Please Note: Matrox Avio SFP+ Single-Mode Upgrade Kit (sold separately) required for single-mode transmission close - Analog stereo audio support
- DDC compliance and advanced EDID management ensure reliable communication between the system and the remote displays
- HDCP compliance for protected content playback 2
Please Note: HDCP pass through requires an HDCP compliant video source and destination. By default, HDCP is disabled and can be enabled through the Avio OSD. close - PS/2 keyboard and mouse support for industrial or legacy systems
- Local outputs for easy maintenance or to share the remote desktop on a collaborative video wall
- Passive cooling for silent operation and extra reliability
- On-Screen Display (OSD) menu for viewing diagnostic information and accessing advanced configuration options
- Rack mountable or standalone
- Plug & play design for easy deployment with no software installation
- Compatible with Microsoft Windows, Mac OS X, Linux, and UNIX operating systems, and select APCON IntellaPatch Series 3000 Extended Capacity (XE) Fiber Optic Network Switches

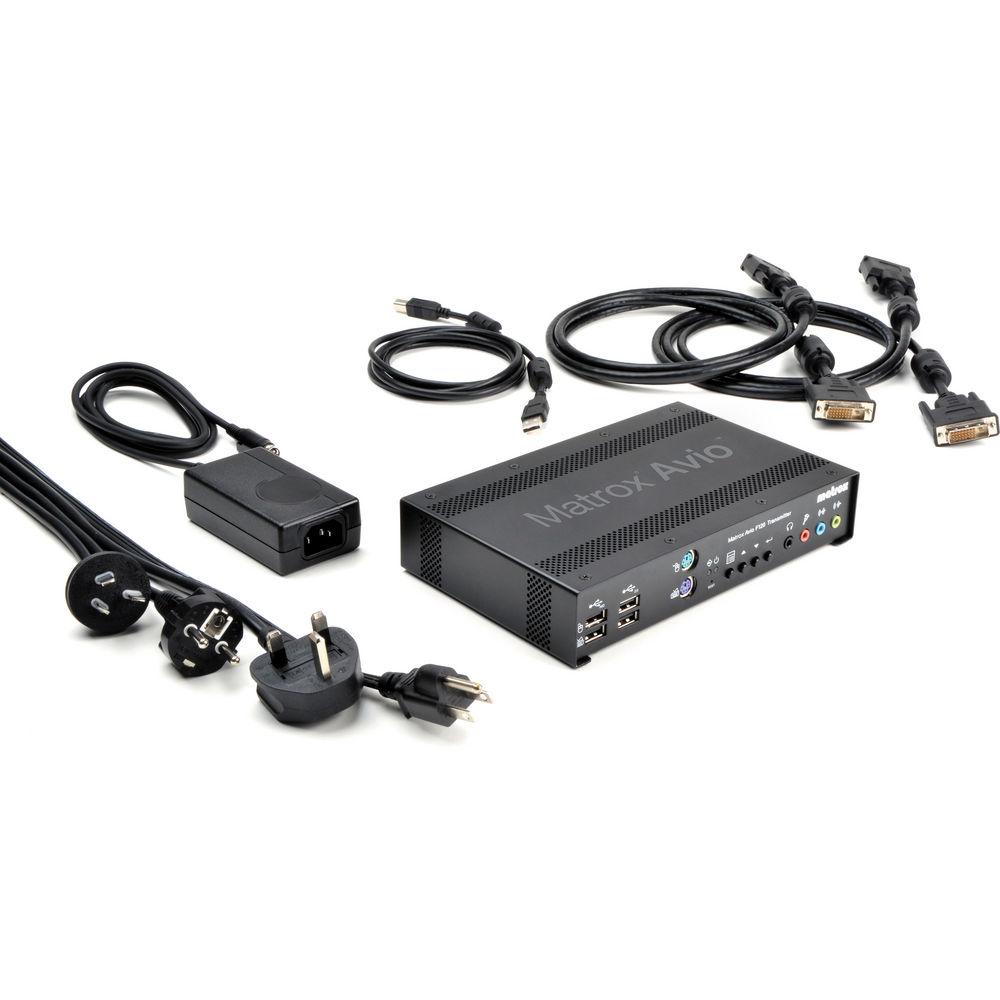

UPC: 790750241784 In the Box Matrox Avio AV-F125TXF Dual-DVI Fiber Optic KVM Transmitter 2 x DVI-D Cable USB Cable (A to B Connectors) 2 x Analog Audio Cable Power Supply 4 x Power Cord (For North America/Japan, UK, Australia/China, and Continental Europe/China) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox Avio AV-F125TXF Dual-DVI Fiber Optic KVM Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

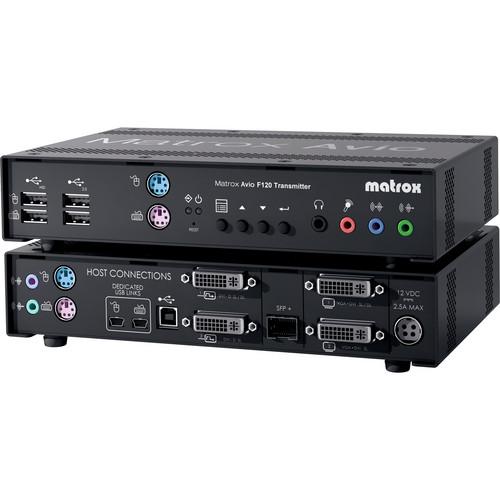

Technical parametersMatrox Avio F125 Specs | Connections | To Host System
Video Connectors: 1 x DVI-D SL/DL, 1 x DVI-D SL
USB: 3 x USB HID Type Mini-B, 1 x USB 2.0 Type B
Input: 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Audio: 1 x 3.5 mm line in, 1 x 3.5 mm line outTo Local Devices
Video Connectors: 1 x DVI-I SL/DL, 1 x DVI-I SL, 2 x Analog VGA
USB: 2 x USB HID Type A, 2 x USB 2.0 Type A
Input: 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Audio: 1 x 3.5 mm line in, 1 x 3.5 mm line out, 1 x 3.5 mm headphone out, 1 x 3.5 mm mic in In Dual-link DVI mode, only a single display is supported.
Matrox DVI-to-VGA adapter (sold separately) required for analog VGA output. | | Connectors | 2 x LC connectors for connection with receivers | | Output Resolutions | Maximum Video Resolutions
DVI Single Link: 2 x 1920 x 1200, 60 Hz; 2 x 2048 x 1080, 60 Hz
DVI Dual Link: 1 x 2560 x 1600, 60 Hz; 1 x 4096 x 2160, 24 Hz & 30 Hz
Analog VGA: 2 x 1920 x 1200, 60 Hz | | Status Indicators | 2 x LED | | Mounting | Standalone or rack mountable | | Power Supply | 1 x external, 12 V | | Transmission Range | Multi-Mode: 1312' (400 m) using OM3, OM4 multi-mode 50/125 μm cables, 269' (82 m) using OM2 multi-mode 50/125 μm cables and 108' (33 m) using OM1 multi-mode 62.5/125 μm cables
Single Mode: 2.5 mi (4 km) using OS1, OS2 single-mode 9/125 μm cables Cables sold separately | | Certifications | Class A: ACMA, CE, FCC, VCCI, KCC
Laser Emissions: 850 um laser compliant to 21CFR, Subpart J, Class 1 | | Compatibility | APCON IntellaPatch Series 3000 Extended Capacity (XE) Network Monitor Switches
Ethernet 10 Gb/s Fiber Blades: ACI-3010-E09-3M, ACI-3010-E09-3S, ACI-3010-E18-3M, ACI-3010-E18-3S, ACI-3010-E36-3M, and ACI-3010-E36-3S
Chassis: ACI-3072-XE and ACI-3144-XE | | Dimensions | 8.5 x 1.6 x 5.3" (21.6 x 4.1 x 13.4 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 17.7 x 8.7 x 5.5" |
