User Manual for Matrox C420 Graphics Card Click to enlarge the picture
Contents of the user manual for the Matrox C420 Graphics Card
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
 |
User manual for the Matrox C420 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|

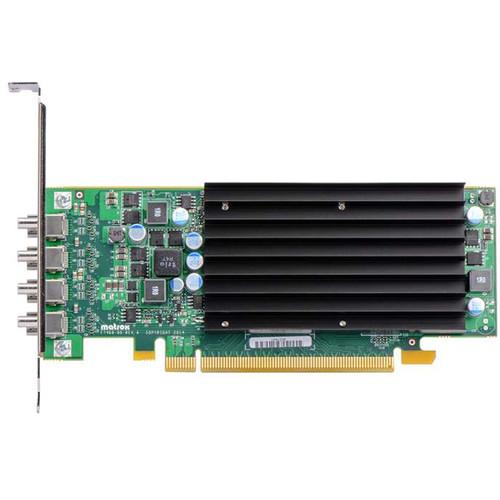

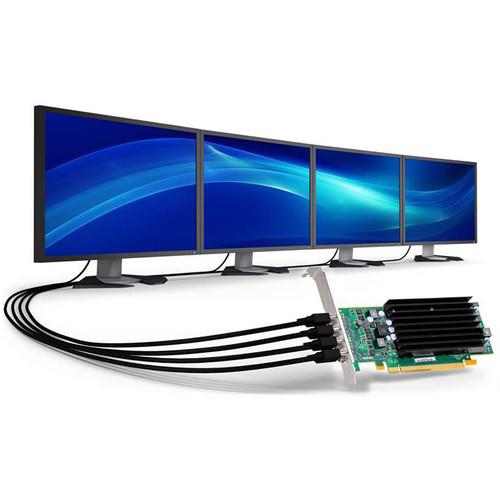

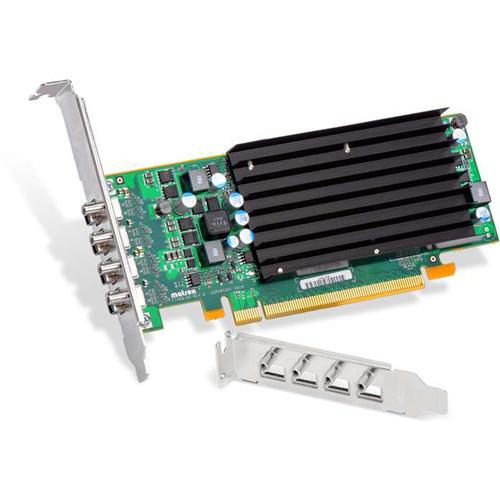

Product description For digital signage and other applications which require a reliable graphics card, the Matrox C420 can support up to four simultaneous outputs while using a passive cooler to eliminate noise. To keep a low-profile and single-slot width form factor, Matrox implemented four mini DisplayPort terminals for output. Each terminal supports resolutions up to 2560x1600 for detailed images. Included with the graphics card are drivers and software which allow you to customize a multi-display layout to fit your application. You can mirror displays, extend desktops, and ensure that your images line up across all displays. You can also split displays into halves and quadrants to display more information. An edge overlap feature allows you to blend multiple projected images for a seamless, high-resolution projection. Bezel management compensates for the space taken up by the monitor bezel in geometric configurations for undistorted representation across multiple screens. Multi-monitor desktops can be set up in any combination of portrait and landscape orientation, you can even mix-and-match for specific workflows. This card is cooled using a passive heatsink. Since it uses no fan or other moving parts, it is silent and reliable under constant use. This type of card works best in tower cases with unrestricted airflow. Already installed is an ATX bracket for use in most common tower cases. For use in smaller systems, a low-profile bracket is included. UPC: 790750246949 In the Box Matrox C420 Graphics Card Low-Profile Bracket Limited 3-Year Warranty User Manual PDF 2.6mbaufeasebdqztxctwdzatxcwrevacxzvyscyy Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox C420 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox C420 Specs | GPU | AMD/Matrox C420: | | Interface | PCI Express 3.0 x 16 | | Memory | Interface: GDDR5
Configuration: 2 GB | | Outputs | 4 x Mini DisplayPort | | Maximum Resolution | DisplayPort: 2560 x 1600
Dual-Link DVI: 2560 x 1600
Single-link DVI: 1920 x 1200
HDMI: 1920 x 1200 | | APIs | OpenGL: 4.4
DirectX: 11.2
OpenCL: 1.2 | | Form Factor | Width: Single-slot
Length: 6.6" (168 mm)
Form Factor: Half-height, Half-length | | Power Consumption | Not Specified by Manufacturer | | Compliance | HDCP | | System Requirements | Power Supply: Not Specified by Manufacturer
PCI Slots: 1 x PCI Express 3.0 x16
RAM: 2 GB
OS: Microsoft Windows 7/Embedded Standard 7/8.1/Server 2008 R2 (64-bit)/Server 2012 R2 (64-bit), Linux
Optical Drive: DVD-ROM drive for software installation (downloads also available) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.9 x 6.5 x 2.2" |
