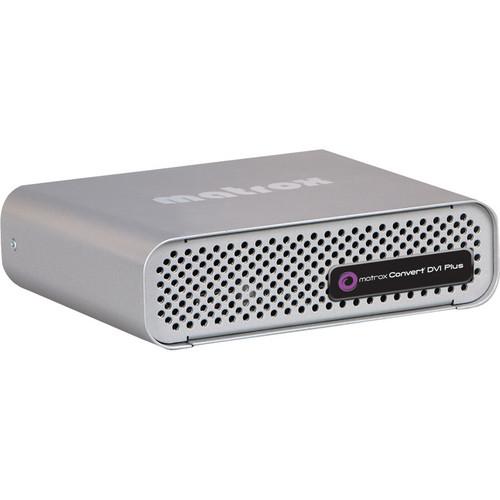

User Manual for Matrox DVI Plus HD-SDI Scan Converter Click to enlarge the picture
Contents of the user manual for the Matrox DVI Plus HD-SDI Scan Converter
- Product category: Signal Converters Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Signal Converters
|
User manual for the Matrox DVI Plus HD-SDI Scan Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The Matrox DVI Plus HD-SDI Scan Converter allows broadcasters to embed the stereo audio input into the SDI output signal. It provides a progressive DVI-D input up to 1920x1200, and offers simultaneous analog/digital video output. Realtime upscaling and downscaling is possible with proper color space and aspect ratio conversion.
SD analog black burst (bi-level) or HD trilevel genlock is available with timing offset controls. The DVI Plus HD-SDI Scan Converter offers region-of-interest support with flexible scaling, positioning, and panning with realtime output update. Background color can be selected, such as super black and super white for downstream keying applications. It also has Proc Amp controls, and consists of features such as anti-flicker filter, customizable presets, password protection, and SD pixel aspect ratio compensation.
The DVI Plus HD-SDI Scan Converter has a hotkey-triggered output signal freeze/unfreeze. It can operate as a stand-alone device independent of a PC to deliver SDI and analog video. - Embeds stereo audio input into the SDI output signal
- Provides a progressive DVI-D input up to 1920x1200
- Offers simultaneous analog/digital video output
- Realtime upscaling and downscaling with proper color space and aspect ratio conversion
- SD analog black burst (bi-level) or HD trilevel genlock with timing offset controls
- Offers region-of-interest support with flexible scaling, positioning, and panning with realtime output update
- Selection of background color including super black and super white for downstream keying applications
- Consists of features such as anti-flicker filter, customizable presets, password protection, and SD pixel aspect ratio compensation
- Hotkey-triggered output signal freeze/unfreeze
- Can operate as a stand-alone device independent of a PC to deliver SDI and analog video
UPC: 630396240683 In the Box Matrox DVI Plus HD-SDI Scan Converter Complimentary Telephone Support Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox DVI Plus HD-SDI Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox DVIPLUS/N Specs | DVI-D Input | Up to 1920 x 1200 | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 10.2 x 8.1 x 4.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
