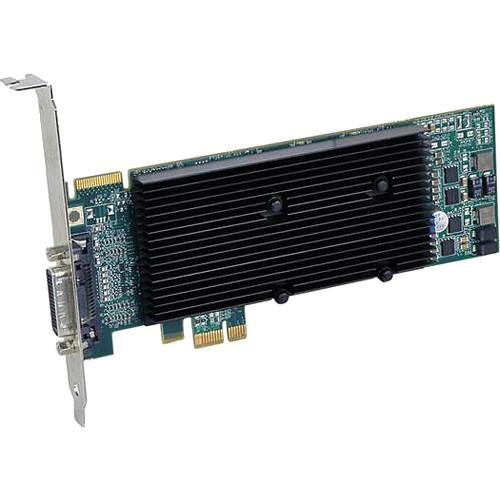

User Manual for Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card Click to enlarge the picture
Contents of the user manual for the Matrox M9120 512MB PCI Express x1
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
|
User manual for the Matrox M9120 512MB PCI Express x1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card renders pristine image quality on up to two displays, at digital resolutions up to 1920 x 1200 or analog resolutions up to 2048 x 1536 each. It also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920 x 1200 each. - High-Resolution Dual Monitor Support
- Support digital resolutions up to 1920 x 1200 and analog resolutions up to 2048 x 1536 per output
- Universal PCI Express
- PCIe x1 format allows card to work in any PCIe slot like PCIe x16, x8, x4 or x1
- Upgrade Option to Four Monitors
- Support four VGA displays via cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
- 512 MB of Memory
- For enhanced performance in demanding multi-monitor applications
- Low-Profile Form Factor
- To fit in a wide variety of systems, includes bracket for full-height ATX form factor
- Passive Cooling and Low Power Consumption
- Fanless design eliminates noise and increases product reliability
- Stretched and Independent Desktop Modes
- Expand your desktop across multiple monitors or set each monitor independent of each other
- Edge Overlap
- Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors
- M-Series Multi-Card Support
- Add an additional M-Series card into the same system to drive up to 12 displays from two cards 1
Please Note: Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays close - Joined Graphics Card Mode
- Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop 2
Please Note: Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card close - Matrox Clone
- View a copy of one display on the other displays
- Wide Enterprise Flexibility
- Unified driver package compatible with other Matrox products
- Matrox PowerDesk Software
- Easily configure and manage program windows on multiple monitors
- Multiple Operating System Support
- Display drivers for Windows 7 (32 / 64-bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64-bit), Windows Server 2003 / 2008 (32 / 64-bit) and Linux
UPC: 790750236124 In the Box Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card Low-Profile Bracket LFH60 to 2x DVI-I Dual Monitor Adapter Cable, 1' (0.30 m) 2 x DVI-I to HD15 Connector Adapters Matrox Display Drivers and PowerDesk Desktop Management Software 3 Year Warranty User Manual PDF 3.2mbafrzxyxyxwytzdqxrwxuqfeuaue Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox M9120 512MB PCI Express x1 Low-Profile Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox M9120 Specs | Bus Type | PCIe x1 | Graphics Memory | 512 MB DDR2 | Card Form Factor (PCB / Bracket) | Low-Profile / ATX | | Connectors | LFH-60 | DVI to Analog (HD15) Adapters | 2 | | Max Digital Resolution Per Output | 1920 x 1200 | Max Analog Resolution Per Output | 2048 x 1536 (1920 x 1200 with quad analog upgrade cable) | Max Display Outputs Per Card | 2 (4 with analog upgrade cable) | Supported Display Output Types | DVI SL, Analog | | Independent Desktop Mode | Yes | Stretched Desktop Mode | Yes | Matrox Clone | Yes | Pivot Support | Yes | Passive Cooling | Yes | Unified Driver Package | Yes | PowerDesk Software | Yes | Open GL Support | 2.0 | | EMC Certifications | Class B | Supported Operating Systems | Windows 7 (32 / 64-bit), Windows Vista (32 / 64-bit), Windows XP (32 / 64-bit), Windows Server 2003 / 2008 (32 / 64-bit) and Linux | Dimensions (LxH) | 6.6 x 2.7" (16.76 x 6.85 cm) | Weight | Not specified by the manufacturer | | Package Weight | 1.35 lb | Box Dimensions (LxWxH) | 14.1 x 6.9 x 1.7" |
