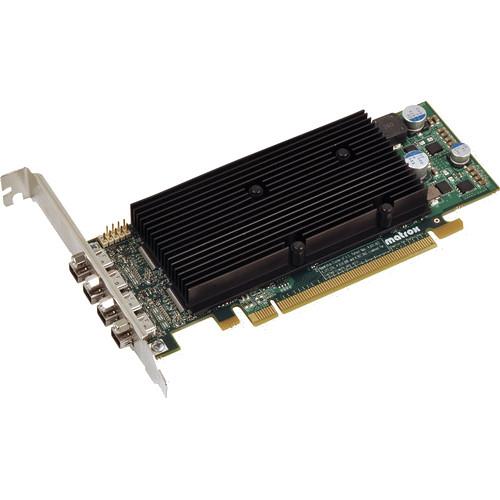

User Manual for Matrox M9148 Low-Profile PCIe x16 Graphic Display Card Click to enlarge the picture
Contents of the user manual for the Matrox M9148 Low-Profile PCIe x16 Graphic
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
|
User manual for the Matrox M9148 Low-Profile PCIe x16 Graphic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The Matrox M9148 Low-Profile PCIe x16 Graphic Display Card is a quad graphics card that renders pristine image quality for up to four DisplayPort monitors at resolutions up to 2560 x 1600 per output for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, the M9148 LP PCIe x16 card supports independent or stretched desktop modes and drives business, industrial and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support and can be paired with another M9148 graphics card to support up to eight DisplayPort monitors from a single system. - High-Resolution Four DisplayPort Monitor Support
- Support resolutions up to 2560 x 1600 per output
- Native PCI Express x16 Performance
- Maximum bandwidth to ensure best performance
- 1 GB of Memory
- For enhanced performance in demanding multi-monitor applications
- Low-Profile Form Factor
- To fit in a wide variety of systems; includes bracket for full-height ATX form factor
- Passive Cooling and Low Power Consumption
- Fanless design eliminates noise and increases product reliability
- Edge Overlap New for Windows 7
- Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors
- Stretched and Independent Desktop Modes
- Expand your desktop across multiple monitors or set each monitor independent of each other
- M-Series Multi-Card Support
- Add an additional M-Series card into the same system to drive up to 12 displays from two cards 1
Please Note: Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays. close - Joined Graphics Card Mode
- Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop 2
Please Note: Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card close - Matrox Clone
- View a copy of one display on the other displays
- Wide Enterprise Flexibility
- Unified driver package compatible with other Matrox products
- Matrox PowerDesk Software
- Easily configure and manage program windows on multiple monitors
- Multiple Operating System Support
- Display drivers for Windows 7 (32/64 bit), Windows Vista (32/64 bit), Windows XP (32/64 bit), Windows Server 2003/2008 (32/64 bit) and Linux
UPC: 790750240053 In the Box Matrox M9148 Low-Profile PCIe x16 Graphic Display Card Low-Profile Bracket Four miniDP to DP Adapters Four DP to DVI Connector Adapters CD with Matrox Display Drivers and PowerDesk Desktop Management Software 3 Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox M9148 Low-Profile PCIe x16 Graphic Display Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox M9148 Specs Bus Type | PCIe x16 | Graphics Memory | 1024 MB | Card Form Factor (PCB / Bracket) | LP / ATX | Extra bracket in the box | LP | Card Dimensions(LxH) | 6.6 x 2.7" (16.76 x 6.86cm) | On-Board Connectors | 4 x Mini DisplayPort | Adapters | 4 x Mini DisplayPort to DisplayPort | Max Display Outputs Per Card | 4 | Supported Display Output Types | DisplayPort , DVI SL Using aftermarket cable upgrade | Max DisplayPort Resolution/Output | 2560 x 1600 | Max DVI Resolution per Output | 1920 x 1200 | Independent Desktop Mode | Yes | Stretched Desktop Mode | Yes | Matrox Clone | Yes | Pivot Support | Yes | Passive Cooling | Yes | Unified Driver Package | Yes | PowerDesk Software | Yes | EMC Certifications | Class B | Aftermarket Cable/Adapter Upgrades | DisplayPort to DVI-D (DVI Single-Link) | Supported Operating Systems | Windows 7 (32/64bit), Windows Vista (32/64bit), Windows XP (32/64bit), Windows Server 2003/2008 (32/64bit), and Linux | Open GL Support | 2.0 | Environmental | ROHS & WEEE compliant | | Package Weight | 1.75 lb | Box Dimensions (LxWxH) | 14.0 x 6.9 x 1.7" |
