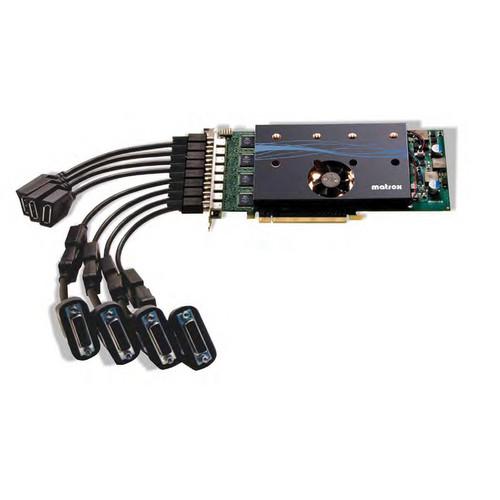

User Manual for Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card Click to enlarge the picture
Contents of the user manual for the Matrox M9188 PCIe x16 Multi-Display Octal
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
|
User manual for the Matrox M9188 PCIe x16 Multi-Display Octal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The M9188 PCIe x16 Multi-Display Octal Graphics Card from Matrox supports eight high-resolution monitors. With 2 GB of memory and advanced desktop management features, it supports both stretched and independent desktop modes in Microsoft Windows 7, Vista and XP. It features resolutions of up to 2560 x 1600 for DisplayPort monitors and 1920 x 1200 for DVI single-link monitors. The M9188 Graphics Card provides benefits such as long life-cycles, top-to-bottom manufacturing and unified display driver models for easy deployment across multiple systems. It delivers advanced desktop management features to drive energy, transportation, process control, financial trading and other monitoring environments with extraordinary performance. - Single-Slot Card
- The M9188 Graphics Card saves you valuable slot space and allows you to add multiple Matrox boards to support up to 16 displays*. 1
Please Note: *Operating system, system hardware and driver compatibility need to be verified for large monitor configuration arrays close - 2 GB of Memory
- The graphics card features 2 GB of memory for enhanced performance in demanding multi-monitor control room monitoring applications.
- Native PCIe x16 Performance
- The M9188 Graphics Card provides maximum bandwidth to ensure best performance.
- Pristine Image Quality for High Resolution Monitors
- It supports resolutions of up to 2560 x 1600 for DisplayPort monitors and 1920 x 1200 for DVI single-link monitors.
- Stretched and Independent Desktop Modes
- The graphics card supports both stretched and independent desktop modes in Microsoft Windows 7, Vista and XP.
- Easy Deployment and Wide Enterprise Flexibility
- The M9188 Graphics Card retains core Matrox benefits such as long life-cycles, top-to-bottom manufacturing and unified display driver models for easy deployment across multiple systems. Thus, it is compatible with other Matrox products.
- Multiple Operating System Support
- The M9188 Graphics Card display drivers support Windows 7, Vista (32/64-bit), XP (32/64-bit), Server 2003/2008 (32/64-bit) and Linux.
UPC: 790750240268 In the Box Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card 3 Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox M9188 PCIe x16 Multi-Display Octal Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox M9188 Specs | Bus Type | PCIe x16 | | Graphics Memory | 2048 MB | | Form Factor | ATX | | Outputs | 8x per card | | Connectors | 8x mini DisplayPort | | Support | For DisplayPort and DVI single-link outputs | | Adapters | 8x mini DisplayPort to DisplayPort adapters 8x DisplayPort to DVI single-link adapters | | Max DVI Resolution per Output | 1920 x 1200 | | Max DisplayPort Resolution/Output | 2560 x 1600 | | Independent Desktop Mode | Yes | | Stretched Desktop Mode | Yes | | Pivot Support | Yes | | Unified Driver Package | Yes | | PowerDesk Software | Yes | | Open GL Support | 2.0 | | Supported Operating Systems | Windows 7, Vista (32/64-bit), XP (32/64-bit), Server 2003/2008 (32/64-bit) and Linux | | Compliance | RoHS and WEEE | | EMC Certifications | Class B | | Dimensions (LxH) | 9.0 x 4.4" (22.86 x 11.18 cm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 18.0 x 8.8 x 4.4" |
