Product description

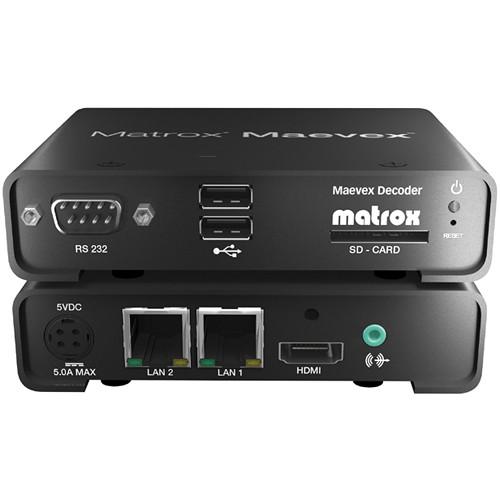

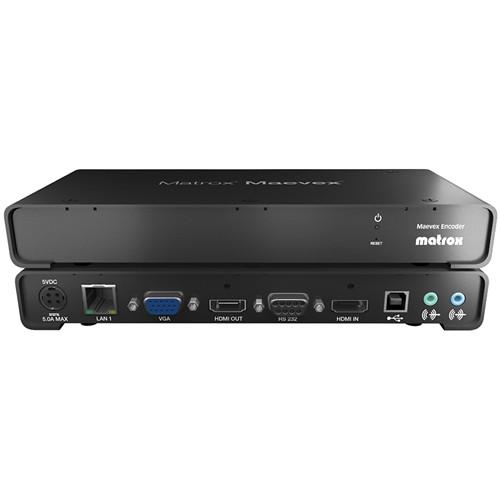

The Matrox Maevex Encoder & Decoder solution, consisting of a Maevex 5100 Series Encoder and Decoder, allows you to extend or record up to 1080p60 video and audio over a standard IP network at user-defined low bit rates. The Maevex Encoder streams or records high-quality video and audio and uses the H.264 video compression standard. It can stream to Maevex Decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive.

Matrox's PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network as well as let administrators define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs.
    Encoding
    • Extend/record up to Full HD 1080p60 and 1920x1200 video and audio
    • H.264 compression for high-quality, low-bandwidth AV-over-IP
    • Support for wide-screen and standard aspect ratios and many resolutions
    • Scale streams before distribution for lower bandwidth consumption
    • HDMI or analog audio support
    • Open encoding allows for third-party software decode (e.g. VLC)
    Recording
    • Record up to 1080p60/1920x1200 to NAS or shared network drive
    • Control frequency and duration of recording
    • Schedule the start time and date of recording sessions
    • Recorded user-defined file name includes timestamp for easy file management
    Network Management
    • Operates on standard 100/1000 Mb Ethernet networks
    • Auto-detect and discover Maevex units on subnet (DHCP server required)
    • Full/half-duplex mode and static IP address support
    • CBR, VBR support
    • Network bit-rate control (100 Kbps - 25 Mbps)
    Failsafe
    • Play back pre-recorded content at the decoder in case of a network or streaming disruption
    • Programmable time delay before failsafe activates
    Maevex API
    • Integrate Maevex features in existing or new control software
    • Based on easy-to-use .NET programming language
    • Provided to select developers (determined on case-by-case basis; NDA may be required)
    PowerStream Control Software
    • Remotely manage Maevex network from different locations
    • Conveniently access IP address, bit rate, and other vitals
    • Fine-tune encode/decode parameters and adjust bit rates
    • Scale and crop content to fit different outputs
    Other Features
    • Daisy-chain decoders and extend network via integrated network switch
    • Failure resilience - power, network, and device auto-recovery features
    • Full duplex RS-232 control
    • Reliable, solid-state, energy-efficient design
    • Local real-time pass-through and confidence preview on encoder
    • PowerStream-controlled user access from secured PC
    • Detailed LED indicators for easy and effective troubleshooting
    • Customizable bitmap for encoder/decoder splash screen
UPC: 790750225784 In the Box Matrox Maevex H.264 Encoder & Decoder
  • 2 x Power Supplies with US, EU, GB/HKG, and AU/NZL Adapters
  • CAT5e Ethernet Cable, 6 ft (1.8 m)
  • DVI Male to HDMI Female Adapter
  • 3.5mm Analog Stereo Audio Cable, Male to Male, 6 ft (1.8 m)
  • 2 x Quick Setup Guide
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Matrox Maevex H.264 Encoder & Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Matrox MVX-ED5150F Specs

    Video Input Encoder: HDMI with digital L-PCM audio
    Video Output Encoder:
    HDMI with digital L-PCM audio
    HD15, Analog VGA
    ProCamp control: contrast, brightness, saturation, hue
    Scaled output (i.e., 1080p60 input/720p60 scaled output)

    Decoder:
    HDMI with digital L-PCM audio
    ProcAmp control: contrast, brightness, saturation, hue
    Destination cropping support
    Independent failsafe output
    Audio Line In Encoder: 3.5 mm analog stereo audio
    Audio Line Out Encoder: 3.5 mm analog stereo audio
    Decoder: 3.5 mm analog stereo audio
    Network Connection Encoder: RJ45
    Decoder: 2x RJ45 (fully switched)
    Supported Input / Output Resolutions Up to 1920x1080p60 and 1920x1200 (60 Hz)
    Video Encoding / Decoding Single-Channel HD: Up to 1920x1080p60 and 1920x1200(56Hz)
    Compression Standard: H.264/MPEG4 Part 10 (AVC)
    Profiles: Baseline, Main, High
    Levels: Up to 4.2
    Bit Rates: 100 Kbps to 25 Mbps
    Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) Size
    Audio Encoding / Decoding Compression Standard: MPEG4 AAC-LC
    Channels: 2 channel (stereo), HDMI with digital L-PCM audio
    Analog Sample Frequency: 32, 44.1, and 48 kHz
    Bit Rates: 96, 128, 192, and 256 Kbps
    Networking Interface 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
    Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
    Command & Control Protocols: HTTP/HTTPS
    IPV4 Support
    Unicast, Multicast, and Multi Unicast
    DHCP (Default) / Fixed IP Address support
    CAT5-or-higher network cable support
    OS Support Windows 8 (32-bit, 64-bit)
    Windows Server 2012 & 2012R2 (64-bit)
    Windows 7 (32-bit, 64-bit)
    Windows Server 2008 R2 (64-bit)

    *Microsoft .NET 4.5 is required for all
    Power Supply 100-240 V AC In, 5 VDC Out, 15 W
    DIN4 Locking Power Connector
    Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL
    Regulatory CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE
    Operating Temperature 32 to 113°F (0 to 45°C)
    Non-Operating Temperature -40 to 131°F (-40 to 55°C)
    Operating Humidity 20 to 80% (non-condensing)
    Non-Operating Humidity 5 to 95% (non-condensing)
    Mean Time Between Failures (MTBF) Encoder: 135.05 years @ 104°F (40°C) (excluding power supply)
    Decoder: 164.81 years @ 104°F (40°C) (excluding power supply)
    External Power Supply: 11.45 years @ 77°F (25°C), full load
    Fanless (no moving parts)
    Rackmount Optional rackmount tray supported
    Encoder: Dual Density 1U
    Decoder: Triple Density 1U (horizontal mount); or 10-unit density in 3U (vertical mount)
    Dimensions Encoder: 8.5 x 1 x 4" (22 x 2.6 x 10.2 cm)
    Decoder: 5 x 1 x 4.3" (13 x 2.6 x 11 cm)
    Weight Encoder: 0.83 lb (378 g) (excluding external power supply and power cords)
    Decoder: 0.63 lb (286 g) (excluding external power supply and power cords)
    Package Weight 5.0 lb
    Box Dimensions (LxWxH) 14.1 x 5.6 x 5.6"
