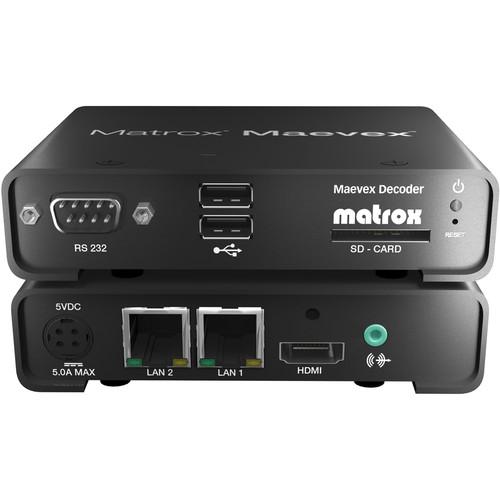

User Manual for Matrox MVX-D5150F Maevex H.264 Decoder Click to enlarge the picture
Contents of the user manual for the Matrox MVX-D5150F Maevex H.264 Decoder
- Product category: Signal Converters Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Signal Converters
|
User manual for the Matrox MVX-D5150F Maevex H.264 Decoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The Matrox MVX-D5150F Maevex H.264 Decoder allows you to decode video and audio over a standard IP network at a user-defined bit rate. It records high-quality video and audio and uses the H.264 video compression standard. The decoder can playback to Maevex encoder or any device or PC that supports the required network protocols. Matrox's PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network. The software also allows the administrators to define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs. - Decoding
-
- Decodes up 1080p and 1920 x 1200 video as well as audio
- H.264 compression
- Support for widescreen and standard aspect ratio at multiple resolution
- De-scales streams before playback
- HDMI or analog audio support
- Plays up to 1080p/1920 x 1200 to NAS or shared network drive
- Network Management
-
- Operates on standard 100/1000 Mb Ethernet networks
- Auto-detect and discover Maevex units on subnet (DHCP server required)
- Full/half-duplex mode and static IP address support
- CBR, VBR support
- Network bit-rate control (100 kbps to 25 Mbps)
- Failsafe
-
- Plays back pre-recorded content at the decoder in case of a network or streaming disruption
- Programmable time delay before failsafe activates
- PowerStream Control Software
-
- Remotely manage Maevex network from different locations
- Conveniently access IP address, bit rate, and other information
- Fine-tune decoding parameters and adjust bit rates
- Scale and crop content to fit different outputs
- Maevex API
-
- Integrate Maevex features in existing or new control software
- Based on easy-to-use .NET programming language
- Provided to select developers (determined on case-by-case basis; NDA may be required)
- Other Features
-
- Supports daisy-chaining and extends network via integrated network switch
- Failure resilience - power, network, and device auto-recovery features
- Full duplex RS-232 control
- PowerStream-controlled user access from secured PC
- Detailed LED indicators for easy and effective troubleshooting
- Customizable bitmap for decoder splash screen
- Applications
-
- Healthcare
- Automation/production
- Education and training
- Security
- Banking
- Transportation
- Dynamic digital signage
UPC: 790750243979 In the Box Matrox MVX-D5150F Maevex H.264 Decoder Power Supply and Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox MVX-D5150F Maevex H.264 Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox MVX-D5150F Specs | Network Connectors | 2 x RJ45 (fully switched) | | Video Output | HDMI with digital L-PCM audio
Supports resolution up to 1920x1200
ProcAmp Control: Contrast, brightness, saturation, hue
Supports destination cropping
Independent failsafe output | | Audio Line Out | 3.5 mm analog stereo audio | | Decoding | Video
Single-Channel HD: Up to 1920 x 1080p (60 Hz) and 1920 x 1200 (56 Hz)
Compression Standard: H.264/MPEG4 Part 10 (AVC)
Profiles: Baseline, main, high
Levels: Up to 4.2
Bit Rates: 100 kbps to 25 Mbps
Rate Control: CBR, VBR, favor speed, favor quality, adjustable GOP (group of pictures) size
Audio
Compression Standard: MPEG4 AAC-LC
Channels: 2-channel (stereo), HDMI with digital L-PCM audio
Analog Sample Frequency: 32, 44.1, and 48 kHz
Bit Rates: 96, 128, 192, and 256 kbps | | Networking Interface | 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
Command & Control Protocols: HTTP/HTTPS
IPV4 Support
Unicast, Multicast, and Multi Unicast
DHCP (Default) / Fixed IP Address support
Cat 5-or-higher network cable support | | CMS | Central Command and Control Application:
Resides on any PC network node
Maevex network configuration & control
Decoding control and manipulation
Frame rate and resolution control
Password protection
Failsafe over the network FW updates
Recording (up to 1080p60)
Full duplex RS-232 (point to point) communication
Full-feature API available | | OS Support | Windows 8 & 8.1 (32-bit, 64-bit)
Windows Server 2012 & 2012 R2 (64-bit)
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2 (64-bit) Microsoft .NET 4.5 is required for all | | Power Supply | 100 to 240 VAC In, 5 VDC Out, 15 W
DIN4 locking power connector
Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL | | Regulatory | CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Non-Operating Temperature | -40 to 131°F (-40 to 55°C) | | Operating Humidity | 20 to 80% (non-condensing) | | Non-Operating Humidity | 5 to 95% (non-condensing) | | Mean Time Between Failures (MTBF) | 164.81 years @ 104°F (40°C) (excluding power supply)
External Power Supply: 11.45 years @ 77°F (25°C), full load
Fanless (no moving parts) | | Dimensions | 5.1 x 1.0 x 4.3" (12.8 x 2.6 x 10.9 cm) | | Weight | 10 oz (286 g) (excluding external power supply and power cords) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 14.0 x 5.6 x 3.0" |
