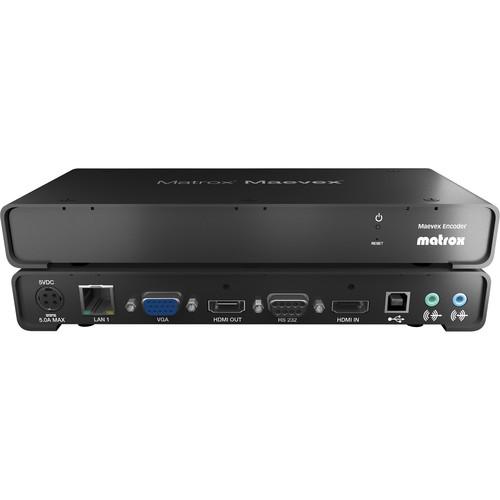

User Manual for Matrox MVX-E5150F Maevex H.264 Encoder Click to enlarge the picture
Contents of the user manual for the Matrox MVX-E5150F Maevex H.264 Encoder
- Product category: Signal Converters Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Signal Converters
|
User manual for the Matrox MVX-E5150F Maevex H.264 Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|
Product description The Matrox MVX-E5150F Maevex H.264 Encoder allows you to encode video and audio over a standard IP network at a user-defined bit-rate. It records high-quality video and audio and uses the H.264 video compression standard. The encoder can record to Maevex decoders or any device or PC that supports the required network protocols. It can also record to a shared network or NAS drive. Matrox's PowerStream software is included and is used to remotely discover, manage, and adjust the Maevex network. The software also allows the administrators to define multiple stream parameters and balance network bandwidth consumption and quality. The Maevex API is also available to enable programmers to integrate current features into existing applications or create new, independent PowerStream-like software to meet specific needs. - Encoding
-
- Extend/record up to 1080p and 1920x1200 video and audio
- H.264 compression for high-quality, low-bandwidth AV-over-IP
- Support for wide-screen and standard aspect ratios and many resolutions
- Scale streams before distribution for lower bandwidth consumption
- HDMI or analog audio support
- Open encoding allows for third-party software decode (e.g. VLC)
- Recording
-
- Record up to 1080p/1920x1200 to NAS or shared network drive
- Control frequency and duration of recording
- Schedule the start time and date of recording sessions
- Recorded user-defined file name includes timestamp for easy file management
- Network Management
-
- Operates on standard 100/1000 Mb Ethernet networks
- Auto-detect and discover Maevex units on subnet (DHCP server required)
- Full/half-duplex mode and static IP address support
- CBR, VBR support
- Network bit-rate control (100 Kbps - 25 Mbps)
- PowerStream Control Software
-
- Remotely manage Maevex network from different locations
- Conveniently access IP address, bit rate, and other information
- Fine-tune encoding parameters and adjust bit rates
- Scale and crop content to fit different outputs
- Maevex API
-
- Integrate Maevex features in existing or new control software
- Based on easy-to-use .NET programming language
- Provided to select developers (determined on case-by-case basis; NDA may be required)
- Other Features
-
- Supports daisy-chaining and extends network via integrated network switch
- Failure resilience – power, network, and device auto-recovery features
- Full duplex RS-232 control
- Local real-time pass-through and confidence preview on encoder
- PowerStream-controlled user access from secured PC
- Detailed LED indicators for easy and effective troubleshooting
- Customizable bitmap for encoder/decoder splash screen
- Applications
-
- Healthcare
- Automation/production
- Education and training
- Security
- Banking
- Transportation
- Dynamic digital signage
UPC: 790750243948 In the Box Matrox MVX-E5150F Maevex H.264 Encoder 6' Cat 5e Ethernet Cable DVI Male to HDMI Female Adapter 6' 3.5mm Analog Stereo Audio Cable, Male to Male Power Supply and Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox MVX-E5150F Maevex H.264 Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox MVX-E5150F Specs | Video Input | HDMI with digital L-PCM audio
DVI via DVI-to-HDMI adapter
Supports resolutions up to 1920 x 1080 | | Audio Line In | 3.5 mm analog stereo audio | | Audio Line Out | 3.5 mm analog stereo audio | | Network Connection | RJ45 | | Video Encoding | Single-Channel HD: Up to 1920 x 1080p (60 fps)
Compression Standard: H.264/MPEG4 Part 10 (AVC)
Profiles: Baseline, main, high
Levels: Up to 4.2
Bit Rates: 100 kbps to 25 Mbps
Rate Control: CBR, VBR, Favor Speed, Favor Quality, Adjustable GOP (Group Of Pictures) size | | Audio Encoding | Compression Standard: MPEG4 AAC-LC
Channels: 2 channel (stereo), HDMI with digital L-PCM audio
Analog Sample Frequency: 32, 44.1, and 48 kHz
Bit Rates: 96, 128, 192, and 256 kbps | | Networking Interface | 100/1000base-T Ethernet: 1000 Mbps full duplex, 100 Mbps half/full duplex
Streaming Protocols: RTSP/RTP/RTCP (all required) over UDP
Command & Control Protocols: HTTP/HTTPS
IPV4 Support
Unicast, Multicast, and Multi Unicast
DHCP (Default) / Fixed IP Address support
Cat 5-or-higher network cable support | | CMS | Central Command and Control Application:
Resides on any PC network node
Maevex network configuration & control
Encoding and decoding control and manipulation
Frame rate and resolution control
Password protection
Failsafe over the network FW updates
Recording (up to 1080p60)
Full Duplex RS-232 (point to point)
Full-feature API available | | OS Support | Windows 8 & 8.1 (32-bit, 64-bit)
Windows Server 2012 & 2012 R2 (64-bit)
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2 (64-bit) Microsoft .NET 4.5 is required for all | | Power Supply | 100 to 240 VAC In, 5 VDC Out, 15 W
DIN4 locking power connector
Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL | | Regulatory | CE/FCC/VCCI/ICES/C-Tick/KCC Class B, ROHS/WEEE | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Non-Operating Temperature | -40 to 131°F (-40 to 55°C) | | Operating Humidity | 20 to 80% (non-condensing) | | Non-Operating Humidity | 5 to 95% (non-condensing) | | Mean Time Between Failures (MTBF) | 135.05 years @ 104°F (40°C) (excluding power supply)
External Power Supply: 11.45 years @ 77°F (25°C), full load
Fanless (no moving parts) | | Dimensions | 8.5 x 1.0 x 4.0" (21.6 x 2.6 x 10.2 cm) | | Weight | 0.83 lb (0.38 kg) (excluding external power supply and power cords) | | | | Package Weight | 2.89 lb | | Box Dimensions (LxWxH) | 14.45 x 6.65 x 3.25" |
