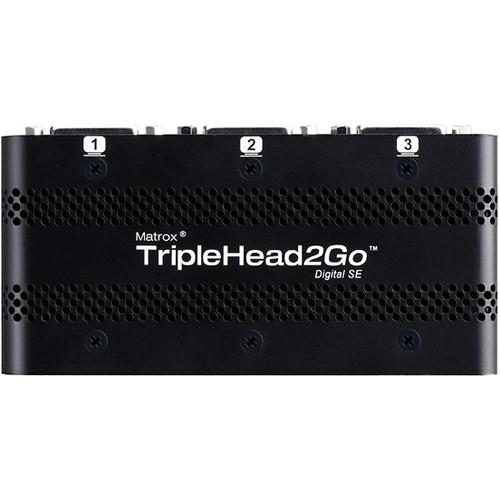

User Manual for Matrox TripleHead2Go Digital SE External Adapter Click to enlarge the picture
Contents of the user manual for the Matrox TripleHead2Go Digital SE External Adapter
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
 |
User manual for the Matrox TripleHead2Go Digital SE External Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|

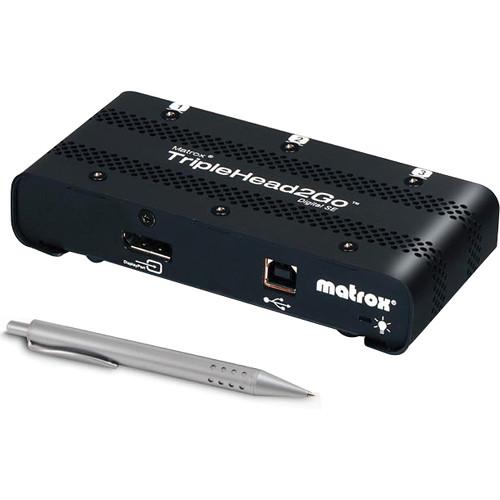

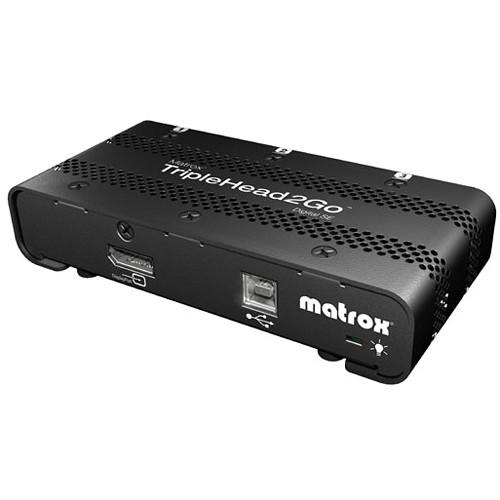

Product description The TripleHead2Go Digital SE External Adapter from Matrox is an external multi-display adapter which allows you to add up to 3 DVI monitors to your laptop or desktop computer. It connects to the video output of your system and uses the system's existing Graphical Processing System (GPU) to provide high-quality, uncompressed graphics and video across all monitors. The adapter maximizes your productivity when you are working with multi-screen setups, providing more desktop space. It also allows you to run different applications on each display or view one application across multiple monitors. It drives a stretched desktop with a maximum resolution of 5760 x 1080 (3 x 1920 x 1080) or 3840 x 1200 (2 x 1920 x 1200) across 3 or 2 displays respectively. You can connect up to 3 monitors to the single DisplayPort or Mini DisplayPort video output or Thunderbolt port of your system. The adapter is HDCP compliant for protected content playback. If you are a gamer, it provides you with a surround gaming experience by expanding supported 3D games across 3 monitors to achieve a much wider in-game field of view. It supports applications like digital signage, CAD design, Professional Audio Video (ProAV) systems, media creation and more. In addition, it includes Matrox PowerDesk software to easily manage your desktop configuration and is PC and Mac compatible. - Lets you connect up to 3 monitors to the single DisplayPort or Mini DisplayPort video output or Thunderbolt port of your system
- Creates a stretched desktop with a maximum resolution of 5760 x 1080 (3 x 1920 x 1080) or 3840 x 1200 (2 x 1920 x 1200) across 3 or 2 displays respectively
- Uses your system's existing GPU to deliver a solid platform for office, 3D design, multimedia and digital signage applications
- Open an application on each display or span one across multiple screens
- HDCP compliant for protected content playback
- Works with displays and projectors
- Provides a surround gaming experience by expanding supported 3D games across 3 monitors to achieve a much wider in-game field of view
- Matrox Bezel Management compensates for monitor bezel gaps to bring realism to gaming and digital signage (available under Windows only)
- Quick and easy to install
- Spans taskbar across monitors for easy access to all your open applications
- Runs in clone mode and shows the same content on all displays
- Includes Matrox PowerDesk software to easily manage your desktop configuration
- Expand your Windows desktop further by connecting a second TripleHead2Go Digital SE to your graphics hardware to support up to 6 monitors at a time
- Usages
- Business Productivity
TripleHead2Go allows you to use the extra screen space to spread applications across your desktop and increases productivity. It provides you the ability to see critical information at all times for quick decision making and streamline workflow for specialized applications, such as financial services or day trading programs, viewing data across multiple monitors, comparing documents side-by-side, and more
Digital Signage
You can drive 3 HD displays from a single player PC to create digital signage canvases of up to 6 million pixels. In addition to the support of 3 1920 x 1080 monitors at 50 Hz, it also supports a variety of widescreen resolutions to display high-quality, uncompressed digital content across multiple monitors. It can also be used to improve and simplify digital signage applications such as digital menu boards, terminal and concourse information displays, shopping mall kiosks and ambience-enhancing installations
Media Creation & DCC
When you are working with digital content, the extra screen space will allow you to spread out your projects, view multiple palettes, menus, bins, controls and toolbars in your applications. You can also view more layers of video on the timeline, increase the size of your video scopes and frame viewers, as well as customize your entire workspace to improve your workflow. It will also help you maximize your studio real estate, transform your laptop into a productivity powerhouse and comfortably edit video content on your Mac notebook computer
CAD Design & GIS
You can work on your design drafts, architectural models or plans across multiple monitors when using CAD software. You can also expand your perspective and arrange application windows to complete your work more quickly and efficiently It will allow you to add 2 or 3 monitors to your notebook computer for a full surround 3D design experience
ProAV
You can benefit from panoramic images and visuals by integrating TripleHead2Go into your ProAV installations. It works collaboratively with additional hardware (LCDs, CRTs and projectors, video wall controllers) to deliver you impressive visual experiences in a variety of environments including conference rooms, education, worship, training & simulation UPC: 790750242996 In the Box Matrox TripleHead2Go Digital SE External Adapter 3' (1 m) USB Cable DisplayPort to DisplayPort Input Cable Mini DisplayPort to DisplayPort Input Cable Matrox PowerDesk Software 2-Year Limited Warranty User Manual PDF 6.2mbzzvfrdtetbubxxdrtvabs Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox TripleHead2Go Digital SE External Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox T2G-DP3D-IF Specs | Maximum DVI Resolution | 5760 x 1080 (3 x 1920 x 1080)
4080 x 768 (3 x 1360 x 768)

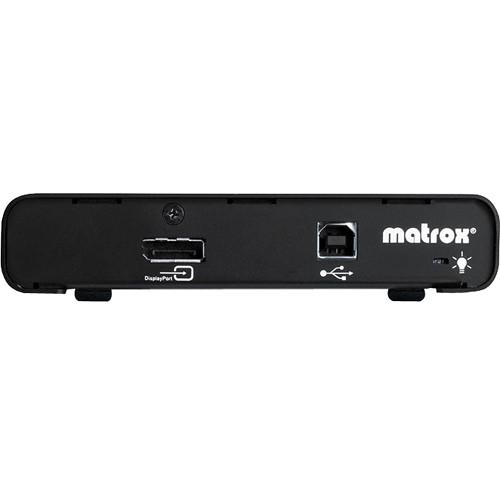

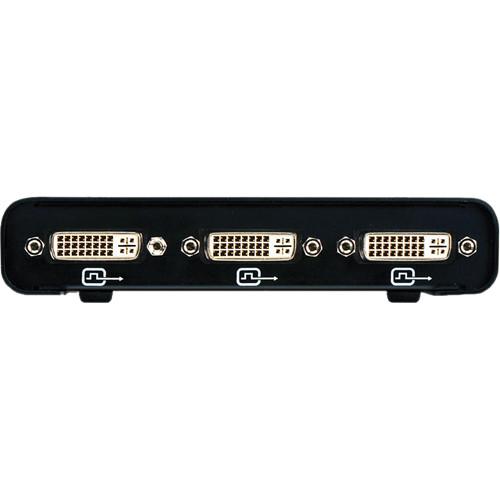

3840 x 1200 (2 x 1920 x 1200) | | Input Connector | 1 x DisplayPort input or Mini DisplayPort or Thunderbolt | | Output Connectors | 3 x DVI-D outputs | | Power | USB | | Clone Mode | Yes | | Stretched Desktop Mode | Yes | | Surround Gaming | Yes | | Matrox Monitor Bezel Management | Yes - available under Windows only | | HDCP Compliant | Yes | | PowerDesk Software | Yes | | Multi-Unit Support | Yes - available under Windows only | | System Requirements | DisplayPort/Mini DisplayPort video output on a compatible PC or Mac system or Thunderbolt port on a compatible Mac system
Powered USB connector
Display driver supporting 3072 x 768 or higher resolution | | Supported Operating Systems | Microsoft Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP (32/64-bit), Windows Server 2012 (32/64-bit) and Windows Server 2003/2008 (32/64-bit)
Mac OS X Lion (10.7) and Mac OS X (10.6, 10.5)
Linux | | Dimensions (LxWxH) | 5.25 x 2.5 x 1.1" (133.4 x 64.0 x 28.0 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 1.5" |
