User Manual for Matrox TripleHead2Go DP Edition External GXM Click to enlarge the picture
Contents of the user manual for the Matrox TripleHead2Go DP Edition External GXM
- Product category: Graphic Display Cards Matrox
- Brand: Matrox
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrox Graphic Display Cards
 |
User manual for the Matrox TripleHead2Go DP Edition External GXM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrox product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrox user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrox product will considerably shorten its lifespan!
|

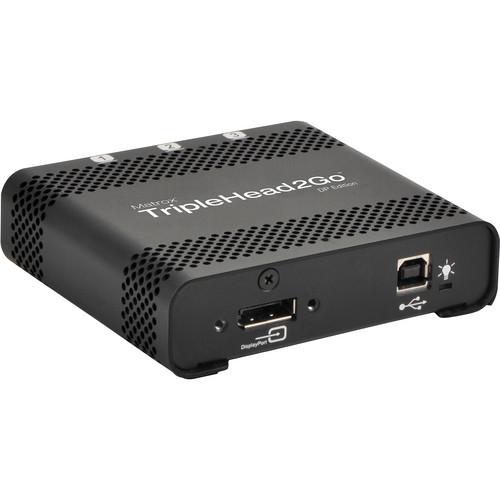

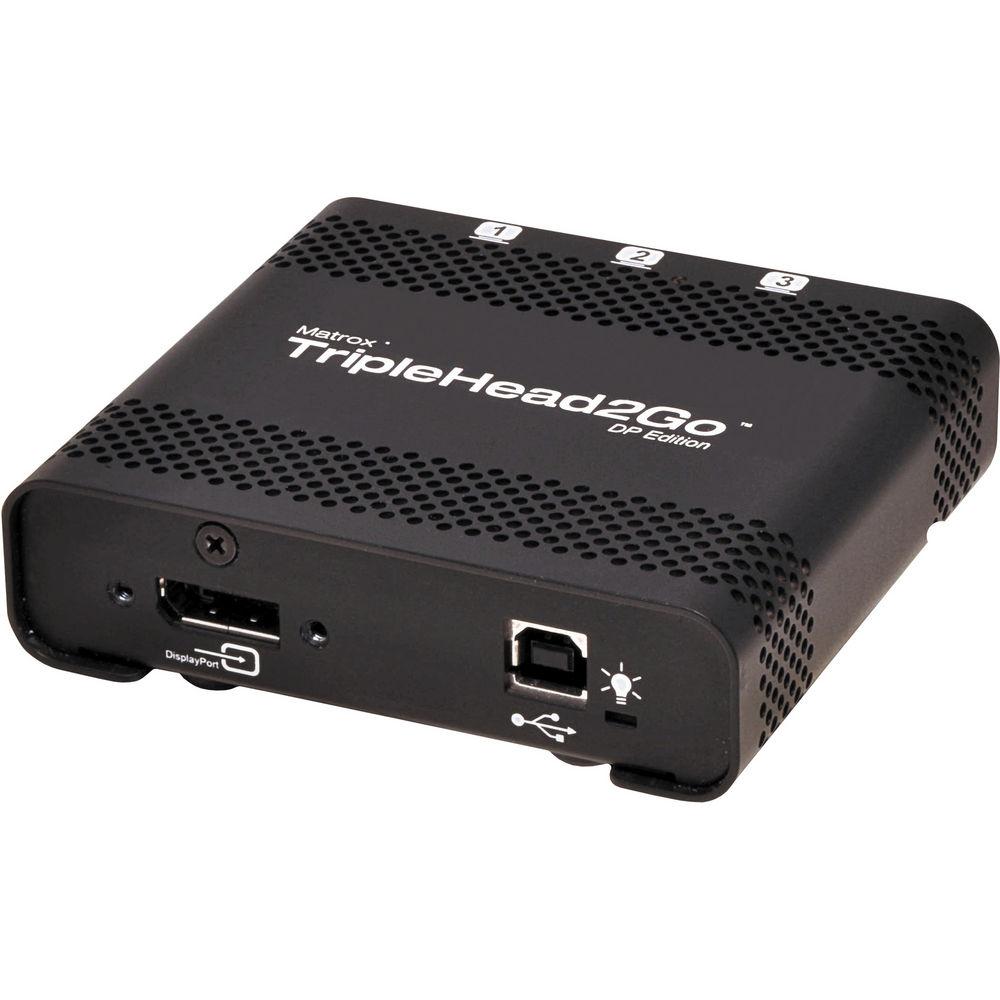

Product description The TripleHead2Go DP Edition External GXM from Matrox is an external Graphics eXpansion Module that lets you drive 3 displays, each at up to 1920 x 1080 resolution, from a single DisplayPort (DP) connector. This allows you to drive 3 displays from a laptop or from a desktop that only has one DisplayPort. You can also drive the 3 displays at 1680 x 1050 resolution each, or you can drive just 2 at 1920 x 1200 resolution each. The module allows you to drive displays using DVI, VGA, HDMI and Mini-DP outputs, provided you have the required adapter cables (not included). You can even connect a second TripleHead2Go to your graphics hardware to support up to 6 monitors at a time!
The module uses your system's existing GPU to provide high-quality, uncompressed graphics and video across all monitors. You can run different applications on each display or view one application across multiple monitors. A multi monitor set-up allows you to organize your workspace more efficiently, multi-task more comfortably and make fewer mistakes. Compatible with both Mac and PC, a wide variety of graphics cards, and most chipsets by ATI, Intel and nVIDIA, the TripleHead2Go DP Edition is a great way to quickly and easily add triple monitor capability to a notebook or desktop PC. - Increased Productivity
- A triple monitor configuration can help enhance productivity when working. You'll find it much easier to work with multiple documents and windows at the same time, allowing you to more effectively multitask.
- Surround Gaming
- Using 3 displays for computer gaming can create a more immersive experience. A "surround vision" can create a panoramic effect that makes computer game playing more like a widescreen movie. This increased field of view lets you see more of the game environment. Many popular games support this configuration.
- Bundled Management Software
- Includes Matrox PowerDesk software to easily manage your desktop configuration. Includes Matrox Monitor Bezel Management (Windows only), designed to enhance gaming environments by converting 3 seemingly disjointed images into 1 continuous image, enhancing the surround gaming experience. Matrox Clone Mode is available for viewing a copy of one display on the other displays.
- Versatile Performance
- The TripleHead2Go can be used with a notebook or desktop computer with a DisplayPort. You'll be able to add 3 independent displays to your laptop or desktop from its monitor output. Your computer screen can be displayed on three 1920 x 1080 monitors via DP output for an impressive 5760 x 1080 resolution. Or, you can display your screen on just two 1920 x 1200 monitors via DP, for a total resolution of 3840 x 1200. You can drive HDMI and MDP monitors, as well (cables required), at a maximum resolution of 5040 x 1050 (3x 1680 x 1050).
- Multi-GXM Support
- Want to go further? Expand your desktop even more and connect a second TripleHead2Go to your graphics hardware to support up to 6 monitors at a time! Just combine both units to a dual output graphics card and take advantage of the increased desktop space. Please note: Multiple GXMs are supported under Windows only and GXM software suite 2.06 or above is required. GXMs must be of the same make and model.
- Portable Design
- You can fit the TripleHead2Go in the palm of your hand. This allows you to take it where your notebook goes, giving you the ability to take advantage of triple-monitor displays wherever you have access to them.
- Painless Installation
- Quick and easy to install; there's no need to open the computer case or insert components.
- Easy Access
- Spans taskbar across monitors for easy access to all your open applications.
- Wide Compatibility
- The device works with LCDs, CRTs and projectors. It's compatible with both PC and Mac computers, as well as a wide range of notebook and desktop video cards. It supports most graphics chipsets by ATI, Intel and nVIDIA.

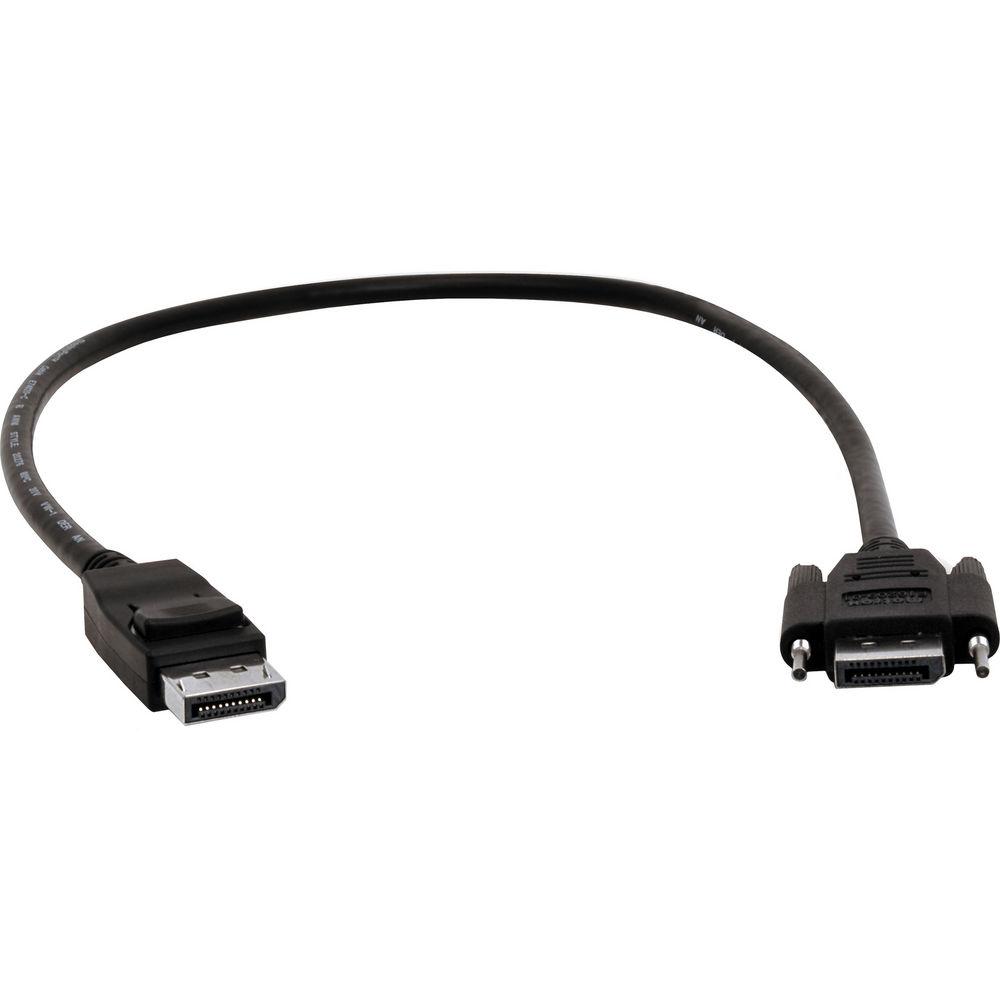

UPC: 790750240749 In the Box Matrox TripleHead2Go DP Edition External GXM DP to DP Input Cable Mini-DP to DP Input Cable 3' USB Cable Getting Started CD 2-Year Limited Warranty User Manual PDF 6.2mbwwxvtetzvvyywf Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox TripleHead2Go DP Edition External GXM in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox T2G-DP-MIF Specs | Stream Processors | None - runs on your system's existing GPU | | Bus Type | External | | Display Support | 1x DP Input
3x DP Output
3x DVI Output (requires adapter)
3x VGA Output (requires adapter)
3x HDMI Output (requires adapter)
3x Mini-DP Output (requires adapter) | | Multiple Display Configuration | 1x DP Input to 3x DP Output (via included cable)
1x DP Input to 3x VGA Output (requires 3rd party DP to VGA adapter, not included)
1x DP Input to 3x DVI Output (requires Matrox DP to DVI adapter, not included)
1x DP Input to 3x HDMI Output (requires 3rd party DP-to-HDMI adapter, not included)
1x DP Input to 3x Mini-DP Output (requires 3rd party DP-to-MDP cable, not included) | | Display Resolutions | DP to DP:
5760 x 1080 (3x 1920 x 1080)
5040 x 1050 (3x 1680 x 1050)
3840 x 1200 (2x 1920 x 1200)
DP to DVI:
5040 x 1050 (3x 1680 x 1050)
3840 x 1200 (2x 1920 x 1200)
DP to VGA:
4080 x 768 (3x 1360 x 768)
3360 x 1050 (2x 1680 x 1050)
DP to HDMI: 5040 x 1050 (3x 1680 x 1050) max res
DP to MDP: 5040 x 1050 (3x 1680 x 1050) max res | | Max Resolution | 5760 x 1080 (3x 1920 x 1080) | | I/O Connections | 1x DP In
3x DP Out | | Power | USB and DP | | System Requirements | Software:
Windows 7, Vista (32/64bit), XP (32/64bit), Windows Server 2003/2008 (32/64bit), Windows 2000
Mac OS X (10.4, 10.5, 10.6)
Linux - contact Matrox for tested versions
Hardware:
Single DP output connector, powered USB connector, display driver supporting 3072 x 768 or higher resolution
Multi-GXM Support: Windows system and GXM software suite 2.06 or above | | Dimensions | 3.5 x 3.8 x 1.1" (8.9 x 9.7 x 2.8 cm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 1.3" |
