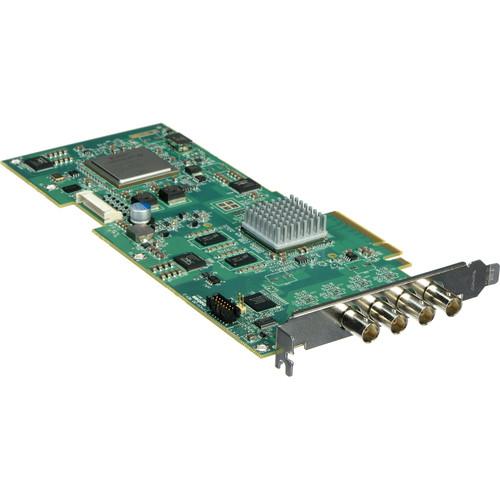

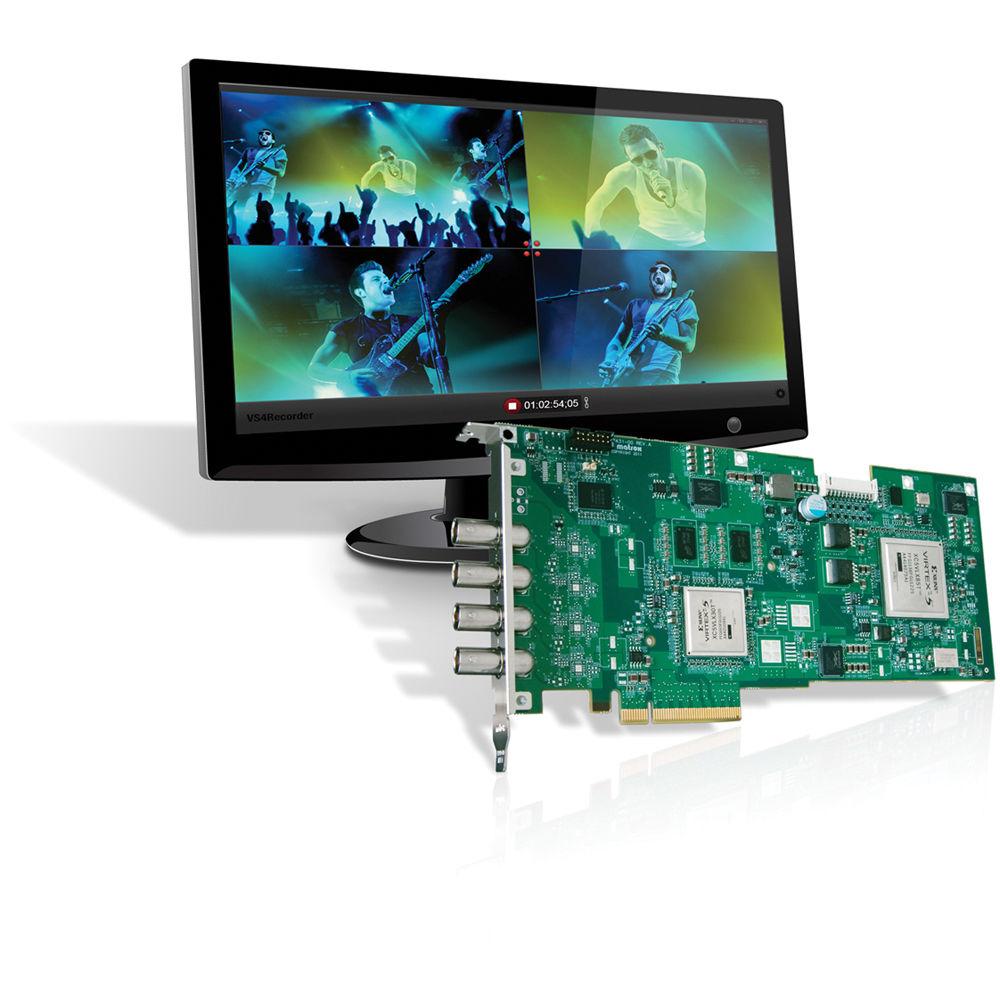

Product description The Matrox VS4 Quad HD Capture Card for is a PCIe x8 card that allows you to simultaneously stream and capture from up to four independent SDI video sources using optional vMix, Wirecast, or the full version of VS4 Recorder Pro software applications. The VS4 card includes a trial version of the VS4 Recorder Pro software. The optional VS4Recorder is a versatile application ideal for multi-camera productions that provides HD recording of up to four inputs while simultaneously offering a complete multi-viewer experience, and it provides two recording modes: independent and multi-cam. The optional vMix software is a complete live video production software solution that provides live mixing, switching and streaming.
The capture card also works with select Wirecast software, not included, which allows you to switch between input feeds and add effects to produce a live streaming program. The inputs support PAL, NTSC and various flavors of HD video. Each input works independently, and features auto format detection that allows the card to set the correct input format. This means that the card can accept, stream and encode for capture video from four different inputs with four different formats, even mixing SD and HD, at the same time.
The VS4 features ISO recording, which means that while streaming the program live the VS4 can also encode video from each input at up to 300 Mb/s, to available video storage. The VS4 features codecs compatible with editing solutions from Adobe, Avid and Apple, this allows you to go back and re-edit your show after it has already streamed live. Supporting 8 channels of embedded audio per input, the card encodes audio at 24-bit resolution at 48 kHz for clean clear sound. The VS4 is PC compatible, running on the Windows 7 OS. - Inputs
- Four SD/HD-SDI inputs are active at all times. The VS4 auto senses the video signal and automatically sets each input up for the correct format. Each input is independent of the others, so you can feed a different format to each input with any issues.
- Formats and Codecs
- You can mix and match video formats, stream and capture (to available storage systems) using the VS4 with the Telestream software. The VS4 Matrox supports encoding at up to 300 Mb/s from each input and supports the Matrox MPEG 2 I-Frame codec, DV, DVCPRO, DVCPRO50, and DVCPROHD codecs.
UPC: 630396243486 In the Box Matrox VS4 Quad HD Capture Card for Select Software (vs4Recorder, vMix) Limited 3-Year Warranty User Manual PDF 5.9mbrwfzvdcubuaryzzzxdyzruywafcz Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrox VS4 Quad HD Capture Card for Select Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrox VS4 Specs | Inputs | Four SD/HD-SDI inputs are active at all times. The VS4 auto senses the video signal and automatically sets each input up for the correct format. Each input is independent of the others, so you can feed a different format to each input with any issues. | | Supported Video Formats | NTSC/PAL
720p 50/59.94
1080i 50/59.94
1080p 23.98/24/25/29.97/30
1080PsF 23.98/24/25/29.97/30 | | Input | Video
4 x SD/HD-SDI BNC, 75Ω terminated
Compliant with SMPTE 259M, 272M, 292M, 299M
Audio
8 Channels of embedded audio per SDI input
24-bit, 48 kHz | | Optional Software | Streaming
Telestream Wirecast Studio
Telestream Wirecast Pro
Recording
Direct Capture Integration with Telestream Wirecast software
Matrox ISO Recording Capture Tool
Note: Matrox ISO Recording Capture Tool is only available with installation of Wirecast Studio or Pro Software | | | | OS Compatibility | Windows 7, 64-bit | | PCIe Expansion Slots | 1 x PCIe x8 (or greater) | | RAM | 8GB | | Graphics Card Requirements | 256MB display card with 3D accelerations
Note: NVIDIA GeForce or ATI Radeon class card recommended | | Disk Drives | System Drive: 1 x 7200 RPM SATA II
Storage Drive: 2 x 720 RPM Sata II drives in a striped RAID array | | CPU | Single Intel i7 at 3.4 GHz
Record up to four HD-SDI feeds at any video format and data rate
Record to the same video format and data rate as your stream
Stream up to 1080p to a single destination
Dual Intel Xeon at 2.4 GHz
Record up to four HD-SDI feeds at any video format and data rate
Record to a different video format and data rate than your stream
Stream up to 1080p to multiple destinations | | | | Power Consumption | 23.0 w | | Temperature | Operating
32 to 131°F (0 to 55°C)
Storage
-40 to 167°F (-40 to 75°C) | | Humidity (Relative) | Operating
20 to 80%, non-condensing
Storage
5 to 95%, non-condensing | | Altitude | Max Operation Altitude
9,842.5' (3,000 m)
Max Transport Altitude
39,370' (12,000 m) | | Dimension (L x W x Thickness) | 9.13 x 4.2 x 0.75" (23.2 x 10.7 x 1.9 cm)
3/4 length PCI Express x 8 card | | Regulatory Compliance | FCC Class A, CE Mark Class A, ACMA Class A
RoHS Directive 2002/95/EC | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 16.3 x 9.6 x 3.7" |
