User Manual for Matthews 45" Matthews-Slider Click to enlarge the picture
Contents of the user manual for the Matthews 45" Matthews-Slider
- Product category: Camera Sliders Matthews
- Brand: Matthews
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matthews Camera Sliders
 |
User manual for the Matthews 45" Matthews-Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matthews product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matthews user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matthews product will considerably shorten its lifespan!
|

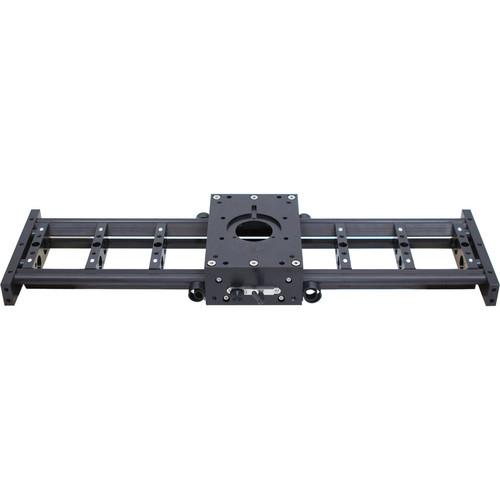

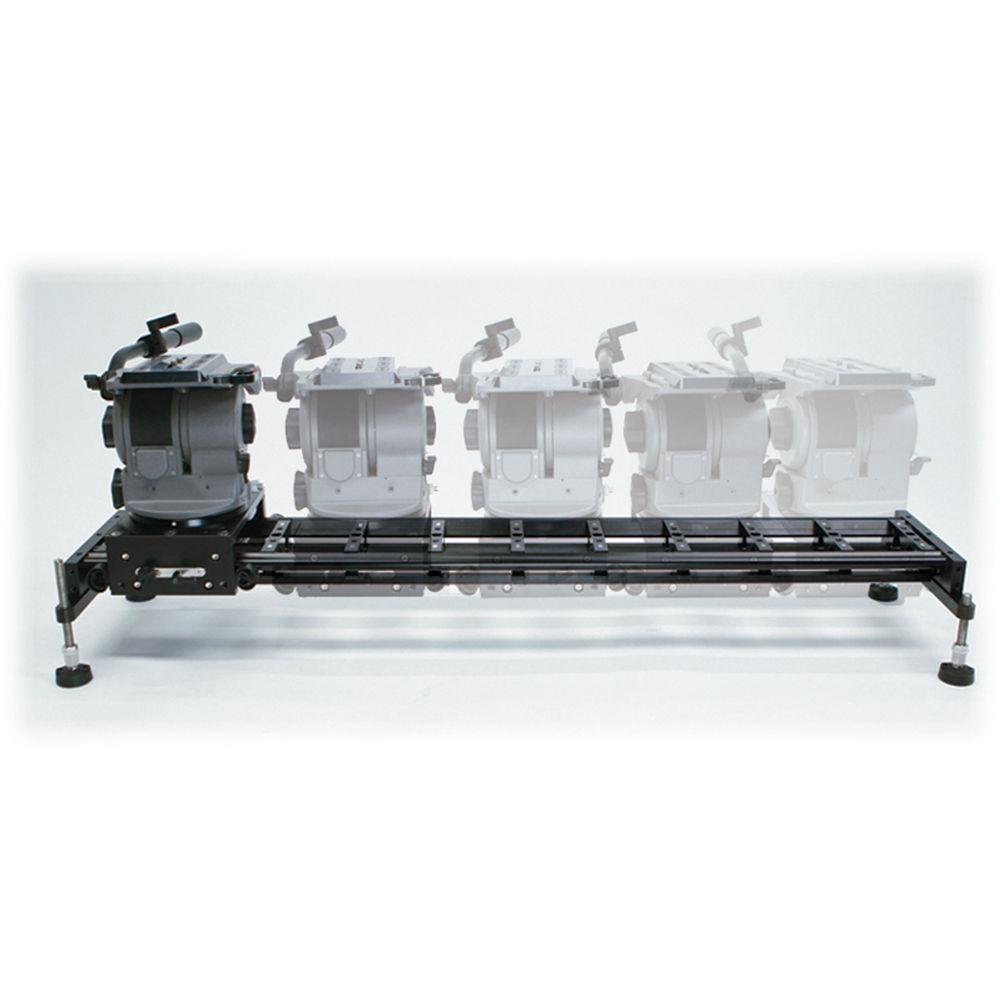

Product description Matthews Studio Equipment complements your creativity with 45" Matthews Slider: a camera platform that is sturdy and lightweight owing to its open frame construction. It is both camera operator and grip friendly, being virtually maintenance free (just keep it clean) and totally field adjustable with few basic tools: one 7/16" open wrench and a set of Allen wrenches.

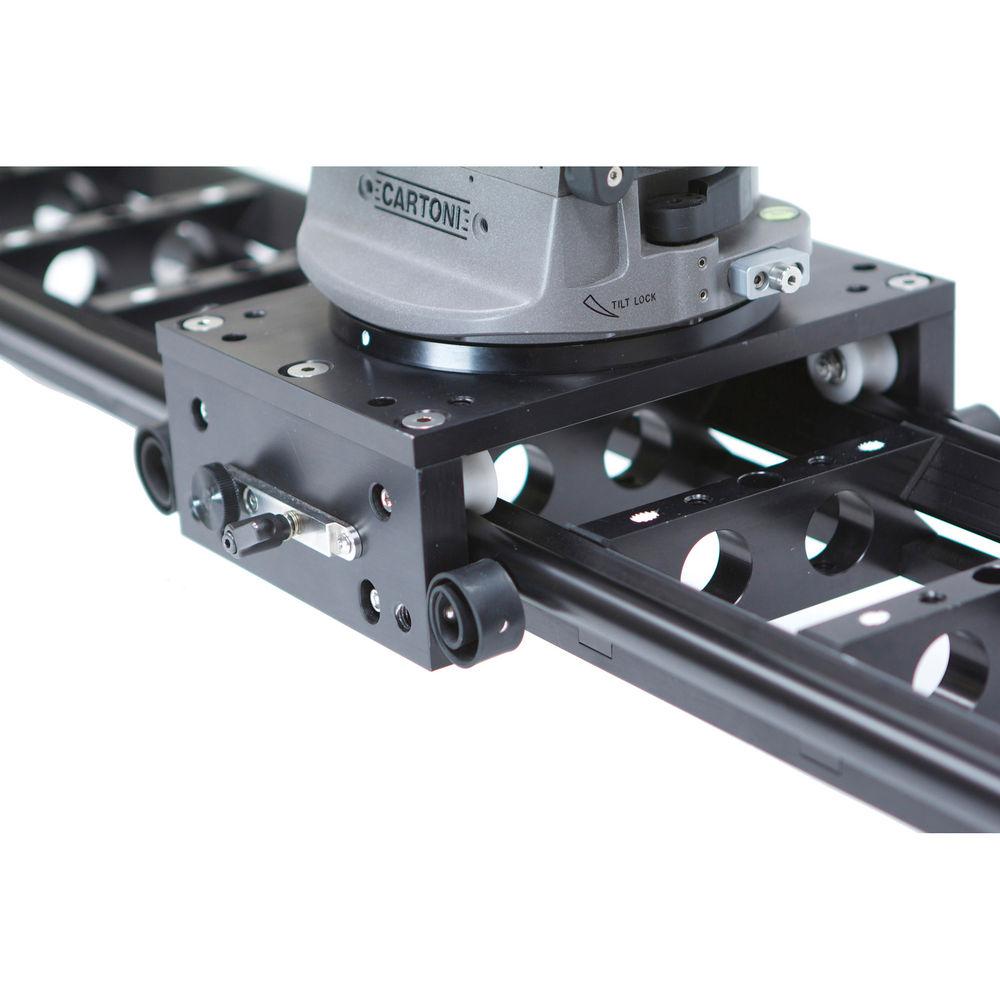

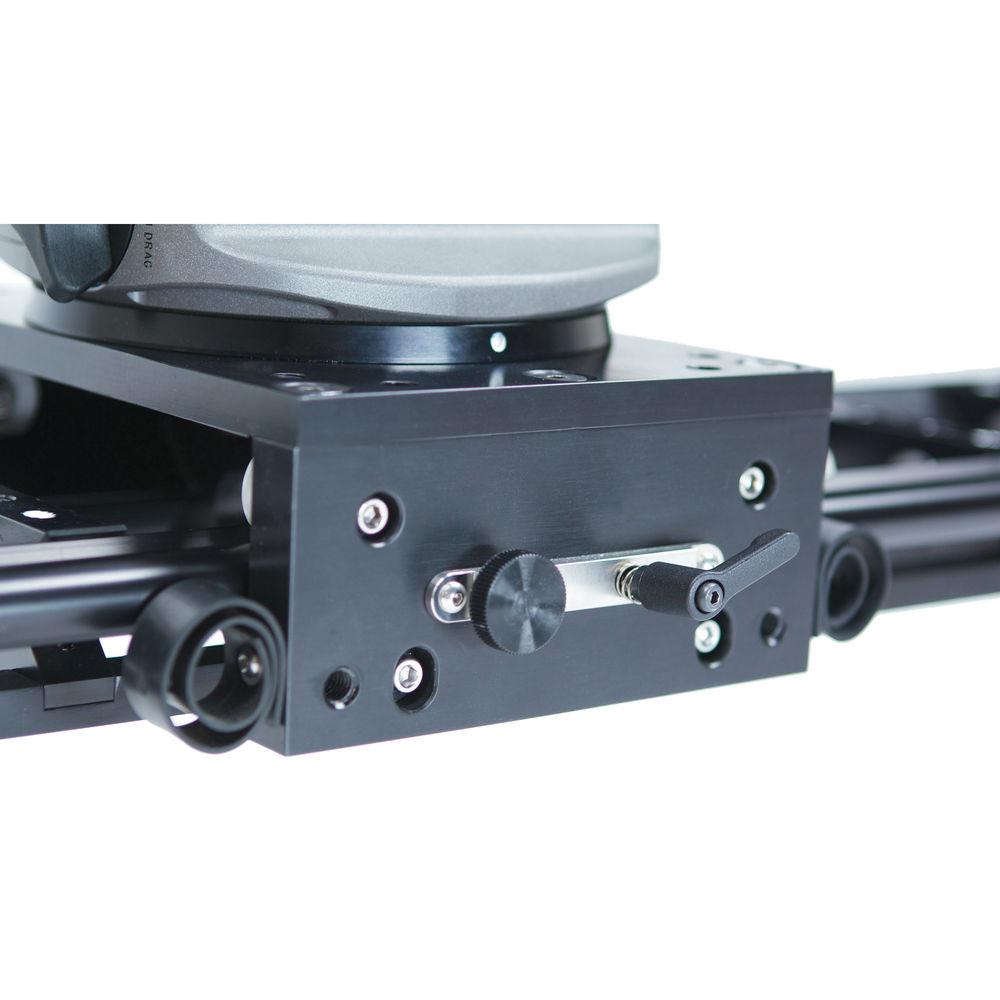

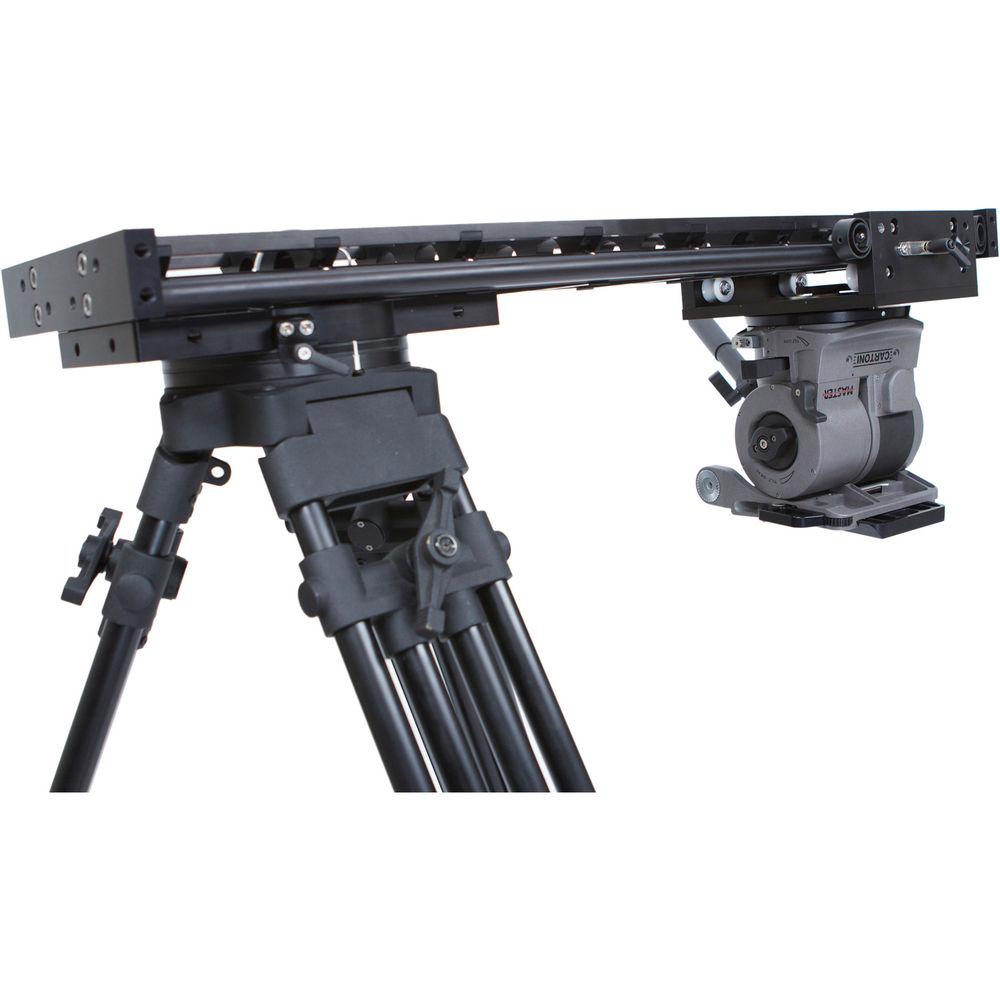

It can work upside-down for low-angle shots, can support more than one carriage at a time for A and B camera shots, and it has positive lock at 90° when in use on most dollies (Chapman, Fisher, Panther, etc.). Each carriage can support up to 175 lb (80kg) (bracing of tracks might be necessary). The system uses proprietary wheels with ABEC5 stainless bearings with ceramic balls, which make it fast and quiet.
Fully factory assembled, the system will accept any gear head/fluid head/camera combination. It comes complete with Mitchell swivel base, Mitchell carriage, Mitchell 2" riser, filler plate, slim design locking handle, a set of leveling legs 0 to 6-3/4" (2 x 4", 2 x 6"), extra 3/8"-16 screws, and a set of spanner wrenches.
The Matthews Slider comes with numerous 3/8"-16 tapped holes for rigging and securing. It is conveniently sized to fit in Pelican series 1700 rifle/long cases. The Matthews Slider not only gives you smooth camera movement, but it also adds stability in otherwise challenging lock-off positions. For example, getting the camera off a ledge or window-sill and trusting that it won't hurt your talent down below.

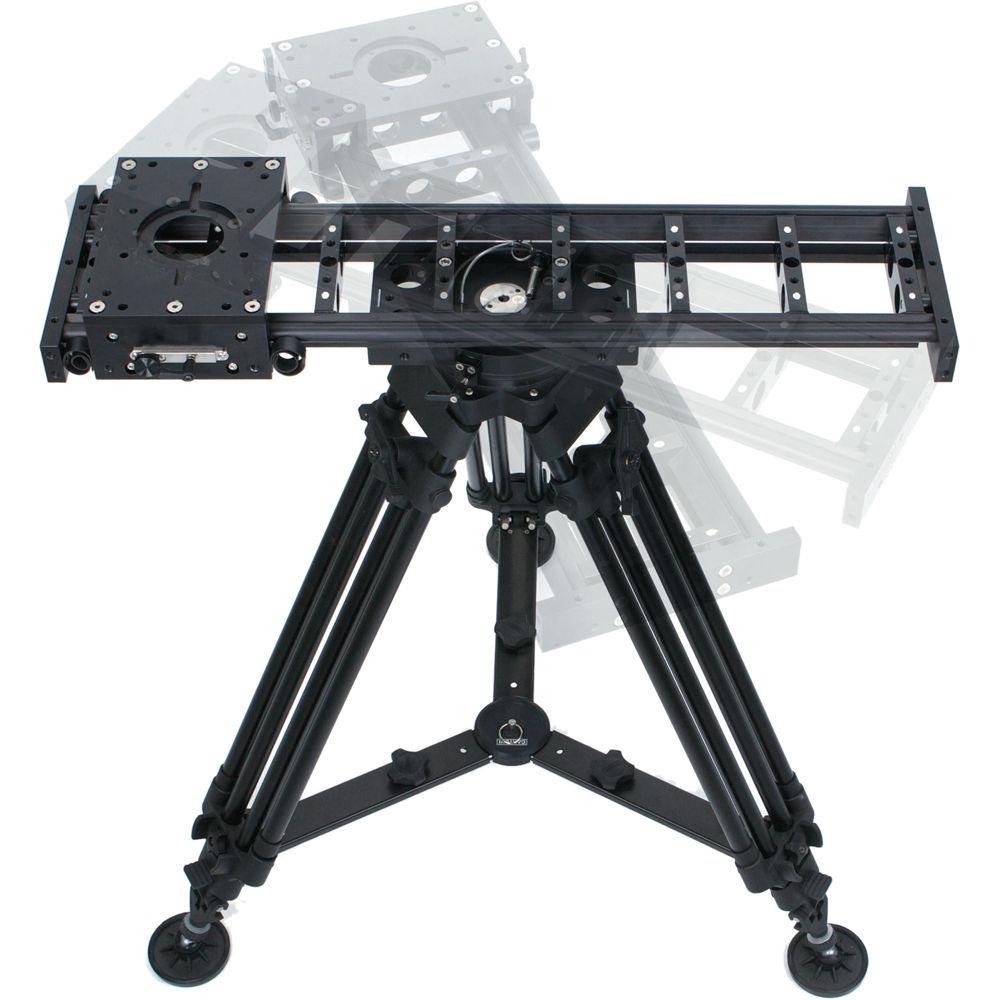

The slider is completely modular, allowing offset mounting of the rotating Mitchell base to extend the reach of the system. This feature may be used for table top, car interior, and many other situations. The Matthews-Slider gives you many options for solid and quiet camera movement. Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews 45" Matthews-Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews 377744 Specs | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 46.0 x 15.0 x 4.35" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
