User Manual for Matthews BH-20 Ball Head Click to enlarge the picture
Contents of the user manual for the Matthews BH-20 Ball Head
- Product category: Tripod Heads Matthews
- Brand: Matthews
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matthews Tripod Heads
 |
User manual for the Matthews BH-20 Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matthews product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matthews user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matthews product will considerably shorten its lifespan!
|

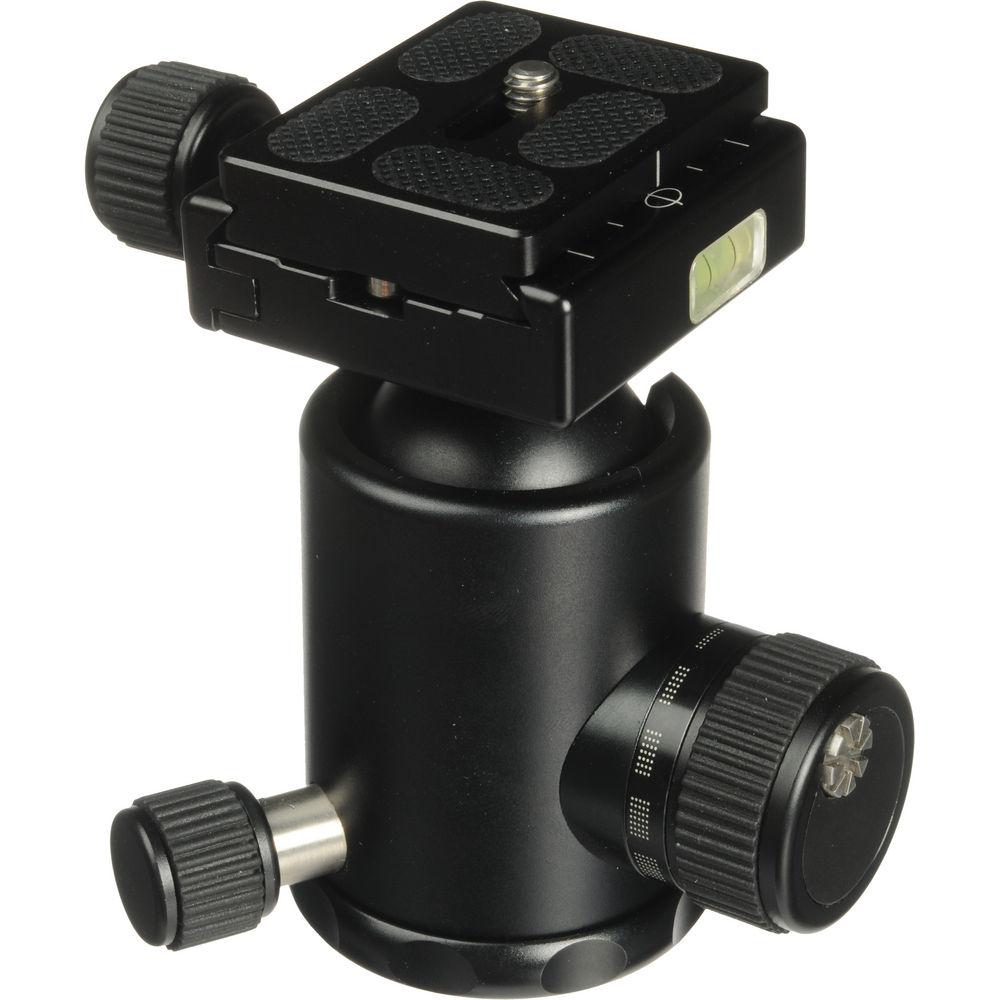

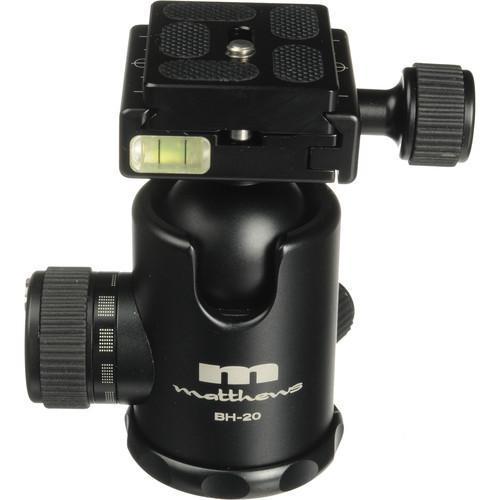

Product description Unlike most other ball head mounts which are manufactured from die cast components, the Matthews BH-20 Ball Head is individually CNC machined from solid bar stock to ensure precise control over all critical dimensions and elements. This ball head will support up to 26.4 lb (12 kg). It is supplied with a precision machined quick release plate that is well balanced and allows quick, safe and positive-locking of the camera to the ball head mount. The mounting plate can stay permanently attached to the camera to avoid taking the time to screw the camera onto the ball or screwing the ball onto the camera. In the Box Matthews BH-20 Ball Head Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews BH-20 Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews BH-20 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 26.4 lb / 12 kg | | Number of Bubble Levels | None | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Dimensions | H: 3.7" / H: 9.5 cm | | Weight | 0.9 lb / 430.9 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 5.0 x 4.9 x 3.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
