User Manual for Matthews Dutti Dolly Click to enlarge the picture
Contents of the user manual for the Matthews Dutti Dolly
- Product category: Cine Dollies Matthews
- Brand: Matthews
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matthews Cine Dollies
|
User manual for the Matthews Dutti Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matthews product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matthews user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matthews product will considerably shorten its lifespan!
|

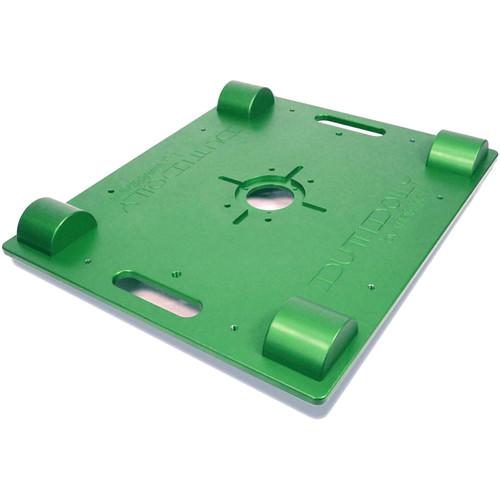

Product description The green, 20 x 24" Matthews Dutti Dolly is a portable camera dolly platform designed to help you capture shots from very low angles or in tight spaces. This compact dolly rides just under two inches from the ground on eight inline skate wheels. Use the Dutti Dolly directly on smooth surfaces, or with either industry-standard speed rail or commercially available tubing. Its universal stand brackets enable it to ride on round, square, angled, or PVC tubing. The Dutti Dolly supports weights up to 800 lb, suiting it for dolly step-off shots by an operator using a gimbal or stabilizer system.Tripods, bazookas, and other supports can be mounted directly to the dolly platform, and a ride-on seat option is available separately. The versatile Dutti Dolly may be mounted over or under-slung, and its wheels feature removable covers for easy maintenance. This dolly's weight is substantial enough to provide stability for quick tilts and whip pans, and multiple dollies may be mounted side by side for custom configurations.The Dutti Dolly platform is made of CNC Machined aluminum, and features an integrated Mitchell mount with four keyhole slots. The platform incorporates an impressive 14 3/8"-16 threaded accessory mounting holes, and two parallel slots enable you to guide the dolly by its outer edges. Note: 1.25" square tube is recommended by the manufacturer. - Key Features
-
- Under 2" riding height for extreme low angles on or off track
- Compact size fits in tight spaces like airplanes, buses, or other narrow aisles
- Use directly on smooth surfaces, or with speed rail or commercial tubing
- Works with round, square, angled, or PVC pipe
- Optional ride-on seat (available separately)
- Suited for step-off shots using a gimbal or stabilizer
- Mount tripods, bazookas, tilt plates, and other adapters directly to dolly
- Use over or under-slung
- Size and weight are substantial enough to provide stability for hard whip pans and quick tilts
- 14 3/8"-16 threads for versatile rigging options
- Multiple dollies may be mounted side by side for custom configurations
- Inline skate wheels sport removable covers for easy maintenance
In the Box Matthews Dutti Dolly (Green, 20 x 24") 8 x Inline Skate Wheels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Dutti Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews Dutti Dolly Specs | Material of Construction | Machined 6061 T-6 aluminum | | Color | Green | | Load Capacity | 800 lb (363 kg) | | Head Fitting | Mitchell system | | Accessory Mounting | 14 x 3/8"-16 threaded holes | | Platform Height (From The Ground) | 1.8" (4.4 cm) | | Finish | Non-reflective, Type II hard anodizing | | Dimensions (L x W x H) | 20 x 24 x 3.5" (51 x 61 x 9 cm) | | Weight | 25 lb (11.3 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
