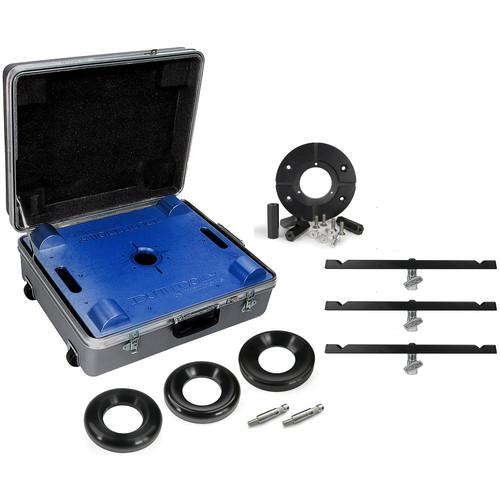

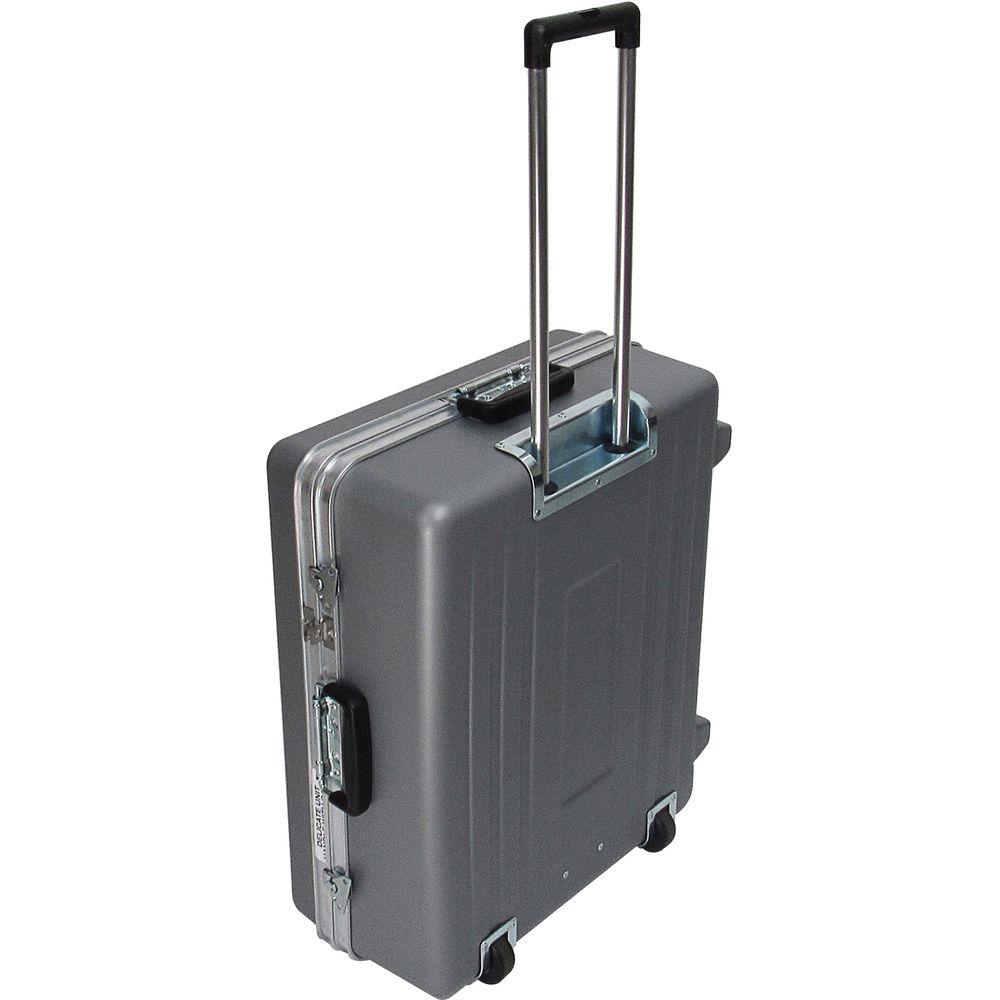

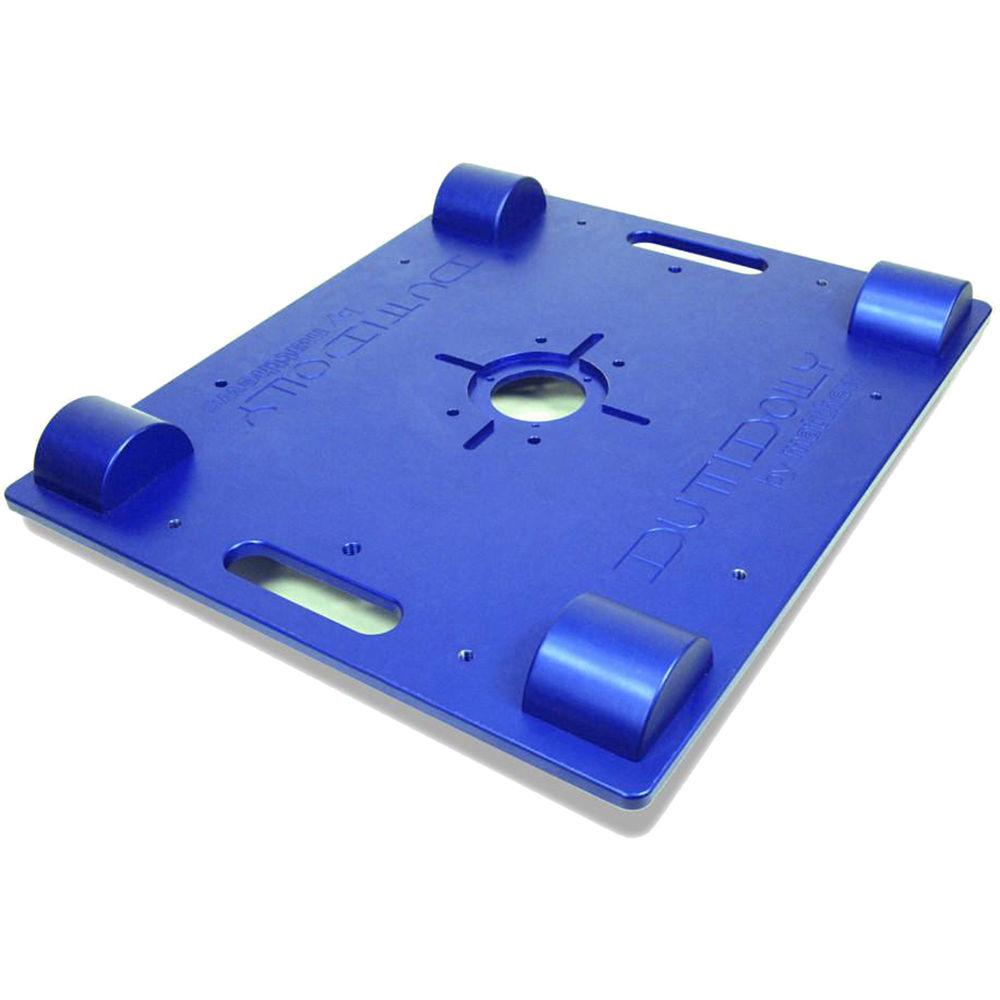

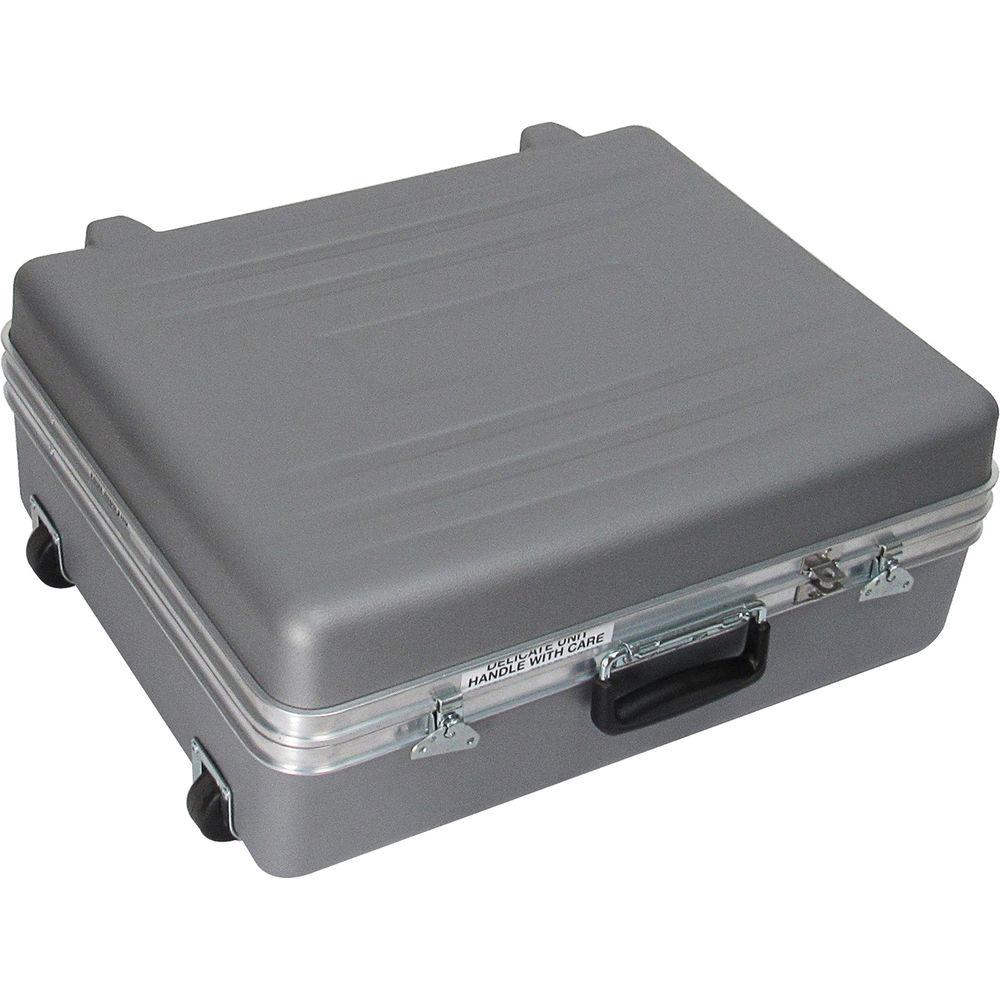

Product description The blue Matthews Dutti Dolly Rental Kit offers a portable camera dolly platform supporting up to 800 lb in one carrying case. With a platform height of under 2", the Dutti Dolly can be used directly on smooth surfaces or with either industry-standard speed rail, or commercially available tubing. This cost-saving kit was assembled with the input of professional grips and rental houses to provide all needed components except the track. It includes 75, 100, and 150mm tripod-head bowls, a 2.5" Mitchell riser, three track brackets with 16" center-to-center spacing, and two 5/8 to 3/8" Baby Pins. Note: Track is not included. - Dutti Dolly (Blue, 20 x 24") The blue, 20 x 24" Matthews Dutti Dolly is a portable camera dolly platform designed to help you capture shots from very low angles or in tight spaces. This compact dolly rides just under two inches from the ground on eight inline skate wheels. Use the Dutti Dolly directly on smooth surfaces, or with either industry-standard speed rail or commercially available tubing. Its universal stand brackets enable it to ride on round, square, angled, or PVC tubing. The Dutti Dolly supports weights up to 800 lb, suiting it for dolly step-off shots by an operator using a gimbal or stabilizer system.Tripods, bazookas, and other supports can be mounted directly to the dolly platform, and a ride-on seat option is available separately. The versatile Dutti Dolly may be mounted over or under-slung, and its wheels feature removable covers for easy maintenance. This dolly's weight is substantial enough to provide stability for quick tilts and whip pans, and multiple dollies may be mounted side by side for custom configurations.The Dutti Dolly platform is made of CNC Machined aluminum, and features an integrated Mitchell mount with four keyhole slots. The platform incorporates an impressive 14 3/8"-16 threaded accessory mounting holes, and two parallel slots enable you to guide the dolly by its outer edges. Note: 1.25" square tube is recommended by the manufacturer.
- Key Features
-
- Under 2" riding height for extreme low angles on or off track
- Compact size fits in tight spaces like airplanes, buses, or other narrow aisles
- Use directly on smooth surfaces, or with speed rail or commercial tubing
- Works with round, square, angled, or PVC pipe
- Optional ride-on seat (available separately)
- Suited for step-off shots using a gimbal or stabilizer
- Mount tripods, bazookas, tilt plates, and other adapters directly to dolly
- Use over or under-slung
- Size and weight are substantial enough to provide stability for hard whip pans and quick tilts
- 14 3/8"-16 threads for versatile rigging options
- Multiple dollies may be mounted side by side for custom configurations
- Inline skate wheels sport removable covers for easy maintenance

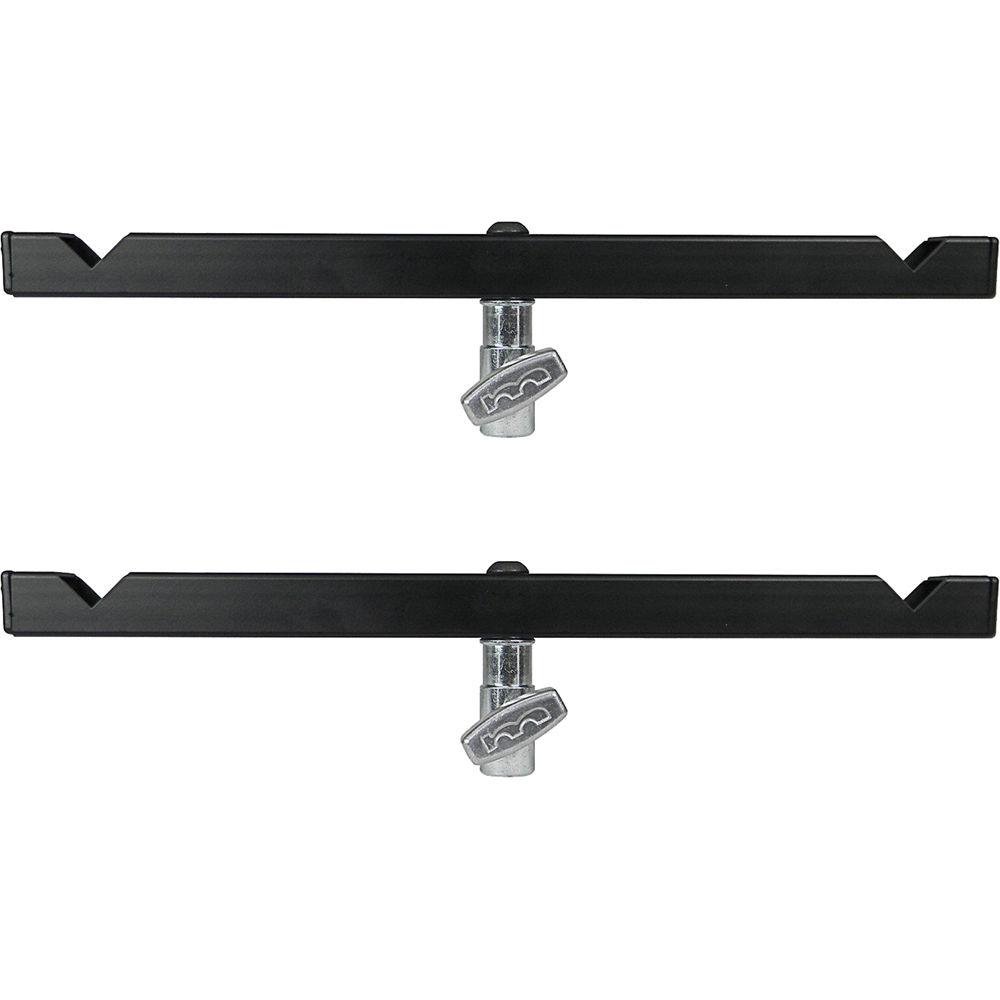

- Dutti Dolly Universal Stand Bracket The Dutti Dolly Universal Stand Bracket from Matthews is used to support 0.75 to 2.25" diameter round or square track sections. It can be mounted on stands that have a baby or junior pin using an included receiver, or used on flat surfaces. The stand is designed specifically for use with the Dutti Dolly, with the track slots having a center-to-center distance of 16".

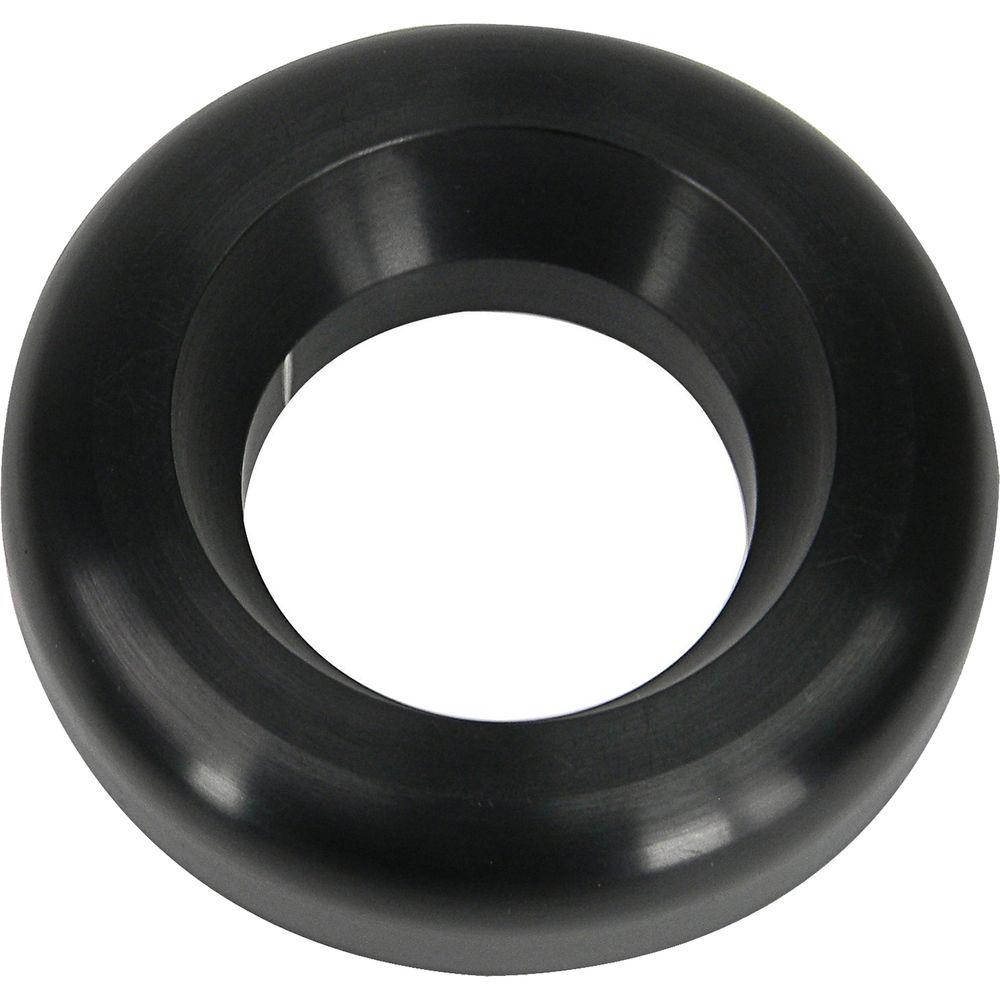

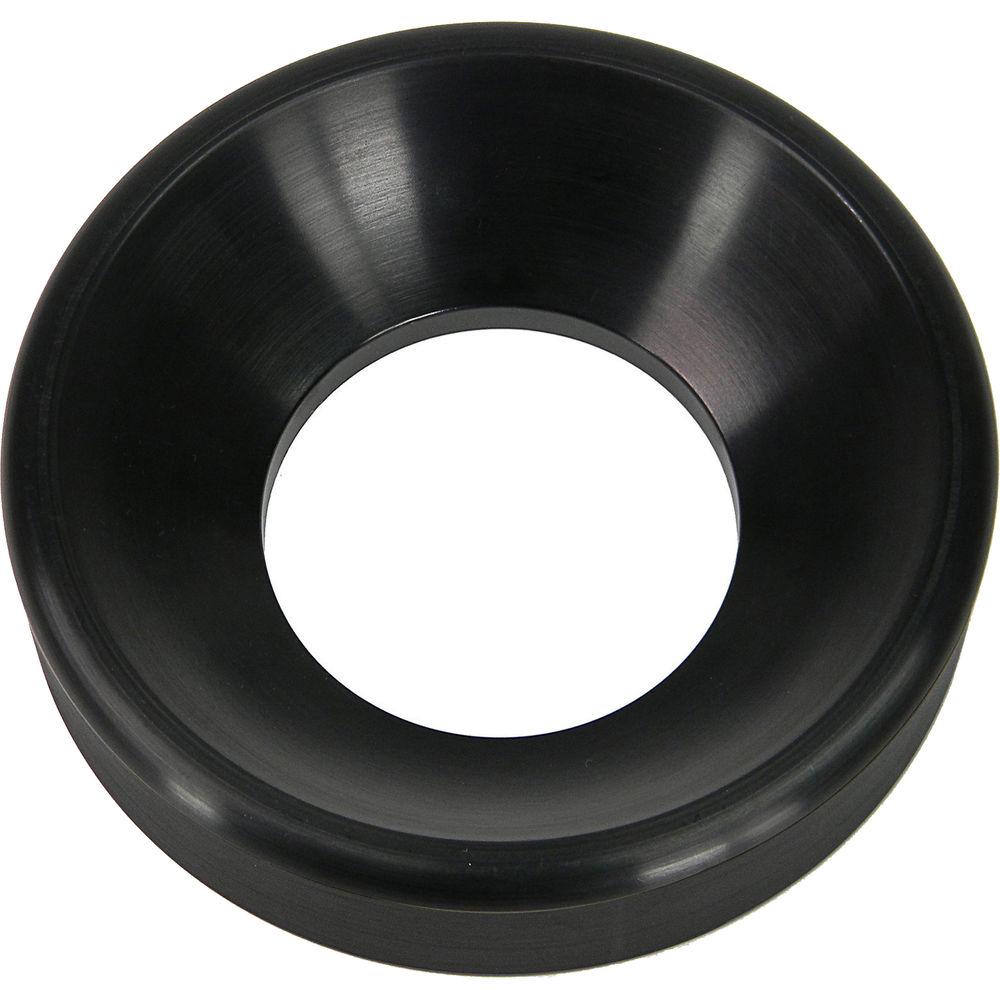

Note: A minimum of two Dutti Dolly Universal Stand Brackets are required—one at each end of the track. - Mitchell Mount to 75mm Bowl Adapter This is a universal Mitchell Mount to 75mm Bowl Adapter from Matthews for use on tripods, dollies, and other equipment. It's precision machined and requires no tools or hardware for installation or removal.

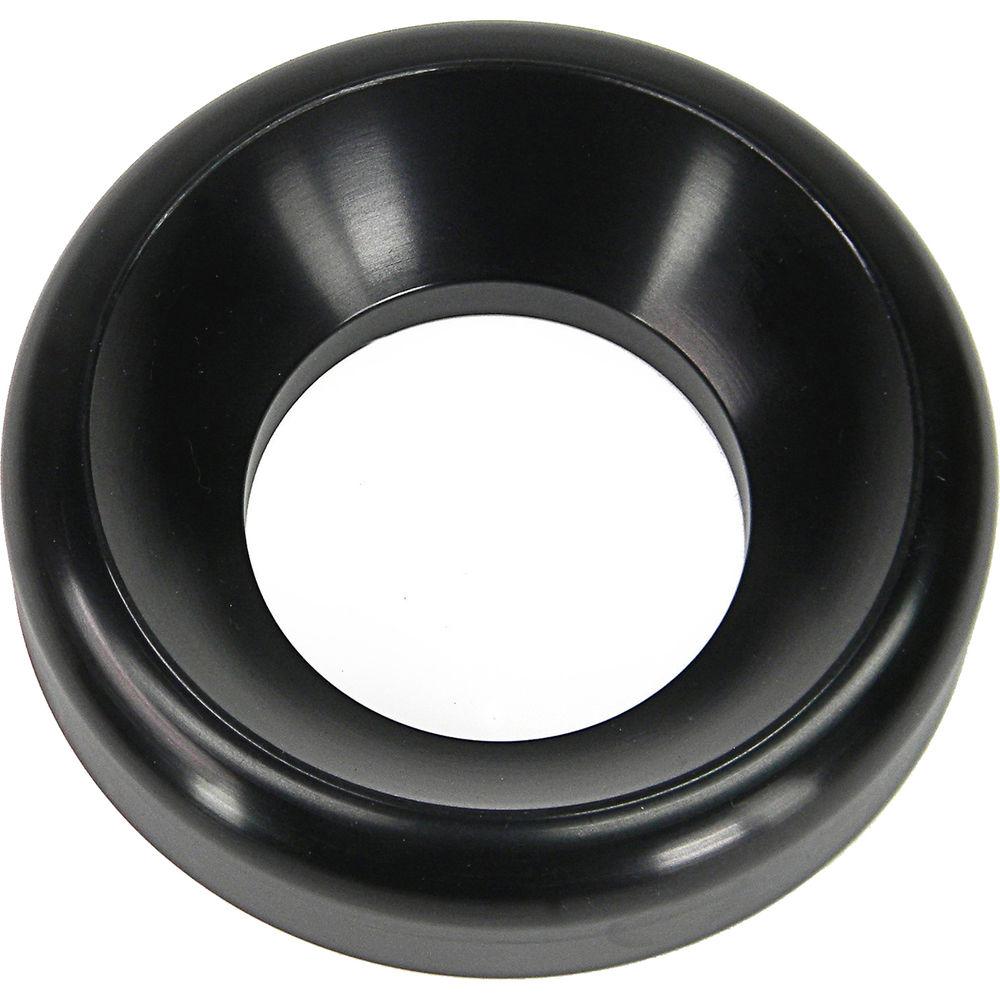

- Mitchell Mount to 100mm Bowl Adapter This is a universal Mitchell Mount to 100mm Bowl Adapter from Matthews for use on tripods, dollies, and other equipment. It's precision machined and requires no tools or hardware for installation or removal.
- Mitchell Mount to 150mm Bowl Adapter This is a universal Mitchell Mount to 150mm Bowl Adapter from Matthews for use on tripods, dollies, and other equipment. It's precision machined and requires no tools or hardware for installation or removal.

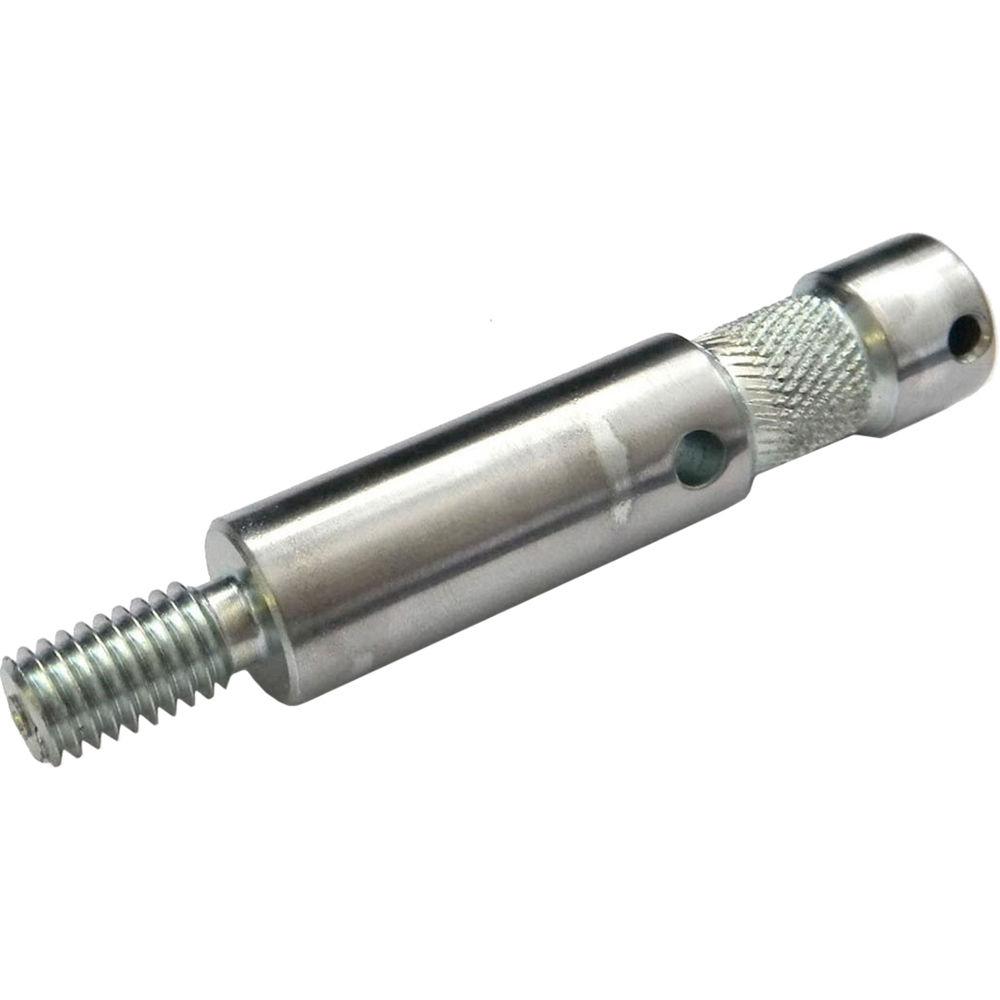

- Baby Pin For use with Lightweight Telescoping Hangers

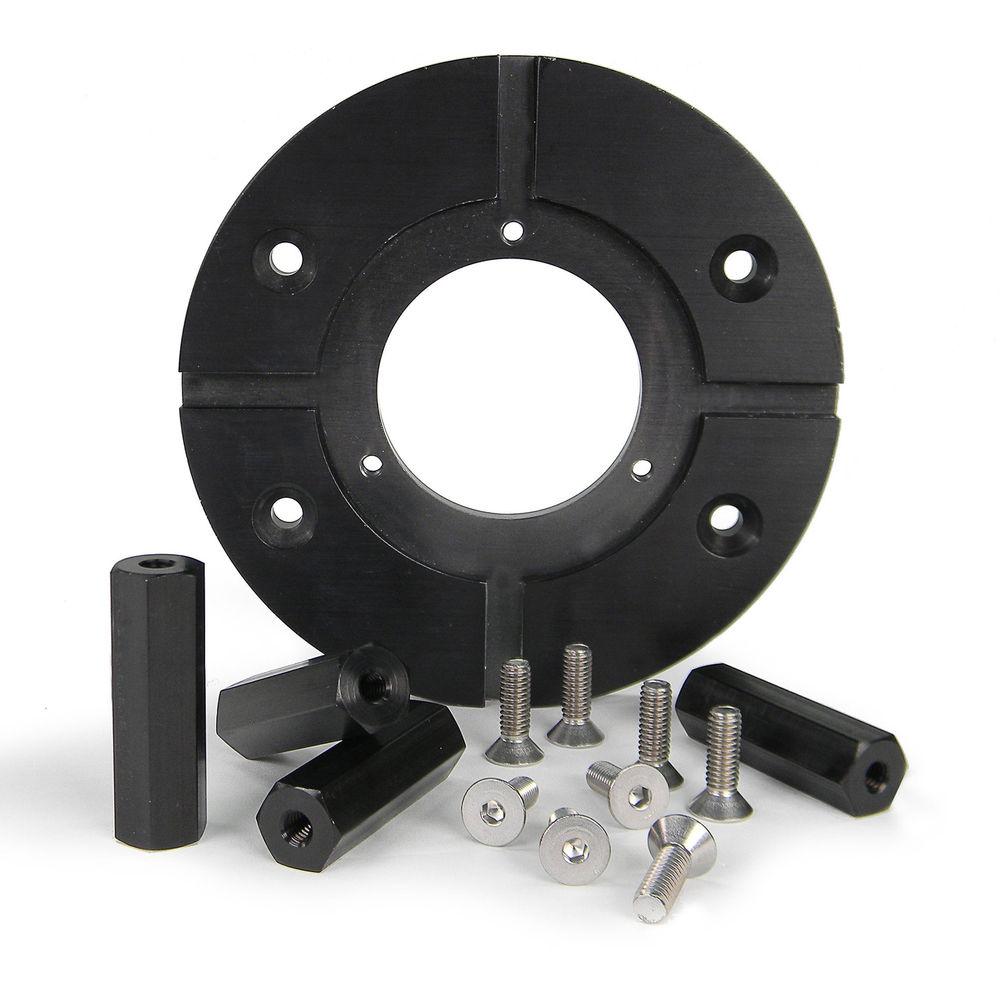

- Mitchell Riser Kit for Dutti Dolly
In the Box Bundle Items Dutti Dolly (Blue, 20 x 24") tdwuzvxvwazfscuybzzvywtf 3 x Dutti Dolly Universal Stand Bracket - Junior and Baby Pin Receiver
Mitchell Mount to 75mm Bowl Adapter Mitchell Mount to 100mm Bowl Adapter Mitchell Mount to 150mm Bowl Adapter Mitchell Riser Kit for Dutti Dolly 2 x Baby Pin
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Dutti Dolly Rental Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Dutti Dolly (Blue, 20 x 24")
| Material of Construction | Machined 6061 T-6 aluminum | | Color | Blue | | Load Capacity | 800 lb (363 kg) | | Head Fitting | Mitchell system | | Accessory Mounting | 14 x 3/8"-16 threaded holes | | Platform Height (From The Ground) | 1.8" (4.4 cm) | | Finish | Non-reflective, Type II hard anodizing | | Dimensions (L x W x H) | 20 x 24 x 3.5" (51 x 61 x 9 cm) | | Weight | 25 lb (11.3 kg) | - Dutti Dolly Universal Stand Bracket
| Track Compatibility | 0.75 to 2.25" (1.9 to 5.7 cm) round or square tubes (outside diameter)
1.25" (3.2 cm) square tube recommended
Center-to-Center Spacing: 16" (40.6 cm) | | Length | 19.25" (48.9 cm) | | Weight | 3 lb (1.36 kg) | | | | Box Dimensions (LxWxH) | 10.1 x 3.9 x 1.4" | - Mitchell Mount to 75mm Bowl Adapter
| | | Box Dimensions (LxWxH) | 4.6 x 4.3 x 1.5" | - Mitchell Mount to 100mm Bowl Adapter
| | | Box Dimensions (LxWxH) | 6.05 x 5.6 x 1.85" | - Mitchell Mount to 150mm Bowl Adapter
| | | Box Dimensions (LxWxH) | 5.9 x 5.9 x 1.7" | - Mitchell Riser Kit for Dutti Dolly
| | | Box Dimensions (LxWxH) | 7.25 x 7.25 x 1.5" | - Baby Pin
| | | Box Dimensions (LxWxH) | 7.15 x 4.15 x 0.7" |
