Product description - Matthews Dutti Dolly Introduction - by Jim Saldutti
- Matthews Dutti Dolly, Seat, Bazooka, Tripod, and Speed Rail
- Matthews Dutti Dolly Track, Camera Mounts & Stability - by Jim Saldutti
- Dutti Dolly Setup with Matthews Slider Stands: by Rachel Lippert

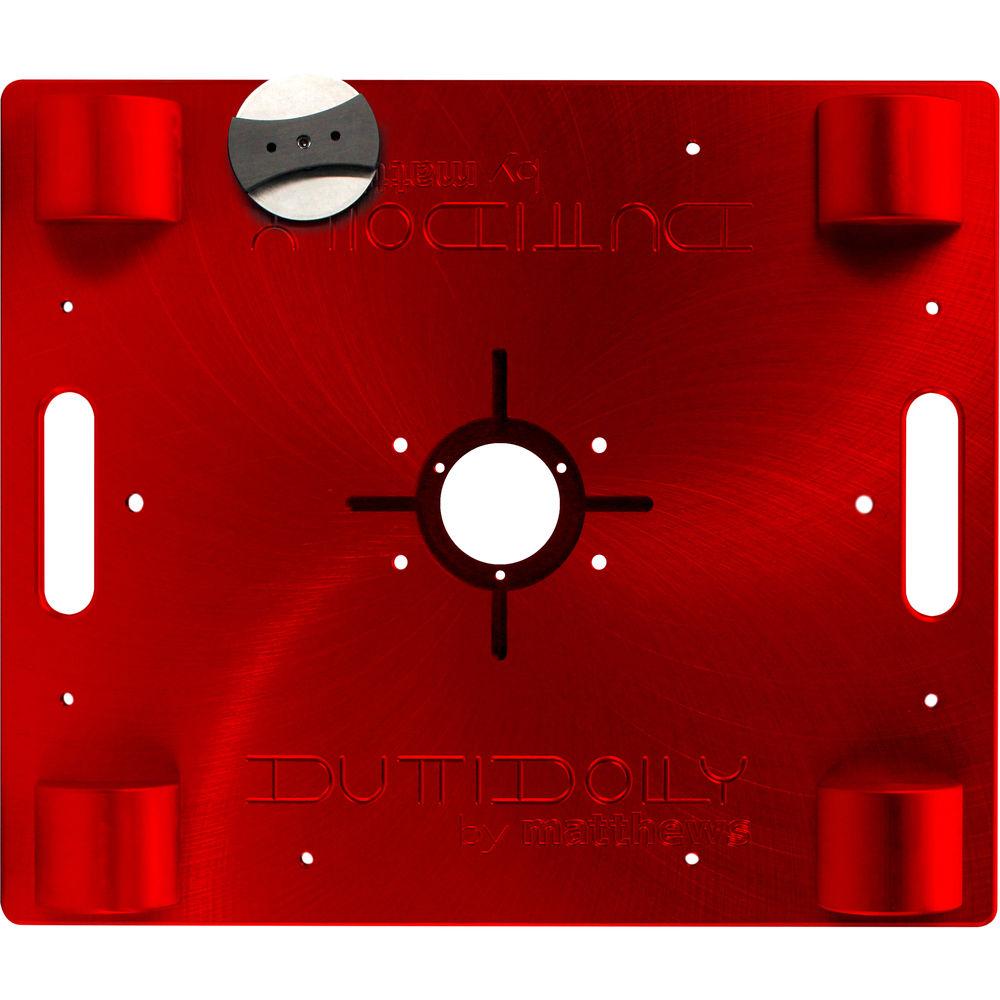

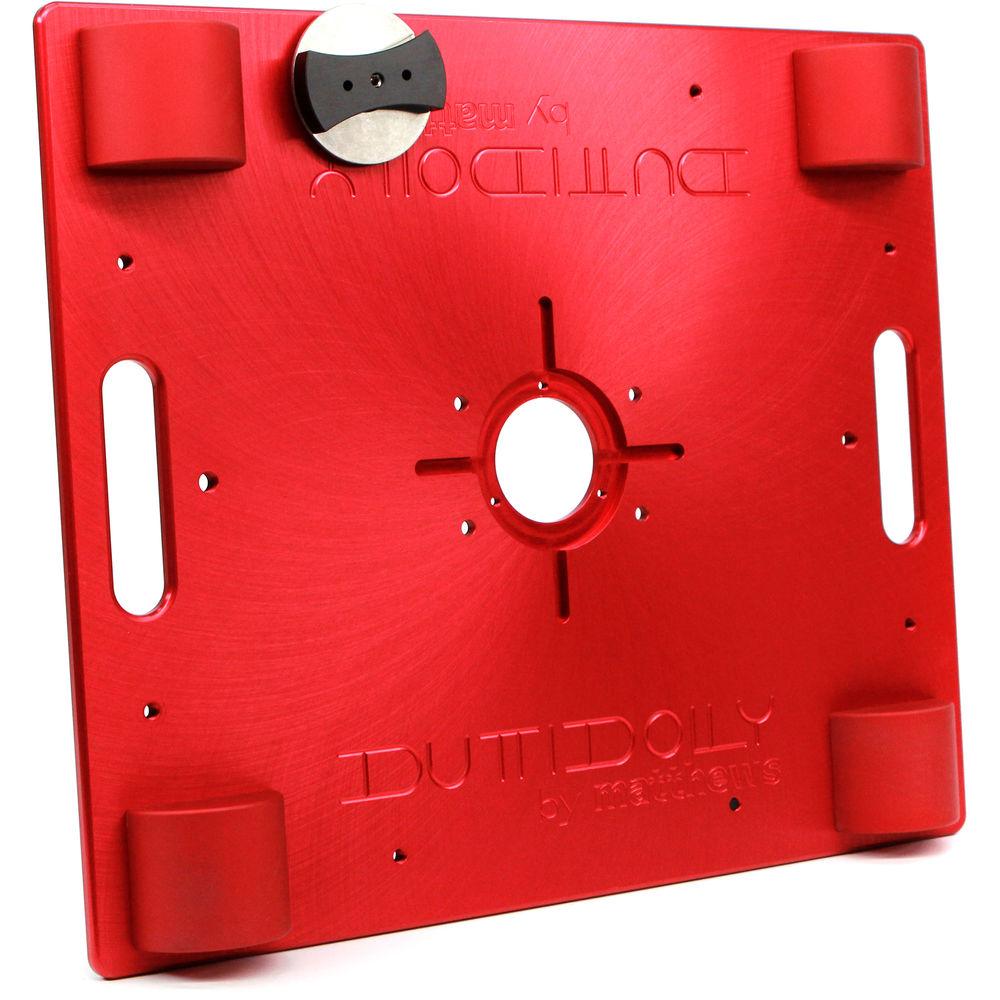

Especially useful for getting low-angle dolly shots, the red anodized Matthews Dutti Dolly Starter Kit is machined from 6061 T-6 aluminum, weighs only 35 pounds yet supports 800 pounds, and features an integrated Mitchell plate. Eight inline skate wheels allow the dolly to roll over a smooth flat surface or glide on straight track. The dolly features a platform height under 2" above the surface or track, and the Mitchell mounting plate is machined into the platform, allowing you to mount your head directly to the platform for extreme low-angle dolly shots.
The half-inch thick aluminum platform and wide spaced wheels create a stable platform from which to shoot from. Fourteen 3/8'-16 threaded mounting holes enable securing mounting optional accessories such as a camera bazooka, elevator, or even a dolly seat. Optional accessory wings allow you to fit a tripod with a 30" or smaller diameter footprint on the Dutti Dolly. Slots machined into the front and back of the platform make it easy to carry. Included with the Dutti Dolly are a 75mm bowl adapter and a Mitchell riser kit. - The Dutti Dolly rolls straight on a flat smooth surface, or on virtually any straight dolly track.

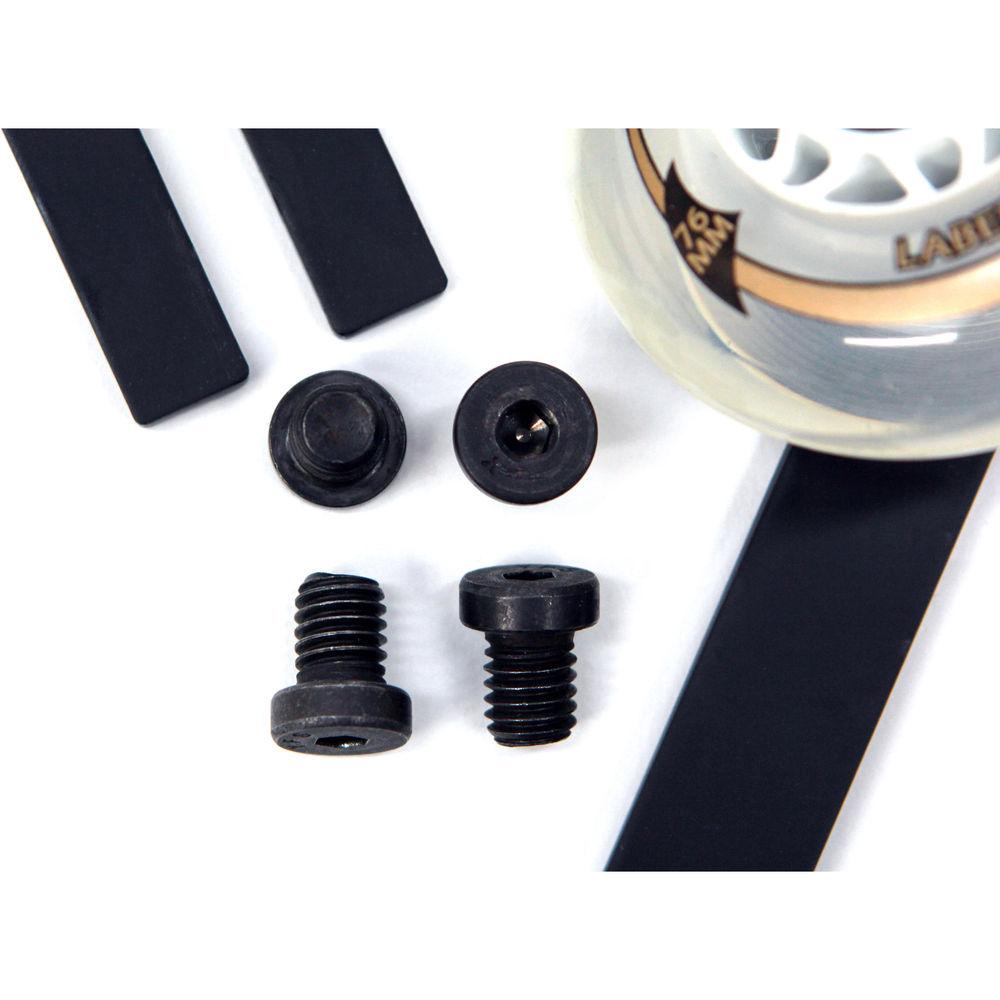

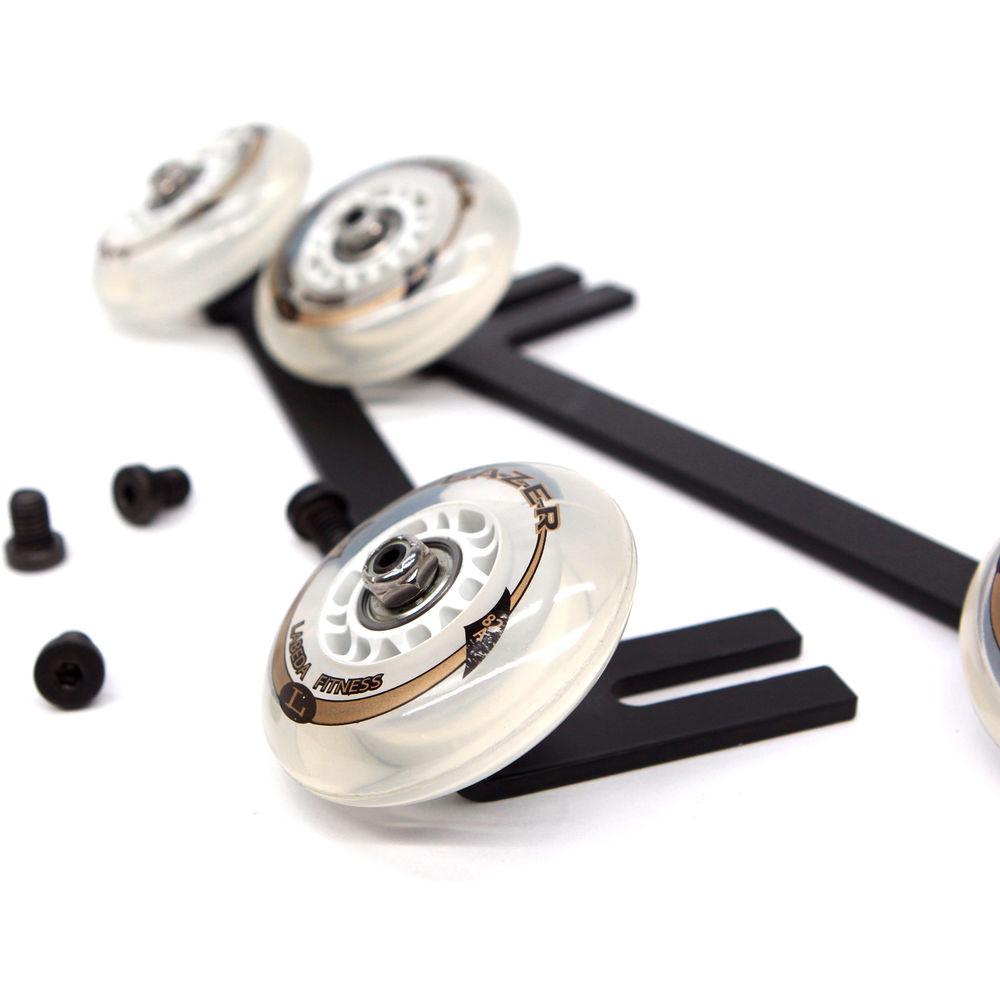

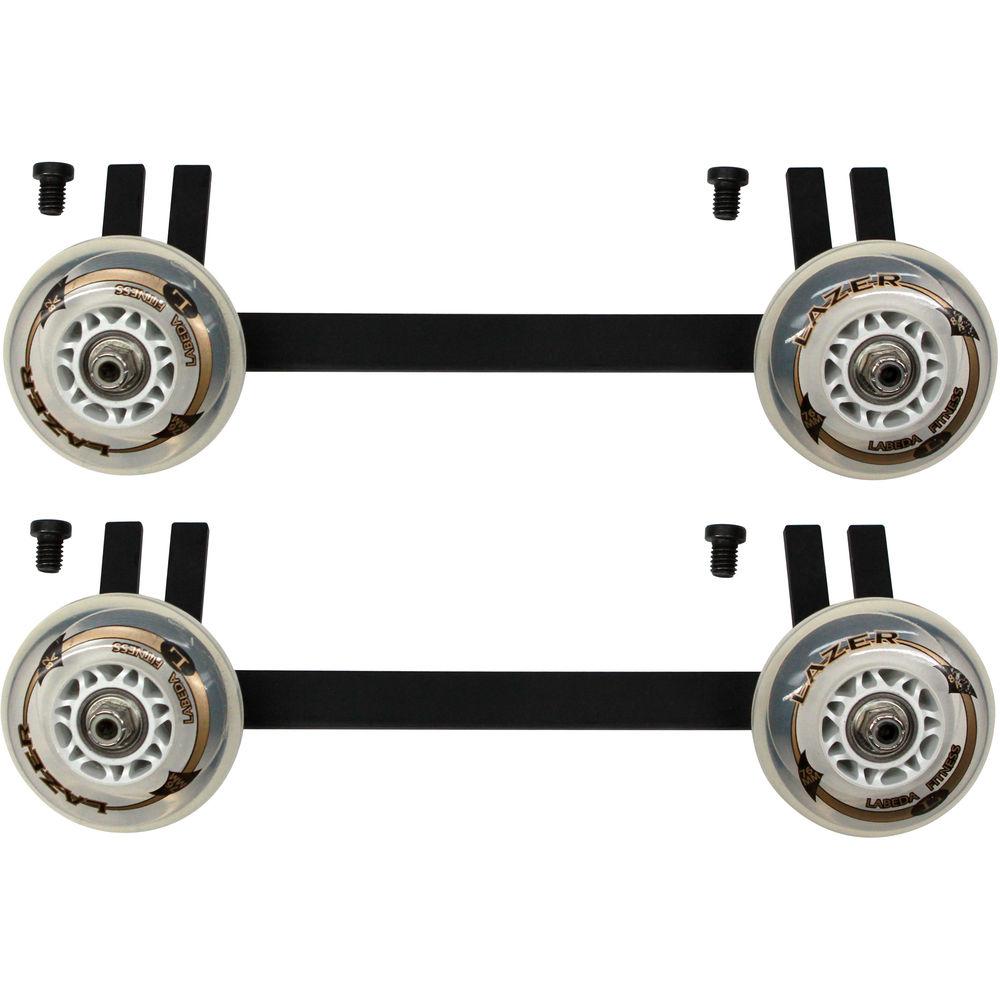

- The dolly wheels can be removed and replaced if needed.
- The Mitchell mount is machined into the platform and features four-keyway locating slots, allowing you to mount your head with a Mitchell base directly onto the platform without sacrificing control or stability.
- Supports up to 800 pounds of camera and operator while rolling smoothly along a flat surface or dolly track.
- Suitable for creating extreme low-angle dolly shots, using with a bazooka camera riser or elevator, or as a dolly the camera operator can easily step onto or off from during the shot.
- Lightweight enough to be used for off-the-ground shots.

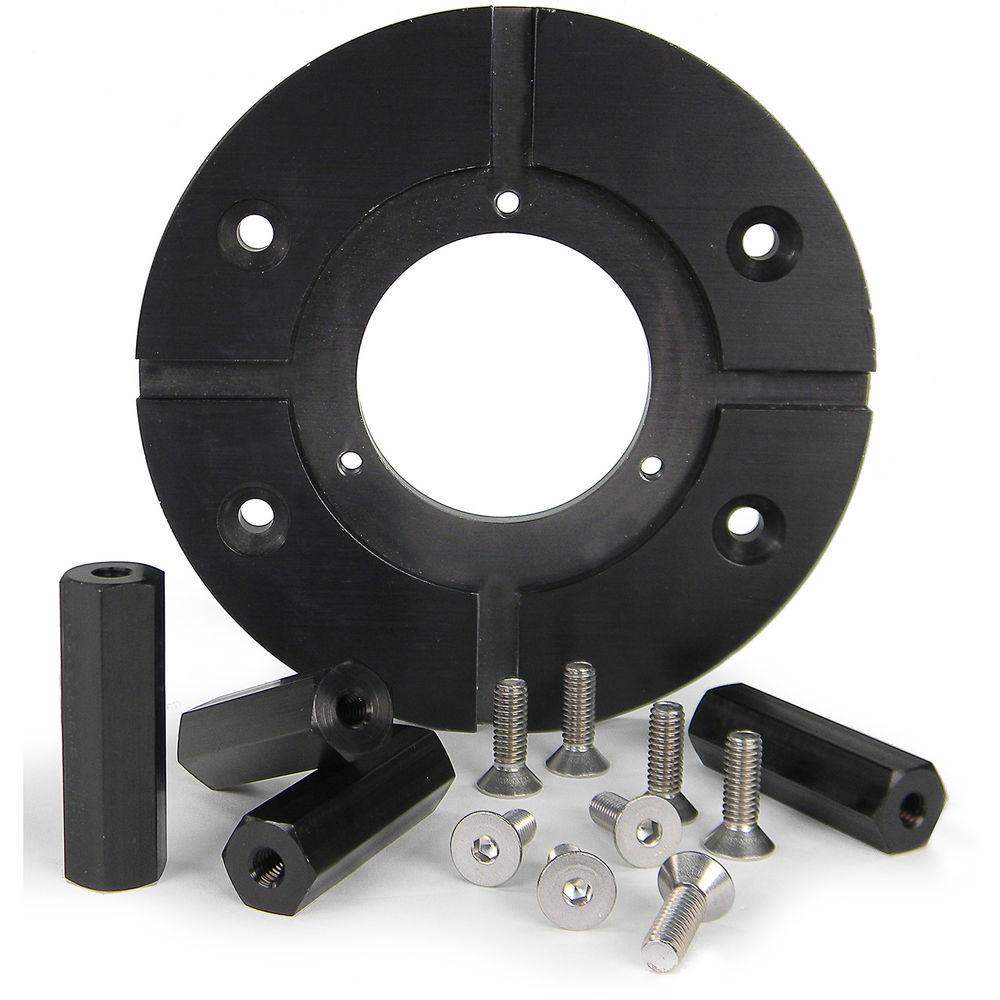

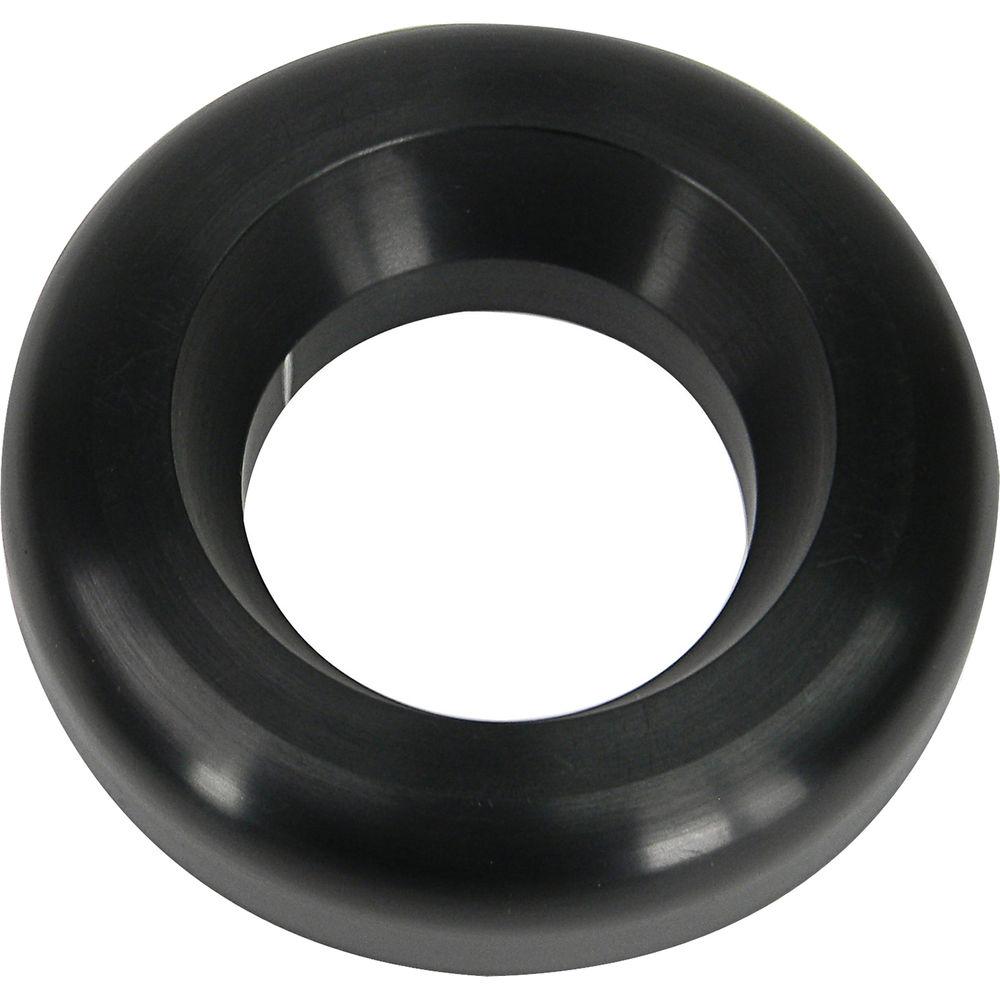

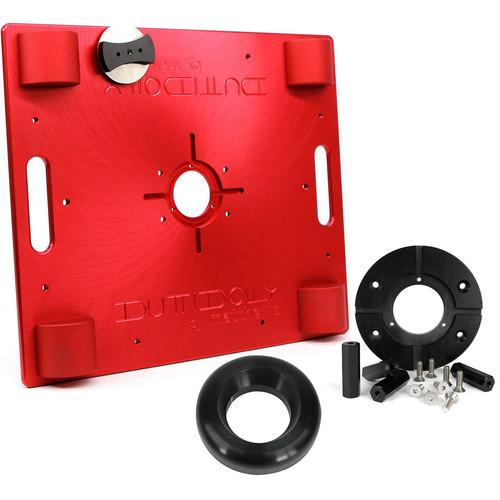

In the Box Matthews Dutti Dolly Starter Kit (Red) Mitchell Mount to 75mm Bowl Adapter syutsfqyaqfsevuyxqzuxwwxtrew Mitchell Riser Kit for Dutti Dolly Limited Lifetime Warranty (Does not Cover Wheels) Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Dutti Dolly Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews Dutti Dolly Specs | Material of Construction | Machined, type 2 hard anodized 6061 T-6 aluminum | | Load Capacity | 800.0 lb / 362.9 kg | | Mounting | Head Mount: Mitchell
Threaded Mounting Holes: 14 x 3/8"-16 | | Wheels | 8 x Inline skate | | Dimensions | General: 20 x 24 x 3.5" / 50.8 x 60.96 x 8.89 cm (to top of wheel guards)
Platform Height: 1.75" / 4.45 cm | | Weight | 35 lb / 15.9 kg | | | | Package Weight | 35.65 lb | | Box Dimensions (LxWxH) | 37.2 x 25.0 x 4.8" |
