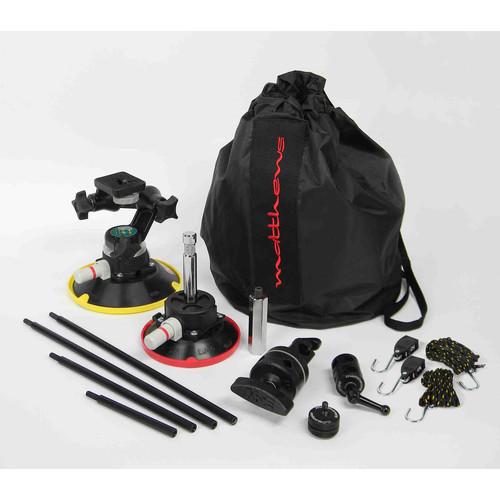

User Manual for Matthews Indie Mount Click to enlarge the picture
Contents of the user manual for the Matthews Indie Mount
- Product category: Camera & Camcorder Mounts Matthews
- Brand: Matthews
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matthews Camera & Camcorder Mounts
|
User manual for the Matthews Indie Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matthews product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matthews user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matthews product will considerably shorten its lifespan!
|
Product description The Matthews Indie Mount is a vehicle-mounting solution for DSLRs, action cameras, or other compact cameras. It uses a combination of MicroGrip technology, vacuum suction cups, an articulating camera mount, and a quick strut triangulating system to securely and safely mount your camera to automobiles, RVs, boats, windows, countertops, or virtually any smooth, non-porous surface. Setting up a car shot with the Indie Mount takes just minutes; simply mount the main 6" cup with articulating camera mount, mount your camera, frame your shot, add the support cup and arm, secure your struts, and you're ready to shoot. Different length Micro Grip rods (4", 8", and 12") can be attached via 1/4"-20 threads, giving you a dynamic reach of 4" to 32" for the second support cup. A 3" camera riser is included to give you more of a reach when trying to get the camera further away from the car and can also be used as a right angle adapter for profile shots. - Quick Struts
- The quick struts not only keep your camera from falling if the suction cups come loose, they are also used to triangulate and keep pressure on the mount to help keep it in place. With the quick struts, you simply attach the two hooks and pull the loose end of the rope for a secure, tight hold. The quick struts stay tight, providing you with the confidence you need when your camera is hanging off a moving vehicle. To loosen them, just pull the rope to reduce tension and push the release button. Each strut has a 75 lb load limit.
- Vacuum Cups
- Because the vacuum suction cups attach and release in seconds, they can be moved quickly from one surface to another. The pad is constructed from rubber to help prevent damage to most surfaces and to help eliminate micro vibrations produced by the vehicle's engine. A spring-balanced pump ensures a consistent vacuum level and a red-line indicator warns if there is any drop in holding power. Just a few strokes on the plunger will remove the air from between the mount's vacuum pad and the mounting surface. As long as the mount maintains a reliable hold, the plunger remains partially hidden inside the pump and the red line is not visible. If the red line appears, another stroke or two will restore full holding power. A firm push or pull on the rubber tab at the edge of the pad releases the mount. Each vacuum cup is supplied with pad protector.
In the Box Matthews Indie Mount 6" Vacuum Cup with Articulating Camera Mount and Pad Protector 4.5" Vacuum Cup with 5/8" Pin and Pad Protector Mini Grip Head Micro Grip Head 2 x 6' Triangulating Quick Struts 2 x 12" Micro Grip Rods 8" Micro Grip Rod 4" MicroGrip Rod Shoe Adapter 3" Camera Riser Right Angle Adapter Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Indie Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews 415175 Specs | Load Capacity | 8.5 lb (3.86 kg) | | | | Package Weight | 5.365 lb | | Box Dimensions (LxWxH) | 14.45 x 10.8 x 6.45" |
