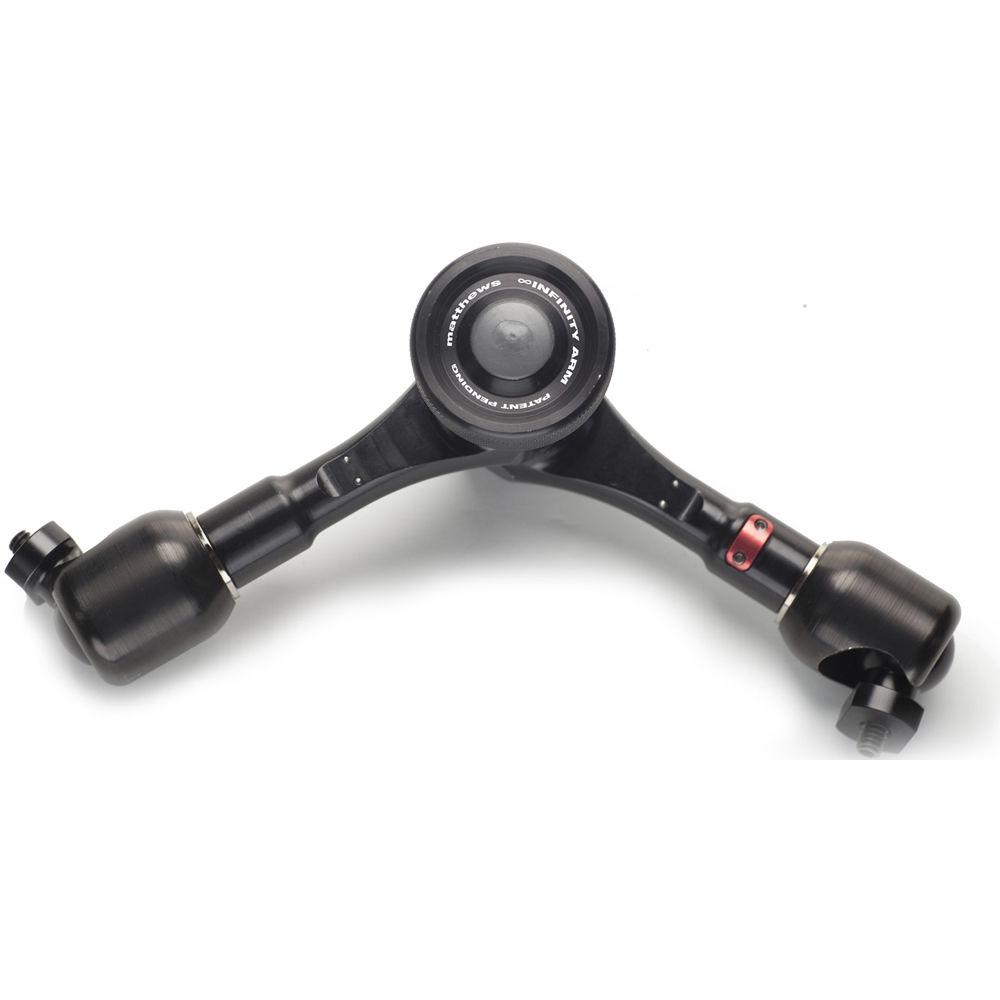

Product description - Infinity Arm Introduction

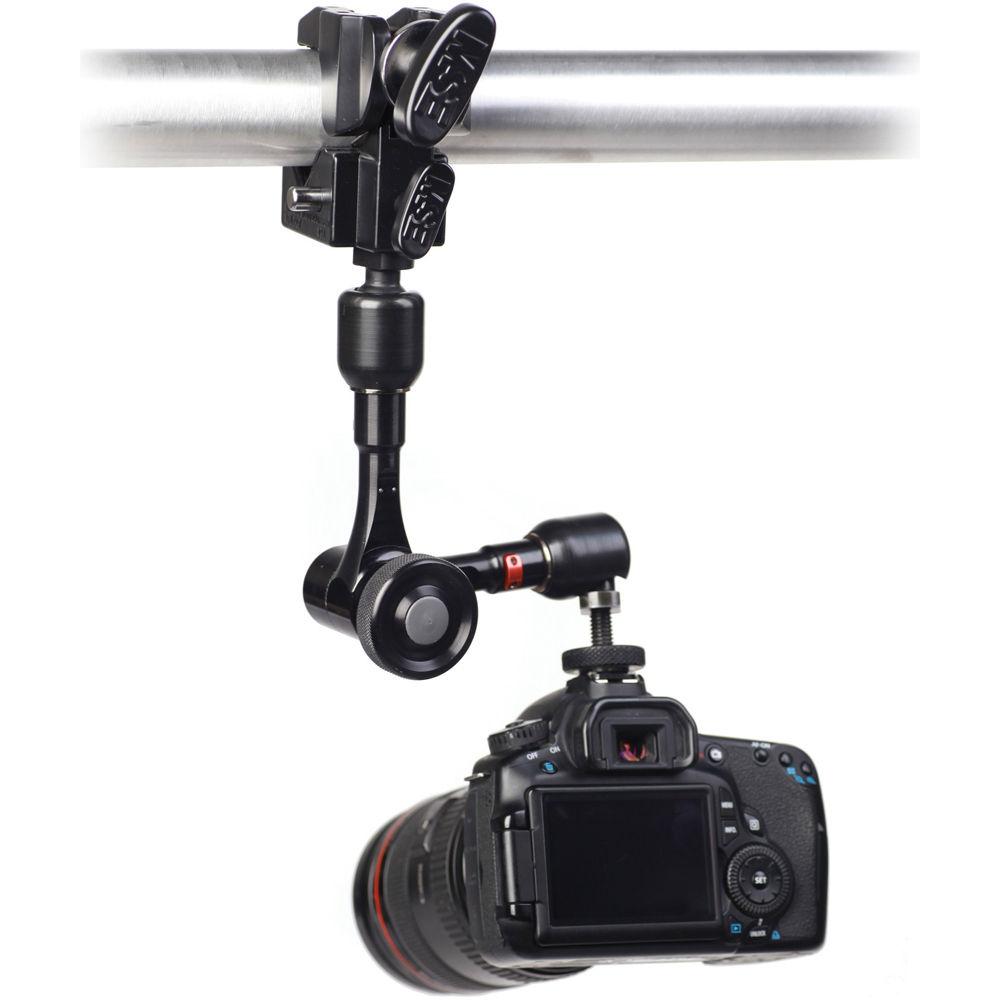

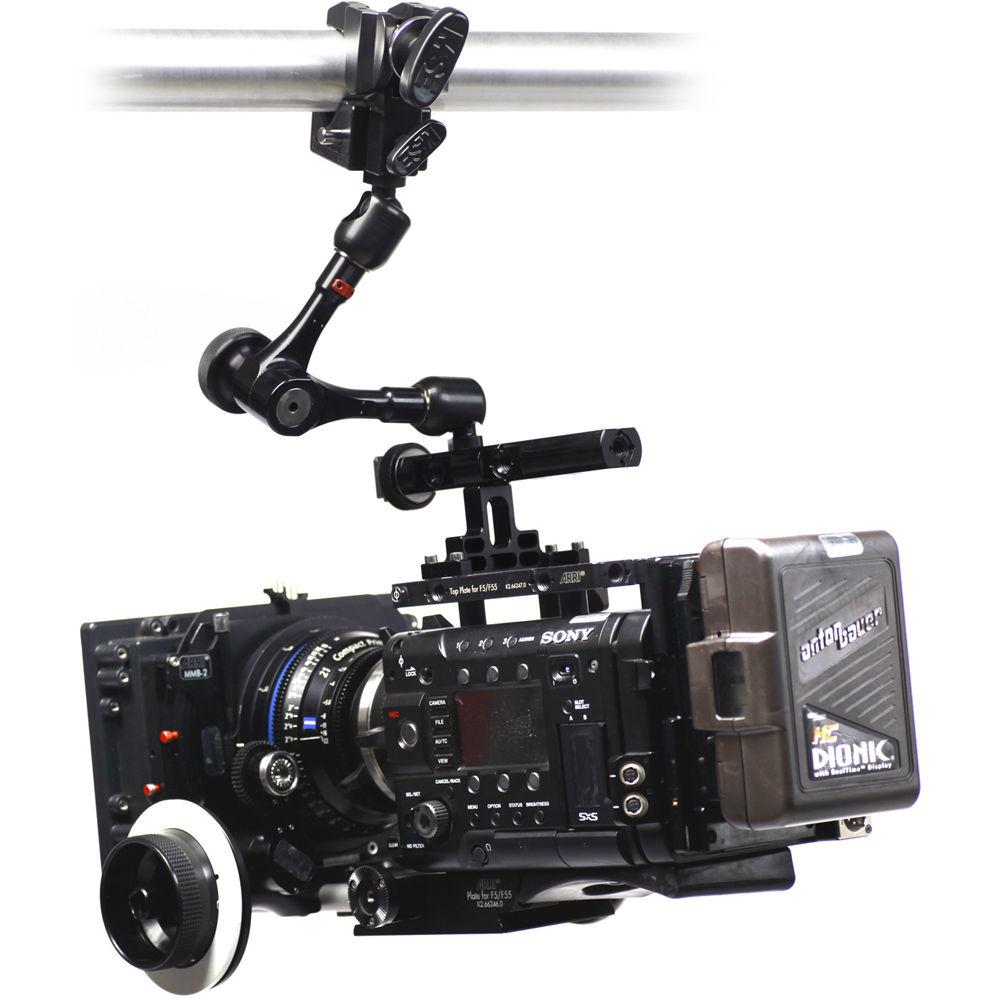

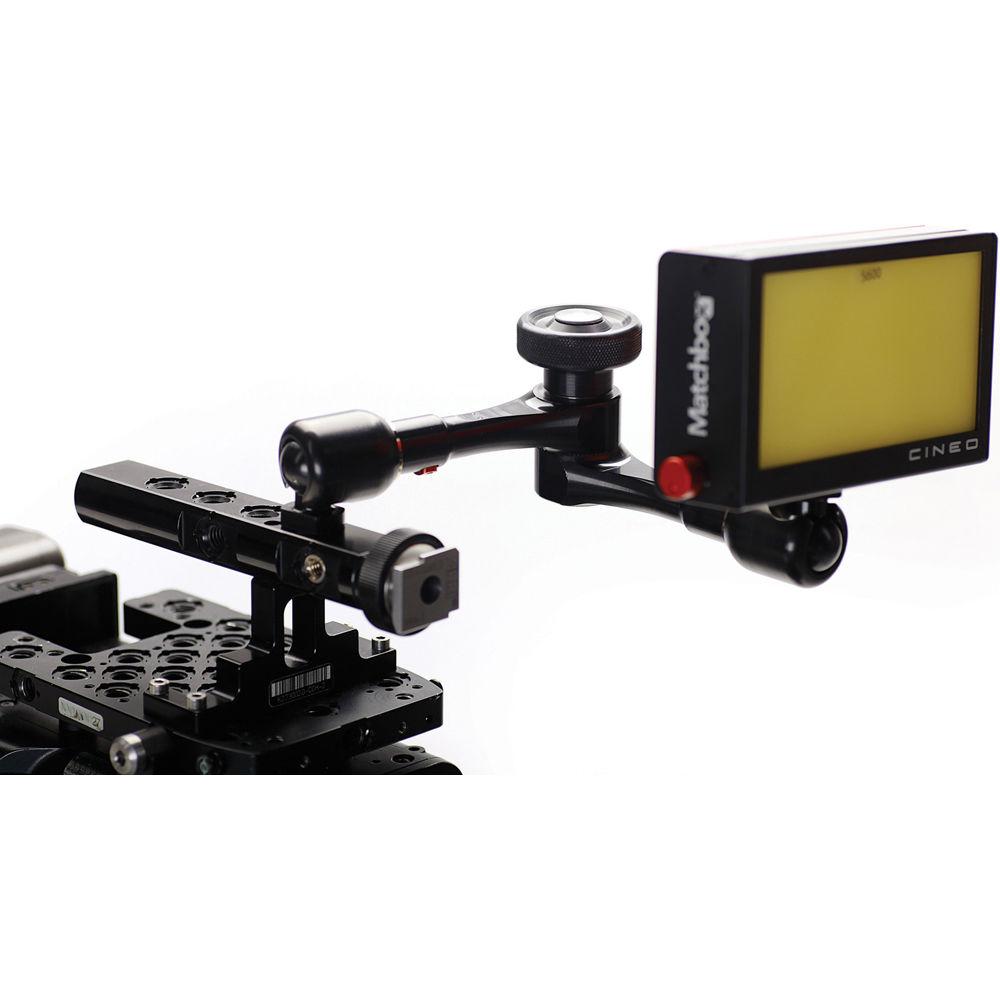

Supporting up to 32 lb, the Matthews Infinity Arm is a super-strength, modular cine arm that may highly simplify your on-set workflow. Supporting nine different accessory tips via secure ball sockets on both ends, it's designed to serve you well across the gamut of grip applications, such as mounting cameras, lights, and monitors underslung from C-stands, booms, or speed rails. Two 1/4"-20 male accessory tips are included, and a soft carrying case is also supplied for storing the arm and additional tips, providing room for growth.

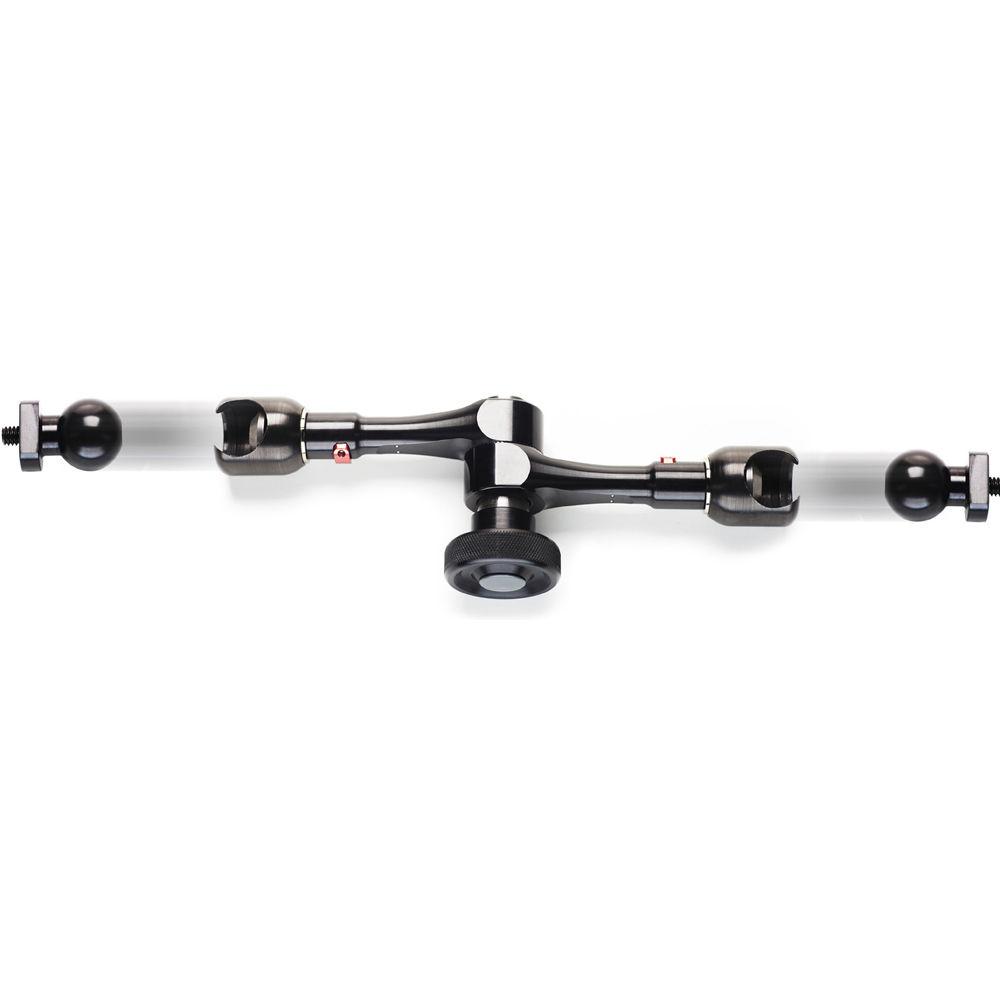

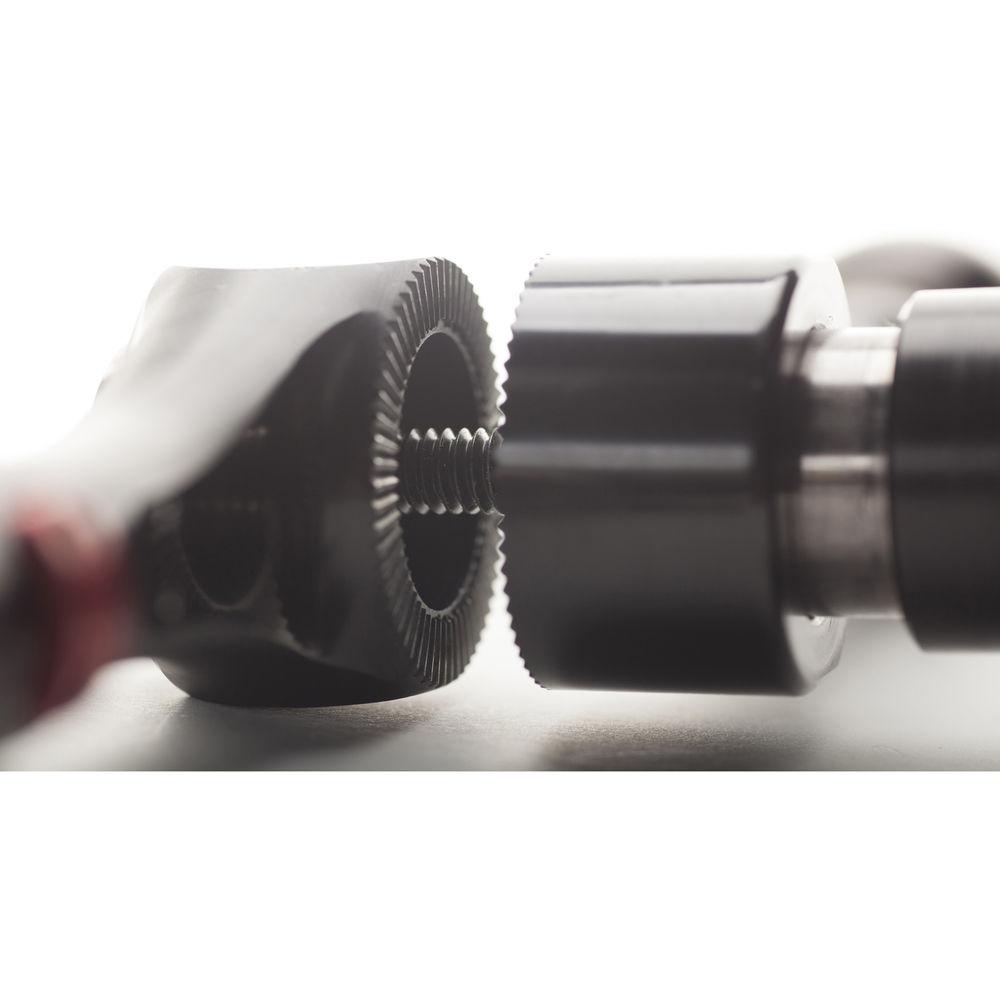

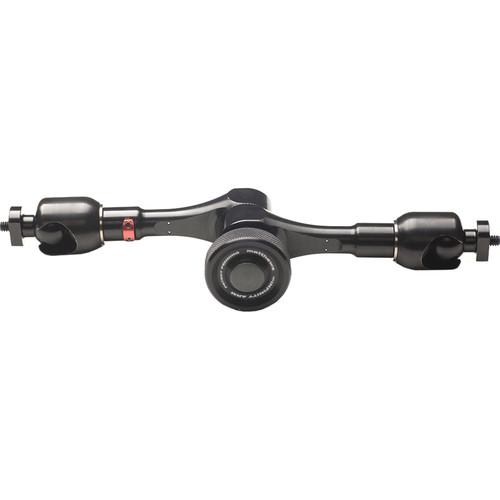

The Infinity Arm is made of two identical sections, and measures 9" from end-to-end without tips. Its strength is the result of superior materials of construction and machining process. It's built out of steel and aircraft grade aluminum, and features a 60-section radial rosette in the center machined with a focus on getting a good grip at every section. The Infinity Arm will reliably hold 15 lb when in a fully horizontal position—which is naturally the least strong position—and up to 32 lb when you start adjusting it to more angled positions, with a 90° angle being its strongest configuration.
The rosette mechanism is adjustable by loosening/tightening a large knurled, easy-to-handle dial on the side. The supported accessory tips are fully 360° rotatable. On top of everything, the Infinity Arm has a nice appearance, and is neither overdone nor underdone in its aesthetic design. It is finished with military grade black anodize and proprietary electroless nickel phosphorus. And, although designed with a focus on grip applications, it can also be used for standard camera-mount and rig-mount uses. - Supported Accessory Tips
-

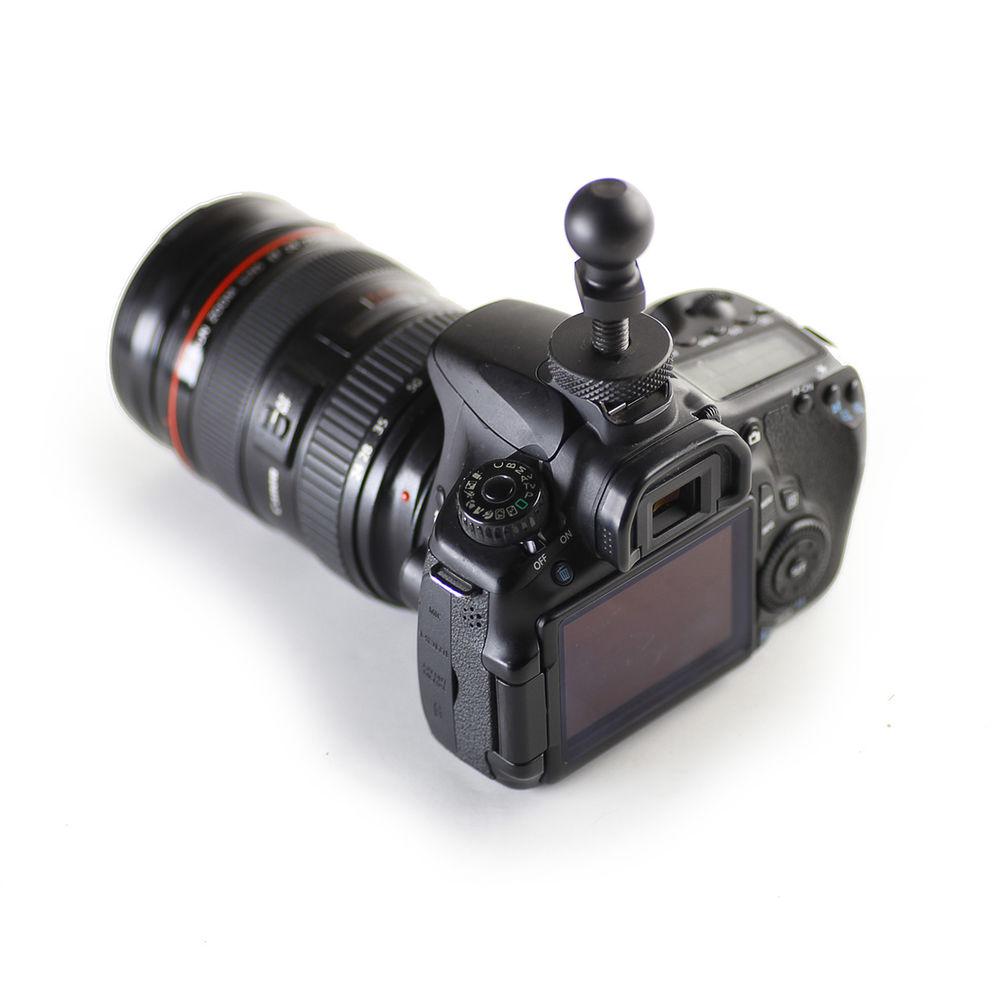

- 1/4"-20 female (429626-1)
- 1/4"-20 male (429626-2)
- 3/8"-16 female (429626-3)
- 3/8"-16 male (429626-4)

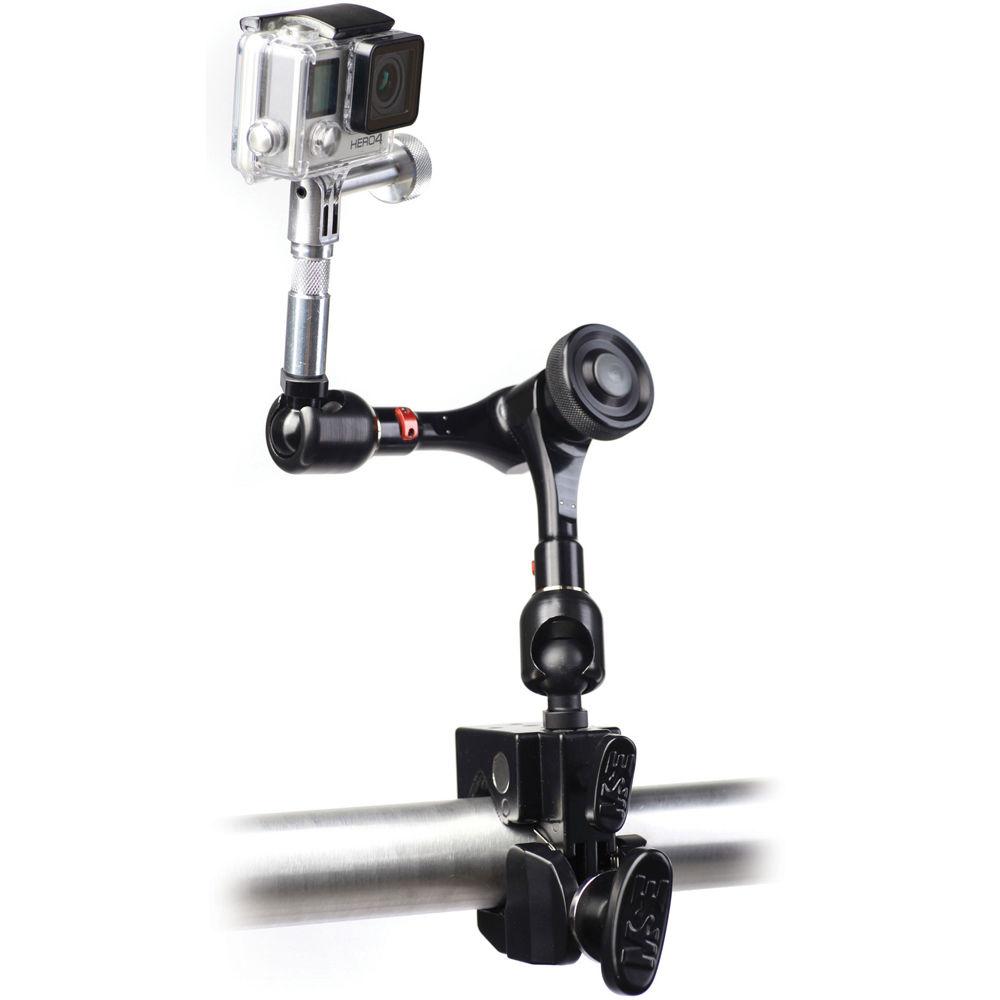

- GoPro mount (429626-5)
- 5/8" female (429626-6)
- Mini Matthellini clamp (429626-7)
- Shoe mount (429626-8)
- 5/8" male (429626-9)
In the Box Matthews Infinity Arm Kit Soft Carrying Case 2 x 1/4"-20 Male Ball Tips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Infinity Arm Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews 429627 Specs | Length | 9" (23 cm), without tips | | Capacity | Up to 32 lb (14.5 kg), depending on adjustment position
Will handle 15 lb (6.8 kg) in any adjustment position | | Material of Construction | CNC Machined tool steel, and 6061-T6 aircraft grade aluminum
Finishes: Type 3 military grade black anodize, and a proprietary electroless nickel phosphorus | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 1.555 lb | | Box Dimensions (LxWxH) | 9.4 x 5.45 x 3.25" |
