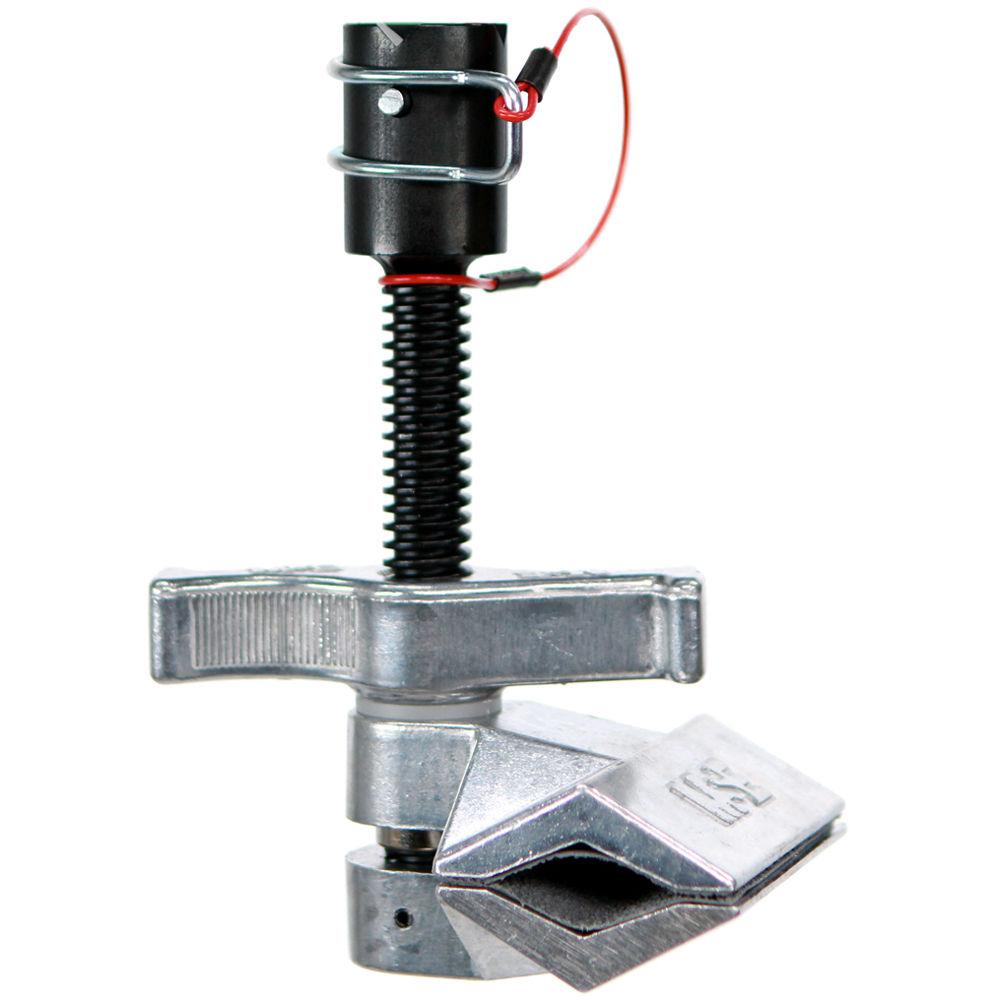

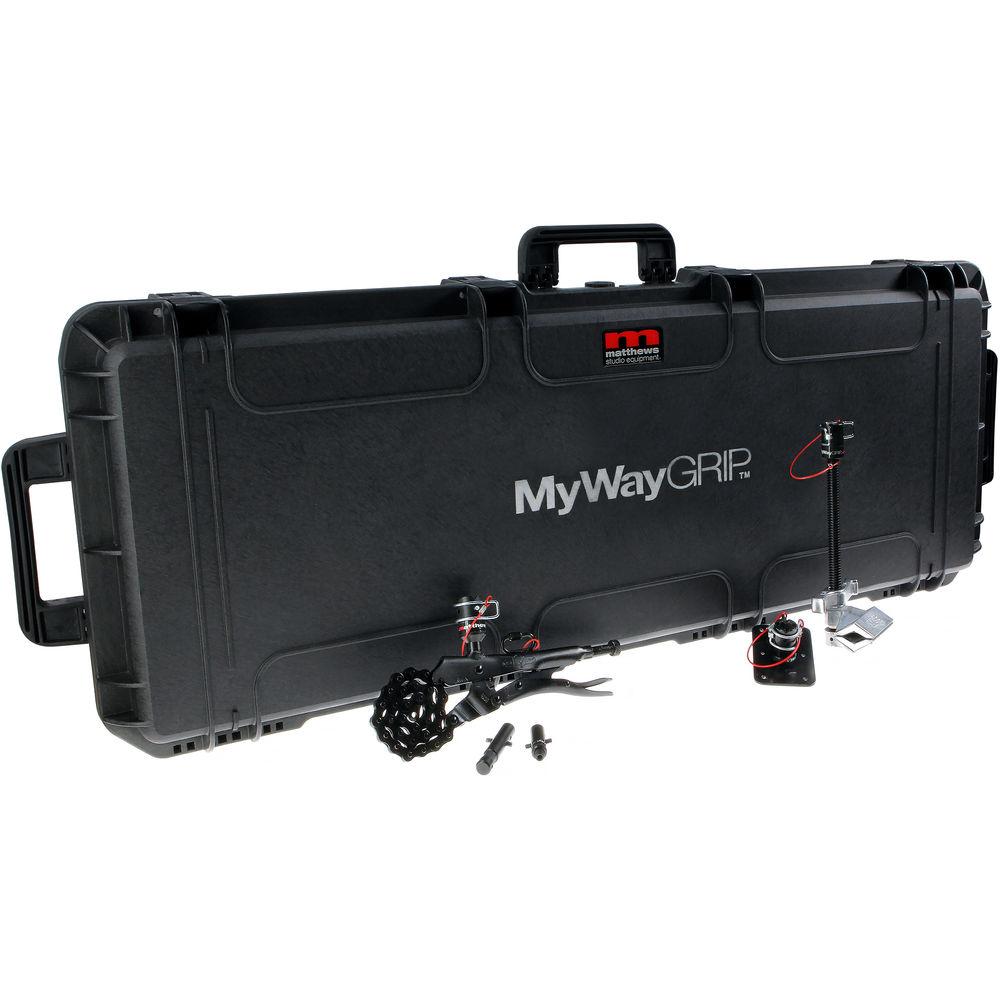

Product description The MyWay Grip Rigging System from Matthews is a collection of sturdy, yet reduced-sized grip components with proprietary connectors aimed at reducing redundant items and weight (by at least 2/3) in the crate cart. This comprehensive MyWay Grip Survival Kit with Custom Case contains nearly every component in the rigging system and then some, all of which fit in the hard DORO case. All MyWay components, the extensive kit includes two Matthellini 2" End Jaws, two Matthellini 2" Center Jaws, two Matthellini 6" End Jaws, two Right Angle Baby Pins, six 3" Baby Pins, two 6" Baby Pins, two 6" Pins, and two 12" Pins. Also included is a Chain Vice Grip, Pipe Clamp, three Baby Plates, one Grid Clamp, one Junior Pin, one Junior Receiver Spinner, a Right-Angle Adapter, two 45-Degree Adapters, one each 1/4"-20 and 3/8"-16 Adapters and a 1-2' Expandable Hanger. As mentioned earlier, it all fits in the supplied hard case for storage and transport. - MyWay Matthellini 2" End Jaw Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Matthellini 2" End Jaw from Matthews has a proprietary connector on the threads which accepts MyWay attachments such as the 429638 Junior Pin.

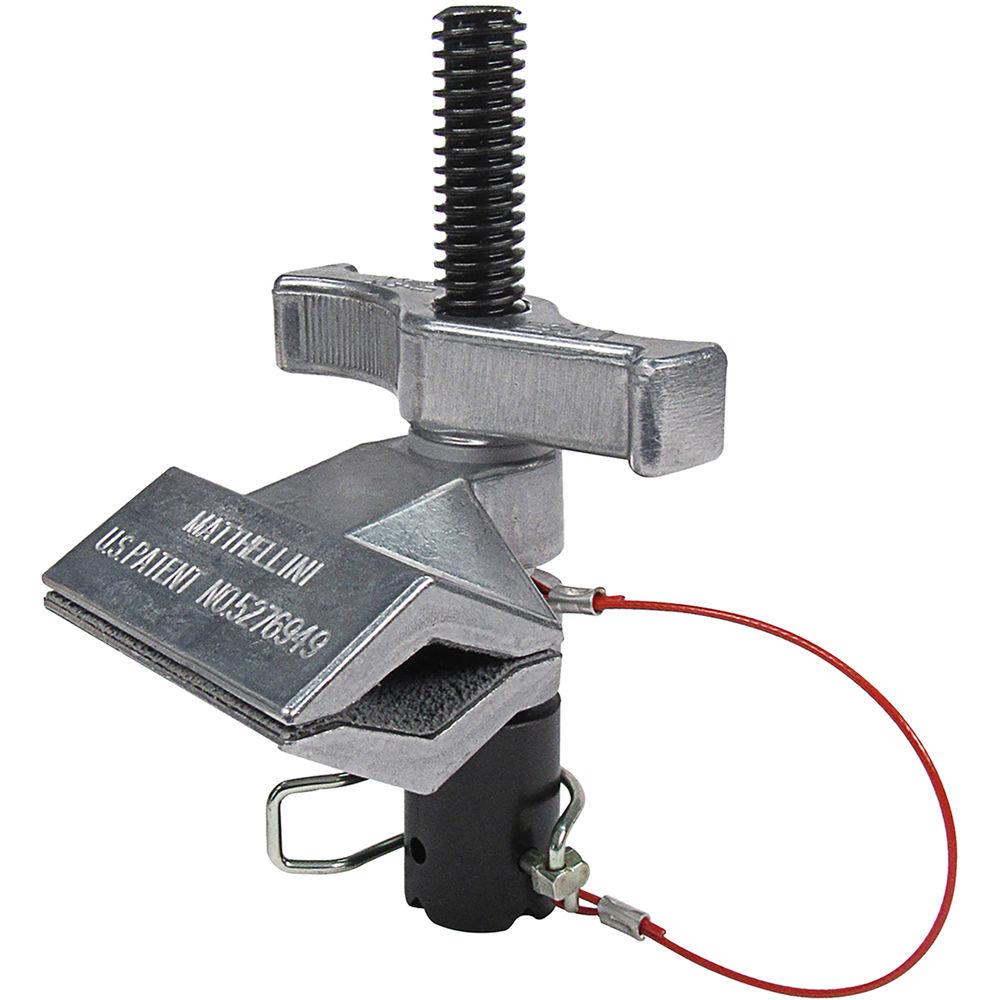

- MyWay Matthellini 2" Center Jaw Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Matthellini 2" Center Jaw from Matthews has a proprietary connector on the threads which accepts MyWay attachments such as the 429638 Junior Pin.

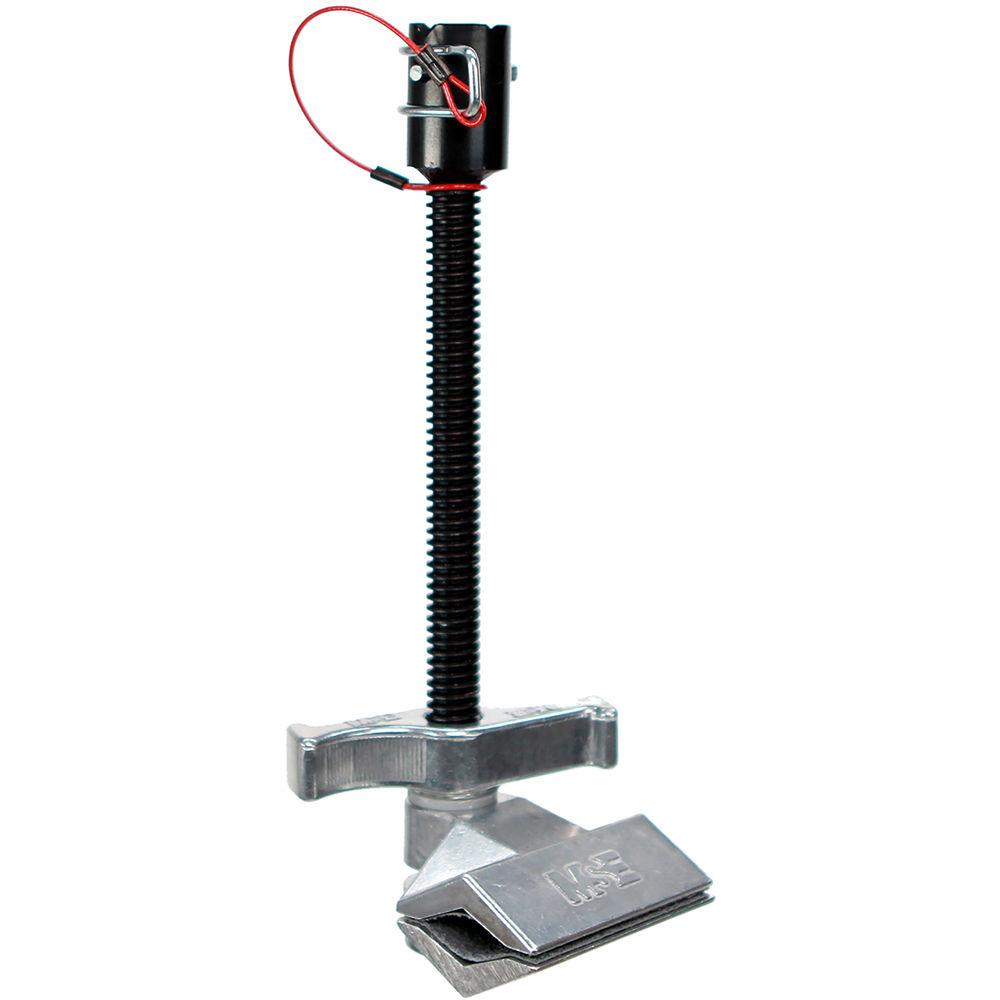

- MyWay Matthellini 6" End Jaw Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Matthellini 6" End Jaw from Matthews has a proprietary connector on the threads which accepts MyWay attachments such as the 429638 Junior Pin.
- MyWay 90-Degree Pin Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay 90-Degree Pin from Matthews has a 5/8" stud for lights or other accessories at one end, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.

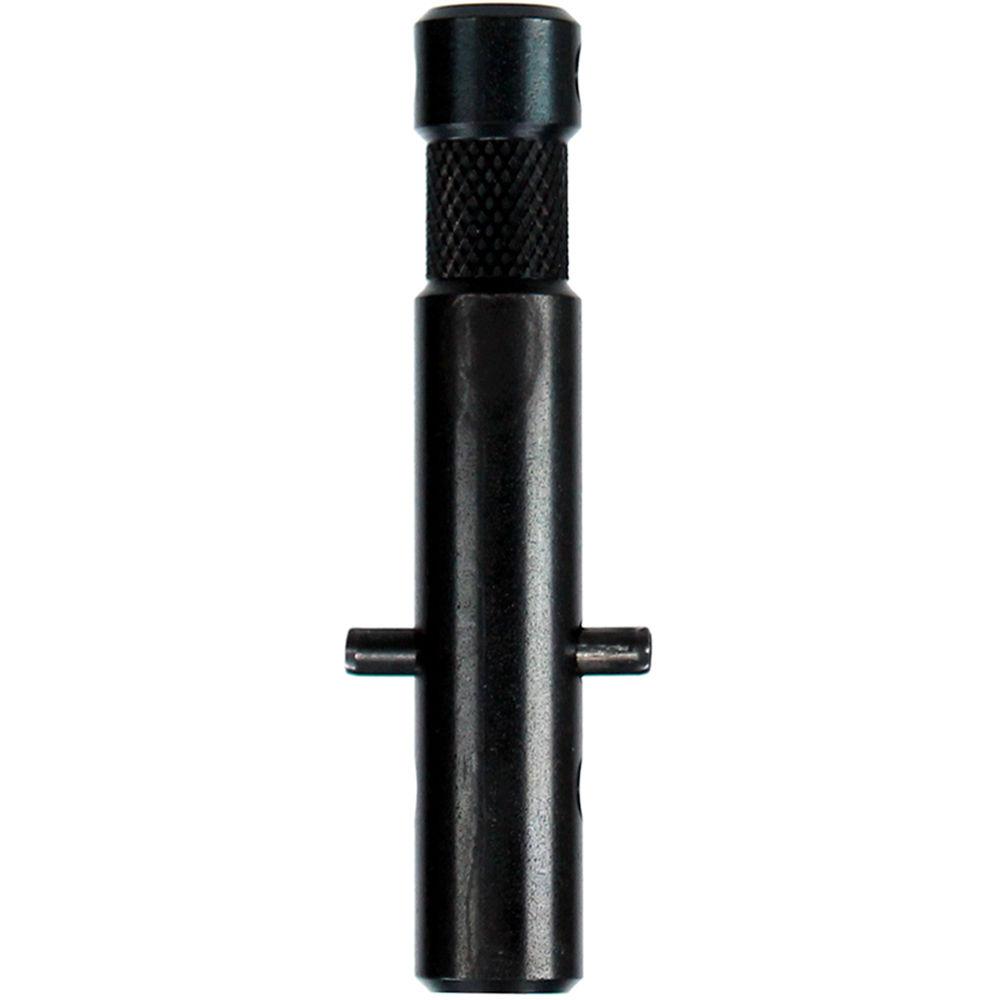

- MyWay Baby Pin (3") Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the 3" MyWay Baby Pin from Matthews has a 5/8" pin for gear with a 5/8" receiver, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.

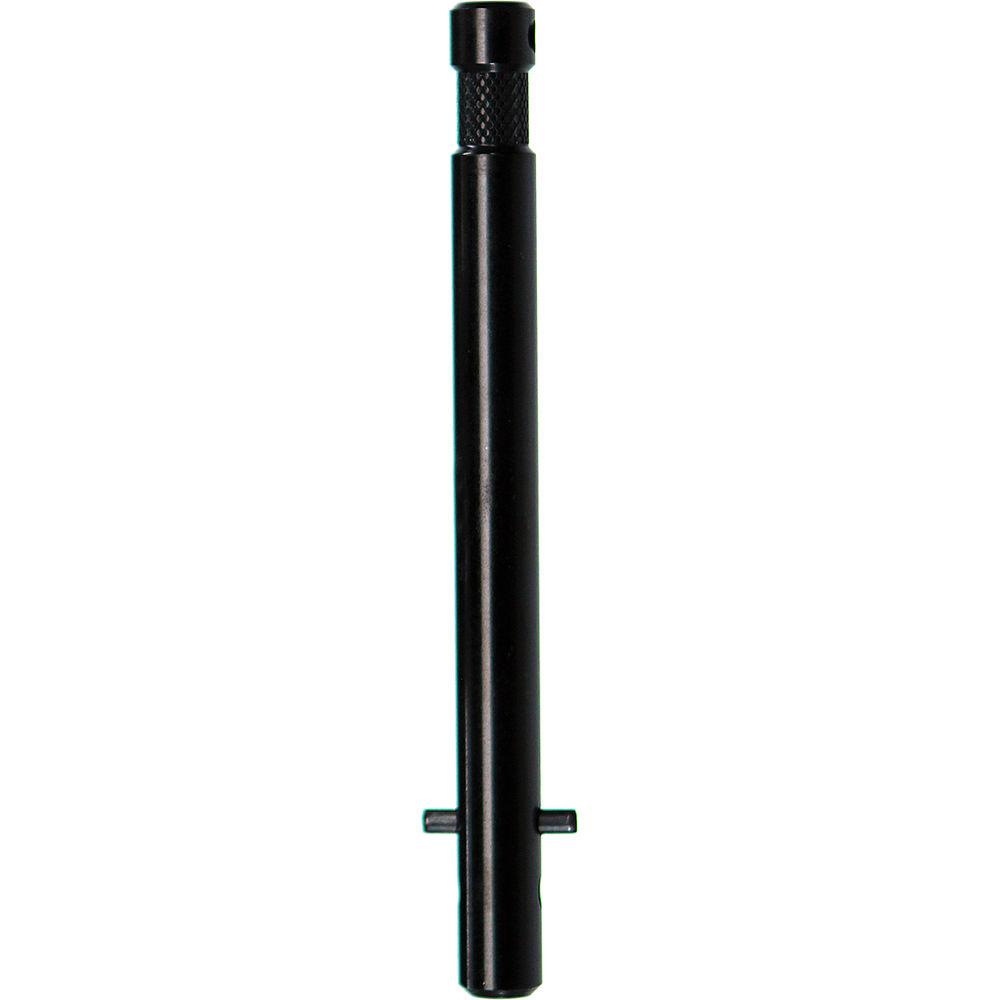

- MyWay Baby Pin (6") Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the 6" MyWay Baby Pin from Matthews has a 5/8" pin for gear with a 5/8" receiver, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.

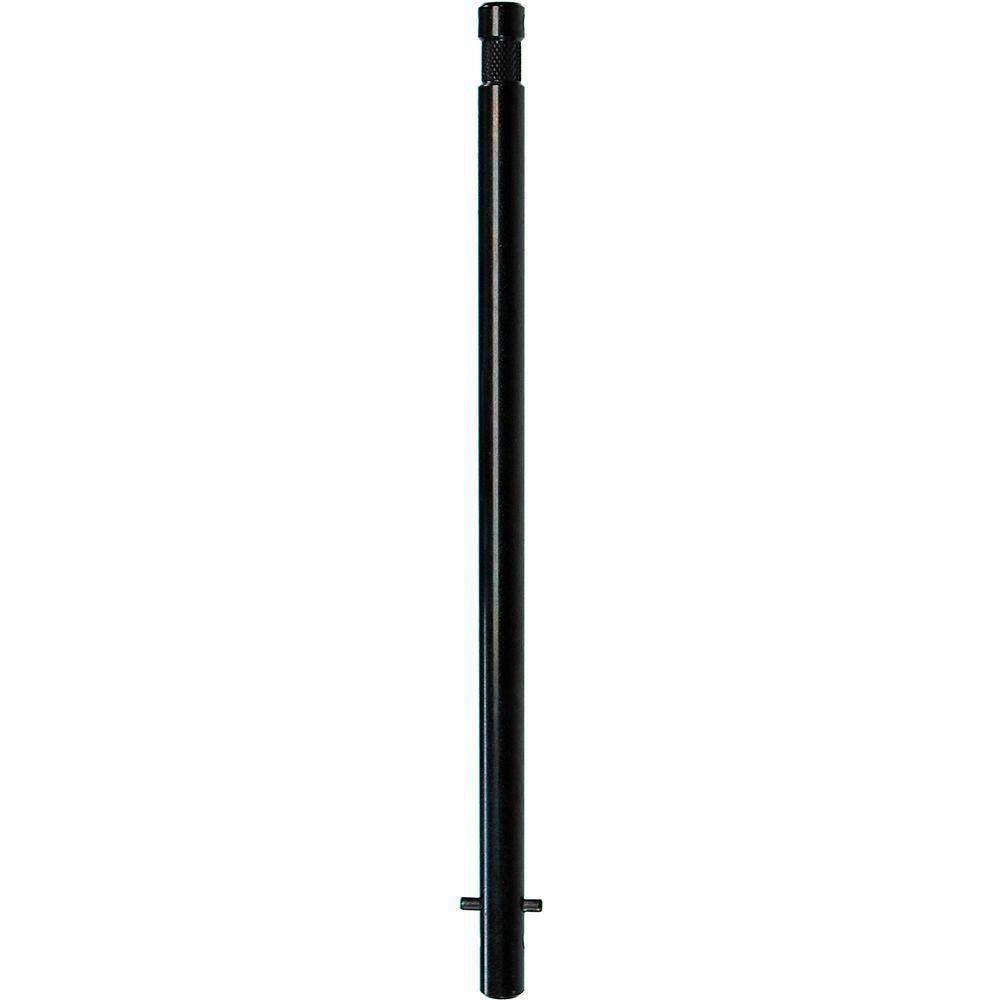

- MyWay Baby Pin (12") Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the 12" MyWay Baby Pin from Matthews has a 5/8" pin for gear with a 5/8" receiver, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.

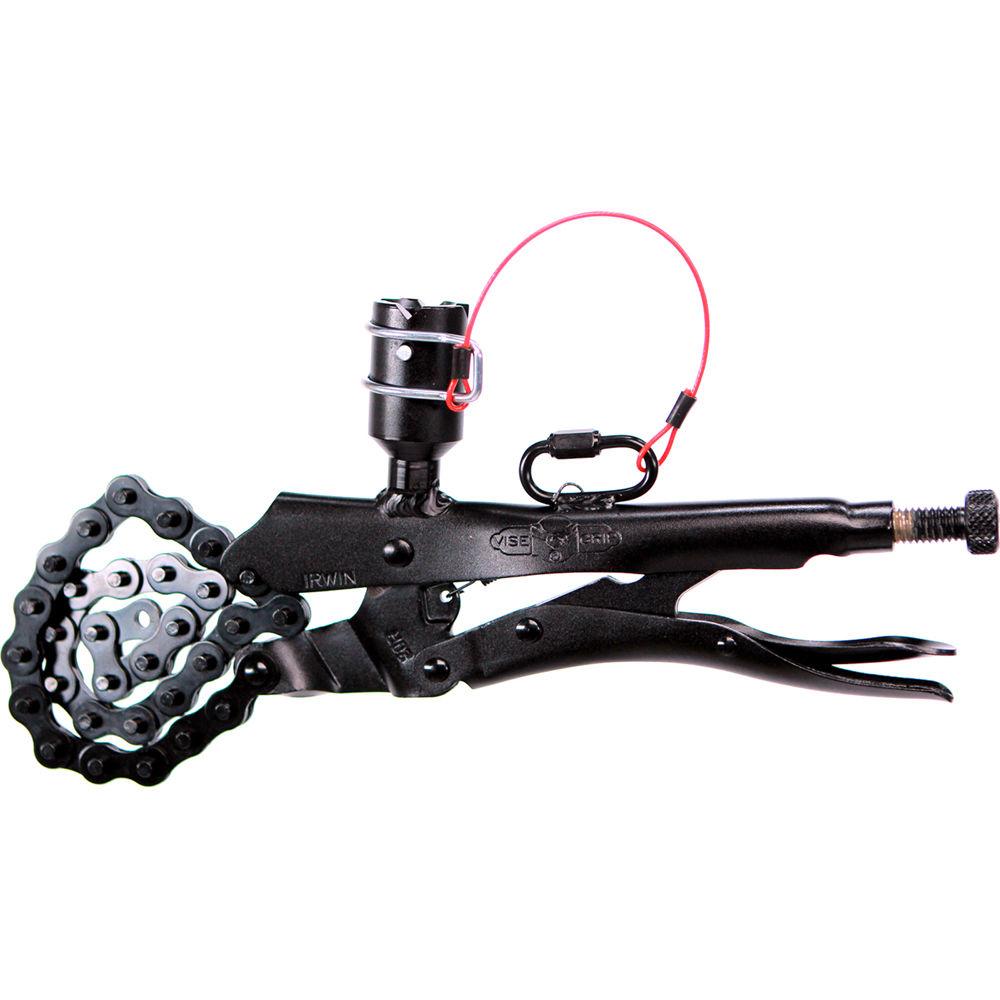

- MyWay Chain Vice Grip Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Chain Vice Grip from Matthews has a bicycle-type chain that wraps around items like poles, pipes, or trees, and then fits into a vise grip that tightens the chain around the item securely. Considered a base in the MyWay system, the grip has a proprietary receiver that accepts MyWay attachments.
- MyWay Pipe Clamp Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Pipe Clamp from Matthews is a C-clamp that can accept the proprietary connector on one of the attachments, such as the 425165 Baby Pin or the 425156 90-Degree Baby Pin. The clamp, attachment, and whatever is connected to it can then be mounted onto pipe, wood, or other items.
- MyWay Nail-On Plate Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Nail-On Plate from Matthews has a female receiver for one of the fifteen attachments with proprietary connectors in the system. The plate has four tapped holes for securing it with nails or screws.
- MyWay Grid Clamp Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Grid Clamp from Matthews can open and lock down, via its oversize handle, on pipe up to 2" on an overhead grid. The receiver on the clamp accepts the proprietary connector on one of the attachments, such as the 425165 Baby Pin or the 425156 90-Degree Baby Pin. The clamp, attachment, and whatever is connected to it can then be mounted onto the pipe.
- MyWay Junior Pin Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Junior Pin from Matthews has a 1-1/8" pin at one end for gear, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.
- MyWay Junior Receiver Spinner Attachment Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay Junior Receiver Spinner Attachment from Matthews has a 1 1/8" receiver at one end to accept a Junior pin, with a screw tapped into the attachment to secure the pin. The other end has a proprietary pin that fits into a MyWay base such as the #429634 Nail-On Plate. Loosening its T-knob allows the attachment to rotate or "spin."

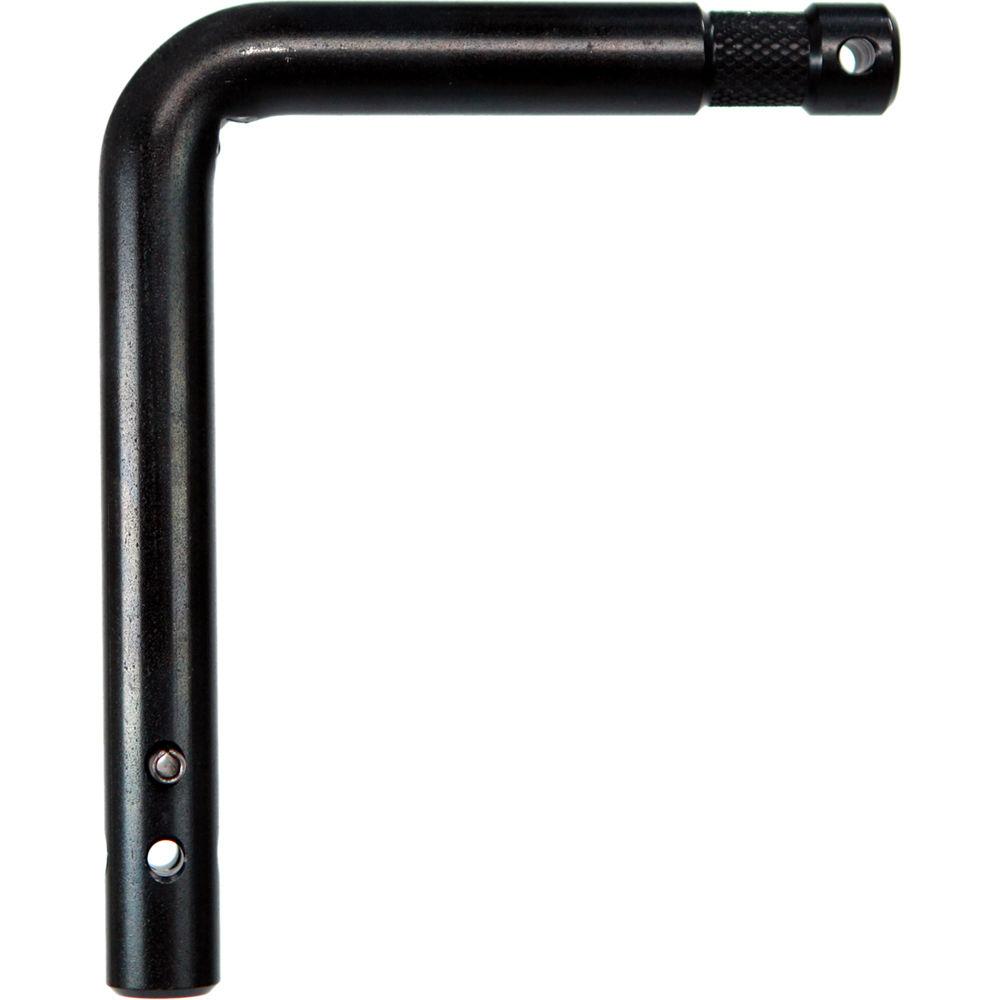

- MyWay 90-Degree Adapter Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay 90-Degree Adapter from Matthews has a proprietary receiver at one end to accept MyWay attachments, and a 90-degree section that fits MyWay mounts or bases.
- MyWay 45-Degree Adapter Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay 45-Degree Adapter from Matthews has a proprietary receiver at one end to accept MyWay attachments, and a 45-degree section that fits MyWay mounts or bases.
- MyWay 3/8"-16 Adapter Part of the MyWay Grip System aimed at reducing redundant items in the crate cart, the MyWay 3/8"-16 Adapter from Matthews has 3/8"-16 male threads at one end for gear tapped with female threads, and a proprietary connector at the other that fits in a separately purchased base such as the (429634) Nail-On Plate.
In the Box Bundle Items 2 x MyWay Matthellini 2" End Jaw vybsdczsevca 2 x MyWay Matthellini 2" Center Jaw 2 x MyWay Matthellini 6" End Jaw 2 x MyWay 90-Degree Pin 6 x MyWay Baby Pin (3") 2 x MyWay Baby Pin (6") 2 x MyWay Baby Pin (12") MyWay Chain Vice Grip MyWay Pipe Clamp 3 x MyWay Nail-On Plate MyWay Grid Clamp MyWay Junior Pin MyWay Junior Receiver Spinner Attachment MyWay 90-Degree Adapter 2 x MyWay 45-Degree Adapter MyWay 3/8"-16 Adapter vybsdczsevca
Also Includes - DORO Case with Custom Insert
- MyWay 1/4-20" Adapter
- MyWay 1-2' Hanger
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews MyWay Grip Survival Kit with Custom Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MyWay Matthellini 2" End Jaw
Clamp Type | Jaw | Jaw Opening | 2.0 " / 5.08 cm | Material | Metal | | Box Dimensions (LxWxH) | 8.7 x 5.4 x 3.6" | - MyWay Matthellini 2" Center Jaw
Clamp Type | Jaw | Jaw Opening | 2.0 " / 5.08 cm | Material | Metal | - MyWay Matthellini 6" End Jaw
Clamp Type | Jaw | Jaw Opening | 6.0 " / 15.24 cm | Material | Metal | - MyWay 90-Degree Pin
Mounting | 5/8" / 16 mm Stud | Material | Metal | - MyWay Baby Pin (3")
Mounting | 5/8" / 16 mm Stud | Material | Metal | Dimensions |
