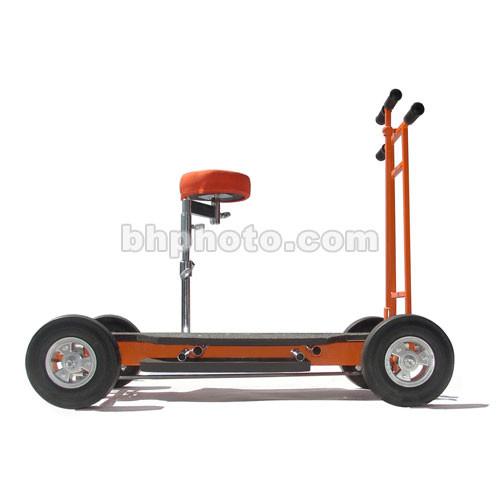

User Manual for Matthews Round-D-Round Doorway Dolly Click to enlarge the picture
Contents of the user manual for the Matthews Round-D-Round Doorway Dolly
- Product category: Platform Dolly Systems Matthews
- Brand: Matthews
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matthews Platform Dolly Systems
|
User manual for the Matthews Round-D-Round Doorway Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matthews product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matthews user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matthews product will considerably shorten its lifespan!
|
Product description The Round-D-Round Doorway Dolly from Matthews represents the next generation in doorway dolly development. Based on the industry standard Matthews Doorway Dolly, the new Round-D-Round model offers all-wheel steering which allows for greater turning flexibility. It's capable of negotiating an extremely tight circle of 6' (1.8 m). The camera operator is able to mount into six different fixed locations and steering is possible from both ends of the dolly. In addition to being able to mount the seat directly onto the post, the included offset arm can be installed to give the camera operator more choices for seating positions and camera angles. A second seat and offset arm can also be installed, giving you the possibility of having a second person seated on the dolly. This ingenious engineering concept provides virtually unlimited camera and operator positioning as the dolly rolls on track with either Hot Buttons or the Matthews Centipede. Of course, using the dolly directly on the ground with the standard pneumatic rubber tires is another option. Load capacity is over 1100 lb (500 kg) and the platform is carpeted for a non-slip low maintenance surface. This economical yet versatile mobile camera platform is an excellent choice for stage or location - All-wheel steering will navigate tight 90 degree corners.
- Steering with the push/pull bar is possible from either end of this dolly
- With a length of 51" (130 cm) and a width of 28.25" (72 cm), the Round-D-Round Doorway Dolly will operate through standard sized doorways
In the Box Matthews Round-D-Round Doorway Dolly Seat Secondary Offset Arm 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matthews Round-D-Round Doorway Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatthews 395300 Specs | Length | 51" (130 cm) | | Width | 28.25" (72 cm) | | Load Capacity | 1100 lb (500 kg) | | | | Package Weight | 121.0 lb | | Box Dimensions (LxWxH) | 57.0 x 38.0 x 17.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
