User Manual for Maxtron TG-5000A Dual-Format HD-SDI Pattern Generator Click to enlarge the picture
Contents of the user manual for the Maxtron TG-5000A Dual-Format HD-SDI Pattern Generator
- Product category: Video & Audio Signal Generators Maxtron
- Brand: Maxtron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Maxtron Video & Audio Signal Generators
 |
User manual for the Maxtron TG-5000A Dual-Format HD-SDI Pattern Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Maxtron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Maxtron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Maxtron product will considerably shorten its lifespan!
|

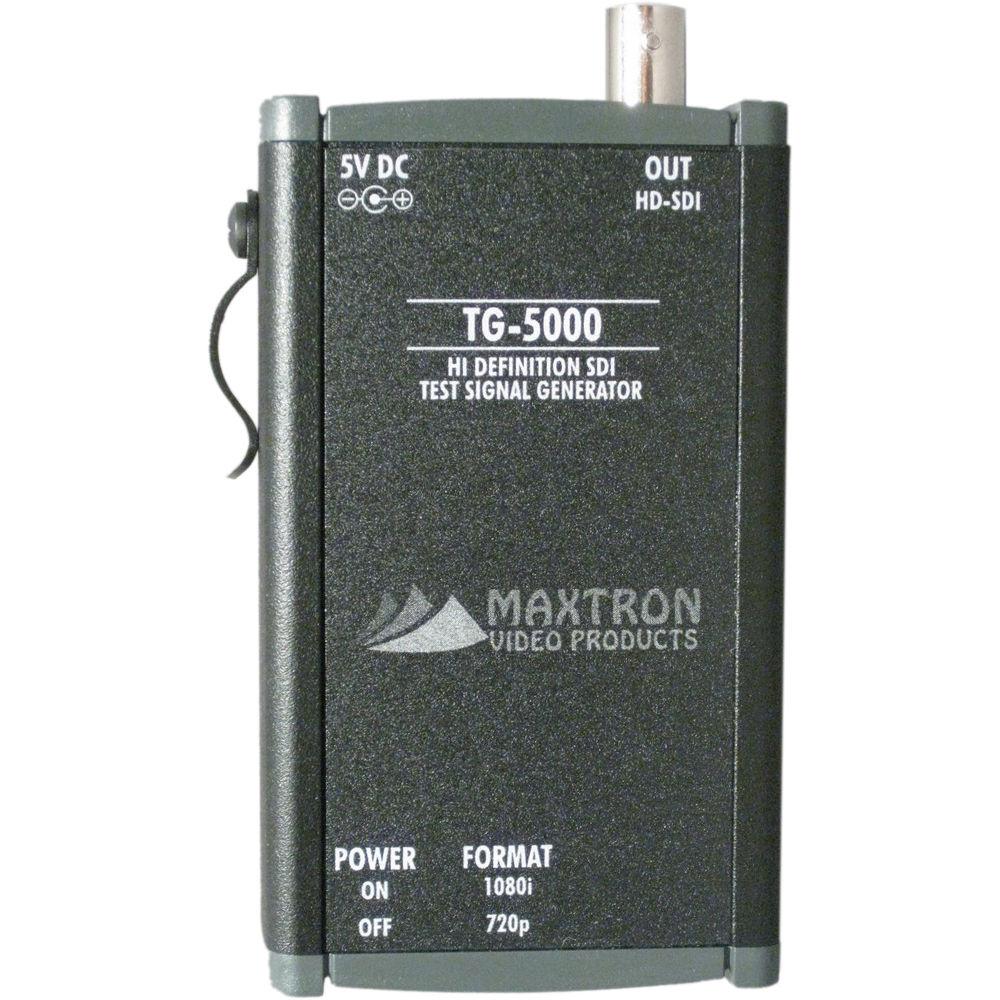

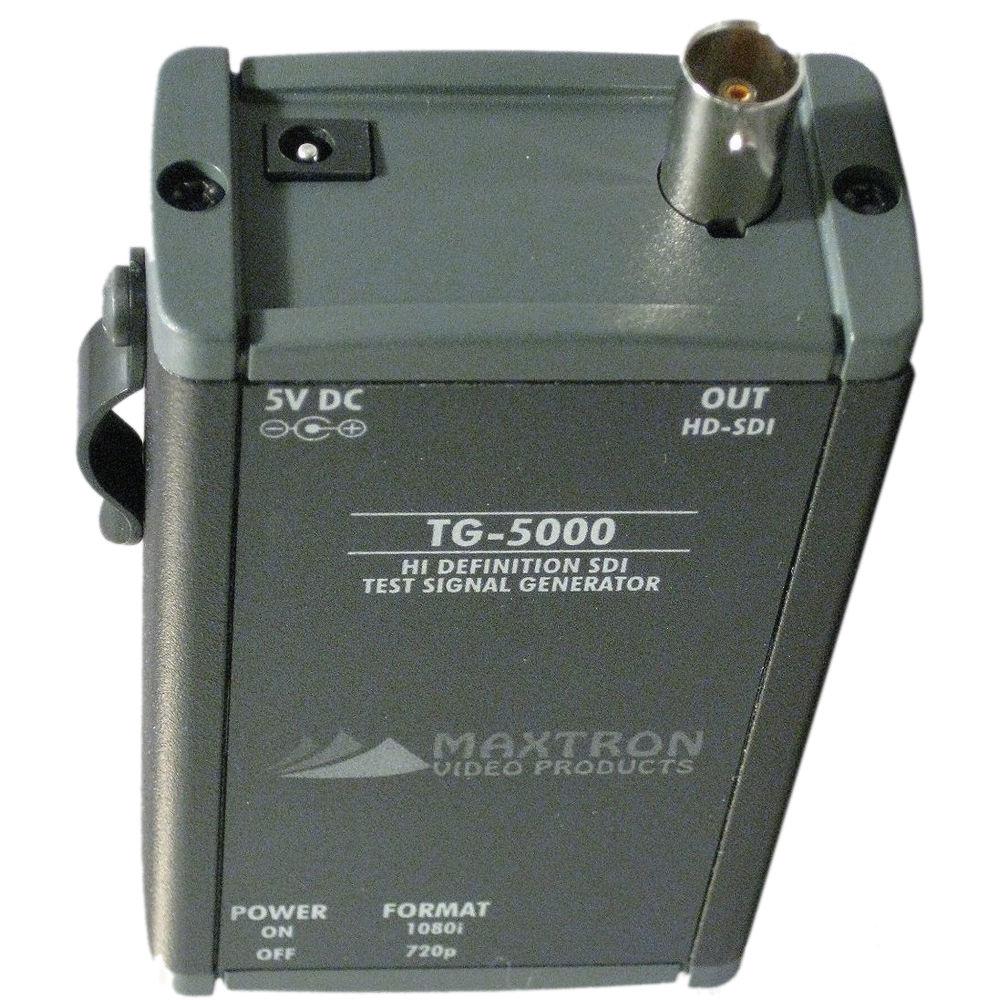

Product description The TG-5000A Dual-Format HD-SDI Pattern Generator from Maxtron is a single-pattern test signal generator with embedded 16-channel voice IDs and audio tones. It has a switch to select between 1080i 59.94 (UP) and 720p 59.94 (DN) format of the HD-SDI output. The test pattern is the SMTPE RP-219 HDTV Color Bars, which was specifically chosen to expose system weaknesses and limitations. Overlaid over the test pattern is a traveling wizard that moves in a ping-pong fashion about the screen to help reveal dropped or repeated fields/frames, as well as frozen video. A circle overlay is added when the unit is in the 720p mode, to aid in checking for proper display aspect ratios.
The TG-5000A offers audio channel voice IDs and tone combinations for all 16 stereo channels allotted in the SD/HD-SDI specifications. When the voice IDs are enabled, they repeat a specific channel ID every 15 seconds, making it clear which audio channel is being monitored. Between the voice IDs, there are standard level audio tones for the right and left channels within each group.
This pattern generator has a toggle switch to turn the unit on and off. The green power LED confirms power to the unit and blinks rapidly when the unit is in the 1080i mode. - 16-channel embedded audio with voicing and tones
- RP219 Color Bars with motion
- Full 20-bit pattern generation
- SMPTE 292M standard output
In the Box Maxtron TG-5000A Dual-Format HD-SDI Pattern Generator Miniature Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Maxtron TG-5000A Dual-Format HD-SDI Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaxtron TG-5000A Specs | Supported Video Formats | 720p 59.94, 1080i 59.94 | | Pattern | RP219 with motion (+ circle when format switch is in 720p position) | | Power Supply | 100 - 240 VAC, 5 VDC, 1 A | | DC Plug | EIAJ-2, 1.7 x 4.0 mm, center positive | | Dimensions | 4 x 2.5 x 1.25" (10.2 x 6.4 x 3.2 cm) | | Weight | 5 oz (141.7 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.7 x 3.5 x 2.3" |
