Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator

Search your instruction manual in PDF to download

User Manual for Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery

Click to enlarge the picture
Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery Contents of the user manual for the Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator
  • Product category: Video & Audio Signal Generators Maxtron
  • Brand: Maxtron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Maxtron Video & Audio Signal Generators

Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery
User manual for the Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Maxtron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Maxtron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Maxtron product will considerably shorten its lifespan!



Product description

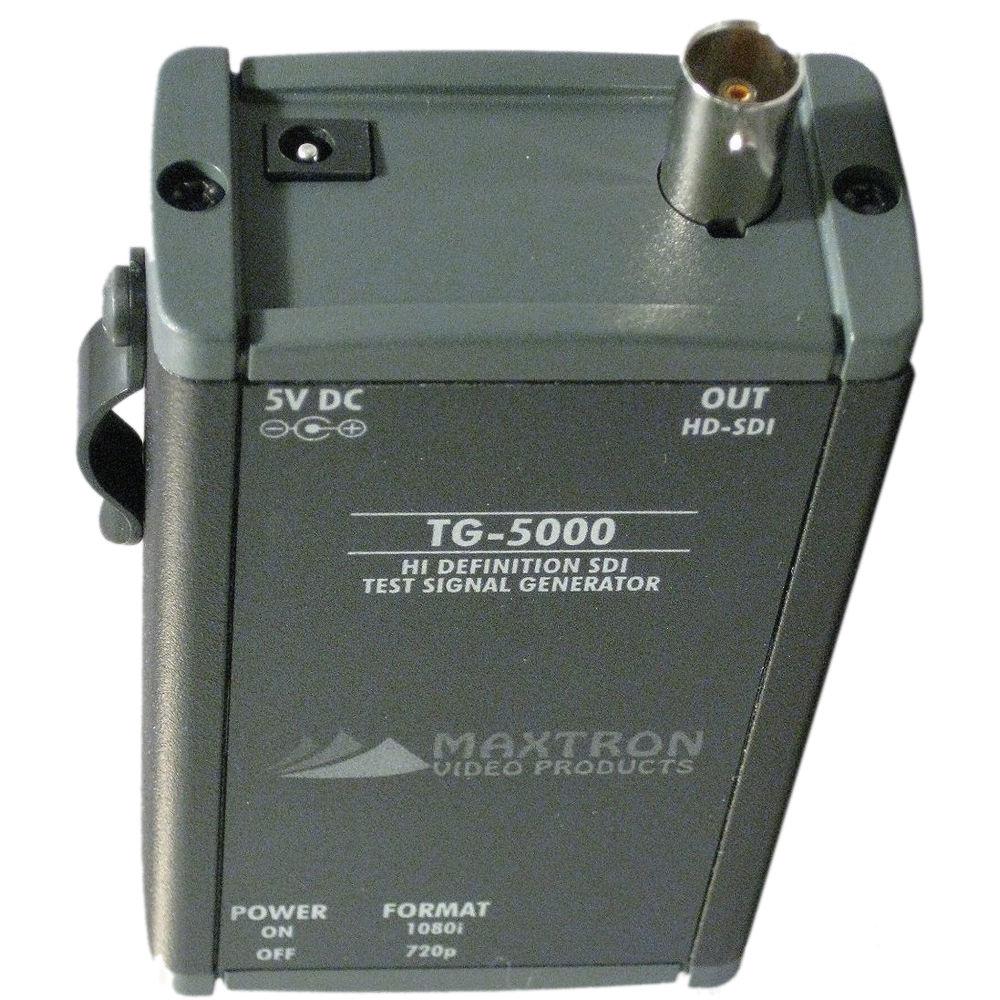

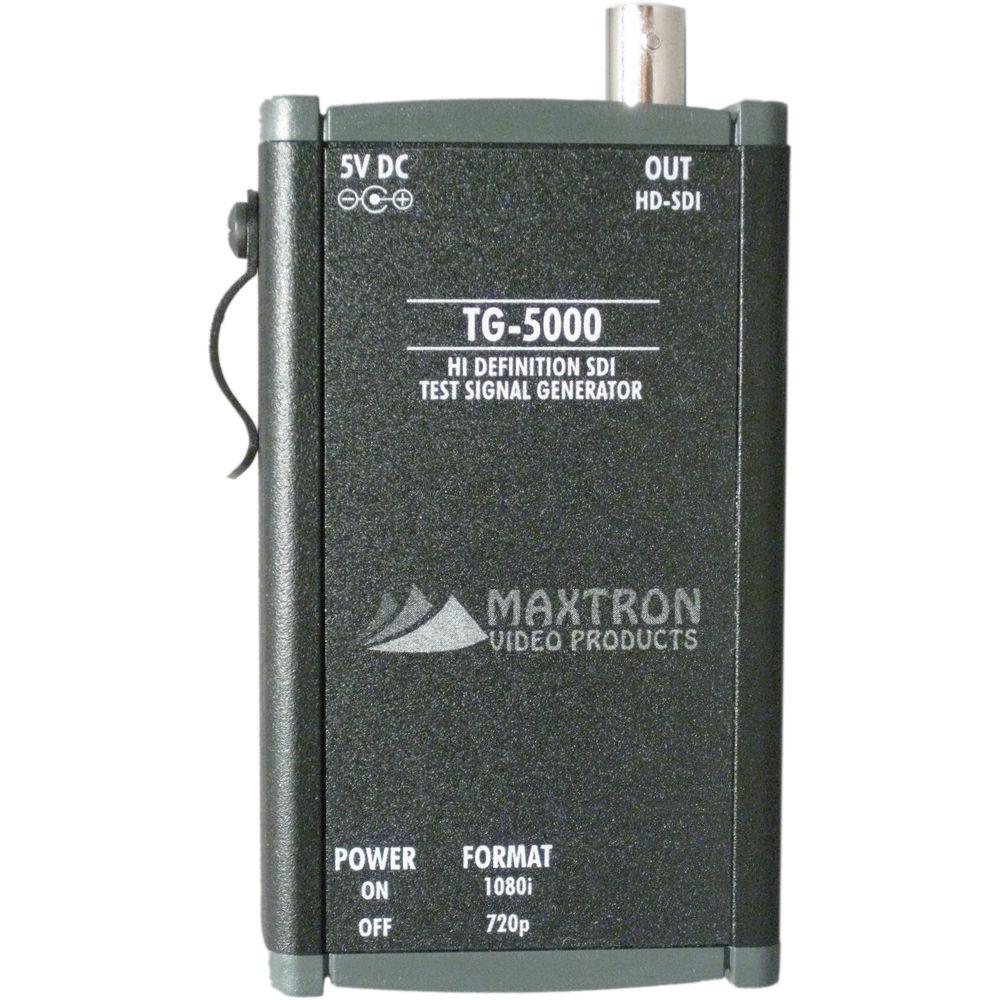

The TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery from Maxtron is a single-pattern test signal generator with embedded 16-channel voice IDs and audio tones. It has a switch to select between 1080i 59.94 (UP) and 720p 59.94 (DN) format of the HD-SDI output. The test pattern is the SMTPE RP-219 HDTV Color Bars, which was specifically chosen to expose system weaknesses and limitations. Overlaid over the test pattern is a traveling wizard that moves in a ping-pong fashion about the screen to help reveal dropped or repeated fields/frames, as well as frozen video.

The TG-5000AB offers audio channel voice IDs and tone combinations for all 16 stereo channels allotted in the SD/HD-SDI specifications. When the voice IDs are enabled, they repeat a specific channel ID every 15 seconds, making it clear which audio channel is being monitored. Between the voice IDs, there are standard level audio tones for the right and left channels within each group.

This pattern generator has a toggle switch to turn the unit on and off. The green power LED confirms power to the unit and blinks rapidly when the unit is in the 1080i mode. The TG-5000AB has an internal lithium-ion battery which can be charged from the included AC adapter, even while the pattern generator is in operation.
  • 16-channel embedded audio with voicing and tones
  • RP219 Color Bars with motion
  • Full 20-bit pattern generation
  • SMPTE 292M standard output
In the Box Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery
  • Miniature Power Supply
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Maxtron TG-5000AB Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Maxtron TG-5000AB Specs

    Supported Video Formats 720p 59.94, 1080i 59.94
    Pattern RP219 with motion
    Power Supply 100 - 240 VAC, 5 VDC, 1 A
    DC Plug EIAJ-2, 1.7 x 4.0 mm, center positive
    Dimensions 4 x 2.5 x 1.25" (10.2 x 6.4 x 3.2 cm)
    Weight 7.2 oz (204.1 g)
    Package Weight 0.7 lb
    Box Dimensions (LxWxH) 8.7 x 3.4 x 2.3"
