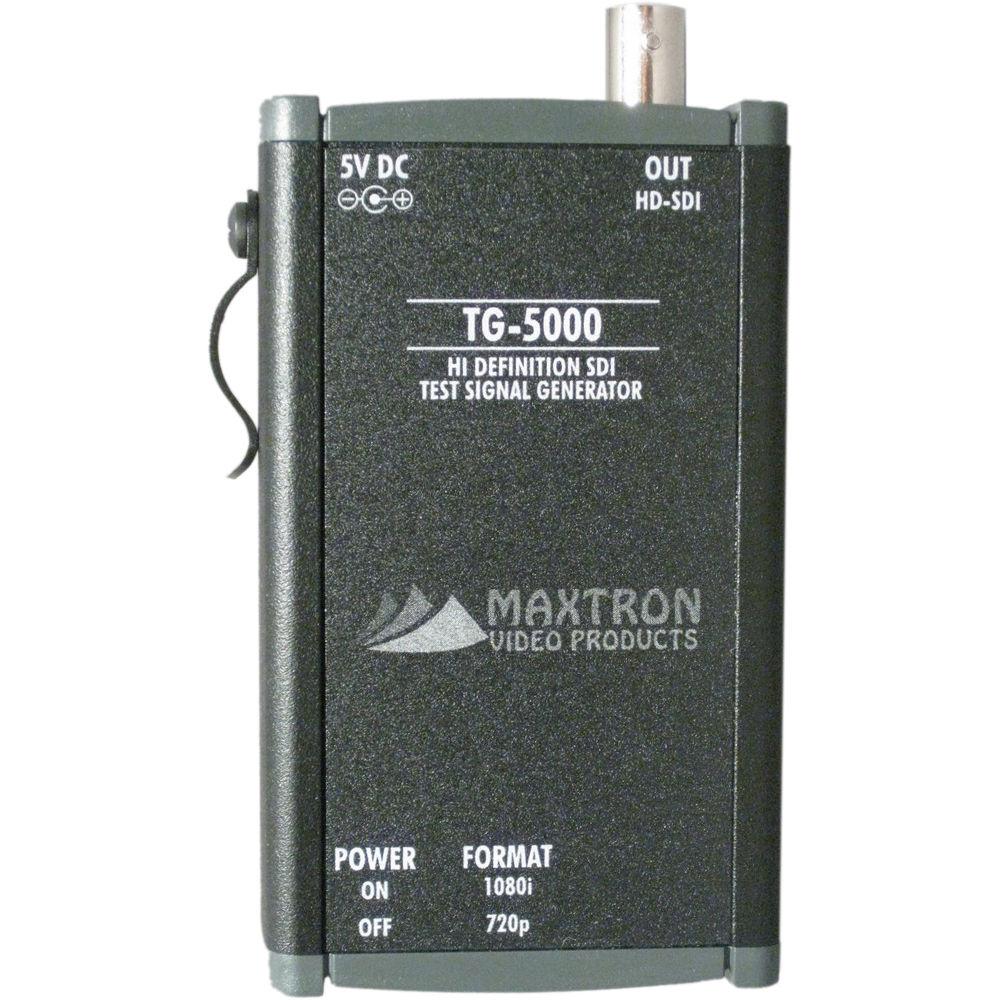

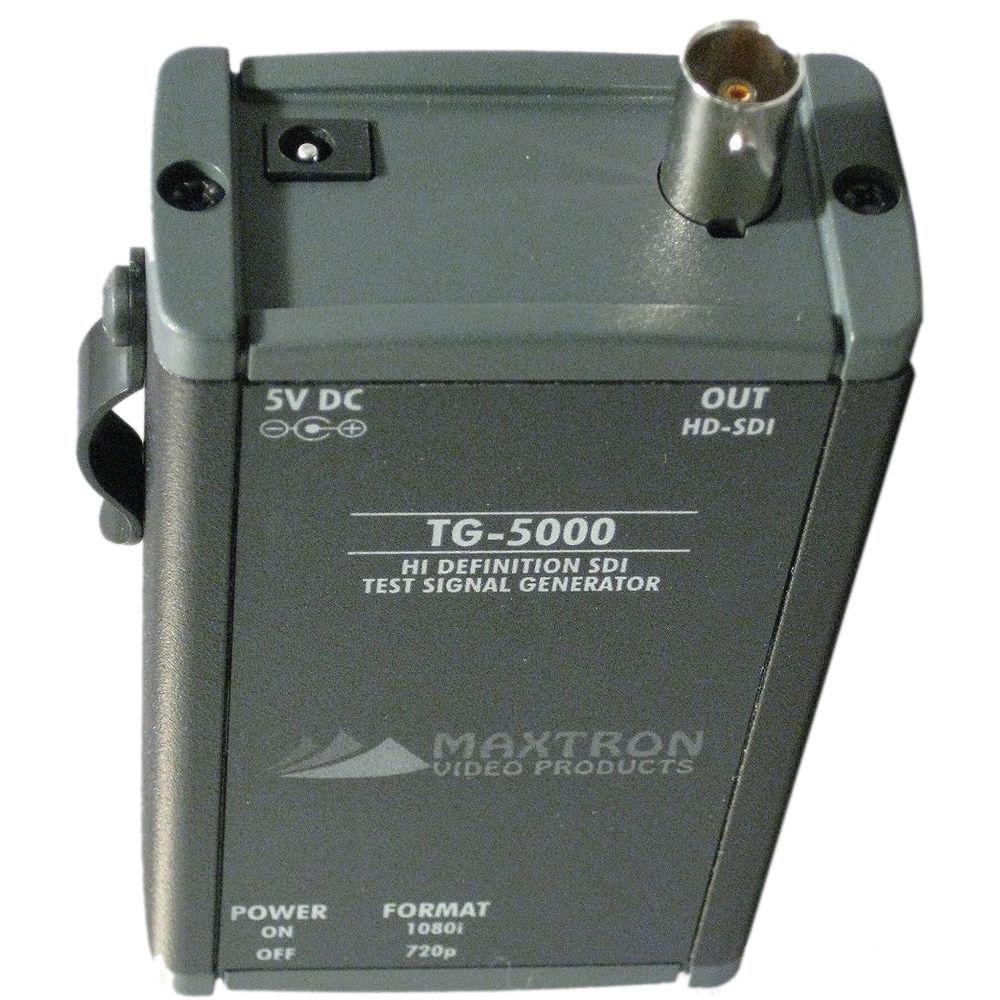

Product description The TG-5000B Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery from Maxtron is a single-pattern test signal generator which supports two video output formats, 1080i 59.94 (UP) and 720p 59.94 (DN). The test pattern is the SMTPE RP-219 HDTV Color Bars, which was specifically chosen to expose system weaknesses and limitations. Overlaid over the test pattern is a traveling wizard that moves in a ping-pong fashion about the screen to help reveal dropped or repeated fields/frames, as well as frozen video. This pattern generator has a toggle switch to turn the unit on and off. The green power LED confirms power to the unit and blinks rapidly when the unit is in the 1080i mode. The TG-5000B has an internal lithium-ion battery which can be charged from the included AC adapter. - RP219 Color Bars with motion
- Full 20-bit pattern generation
- SMPTE 292M standard output
In the Box Maxtron TG-5000B Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery Miniature Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Maxtron TG-5000B Dual-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaxtron TG-5000B Specs Supported Video Formats | 720p 59.94, 1080i 59.94 | Pattern | RP219 with motion | Power Supply | 100 - 240 VAC, 5 VDC, 1 A | DC Plug | EIAJ-2, 1.7 x 4.0 mm, center positive | Dimensions | 4 x 2.5 x 1.25" (10.2 x 6.4 x 3.2 cm) | Weight | 7.2 oz (204.1 g) |
