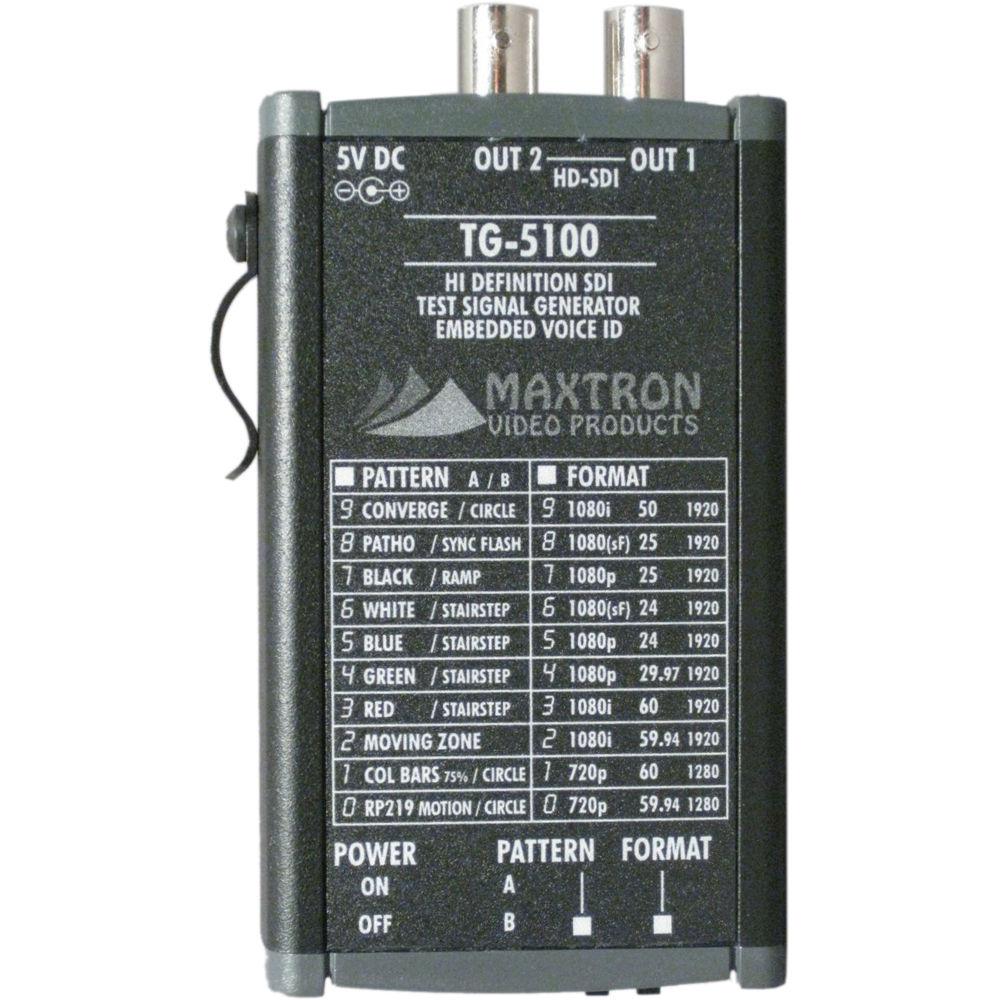

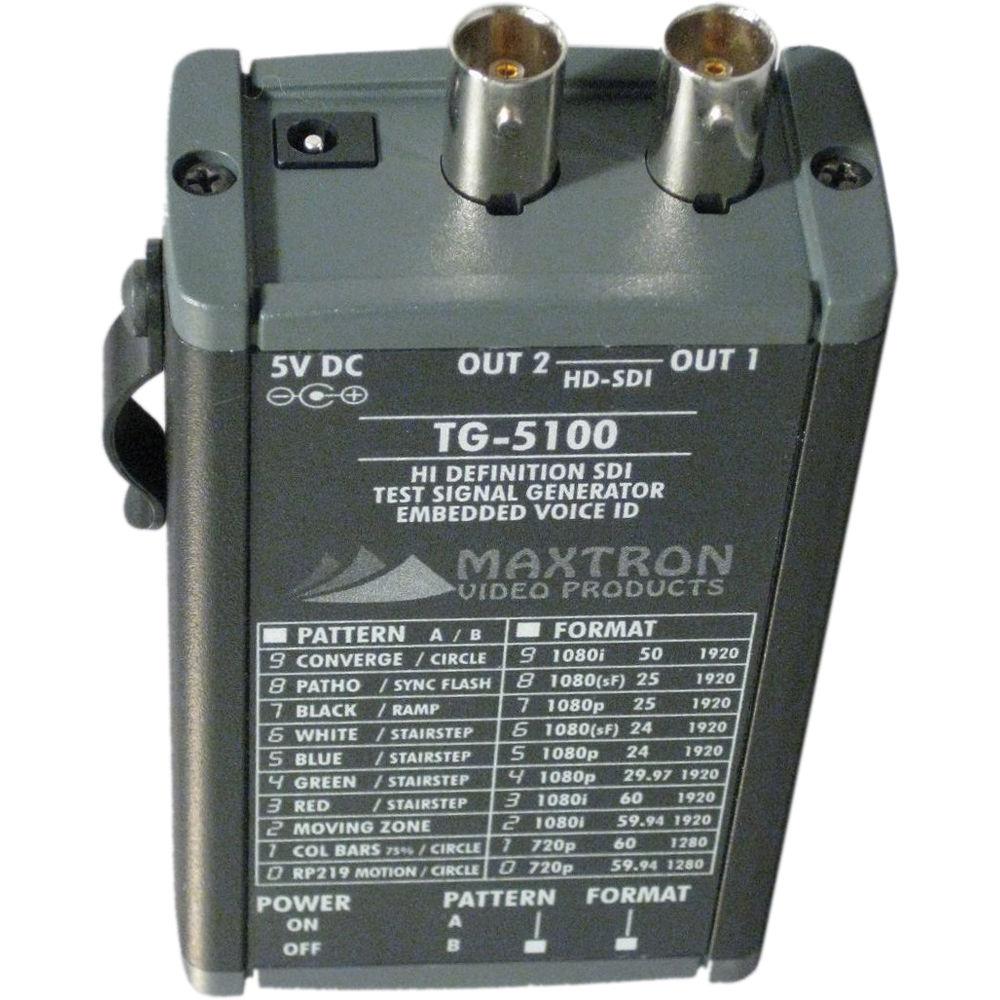

Product description The TG-5100 Multi-Format HD-SDI Pattern Generator from Maxtron is a multi-pattern test signal generator with embedded 16-channel voice IDs and audio tones. It supports ten formats, and has two outputs for SMPTE 292M standard.
The TG-5100 offers audio channel voice IDs and tone combinations for all 16 stereo channels allotted in the HD-SDI specifications. When the voice IDs are enabled, they repeat a specific channel ID every 15 seconds, making it clear which audio channel is being monitored. Between the voice IDs, there are standard level audio tones for the right and left channels within each group. Both the US -20 dBFS and the European -18 dBFS full-scale levels are supported.
There are ten basic patterns available in the TG-5100, increasing to 19 when including the A/B modifier. These are some of the classic patterns: SMPTE RP 219 color bars, 75% full-field color bars, projector alignment & convergence grid, RGB color fields, and black and white. Other patterns include the moving zoneplate which is used to expose video compression and scaling artifacts, and the pathological pattern which is used to stress the SDI receiver PLLs in the signal path. There is a traveling wizard that moves smoothly about the screen to help reveal dropped or repeated fields/frames. A user-selectable circle overlay can be added to some patterns to check for proper display aspect ratios.
This test signal generator has two push-wheel controls: a format control to select the video output standard and a pattern control to select the pattern to be displayed in the selected format. - Designed for portable or bench applications
- 16-channel embedded audio with voicing and tones
- 10 basic patterns, 19 including A/B modifier
- Full 20-bit pattern generation
In the Box Maxtron TG-5100 Multi-Format HD-SDI Pattern Generator Miniature Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Maxtron TG-5100 Multi-Format HD-SDI Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaxtron TG-5100 Specs | Supported Video Formats | 720p 59.94, 720p 60, 1080i 59.94, 1080i 60, 1080p 29.97, 1080p 24, 1080 (sF) 24, 1080p 25, 1080 (sF) 25, 1080i 25 | | Patterns | A / B:
RP219 with motion / + circle
Full field 75% color bars / + circle
Moving zoneplate
Red / stairstep
Green / stairstep
Blue / stairstep
White / stairstep
Black / ramp
Pathological / sync flash
Convergence / + circle | | Power Supply | 100 - 240 VAC, 5 VDC, 1 A | | DC Plug | EIAJ-2, 1.7 x 4.0 mm, center positive | | Dimensions | 4 x 2.5 x 1.25" (10.2 x 6.4 x 3.2 cm) | | Weight | 5 oz (141.7 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.8 x 3.4 x 2.3" |
