Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator

Search your instruction manual in PDF to download

User Manual for Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery

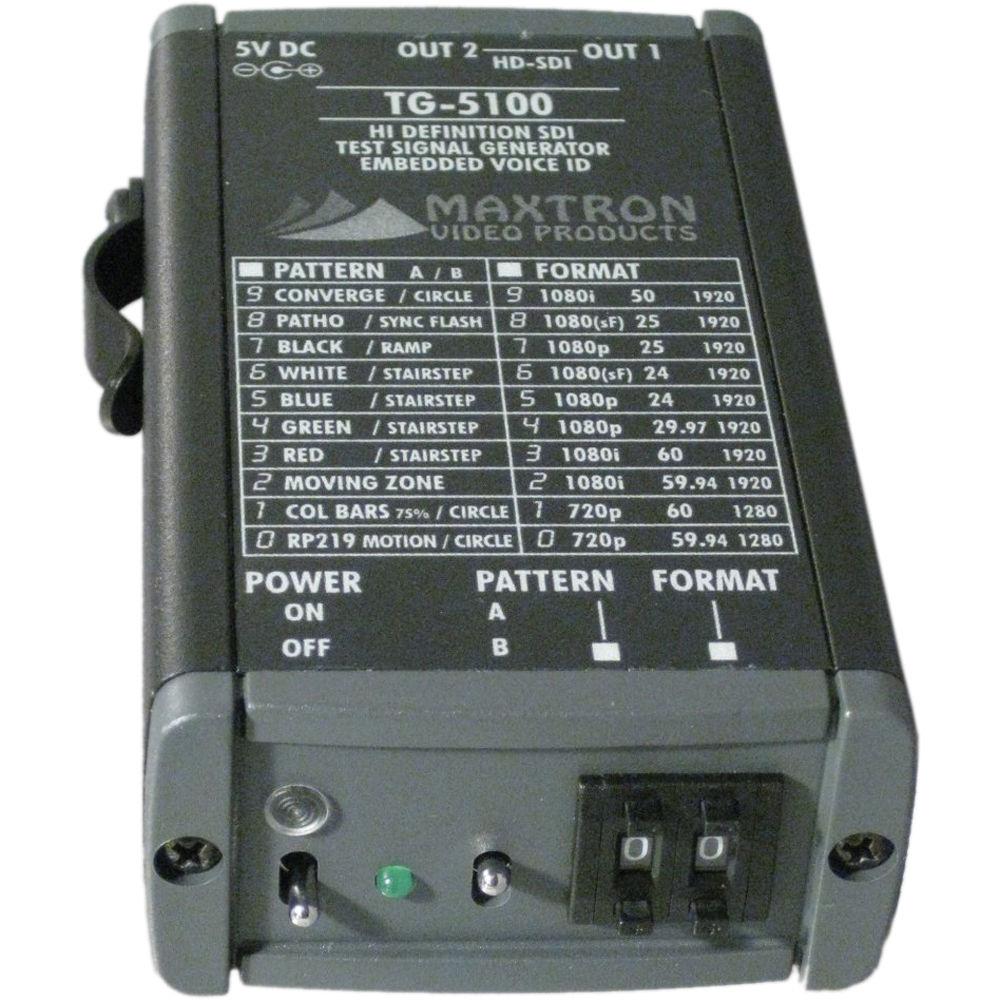

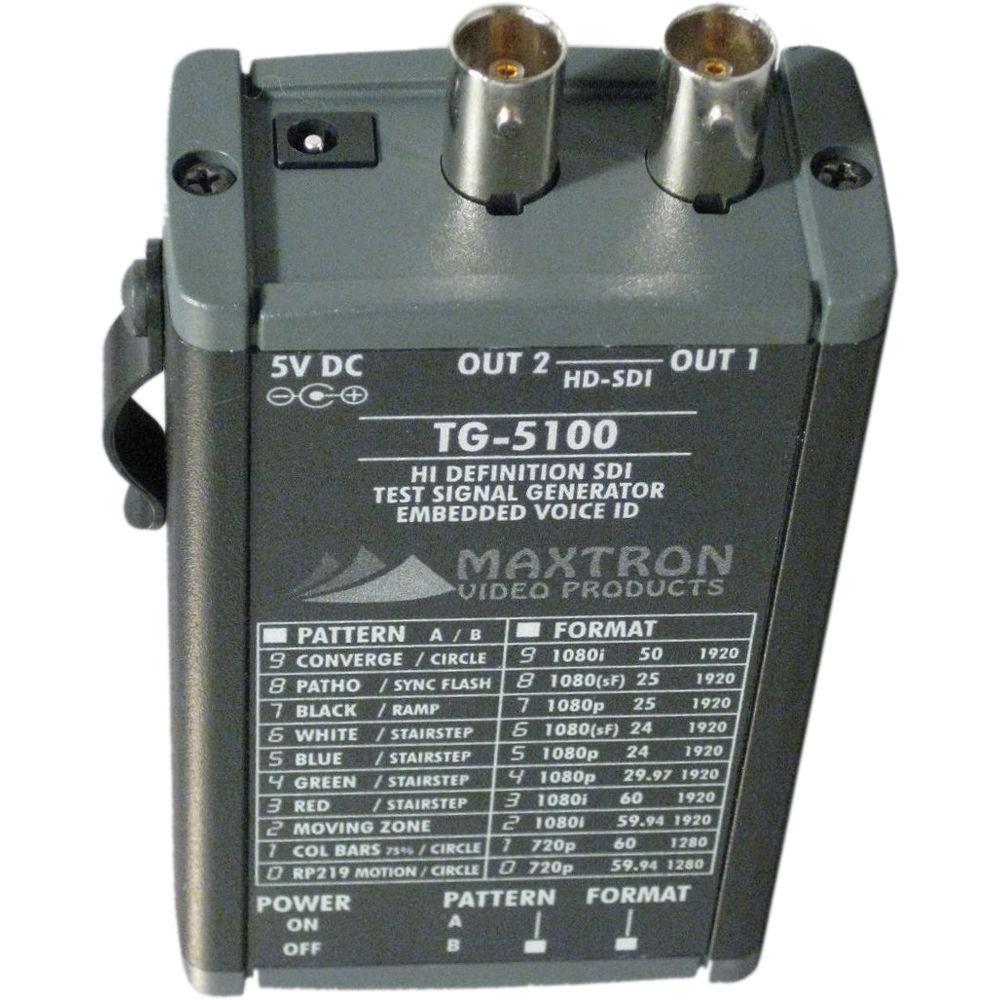

Click to enlarge the picture
Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery Contents of the user manual for the Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator
  • Product category: Video & Audio Signal Generators Maxtron
  • Brand: Maxtron
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Maxtron Video & Audio Signal Generators

Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery
User manual for the Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Maxtron product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Maxtron user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Maxtron product will considerably shorten its lifespan!



Product description

The TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery from Maxtron is a multi-pattern test signal generator with embedded 16-channel voice IDs and audio tones. It supports ten formats, and has two outputs for SMPTE 292M standard.

The TG-5100B offers audio channel voice IDs and tone combinations for all 16 stereo channels allotted in the HD-SDI specifications. When the voice IDs are enabled, they repeat a specific channel ID every 15 seconds, making it clear which audio channel is being monitored. Between the voice IDs, there are standard level audio tones for the right and left channels within each group. Both the US -20 dBFS and the European -18 dBFS full-scale levels are supported.

There are ten basic patterns available in the TG-5100B, increasing to 19 when including the A/B modifier. These are some of the classic patterns: SMPTE RP 219 color bars, 75% full-field color bars, projector alignment & convergence grid, RGB color fields, and black and white. Other patterns include the moving zoneplate which is used to expose video compression and scaling artifacts, and the pathological pattern which is used to stress the SDI receiver PLLs in the signal path. There is a traveling wizard that moves smoothly about the screen to help reveal dropped or repeated fields/frames. A user-selectable circle overlay can be added to some patterns to check for proper display aspect ratios.

This test signal generator has two push-wheel controls: a format control to select the video output standard and a pattern control to select the pattern to be displayed in the selected format. The TG-5100B has an internal lithium-ion battery which can be charged from the included AC adapter.
  • Designed for portable or bench applications
  • 16-channel embedded audio with voicing and tones
  • 10 basic patterns, 19 including A/B modifier
  • Full 20-bit pattern generation
In the Box Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery
  • Miniature Power Supply
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Maxtron TG-5100B Multi-Format HD-SDI Pattern Generator with Internal Lithium-Ion Battery in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Maxtron TG-5100B Specs

    Supported Video Formats 720p 59.94, 720p 60, 1080i 59.94, 1080i 60, 1080p 29.97, 1080p 24, 1080 (sF) 24, 1080p 25, 1080 (sF) 25, 1080i 25
    Patterns A / B:
    RP219 with motion / + circle
    Full field 75% color bars / + circle
    Moving zoneplate
    Red / stairstep
    Green / stairstep
    Blue / stairstep
    White / stairstep
    Black / ramp
    Pathological / sync flash
    Convergence / + circle
    Power Supply 100 - 240 VAC, 5 VDC, 1 A
    DC Plug EIAJ-2, 1.7 x 4.0 mm, center positive
    Dimensions 4 x 2.5 x 1.25" (10.2 x 6.4 x 3.2 cm)
    Weight 7.2 oz (204.1 g)
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 11.181 x 3.386 x 2.205"
