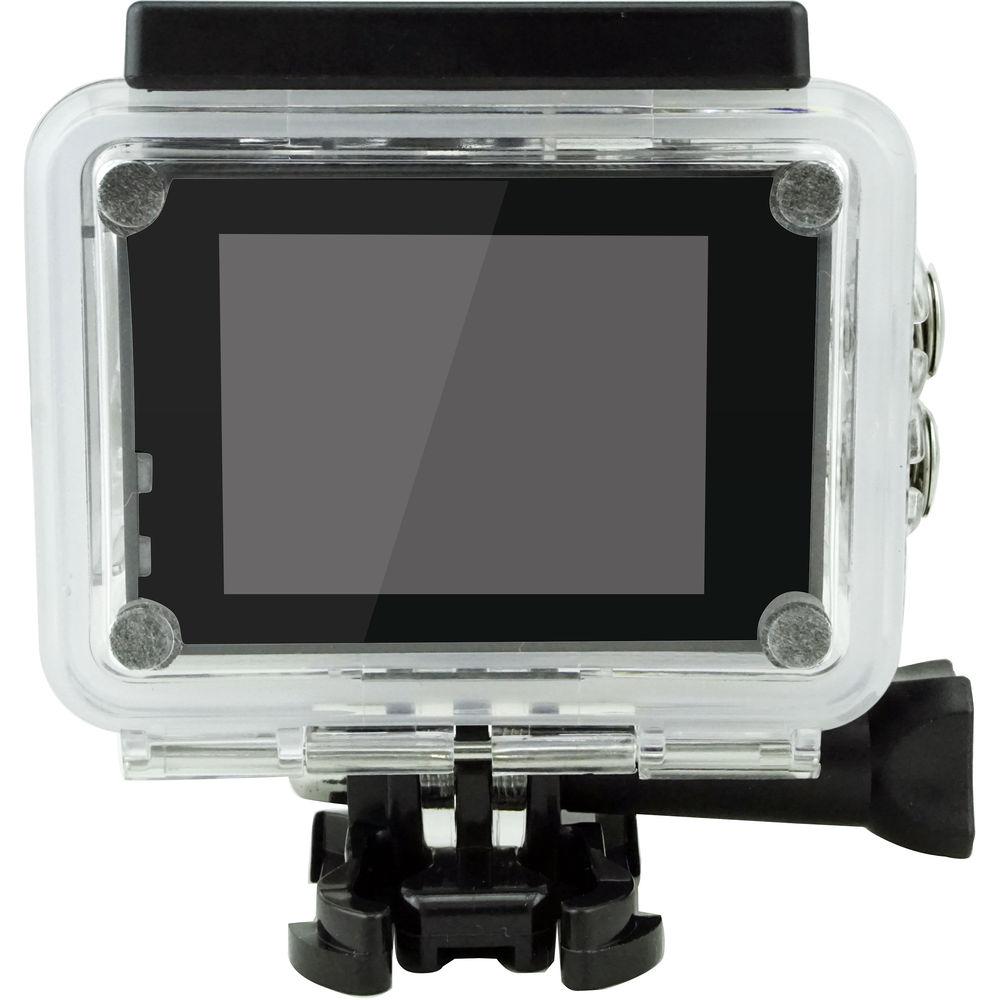

User Manual for MaxxMove Rize H4 4K Action Camera Click to enlarge the picture
Contents of the user manual for the MaxxMove Rize H4 4K Action Camera
- Product category: Sports & Action Cameras MaxxMove
- Brand: MaxxMove
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MaxxMove Sports & Action Cameras
 |
User manual for the MaxxMove Rize H4 4K Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MaxxMove product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MaxxMove user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MaxxMove product will considerably shorten its lifespan!
|

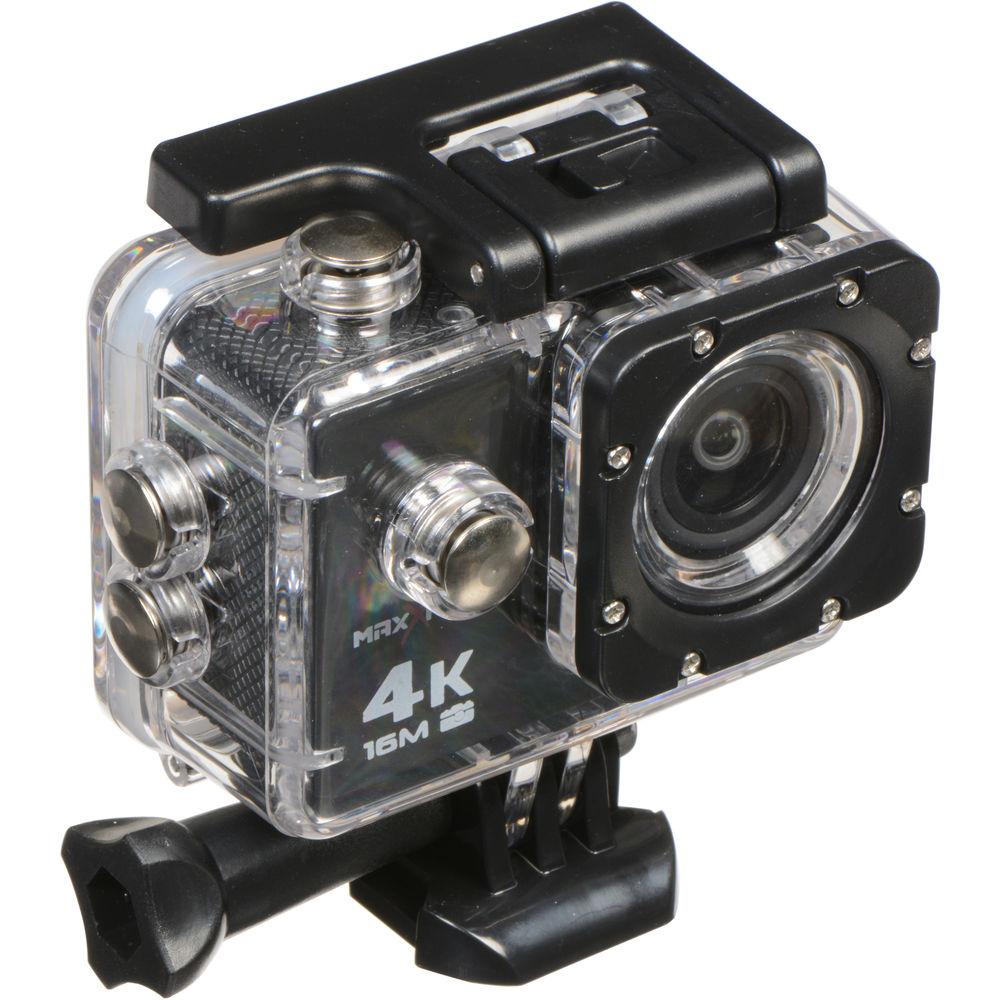

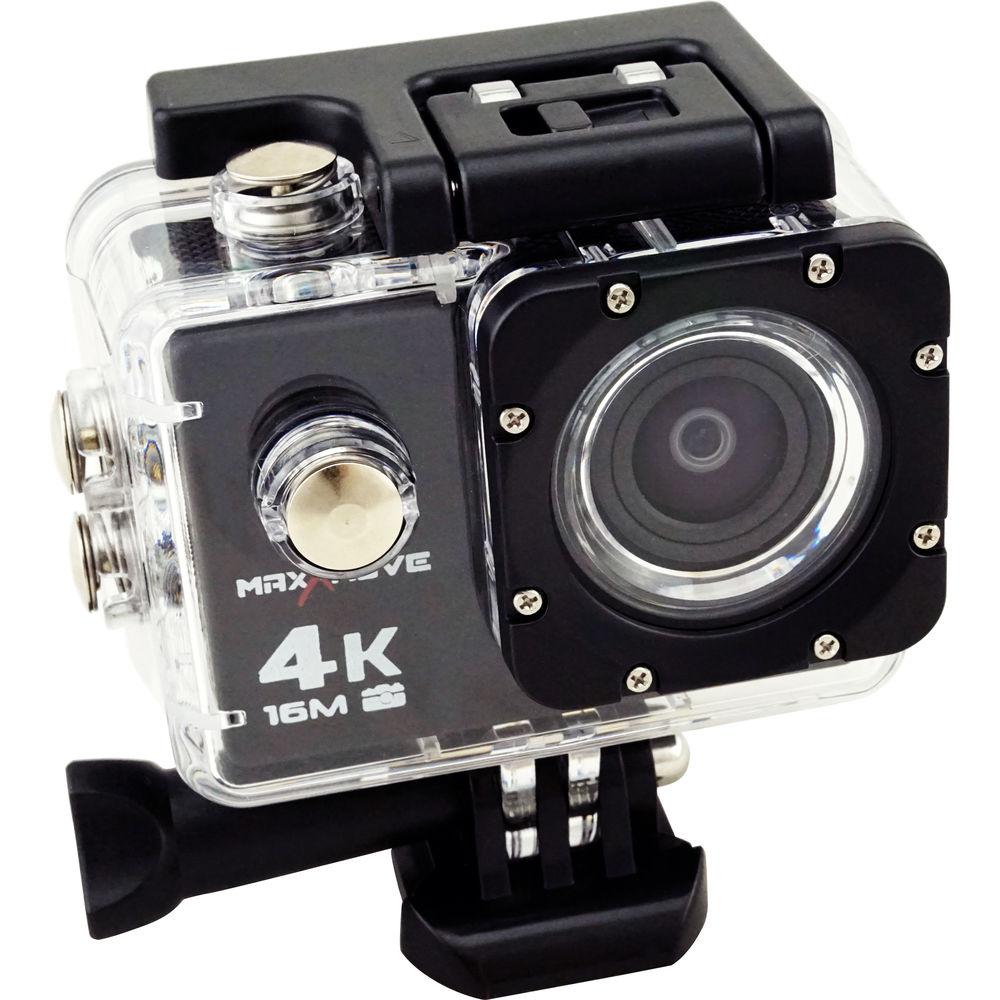

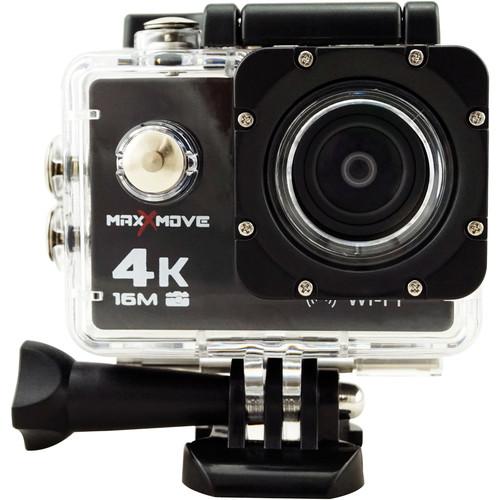

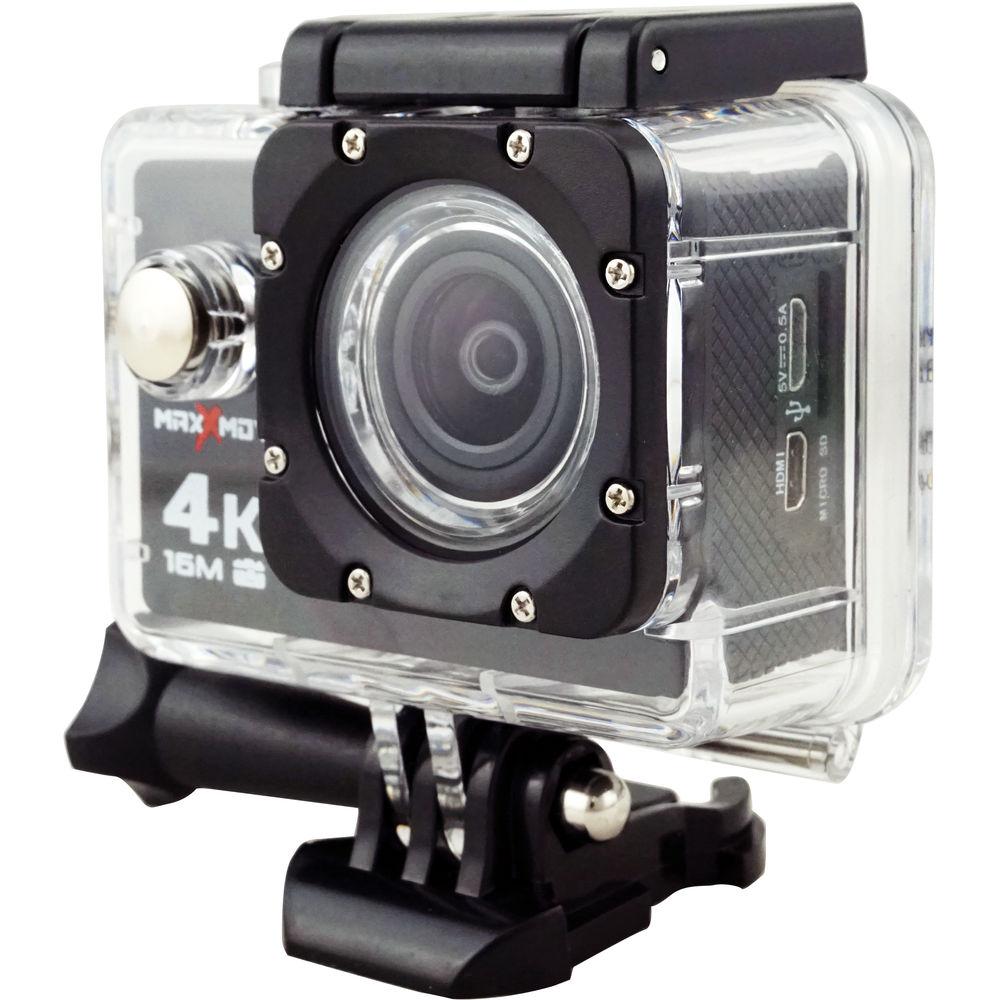

Product description Capture your adventures in Ultra HD 4K resolution with the MaxxMove Rize H4 4K Action Camera, in black. You can record 4K video at real-time 30 fps, as well as still images in up 16MP. Featuring an ultra-wide 170° lens and several different video and photo modes, the Rize H4 will provide you with immersive images in various presentational styles.
The Rize H4 is designed with a 2" LCD screen that allows you to instantly play back all your content. A built-in mic will capture audio with your video recordings, and a built-in speaker will let you hear how your audio came out when playing back your content. The Rize H4 is also Wi-Fi enabled, which will allow for remote control via Android and iOS devices. A waterproof case is included with the camera that will let you use the camera in depths of up to 100 ft.
The different video and photo modes include recycling, slow-motion, time-lapse, space-lapse, and motion-detection video, and general, timed, and auto photos. You can also adjust zoom, white balance, exposure (-3 to 3), and ISO. Up to a 64GB microSD card is supported for storage, and you can record approximately two hours of 1080p video on a single battery run. The Rize H4 features an HDMI video output and a USB interface. - Key Features
-
- Record up to UHD 4K resolution video at 30 fps
- Capture up to 16MP photos
- 170° ultra-wide angle of view

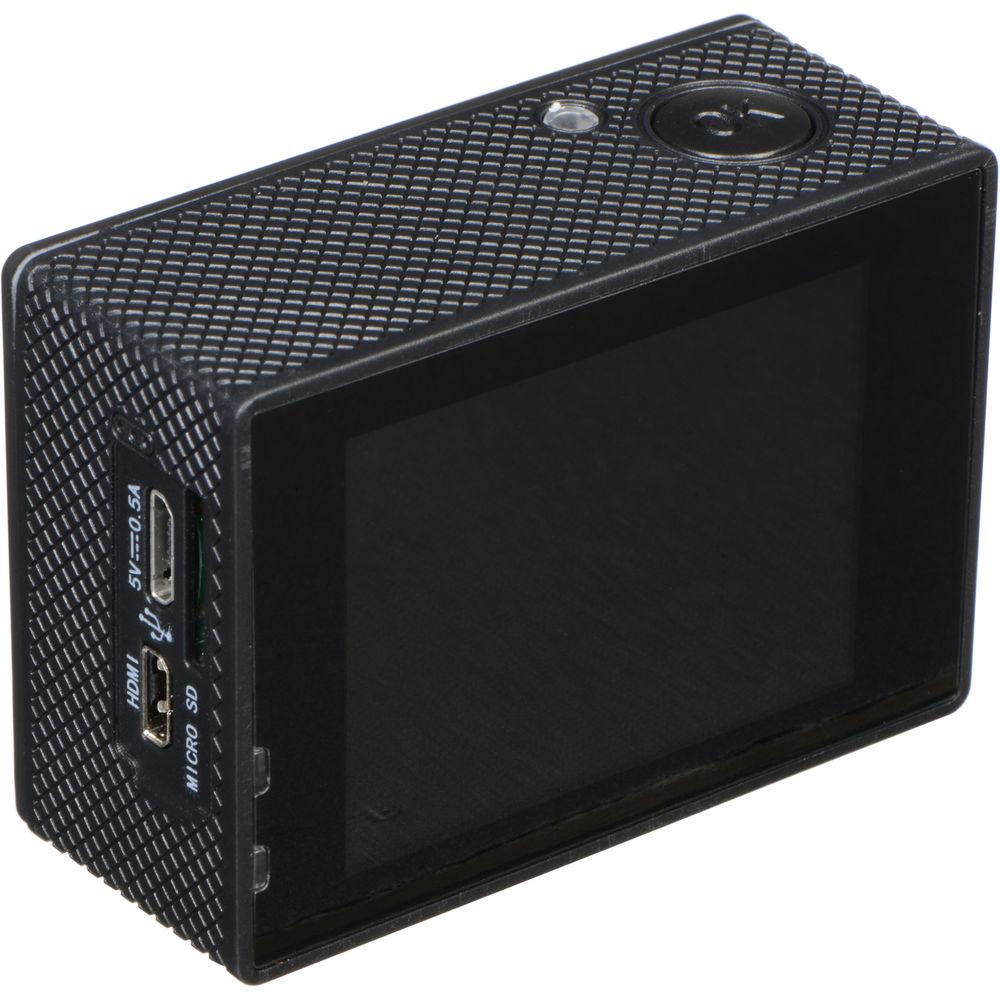

- 2" LCD screen allows for instant playback
- Built-in mic
- Built-in speaker
- Wi-Fi enabled for remote control via Android and iOS devices

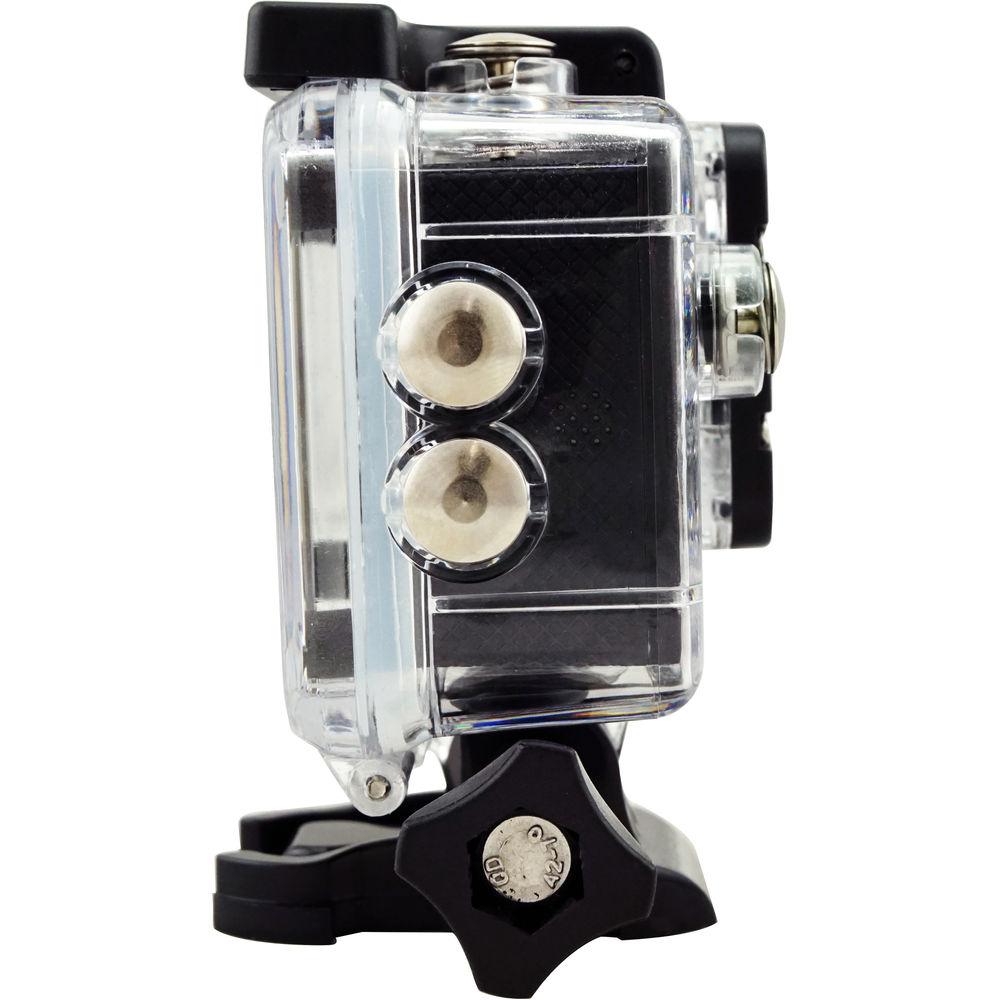

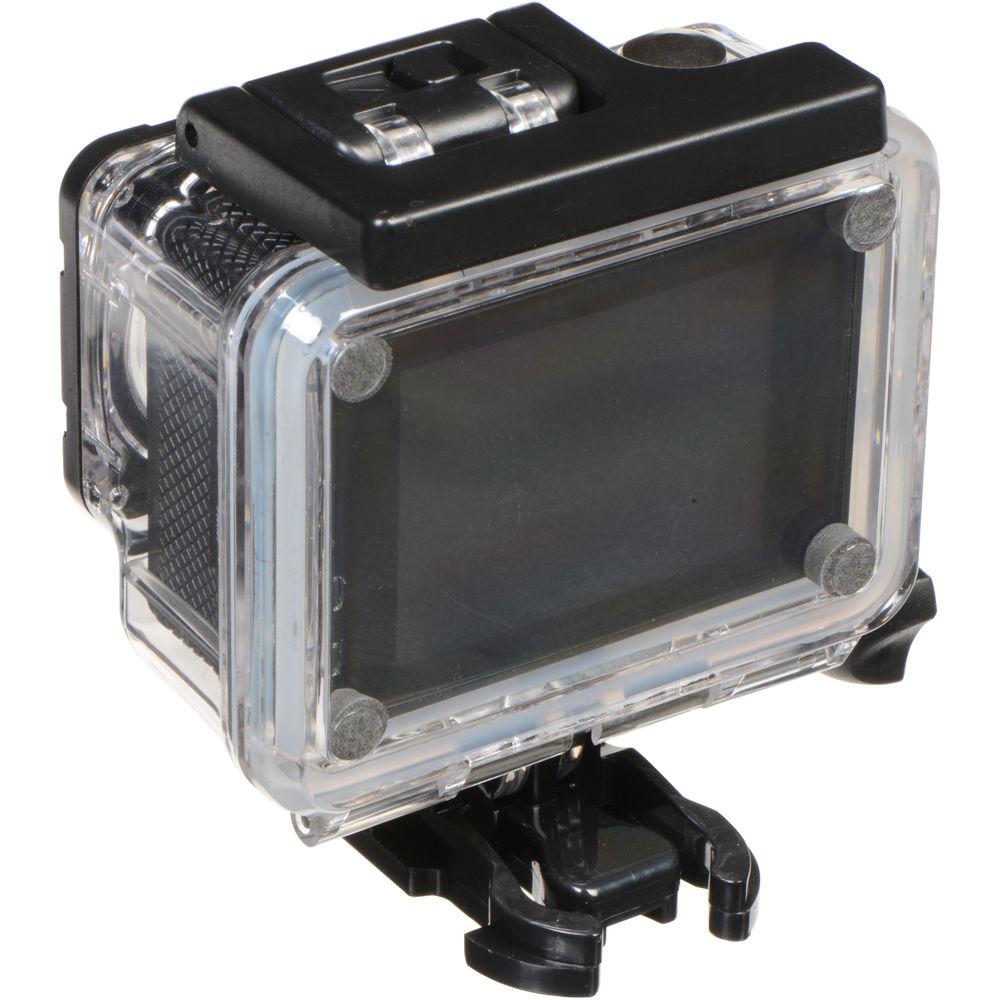

- Waterproof case included for up to 100 ft depths
- Supports up to 64GB microSD cards
- Two hours of recording in 1080p30
- 4x digital zoom

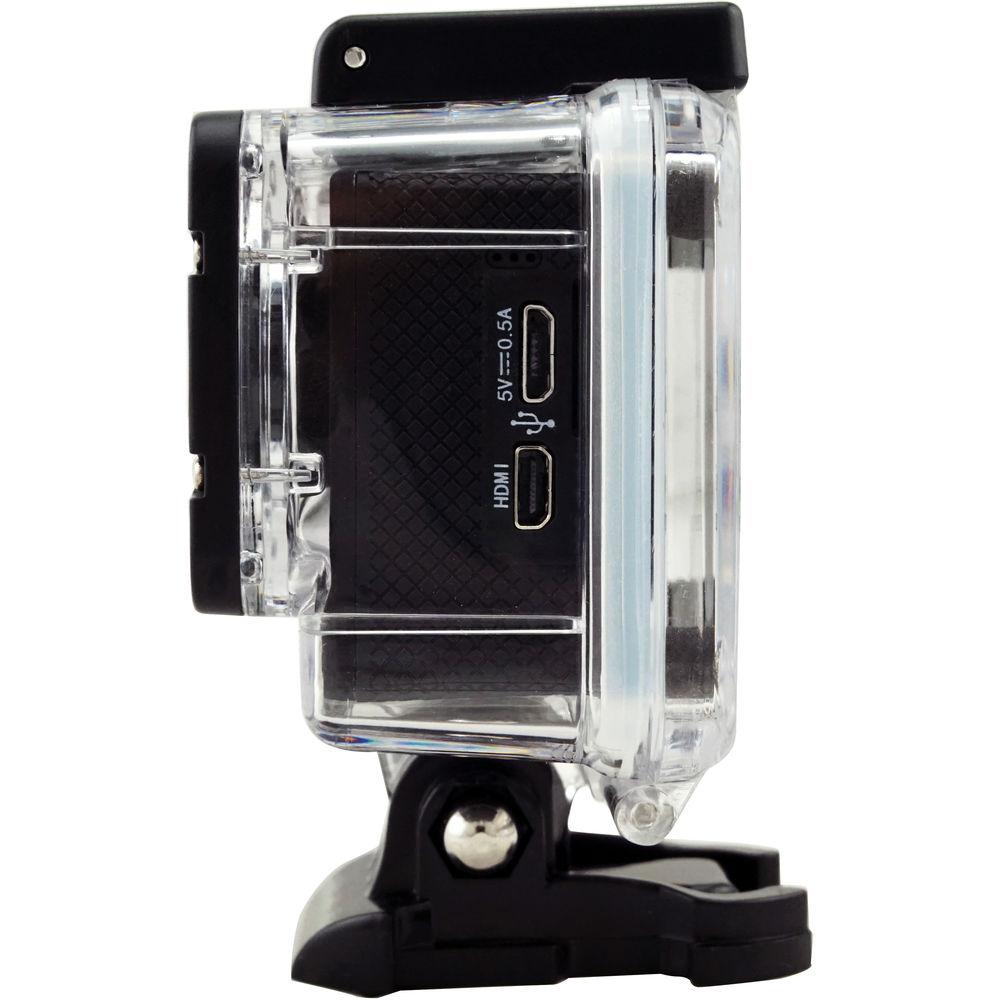

- HDMI output
- USB interface
- Recycling, slow-motion, time-lapse, space-lapse, and motion-detection video modes
- General, timed, and auto photo modes
- Adjustable zoom, white balance, exposure (-3 to 3), and ISO
- Loop recording
- Sony 193 sensor
- H.264 video compression
- 5V, 1A power source interface
- LED indicator lights
- 900mAh built-in battery
UPC: 602401680807 In the Box MaxxMove Rize H4 4K Action Camera (Black) Waterproof Case Assortment of Mounting Accessories Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MaxxMove Rize H4 4K Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMaxxMove Rize H4 Specs | | | Angle of View | Ultra Wide: 170° | | | | Recording Media | x microSD/HC/XC (64 GB Maximum) | | Video Format | 3840 x 2160p at 30 fps (MPEG-4)
2704 x 1524p at 30 fps (MPEG-4)
1920 x 1080p at 30/60 fps (MPEG-4)
1280 x 720p at 60/120 fps (MPEG-4) | | Slow Motion Mode | 60 fps Recorded at 1920 x 1080p
120 fps Recorded at 1280 x 720p | | Still Image Resolution | JPEG: 16 Megapixel
JPEG: 14 Megapixel
JPEG: 12 Megapixel
JPEG: 10 Megapixel
JPEG: 8 Megapixel
JPEG: 5 Megapixel | | | | Display Type | LCD | | Screen Size | 2" | | | | Photo ISO Range | 100 - 1600 (Auto) | | Video ISO Range | 100 - 1600 (Auto) | | Shooting Modes | Auto
Time-Lapse Movie | | Interval Recording | .5 Second
1 Second
2 Second
5 Second
10 Second
30 Second
60 Second | | | | Waterproof Depth Rating | 100.0' / 30.0 m (Waterproof Housing) | | White Balance Modes | Auto
Cloudy
Daylight
Fluorescent
Incandescent | | Built-In Mic | Yes | | Built-In Speaker | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | Tripod Mount | 1/4" - 20 | | | | Inputs | 1 x USB Micro-B | | Outputs | 1 x HDMI (Unspecified) | | | | Supported Languages | English
French
German
Italian
Polish
Simplified Chinese
Spanish
Traditional Chinese | | Battery | Rechargeable Battery Pack, 900 mAh | | Charging Method | USB | | Charging Time | 2 Hours | | Operating Temperature | -4 to 140°F / -20 to 60°C
Humidity: 95% | | Dimensions (W x H x D) | 1.1 x 1.6 x 2.3" / 2.8 x 4.1 x 5.8 cm | | Weight | 0.1 lb / 45.4 g without battery
0.13 lb / 58.97 g with battery | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 12.362 x 9.528 x 6.772" |
