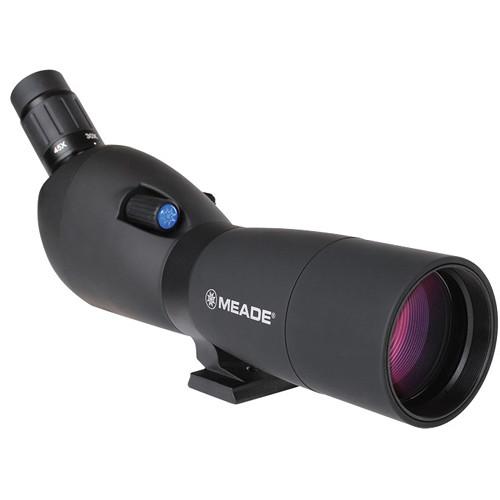

User Manual for Meade 15-45x65mm Wilderness Spotting Scope Click to enlarge the picture
Contents of the user manual for the Meade 15-45x65mm Wilderness Spotting Scope
- Product category: Spotting Scopes Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Spotting Scopes
|
User manual for the Meade 15-45x65mm Wilderness Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More This 45° angled-viewing 15-45x65mm Wilderness Spotting Scope from Meade features fully multicoated optics and a 15-45x zoom magnification eyepiece that provide clear and bright images when viewing at mid to long range in all weather conditions. On the right side of the body is a fast-focus knob and on the left is a sight tube that runs parallel to the optical tube to aid in finding your subjects faster. The aluminum alloy housing is nitrogen-filled and o-ring sealed to be water and fogproof. It also has a rubber armored exterior that protects it from impacts. A digiscoping camera attachment is included that slides over the eyepiece, and accepts most user-supplied camera-specific T-mounts. - Optical Performance
-
- 15-45x zoom magnification
- 65mm diameter objective lens
- BAK4 porro prism optical design
- Anti-reflection fully multicoated lenses maximize light transmission for bright and clear images
- 105-53' field of view at 1000 yards
- Use and Handling
-
- Angled configuration for more comfortable viewing standing, sitting, or prone
- Fold-down eyecups can be used with or without eye wear
- Integrated and retractable lens shade
- Sight tube down optical tube makes finding subjects faster
- Rotating tripod collar and mounting shoe
- Knurled fast-focus knob
- Construction Details
-
- Lightweight and durable aluminum housing
- Nitrogen-filled for water and fogproof performance
- Rubber armor exterior protects against bumps and impacts
- Included photo adapter slips over eyepiece and accepts a user-supplied T-Mount for digiscoping
UPC: 709942997019 In the Box Meade 15-45x65mm Wilderness Spotting Scope (Angled Viewing) Soft Carrying Case Digiscoping Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade 15-45x65mm Wilderness Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 126000 Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 65 mm | | Field of View | 15x: 105.0' @ 1000 yd / 35.0 m @ 1000 m
45x: 53.0' @ 1000 yd / 17.6 m @ 1000 m | | Minimum Focus Distance | 15x: 24.6' / 7.5 m
45x: 105.0' / 32.0 m | | Exit Pupil Diameter | 15x: 4.3 mm
45x: 1.4 mm | | Eye Relief | 21.0 to 18.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 14.5 x H: 6.9 x W: 2.6" / L: 36.8 x H: 17.5 x W: 6.6 cm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 21.102 x 8.425 x 6.693" |
