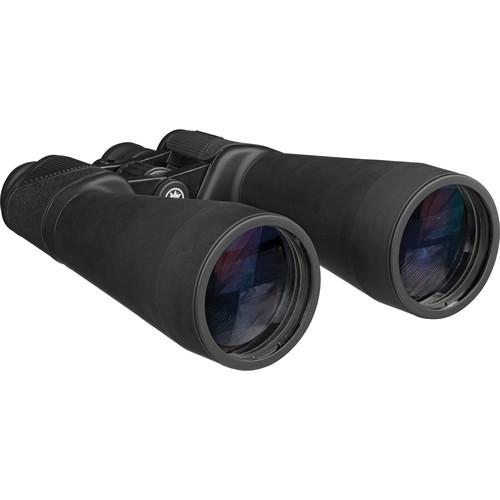

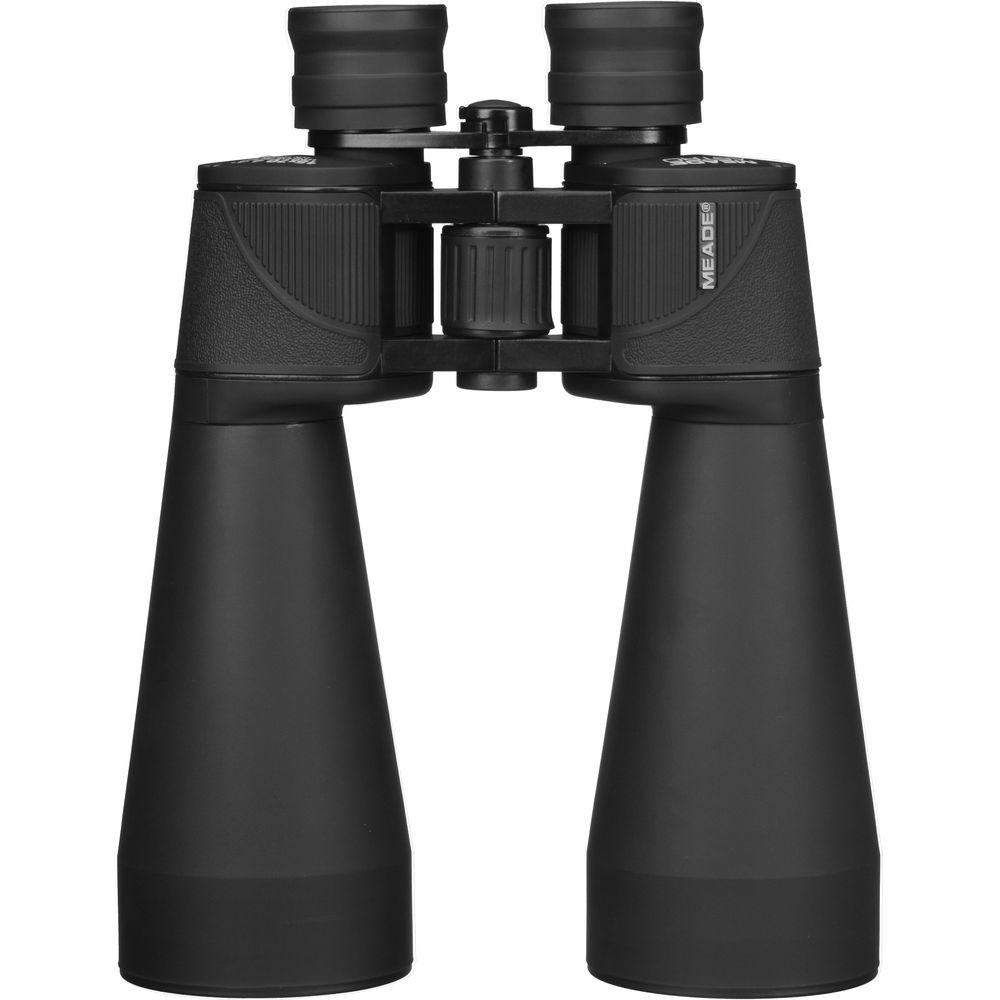

User Manual for Meade 15x70 Astro Binocular Click to enlarge the picture
Contents of the user manual for the Meade 15x70 Astro Binocular
- Product category: Binoculars Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Binoculars
 |
User manual for the Meade 15x70 Astro Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More cqxzdcvfrfzcrsdcwcq From the field to the stars, the Meade Instruments 15x70 Astro Binocular offers the high magnification and light gathering ability necessary to see small game far away or to discern craters on the moon. Utilizing a BAK4 Porro prism optical path provides a rich high-contrast depth of view, while the large fully multi-coated optics and objectives draw in a copious amount of light to produce bright and clear images. Whether you're bird watching or observing a meteor shower, the Astro binocular has the power and ability to see it all.Complementing the optical performance is a lightweight and durable aluminum alloy chassis with a rubber armored skin that offers protection against drops and impacts while providing a slip-resistant grip. A large knurled center focus wheel and right-eye dioptric correction allows for a crisp tack-sharp focus ability, while fold-down rubber eyecups allow the binocular to be comfortably used by most users with or without eye wear. Given the large objectives and 50 oz weight, hand-holding the Astro Binocular for prolonged periods may prove challenging; so some may want to use an optional tripod adapter to mount them for long observation periods. Tripod mounting greatly reduces shake and fatigue so you can concentrate on the views. - Optical Performance
-
- 15x magnification
- 70mm objectives
- BAK4 Porro prism optical path
- Anti-reflection fully multi-coated optics
- 232' field of view at 1000 yards
- Wide 66° apparent angle of view
- Use and Handling
-
- Closed bridge configuration
- Large knurled center focus knob
- Fold-down rubber eyecups
- 18mm eye relief
- 4.7mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum alloy chassis
- Protective rubber armoring provides slip-resistant grip
UPC: 709942997156 In the Box Meade 15x70 Astro Binocular Lens Cloth Adjustable Neck Strap Soft Case 2 x Objective Lens Covers Ocular Rainguard Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade 15x70 Astro Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 125080 Specs | Prism Type | Porro | | Magnification | 15 x | | Objective Lens Diameter | 70 mm | | Angle of View | 4.4° (Actual) | | Field of View | 231.93' @ 1000 yd / 77 m @ 1000 m | | Minimum Focus Distance | 49.2' / 15 m | | Exit Pupil Diameter | 4.7 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 55.9 to 73.7 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 11.0 x 8.2 x 3.5" / 27.9 x 20.8 x 8.9 cm | | Weight | 50.0 oz / 1417.5 g | | | | Package Weight | 4.08 lb | | Box Dimensions (LxWxH) | 11.65 x 9.2 x 4.15" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
