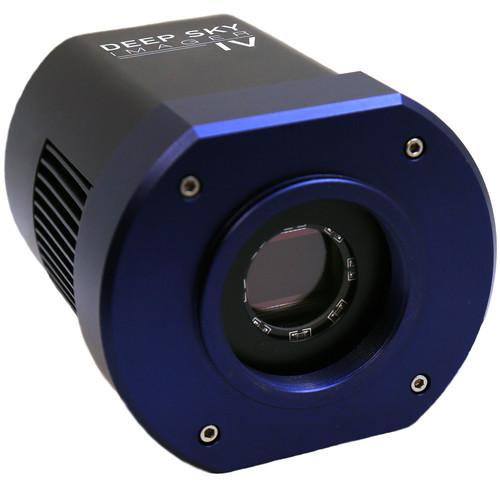

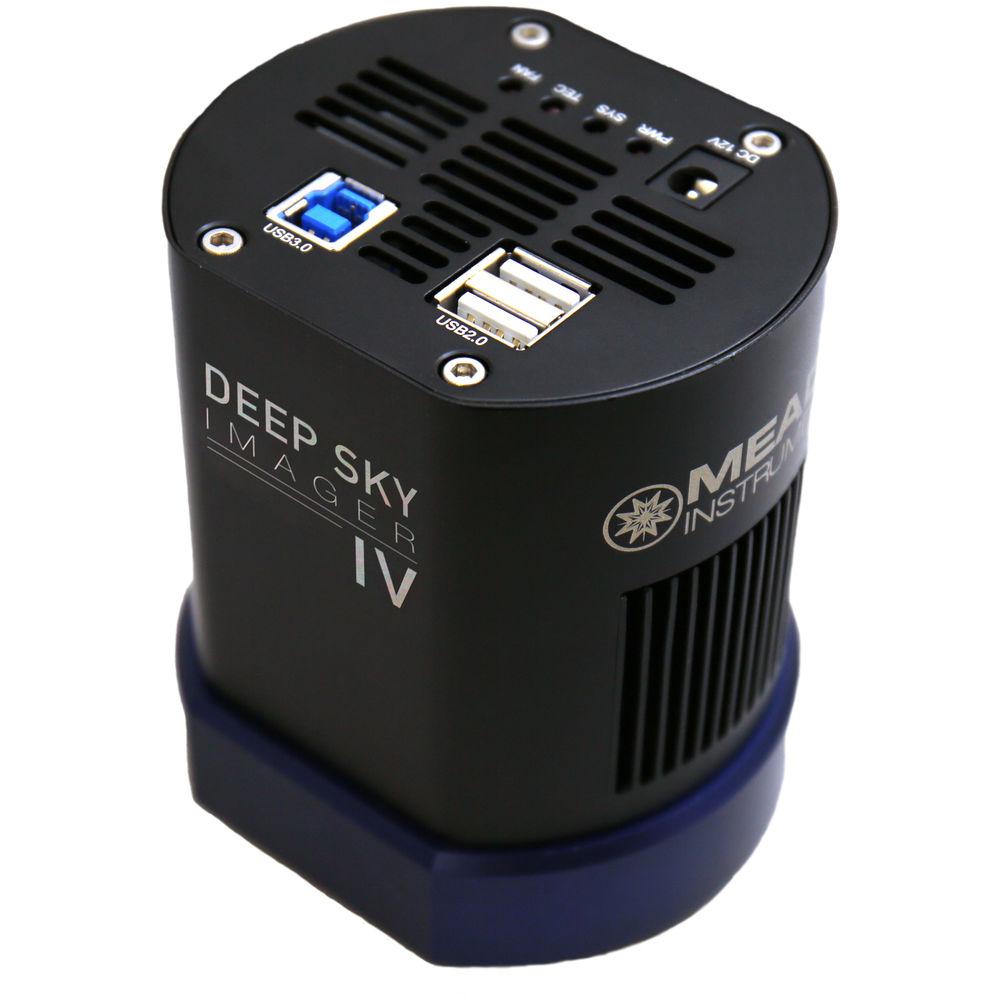

Product description Eyepiece Imagers: Capture the Universe and Share, Tweet, or Whatever It Read More The Meade Instruments 16MP Monochrome Deep Sky Imager IV is a high-resolution digital imaging system that allows you to capture monochrome images by itself, or attach single or stacked astronomical filters for custom-colored images through a 2" focuser, visual back, or other accessories like Barlows or diagonals. M42x0.75 threads allow it to be mounted on a variety of imaging accessories. Images are captured using a 4/3" 16MP imaging sensor and sent directly to your Windows or Mac computer running the included SkyCapture imaging software via the fast USB 3.0 connection. It is also backward compatible with USB 2.0, but download speeds will be slower. The fast download speed of USB 3.0 allows you to gather more images in less time, which is critical if the weather and atmospheric conditions are fluctuating and you have limited time for imaging. Whether you're looking at the Moon, Mars, or the rings of Saturn, the monochrome DSI-IV takes your view of the sky and makes it available for everyone to see.Meade recommends that you use a motorized mount for capturing clear and steady images. Out of the box it is compatible with larger 2" focusers to pass the maximum amount of light for capturing dim subjects, and to ensure full coverage of the large sensor and avoid vignetting. For use in Cassegrain-style scopes, an M42 thread allows it to be attached directly onto the visual back. The included software for Windows and Mac lets you control the camera, snap pictures or create a movie file, and export them. An integrated stacking program in SkyCapture lets you automatically filter the best images and stack them to create the perfect composite celestial picture. - Camera Performance
-
- 4/3" 16MP monochrome imaging sensor
- Pixel size: 3.8 x 3.8μm
- 23 fps at full resolution
- 0.15 ms minimum exposure time; 3600 sec maximum
- 17.5mm back focus distance
- Image/video formats: JPEG, BITMAP, FITS / SER, AVI
- 405-690nm spectral range, with IR-cut filter
- 2-stage signal to noise ratio greatly reduces thermal noise
- Broad 14 to 122°F operating temperature range
- Mounting
-
- 2" nosepiece to fit in larger drawtubes, holders, Barlow lenses, diagonals
- M42x0.75 mounting threads for SCT visual backs and other imaging accessories
- Minimum System Requirements
-
- Microsoft Windows or Mac operating system
- CPU requirements: equal to Intel Core2 2.8 GHz or higher
- 2GB of memory
- USB 3.0 port is backward compatible with USB 2.0, with slower transfer rates

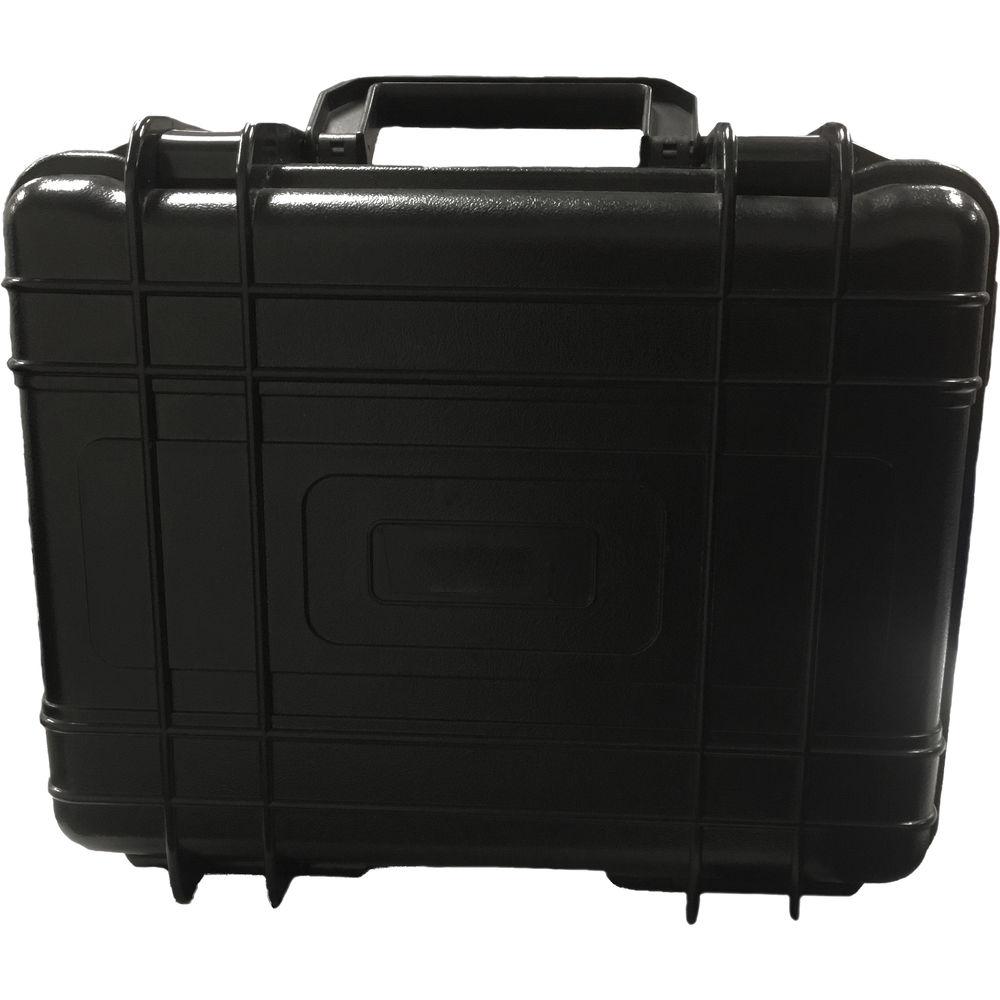

UPC: 709942999402 In the Box Meade 16MP Monochrome Deep Sky Imager IV (2") 2" Nosepiece USB 3.0 Cable AC Adapter Hard Carry Case SkyCapture CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade 16MP Monochrome Deep Sky Imager IV in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade Deep Sky Imager IV Specs | Output | 12 bit | | Back Focus Distance | 17.5 mm | | Exposure Range | Minimum: 0.15 ms
Maximum: 3600 sec | | Image Sensor | 16MP monochrome | | Sensor Size | 4/3" / 21.9 mm diagonal
17.6 x 13.3 mm | | Frames Per Second | 23 fps at full resolution | | Pixel Size | 3.8 x 3.8 μm | | Spectral Range | 405 - 690 nm, with IR-cut filter | | Mount | 2" barrel
M42x0.75 thread | | USB Connection | USB 3.0
Backward compatible with USB 2.0 | | Power Source | 5 VDC via USB cable to computer
12 VDC, 3A external power adapter for cooling system | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 4.1 x 3.4 x 3.2" / 10.4 x 8.6 x 8.1 cm | | Weight | 24.2 oz / 684.9 g | | | | Package Weight | 5.66 lb | | Box Dimensions (LxWxH) | 10.85 x 10.15 x 5.0" |
