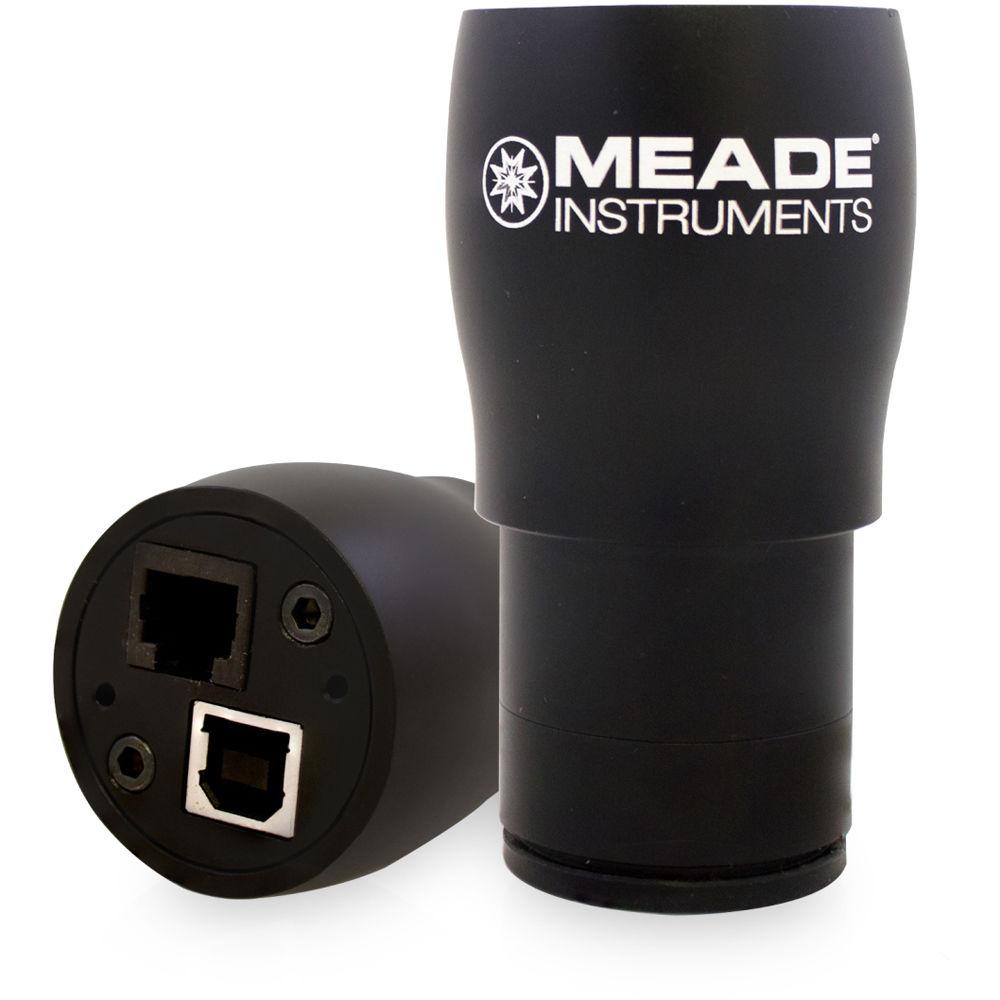

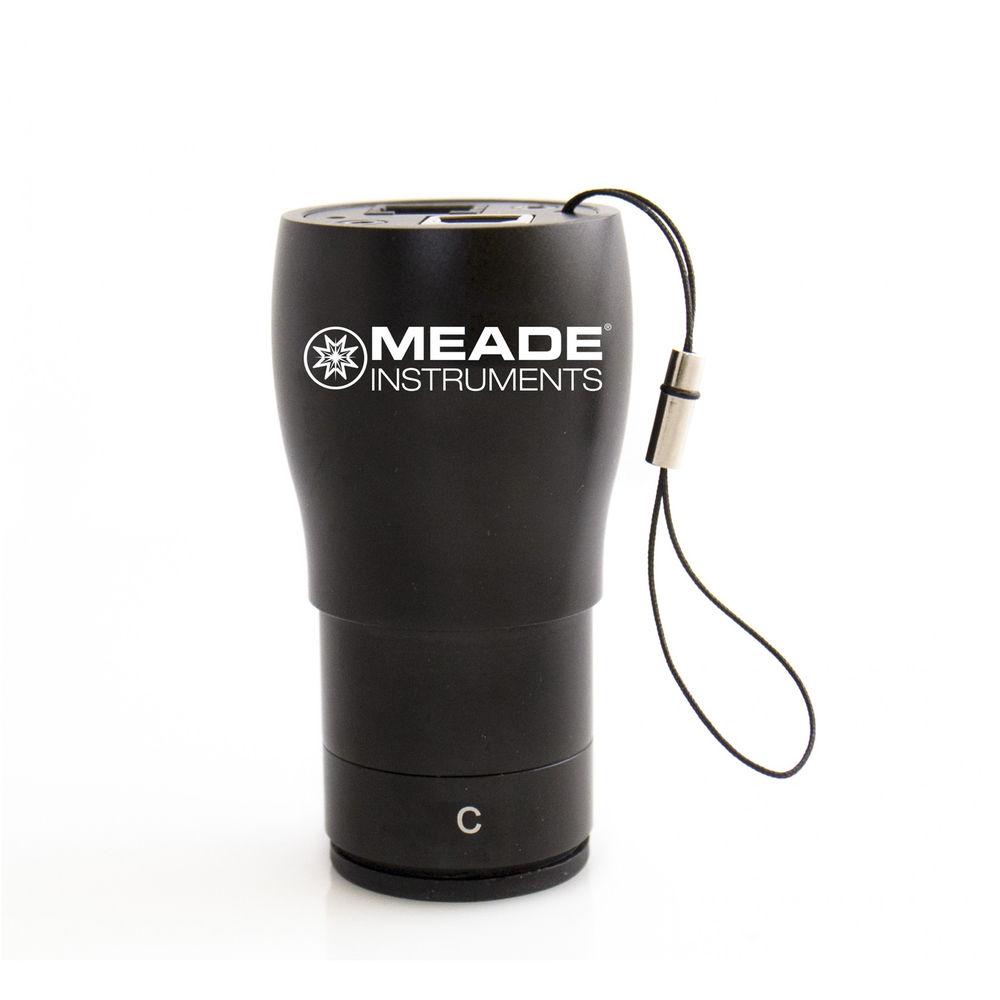

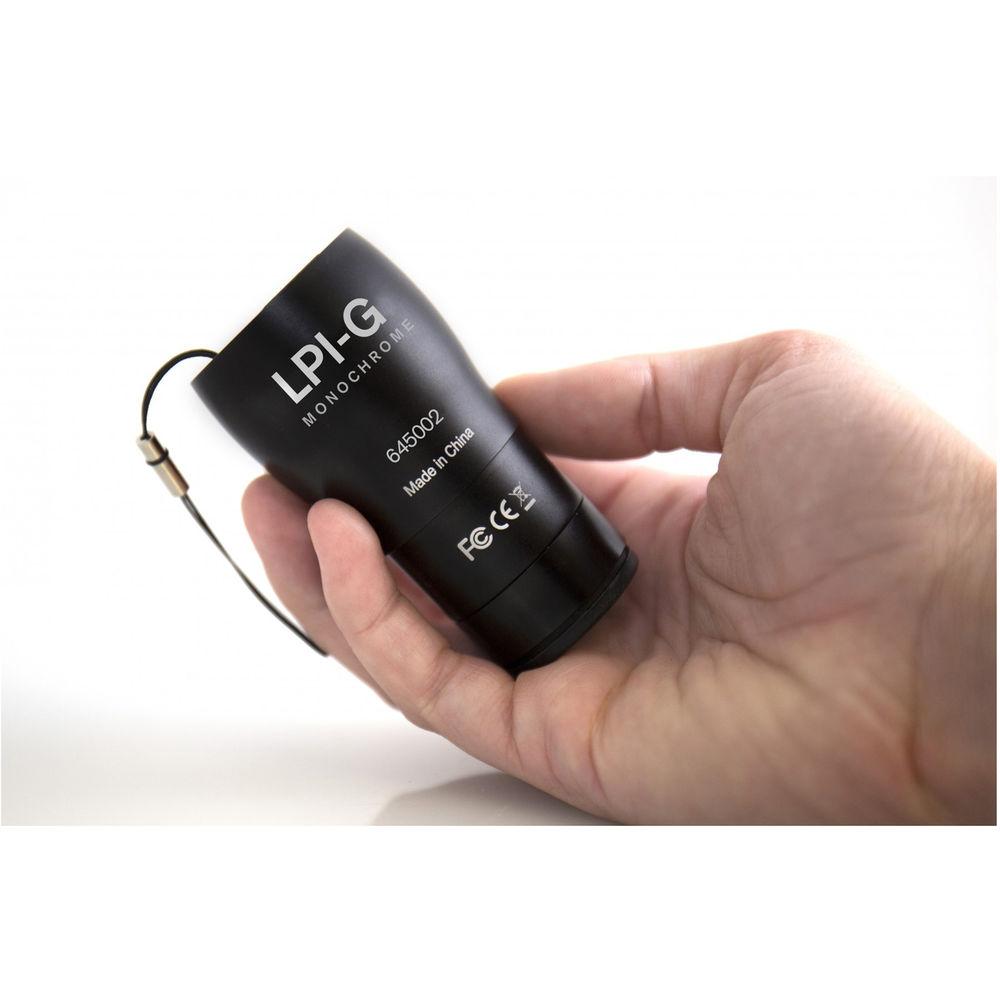

Product description Designed as an ideal imaging companion for your 10, 12, or 14" LX-series telescope, this Meade Instruments Accessory Bundle gives you the tools for successful imaging of the Moon and planets, helping make your observation sessions easier. The kit comes with the monochrome version of their LPI-G eyepiece camera; a four-piece imaging filter set that includes red, green, blue, and infrared filters; the equatorial X-Wedge for easier and smoother tracking with reduced vibrations; and 12V power supply to keep your scope and camera running. - LPI-GM Autoguiding and Imaging Eyepiece Camera (Monochrome) Meade Instruments designed the LPI-GM Autoguiding and Imaging Eyepiece Camera for beginner and veteran astrophotographers alike. As an imaging camera, it simply replaces a 1.25" eyepiece on a telescope to capture photos of the Sun (using appropriate solar filters or dedicated solar scopes), the Moon, planets, planetary moons, and wide-field nightscapes to be processed, edited, matted, and stacked using the included Sky Capture software installed on a computer. This version of the LPI-G is offered here with a monochrome CMOS sensor to make adding filters to in post faster and easier.More experienced astrophotographers tend to have elaborate higher-resolution and faster imaging rigs, so the LPI-GM is designed with an ASCOM-compliant ST-4 port to connect it to autoguider-capable mounts. In this capacity, the LPI-G is installed on a secondary guider-scope, with the primary imaging system installed on the larger OTA. With the LPI-G connected to a mount and PC, it will use the camera and user-supplied autoguider software to monitor the mount's tracking and make precise corrections to reduce or eliminate errors which can result in fuzzy images and star trails.
- Camera
-
- 1.2MP monochrome CMOS AR130 imaging sensor
- Resolution: 1280x960 at 28 fps; 640x480 at 30 fps
- Image formats: JPEG, BITMAP, PNG, TIFF, FITS
- Compatible with imaging and guiding software such as Maxim DL, PHD, and FireCapture
- Outputs
-
- USB port: Connect LPI-GM to computer to interface with Sky Capture software for processing and editing images
- ST-4 guider port: ASCOM-compliant; Use for high-precision autoguiding tracking during long-exposure astrophotography
- Included ST-4 cable plugs into mounts with autoguider ports
- Minimum System Requirements
-
- Operating System: Windows (32 & 64 bit) Vista/XP/7/8/10
- Processor: Intel Core2 2.8 GHz equivalent or higher
- Memory: 2GB or higher

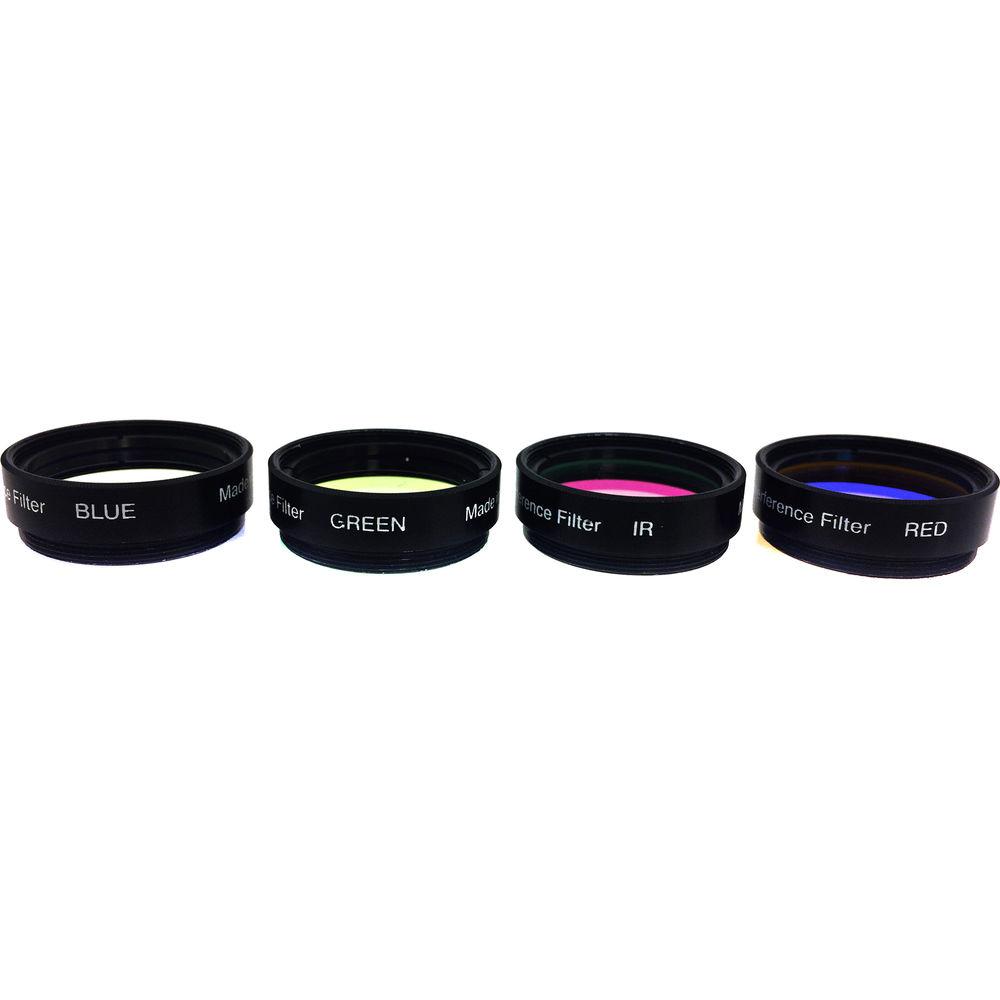

UPC: 709942997798 - RGB/IR Imaging Filter Set (1.25") Designed and engineered specifically for use with monochrome imaging cameras, the Meade Instruments RGB/IR Imaging Filter Set gives you three 1.25" filters: one in each of the three primary colors, plus an infrared (IR) blocking filter. This filter set enables tri-color imaging using the individual red, green, and blue filters; and the three resulting images, when stacked via image processing software, form a color image of your subject. The IR filter prevents infrared light from reaching the camera's sensor resulting in clearer and sharper images. Each filter is parfocal with each other, eliminating the need to adjust the focus after switching colors, and can fit on most standard 1.25" eyepiece cameras, or filter wheels or bars to facilitate quick changes. The rings are aluminum with a matte-black anodized finish, and the filter lenses are made of 3mm-thick optical glass with high-transmission broad-band multi-coatings.
- Red Filter
-
- Blocks the transmission of blue and green wavelengths
- Produces sharply defined contrast between the cloud formations and the lighter toned surface features on Jupiter
- Increases definition of the Martian polar ice caps and maria
- Reduces the light glare when viewing Venus
- Green Filter
-
- Reduces glare while transmitting light uniformly across the entire visible spectrum
- Helps to split double stars, especially when one member of the pair is significantly brighter than the other
- Blue Filter
-
- Popular for the study of detail on Jupiter and Saturn
- Enhances the contrast of rills and festoons in Jupiter's cloud belts, and details of the Great Red Spot
- Brings out detail in Saturn's belts and polar features
- Useful for lunar observing
- IR Blocking Filter
-
- Blocks infrared light from reaching sensitive imaging sensor, without modifying the visual part of the spectrum
- Increases contrast and overall image sharpness
- Eliminates bright halos around objects

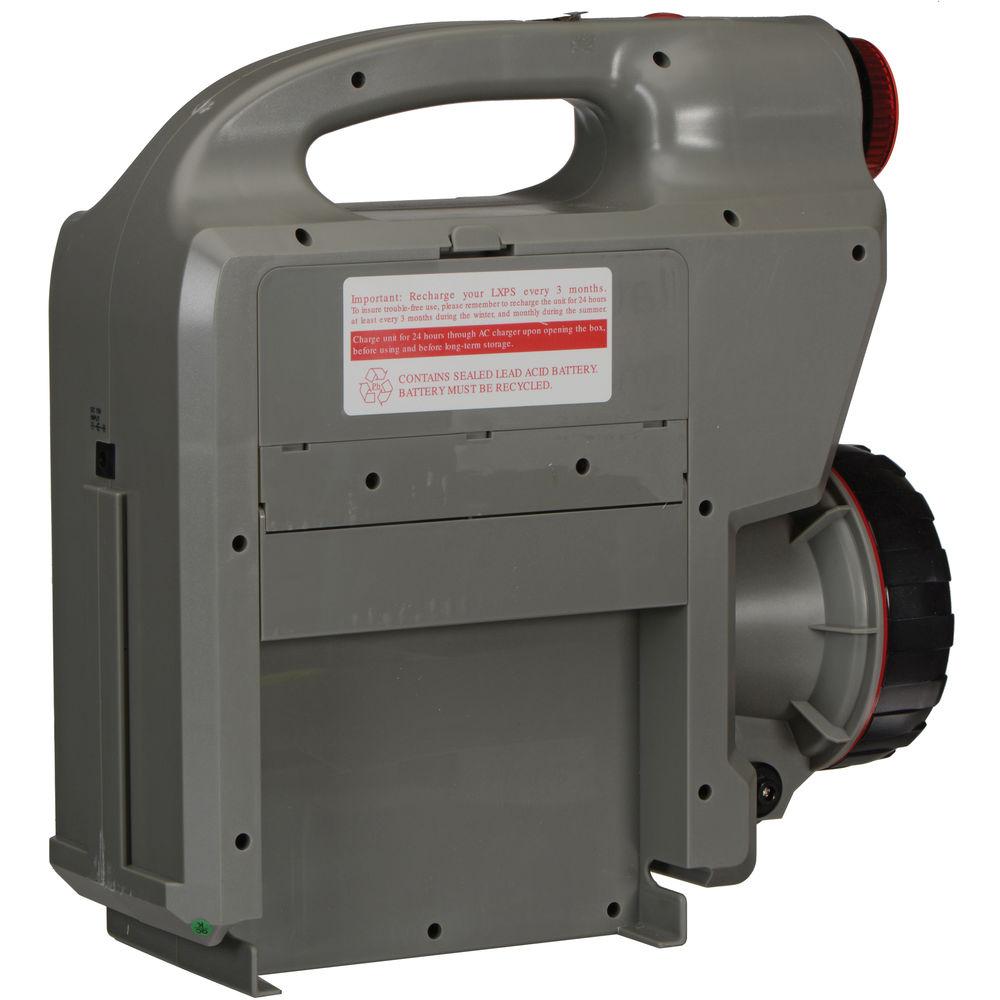

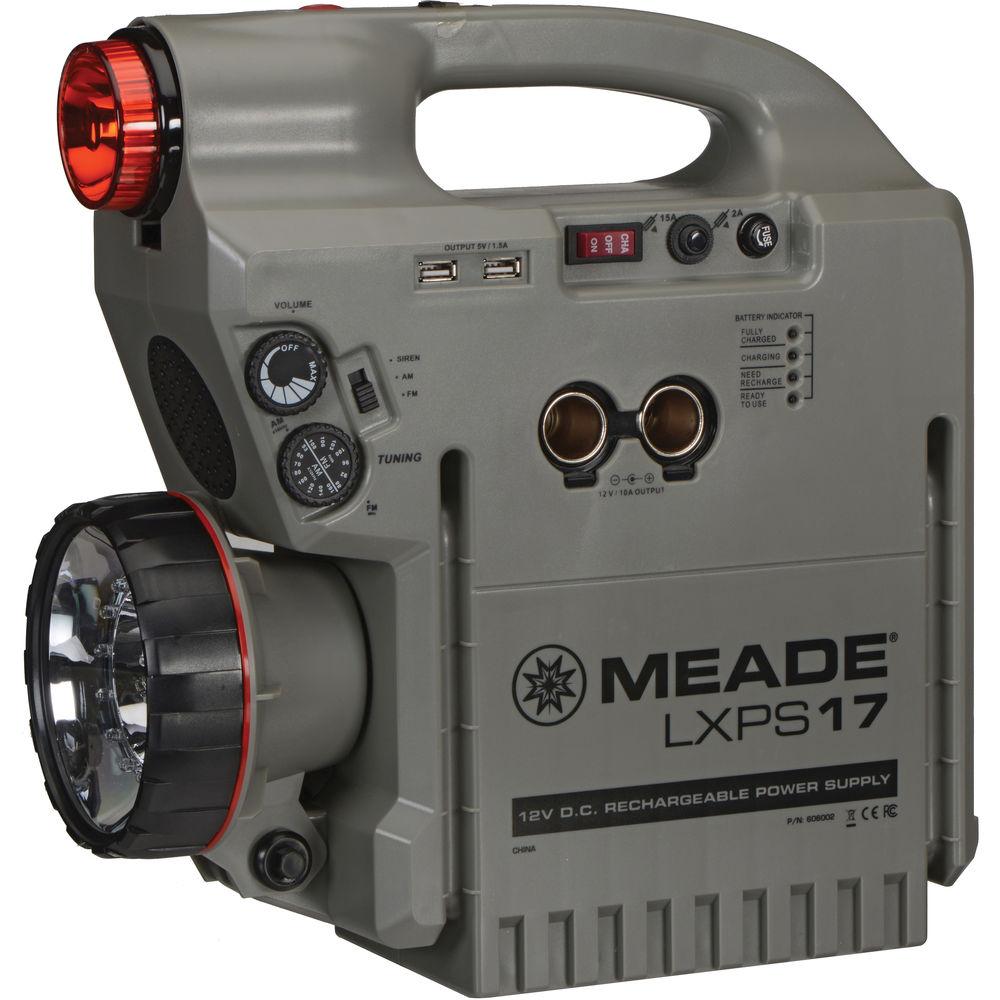

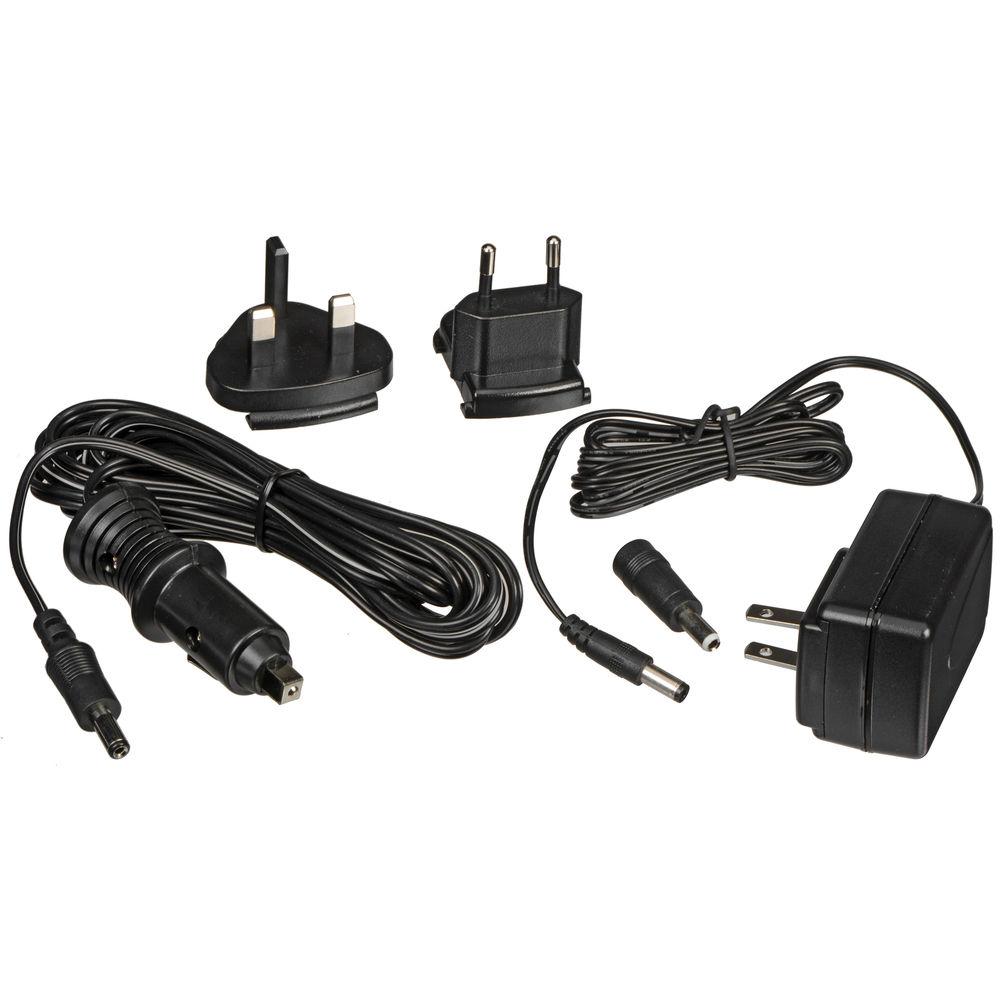

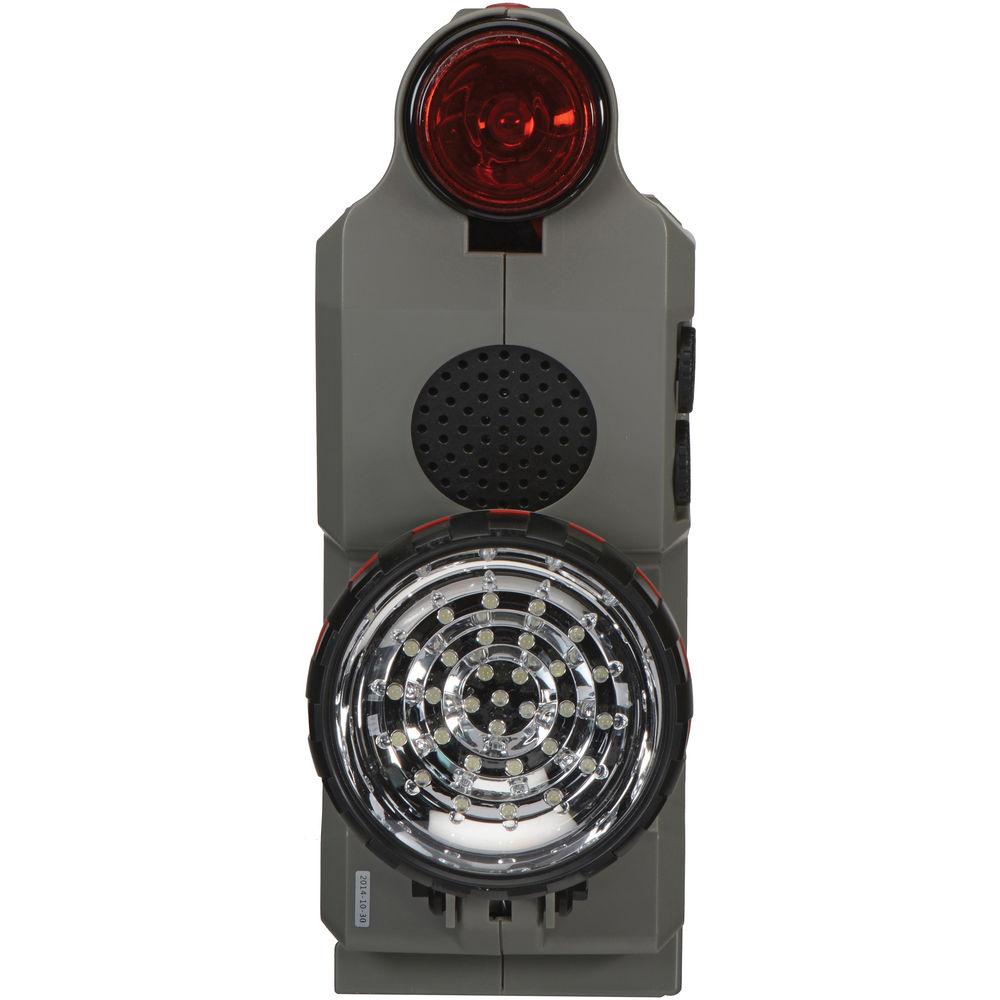

UPC: 709942900132 - PSLXPS17 12 VDC 17 Ah Power Supply Meade Instrument's PSLXPS17 12 VDC 17 Ah Power Supply is a valuable accessory to power any Meade 12V telescope. In addition to powering your telescope, it features an AM/FM radio with a siren mode, two 5V USB ports to charge small electronic devices such as phones and GPS hand units, and two 12 VDC car/vehicle ports for larger devices. All outputs are fuse-protected and the fuse is changeable if it blows. The power supply also has a powerful LED spotlight equipped with a hinged head for precise beam placement when you're navigating to the observation sight or setting up. A secondary flashlight is set about the spotlight for performing tasks, and an included red filter snaps over the lens to illuminate without affecting night-adjusted vision. The flashlight also has a strobe mode to signal observation partners or in emergencies. Its rechargeable lead acid battery can be charged using the included wall or car/vehicle plugs, and colored LEDs allow you to monitor the charge and battery status at a glance. A carrying handle is molded into the top of the unit, and a storage compartment is integrated into the housing to hold small items.

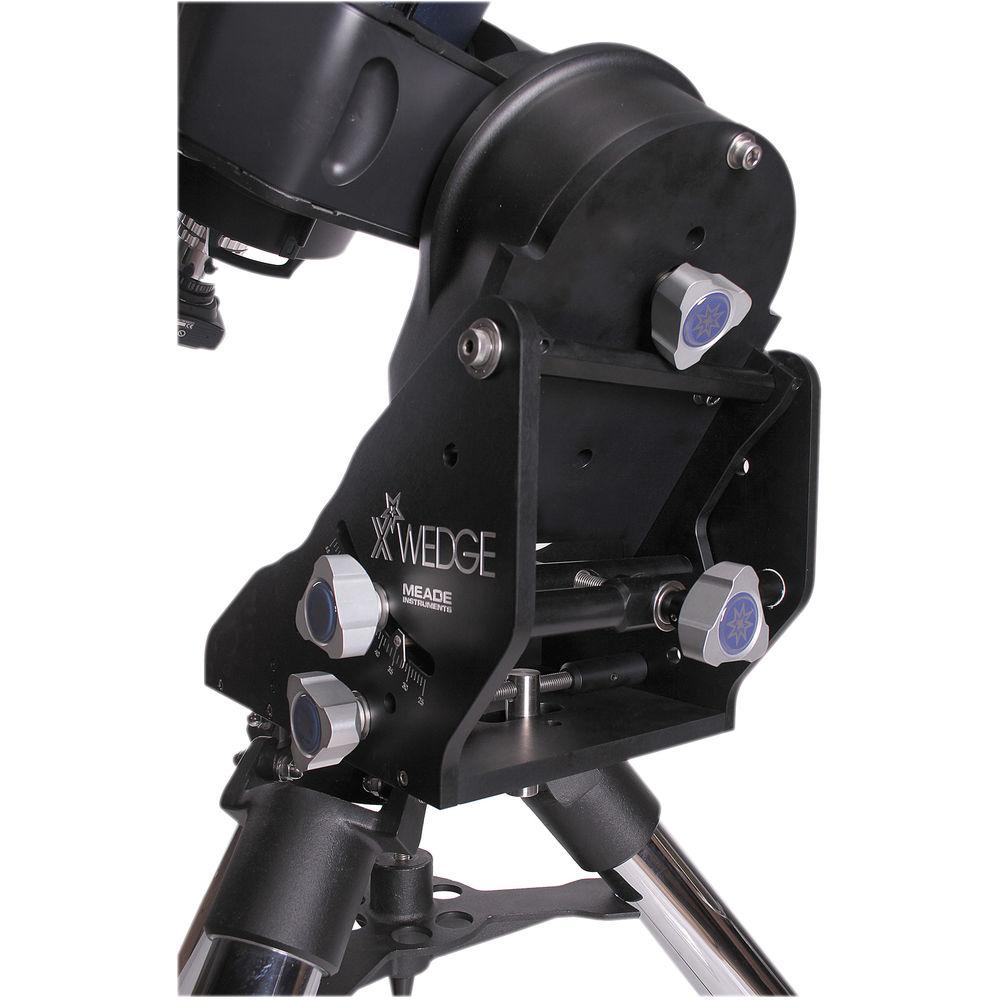

- X-Wedge Equatorial Wedge The X-Wedge Equatorial Wedge from Meade delivers smooth and accurate altitude and azimuth adjustments of a tripod and pier mounted optical tubes. The X-Wedge is mounted between the optical tube and the tripod to match the observer's latitude, achieving precise polar alignment of your telescope. Machined from a solid block of lightweight ultra-rigid aircraft aluminum, this wedge outperformed competing equatorial wedges, proving to be 30 percent more stable. The enhanced stability provided by the X-Wedge is essential for achieving tack-sharp images of deep sky objects such as galaxies and nebulae.
- Compatibility
- For mounting with Meade field tripods as supplied with models including 10", 12", 14" diameter LX50, LX90, LX200, RCX400, and LX600 telescopes. X-Wedge can also be pier mounted (hardware sold separately).
- Function
- The wedge allows the astrophotographer to align the telescope's axis of rotation with the Earth's axis. This alignment eliminates long arcs, trails, and streaks due to field rotation. For exposures lasting five minutes or longer, equatorial mounting is required for tack-sharp images.
- Construction
- CNC machined from a single block of ultra-rigid aircraft grade aluminum, this wedge features smooth, accurate altitude and azimuth adjustments. The rugged build quality also provides exceptional vibration dampening of larger diameter Schmidt-Cassegrain and Advanced Coma Free optical tubes.

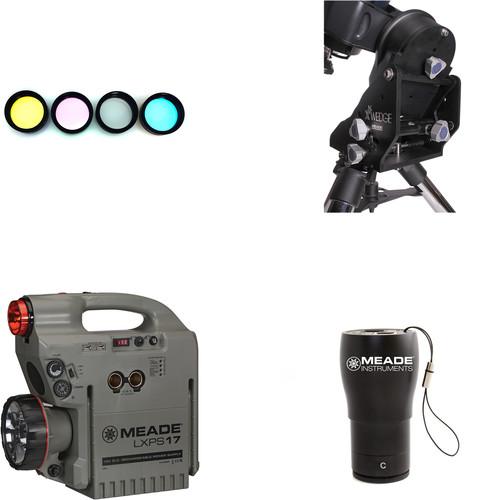

UPC: 709942000399 In the Box Bundle Items LPI-GM Autoguiding and Imaging Eyepiece Camera (Monochrome) sertsxsa RGB/IR Imaging Filter Set (1.25") sertsxsa PSLXPS17 12 VDC 17 Ah Power Supply X-Wedge Equatorial Wedge - One Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade Accessory Bundle for 10" 12" 14" LX-Series Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LPI-GM Autoguiding and Imaging Eyepiece Camera (Monochrome)
| Imaging Sensor | AR-130 monochrome CMOS | | Resolution | 1280 x 960 @ 28 fps
640 x 480 @ 30 fps | | Pixel Size | 3.75 x 3.75 µ | | Image Format | JPEG, BITMAP, PNG, TIFF, AVI, FITS | | Outputs | 1 x USB 2.0 port
1 x ST-4 auto-guider port | | Eyepiece Barrel Diameter | 1.25" | | | | Box Dimensions (LxWxH) | 6.6 x 5.95 x 2.5" | - RGB/IR Imaging Filter Set (1.25")
| Type | Eyepiece | | Size | 1.25" | | Multi-Coated | Yes | | Rotating | No | | Construction | Housing: Aluminum alloy
Lens: 3 mm thick optical glass | | Front Filter Thread Size | 1.25" | | | | Box Dimensions (LxWxH) | 2.95 x 2.2 x 1.8" | - PSLXPS17 12 VDC 17 Ah Power Supply
| Output Ports | 2 x 5 V USB
2 x 12 VDC car/vehicle | | Output | 12 VDC | | Battery | 17 Ah rechargeable lead acid | | Dimensions | 13.9 x 13.6 x 5.2" / 35.3 x 34.5 x 13.2 cm | | Weight | 16.0 lb / 7.3 kg | | | | Box Dimensions (LxWxH) | 15.8 x 15.6 x 7.2" | - X-Wedge Equatorial Wedge
| | | Box Dimensions (LxWxH) | 18.0 x 18.0 x 17.5" |
