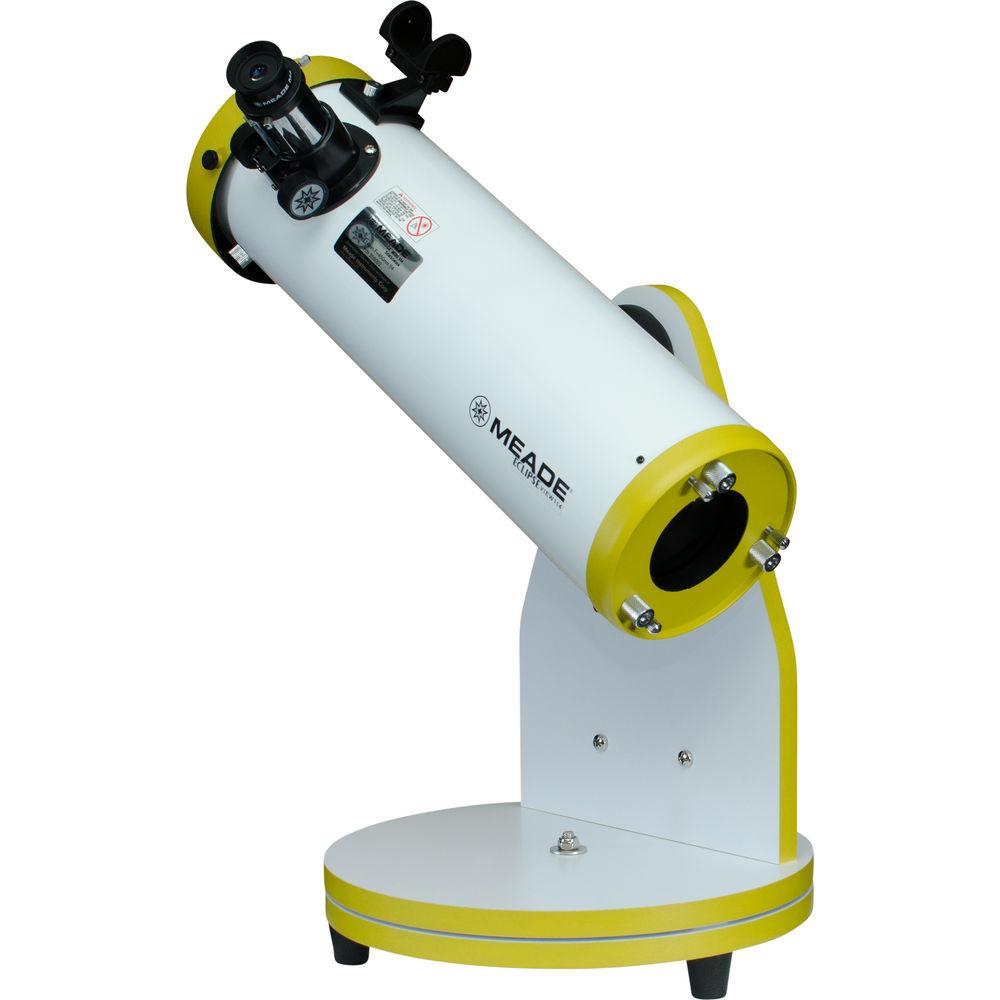

User Manual for Meade EclipseView 114mm f 4 AZ Reflector Telescope with Solar Filter Click to enlarge the picture
Contents of the user manual for the Meade EclipseView 114mm f 4 AZ
- Product category: Solar Telescopes Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Solar Telescopes
 |
User manual for the Meade EclipseView 114mm f 4 AZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

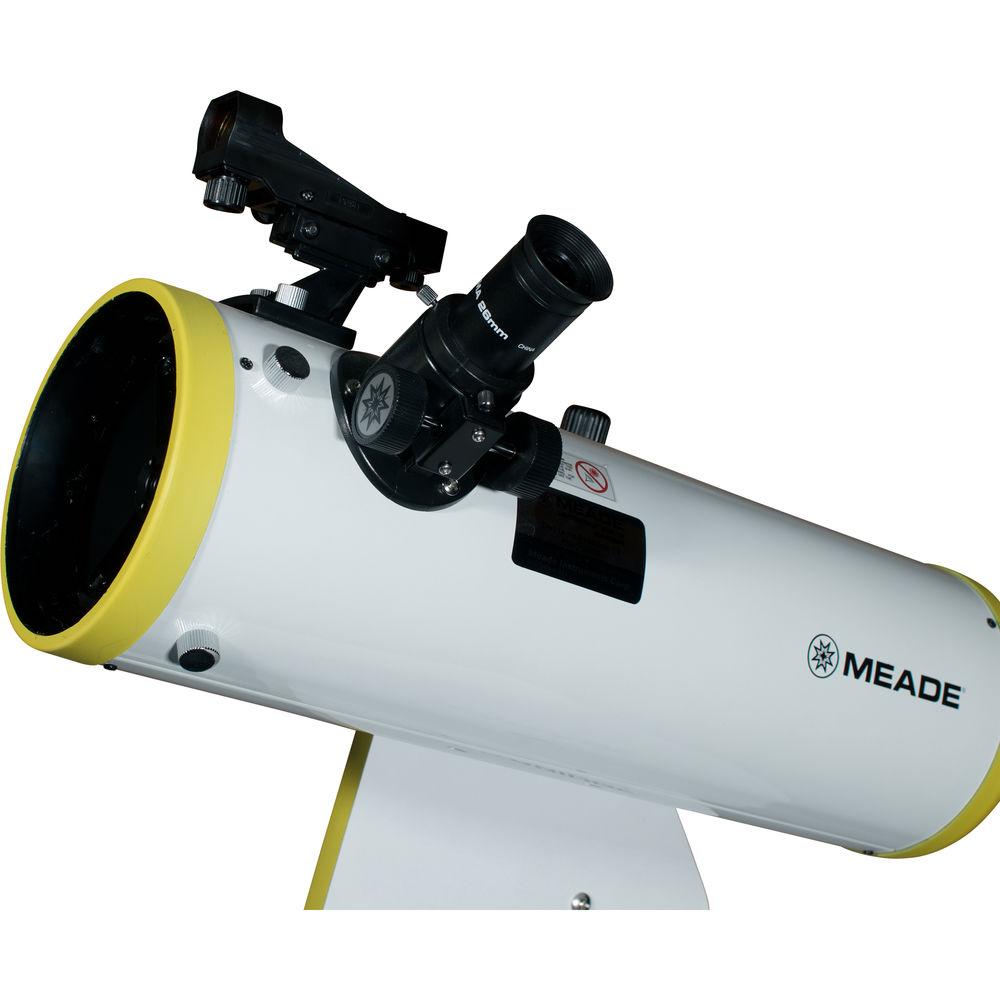

Product description Meade EclipseView White-Light Solar Eclipse Viewing Gear Read More Designed and engineered for portability and versatility, the Meade Instruments EclipseView 114mm f/4 AZ Reflector Telescope can be used for conventional nighttime viewing or, with the simple installation of the included filter, solar and solar eclipse observation. The full-spectrum white light filter fits on the front of the optical tube (OTA) and allows for safe viewing of sunspots, granulations, planetary transits, and all phases of solar eclipses. With the filter removed, the EclipseView can be used to view celestial subjects such as the Moon, planets, comets, and meteor showers.To find subjects fast, and to make star-hopping navigation faster, Meade includes a wide-field red-dot finder; and for safe centering of the Sun in the field of view, they also provide a Sun Finder finderscope. The OTA is attached to a manual single-arm alt-azimuth tabletop base that smoothly swivels a full 360° to allow viewing from horizon to horizon in any direction. To get users viewing right out of the box, Meade provides two eyepieces that produce low and high magnifications, and its drawtube will accept any other optional 1.25" accessory such as eyepieces, Barlow lenses, astrophotography adapters, and imaging systems. - Optical Tube
-
- Removable white-light solar filter to convert from conventional nighttime viewing to safe solar observation
- 114mm aperture
- f/4 focal ratio
- 450mm focal length
- Max resolution: <1 arc sec
- Sturdy rack-and-pinion focuser
- 1.25" drawtube accepts the most popular eyepiece and accessory size
- Mount and Tripod
-
Mount:- Manual alt-azimuth
- Lightweight single-arm design
Base:- Portable tabletop
- Swivels 360° for viewing from horizon to horizon in all directions
- Slip-resistant, vibration-dampening rubber feet
- Included Accessories
-
Solar filter:- Broad-band full-spectrum white light
- Fits over objective lens without tools
- Remove to use the scope for conventional nighttime use
- Install to use scope for solar viewing
Eyepieces:- 1.25" barrel diameter
- Accepts most 1.25" astronomical filters
- 26mm produces 17x magnification
- 9mm yields 50x power
Finderscopes:- Wide-field red dot finder for nighttime use
- Sun Finder solar finderscope for safe telescope positioning during solar observations
UPC: 709942998450 In the Box Meade EclipseView 114mm f/4 AZ Reflector Telescope with Solar Filter 26mm Eyepiece 9mm Eyepiece Red-Dot Finder Sun-Finder Solar Finderscope White-Light Solar Filter Limited 1-Year Warranty A Buying Guide for Solar and Solar Eclipse Viewing Christopher Witt 12/14/2016 sybfqqsazcaxycywcuefutezecufurqfezq Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 sybfqqsazcaxycywcuefutezecufurqfezq Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade EclipseView 114mm f 4 AZ Reflector Telescope with Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 227001 Specs | | | Optical Design | Reflector | | Aperture | 114 mm / 4.5" | | Focal Length | 450 mm | | Focal Ratio | f/4 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | | | Filtration Wavelength | White Light / Broadband | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 24.0 x 12.2" / 61.0 x 31.1 cm | | Weight | 10.8 lb / 4.9 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 24.3 x 15.0 x 15.0" |
