User Manual for Meade EclipseView 76mm f 9.2 AZ Reflector Telescope with Solar Filter Click to enlarge the picture
Contents of the user manual for the Meade EclipseView 76mm f 9.2 AZ
- Product category: Solar Telescopes Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Solar Telescopes
 |
User manual for the Meade EclipseView 76mm f 9.2 AZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

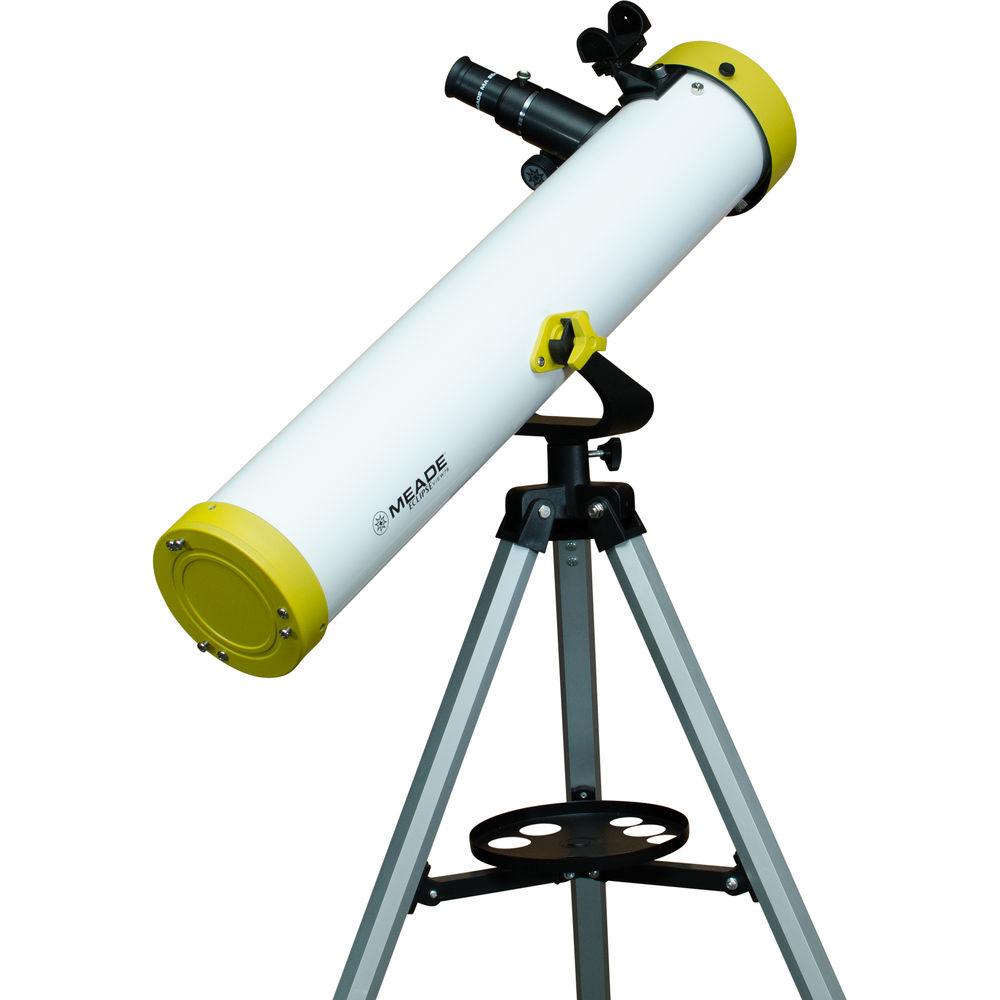

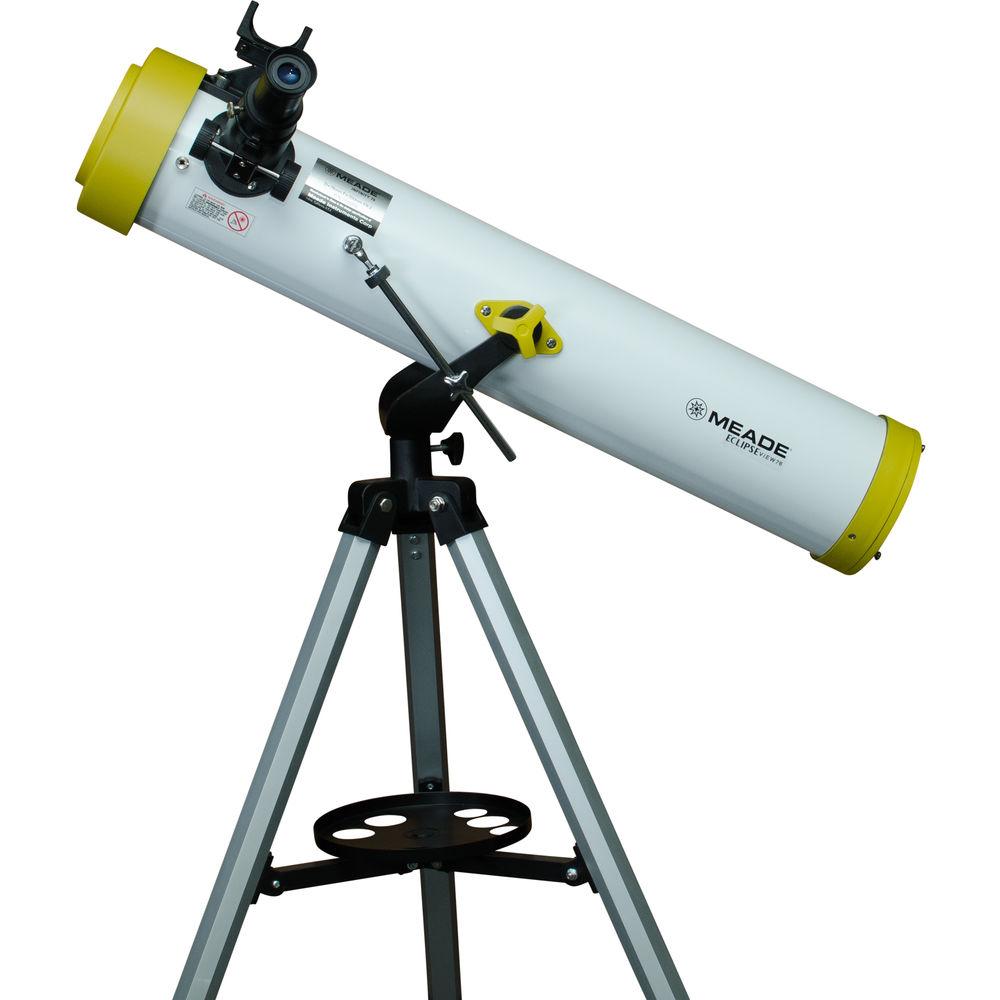

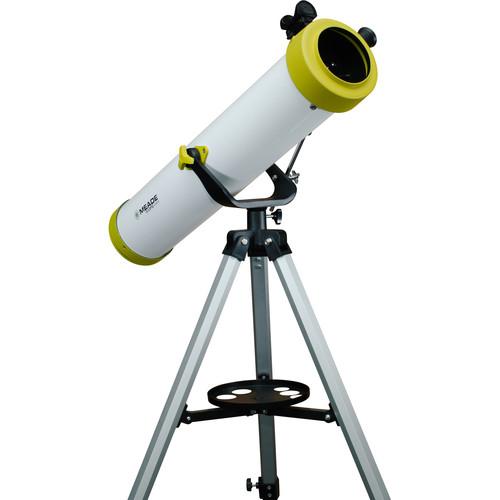

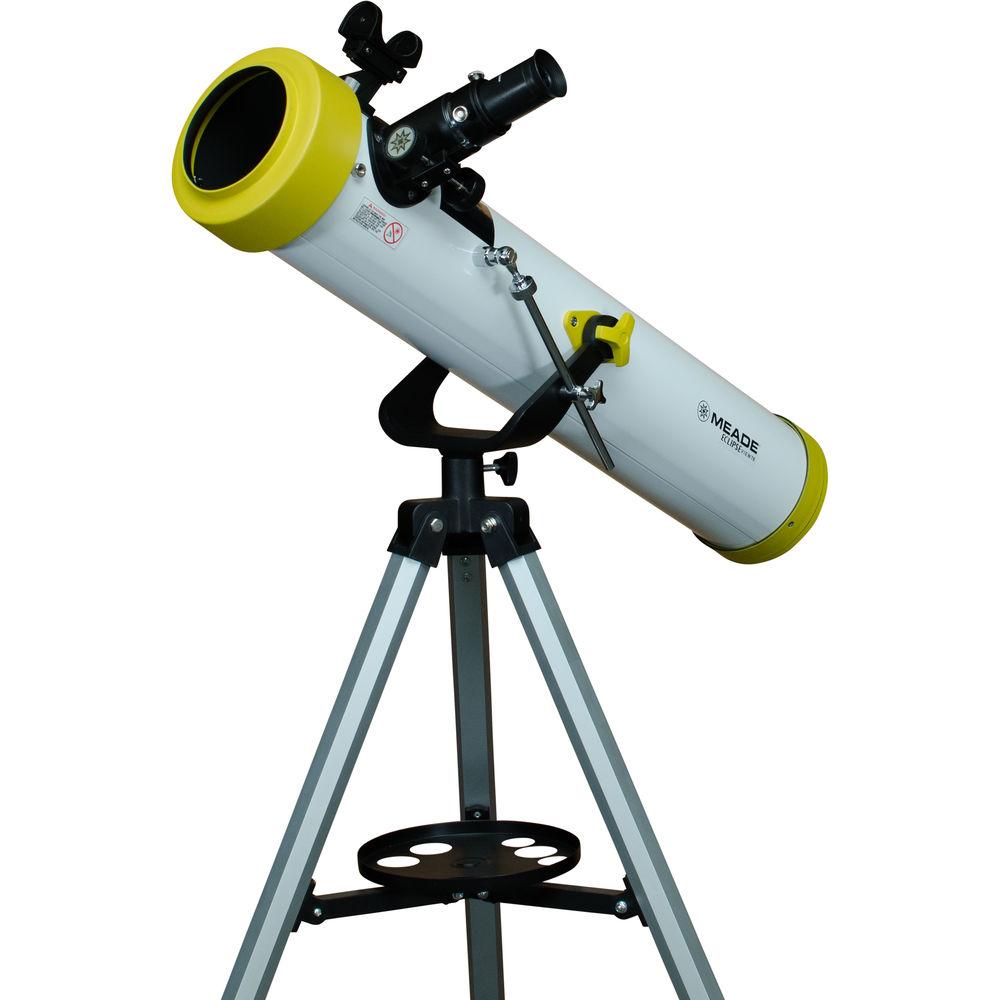

Product description Meade EclipseView White-Light Solar Eclipse Viewing Gear Read More Designed and engineered for versatility, the Mead Instruments EclipseView 76mm f/9.2 AZ Reflector Telescope can be used for conventional nighttime viewing or, with the simple installation of the included filter, solar observation. The full-spectrum white light filter fits on the front of the optical tube (OTA) and allows for safe viewing of sunspots, granulations, planetary transits, and all phases of solar eclipses. With the filter removed, the EclipseView can be used to view celestial subjects such as the Moon and planets; and deep-sky objects like clusters, binary stars, galaxies, and nebulae.To find subjects fast, and to make star-hopping navigation faster, Meade includes a wide-field red-dot finder; and for safe centering of the Sun in the field of view, they also provide a Sun-Finder finderscope. The OTA is attached to a manual alt-azimuth mount equipped with a slow-motion rod to increase tracking precision and reduce vibrations. Supporting the mount and OTA is an adjustable height tripod with an accessory try to hold the two included eyepieces, plus optional gear like Barlows and filters. - Optical Tube
-
- Removable white-light solar filter to convert from conventional nighttime viewing to safe solar observation
- 76mm aperture
- f/9.2 focal ratio
- 700mm focal length
- Max resolution: <1 arc sec
- Sturdy rack-and-pinion focuser
- 1.25" drawtube accepts the most popular eyepiece and accessory size
- Mount and Tripod
-
Mount:- Manual alt-azimuth
- Stable and sturdy yoke design
- Slow motion control bar for more precise tracking with reduced vibration
Tripod:- Adjustable height
- 2-section aluminum legs
- Secure tightening knobs holds legs at proper height
- Accessory tray with eyepiece holder
- Included Accessories
-

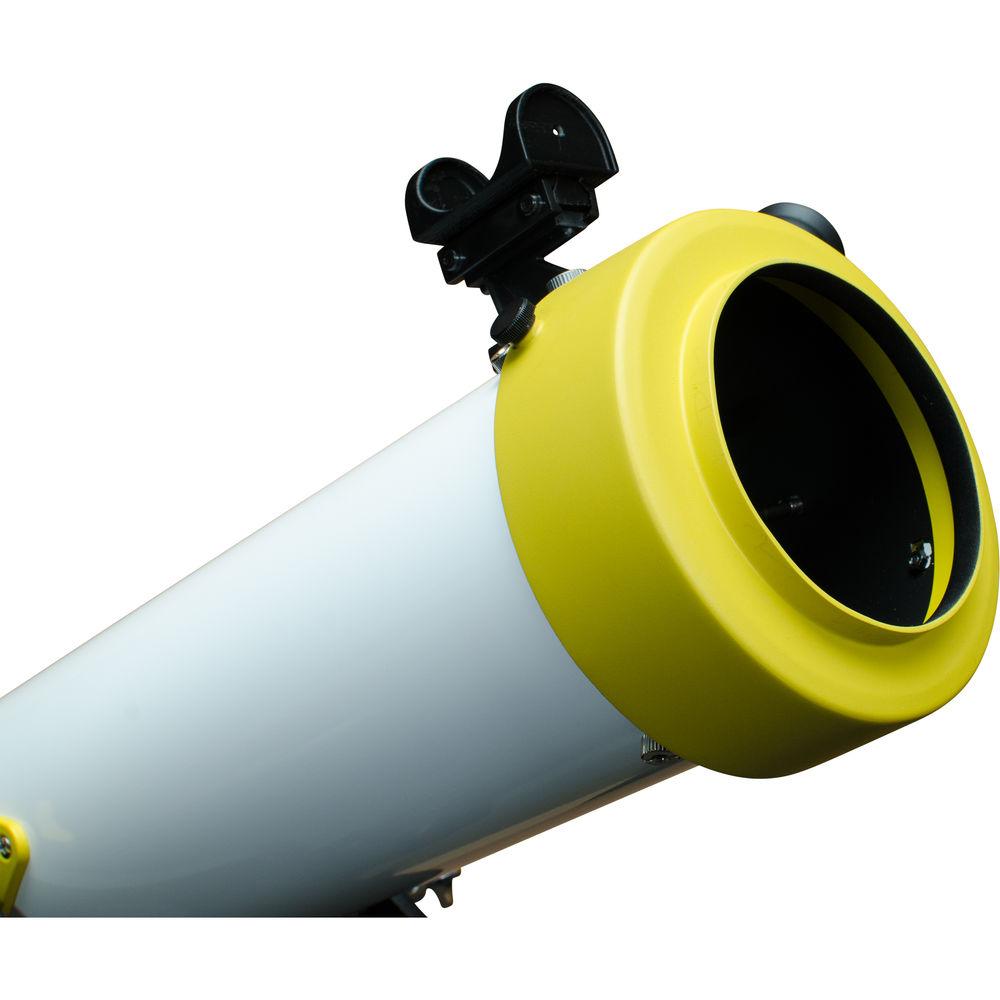

Solar filter:- Broad-band, full-spectrum white light
- Fits over objective lens without tools
- Remove to use the scope for conventional nighttime use
- Install to use scope for solar viewing
Eyepieces:- 1.25" barrel diameter
- Accepts most 1.25" astronomical filters
- 26mm produces 30x magnification
- 9mm yields 78x power
- Finderscopes:
- Wide-field red-dot finder for nighttime use
- Sun-Finder solar finderscope for safe telescope positioning during solar observations
Software:- Autostar Suite Astronomy planetarium DVD
- Includes over 10,000 celestial objects
- For Windows PCs only
UPC: 709942998474 In the Box Meade EclipseView 76mm f/9.2 AZ Reflector Telescope with Solar Filter 26mm Eyepiece 9mm Eyepiece Red-Dot Finder Sun-Finder Solar Finderscope White-Light Solar Filter Aluminum Tripod with Tray Autostar Suite Astronomy planetarium DVD Limited 1-Year Warranty A Buying Guide for Solar and Solar Eclipse Viewing Christopher Witt 12/14/2016 Solar and Solar Eclipse Viewing 101 Christopher Witt 12/14/2016 Mark Your Calendars: North American Solar Eclipse 2017 Todd Vorenkamp and Christopher Witt 08/19/2016 Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade EclipseView 76mm f 9.2 AZ Reflector Telescope with Solar Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 227003 Specs | | | Optical Design | Reflector | | Aperture | 76 mm / 3" | | Focal Length | 700 mm | | Focal Ratio | f/9.2 | | Focuser | Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | None | | Finderscope | Yes | | | | Filtration Wavelength | White Light / Broadband | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Assembled Dimensions | 32.4 x 13.4 x 7.7" / 82.3 x 34.0 x 19.6 mm | | Weight | 7.2 lb / 3.3 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 33.9 x 14.5 x 9.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
