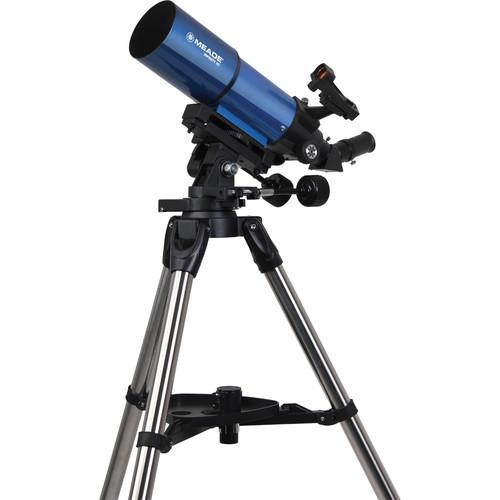

User Manual for Meade Infinity 80mm Alt-Azimuth Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Meade Infinity 80mm Alt-Azimuth Refractor Telescope
- Product category: Refractors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Refractors
|
User manual for the Meade Infinity 80mm Alt-Azimuth Refractor Telescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Designed for beginners, the Infinity 80mm Alt-Azimuth Refractor Telescope from Meade is intended to introduce viewers to astronomy by giving them a complete set up for viewing the Moon, planets, meteor showers, and brighter deep-sky objects. Its manual alt-azimuth mount has an altitude lock and slow-motion controls for precise tracking of subjects. Three eyepieces provide 15x, 44x, and 63.5x magnifications with a 2x Barlow lens that doubles the magnification of each eyepiece for a wider-range of observing possibilities.An adjustable-height stainless steel tripod provides a stable platform for sky-watching, and the included 90° erect-image diagonal makes looking through the scope more comfortable, especially when aiming the telescope toward the zenith. The diagonal's prism corrects images horizontally and vertically, allowing the scope to be used for terrestrial viewing as well. An integrated dew-shield helps to prevent condensation on the objective lens, while blocking stray terrestrial peripheral light from interfering with celestial observations. - Optical Performance
-
- 80mm aperture
- 400mm focal length
- f/5 focal ratio
- Integrated dew-shield
- Three Included Eyepieces
-
- 1.25" barrel diameter
- Fold down rubber eyecups
- Accepts standard filters and accessories
- Anti-reflection fully multicoated optics
- 26mm eyepiece yields 15x magnification
- 9mm eyepiece yields 44x magnification
- 6.3mm eyepiece yields 63.5x magnification
- Included Accessories
-
- 1.25" Rack-and-Pinion focuser
- 2x Barlow lens doubles the magnification of each eyepiece
- 90° erect-image prism corrects image horizontally and vertically
- Red dot finder with variable intensity
- Mount and Tripod
-
- Manual Alt-Az mount
- Flex-arm controllers with large knurled knobs
- Stainless steel 2-stage tripod with accessory tray
- Adjustable height from 33" to 51"
- AutoStar Suite Astronomer Software
-
- For Windows OS only
- Computer software helps users learn the night sky
- Displays more than 10,000 celestial objects including planets, stars, galaxies and nebulae
- Plan your observing session and print star charts
UPC: 709942996975 In the Box Meade Infinity 80mm Alt-Azimuth Refractor Telescope Optical Tube Assembly Stainless Steel Tripod with Accessory Tray 26mm, 9mm, 6.3mm Eyepieces 90° Erect-Image Diagonal Red Dot Finder with Bracket 2x Barlow Lens Autostar Suite Astronomy Planetarium DVD for Windows Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade Infinity 80mm Alt-Azimuth Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 209004 Specs | | | Optical Design | Refractor | | Aperture | 80 mm / 3.2" | | Focal Length | 400 mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | Yes, 90
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
