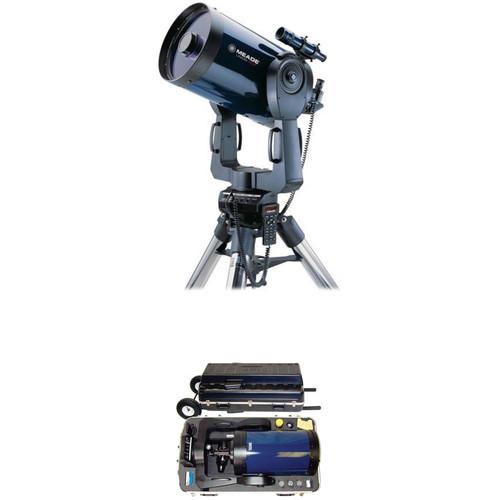

User Manual for Meade LX200-ACF 305mm f 10 Catadioptric GoTo Telescope Kit with Case Click to enlarge the picture
Contents of the user manual for the Meade LX200-ACF 305mm f 10 Catadioptric
- Product category: Catadioptrics (Cassegrains) Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Catadioptrics (Cassegrains)
|
User manual for the Meade LX200-ACF 305mm f 10 Catadioptric contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description B&H assembled the Meade Instruments LX200-ACF 305mm f/10 Catadioptric GoTo Telescope Kit to give you a complete and powerful, near research-grade astronomic observation system, with a way to safely transport and carry the optical tube assembly (OTA) and mount. The kit consists of the large-aperture OTA, dual-tine motorized alt-azimuth fork mount, the AutoStar II computer hand controller, and a heavy-duty stainless steel tripod to support it all. To get you observing right out of the box, the kit comes with a finderscope, eyepiece, and diagonal. - Meade LX200-ACF 305mm f/10 Catadioptric GoTo Telescope Meade Instruments combines their LX200-ACF 305mm f/10 Catadioptric GoTo Telescope with the massive Heavy-Duty Field Tripod to give you a complete near-research-grade observation rig to explore our solar system and beyond. This system comes with the large 12" optical tube assembly (OTA), a motorized GPS-enabled fork mount, the AutoStar II GoTo hand controller, a solid tripod to support it all, plus several accessories to get you observing right out of the box. It is ideal for shorter-exposure astrophotography. For long-exposure techniques, the optional equatorial wedge is recommended to avoid the field rotation that occurs while tracking in the conventional alt-azimuth configuration. UPC: 709942500929
- JMI Telescopes CASELX12R10 Telescope Carrying Case The JMI CASELX12R10 Telescope Carrying Case (Black) is a molded ABS plastic with die-cut foam lining and compartments for telescope, eyepieces, finder scope and accessories. It is designed to carry a Meade LX90GPS 12", LX200 (non-GPS) 12", LX200GPS 12", LX200R 12", LX400-ACF 10" or RCX400 telescope that can be stowed with the nose between the mount forks. If your model must be stowed with the nose up, it will not fit in this case. To fit in the case, the finderscope must be removed and stored separately in the provided cutout. A vinyl cover for the finder scope is included. There is a removable cover (no hinge) with six lockable latches, it is removed completely to insert or remove the telescope. The case has four steel-reinforced handles and is designed to be maneuvered like a wheelbarrow with two retractable handle bars and two 10" pneumatic wheels.
- Construction
-
- Molded ABS plastic with die-cut foam lining and compartments for telescope, eyepieces, finder scope and accessories
- Removable cover (no hinge) with six lockable latches, it is removed completely to insert or remove the telescope
- Vinyl cover for finder scope is included
- Carrying options
-
- Four steel-reinforced handles
- Two retractable handle bars
- Two 10" pneumatic wheels, installation of the wheels and support rails is easy and requires two 7/16" wrenches (or two crescent wrenches)
- Compatibility
-
- Models with the ability to be stowed with the nose between the mount forks
- Meade LX90GPS 12", LX200 (non-GPS) 12", LX200GPS 12", LX200R 12", LX400-ACF 10" or RCX400 telescopes
In the Box - LX200-ACF 305mm f/10 Catadioptric GoTo Telescope zccsfeefer
- LX200-ACF 305mm f/10 Catadioptric GoTo Telescope (OTA and Mount Only)
- Giant Field Tripod
- JMI Telescopes - CASELX12R10 Telescope Carrying Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX200-ACF 305mm f 10 Catadioptric GoTo Telescope Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Meade LX200-ACF 305mm f/10 Catadioptric GoTo Telescope (OTA and Mount Only)
| Optical Design | Advanced Coma Free catadioptric | | Aperture | 304.8mm / 12.0" | | Focal Length | 3048mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° star
1.25" snout and holder | | Finderscope | 8x50mm | | GoTo Capability | Autostar II hand controller | | Tripod | None | | Mount Type | Dual-tine fork
Motorized | | Power Requirement | 8 x C-cell batteries | | Optical Tube Dimensions | Not Specified by Manufacturer | | Weight | 75.0 lb / 34.0 kg, fully assembled | | | | Box Dimensions (LxWxH) | 43.5 x 29.0 x 29.0" | - Meade Giant Field Tripod
| | | Box Dimensions (LxWxH) | 40.0 x 17.0 x 17.0" | - JMI Telescopes CASELX12R10 Telescope Carrying Case
| Material | Exterior: Molded ABS plastic
Interior: Die-cut foam lining | | Type of Closure | Six lockable latches | | Exterior Dimensions | 51-5/8 x 24-7/8 x 19" (131.13 x 63.18 x 48.26cm) (WxHxD) with wheels | | Interior Dimensions | Not Specified by Manufacturer | | Accommodates | Meade LX90GPS 12", LX200 (non-GPS) 12", LX200GPS 12", LX200R 12", LX400-ACF 10" or RCX400 telescopes | | Carrying/Transport Options | Four steel handles
Two retractable handlebars
10" wheels | | Weight | 44 lbs (19.96kg) | | | | Box Dimensions (LxWxH) | 43.7 x 25.3 x 15.0" |
