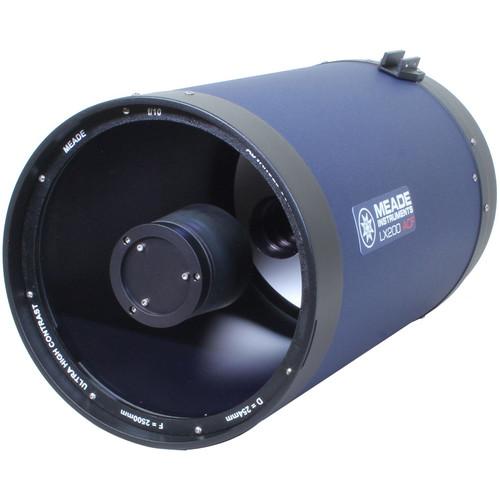

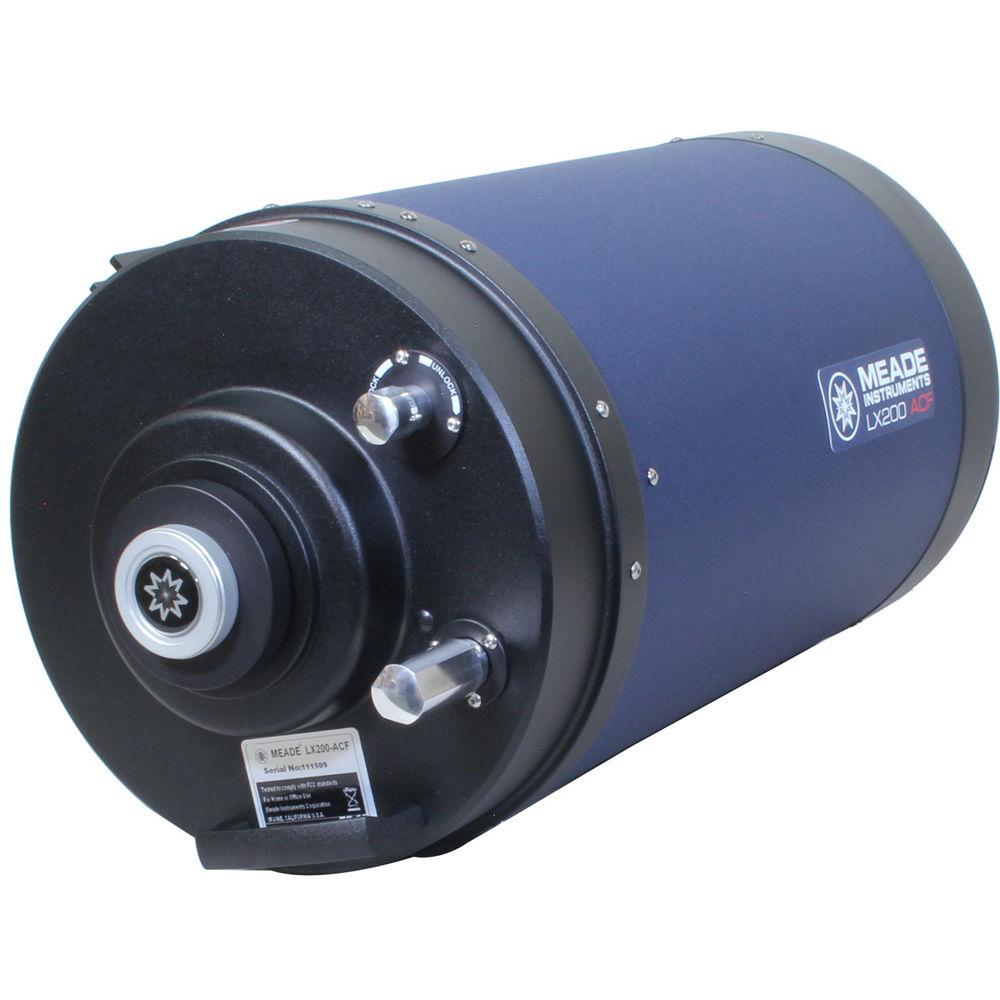

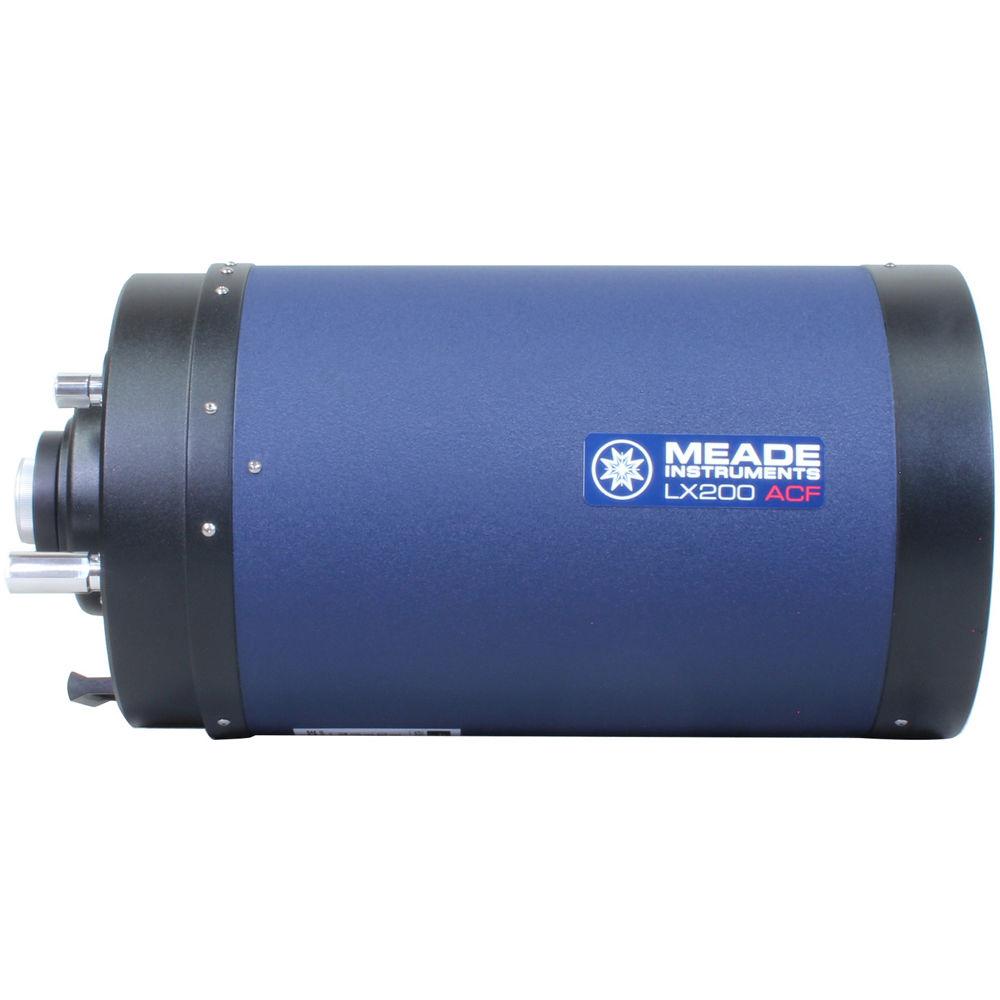

User Manual for Meade LX200-ACF UHTC 10" f 10 Catadioptric Telescope Click to enlarge the picture
Contents of the user manual for the Meade LX200-ACF UHTC 10" f 10
- Product category: Catadioptrics (Cassegrains) Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Catadioptrics (Cassegrains)
 |
User manual for the Meade LX200-ACF UHTC 10" f 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Engineered for peak performance, Meade Instruments' LX200-ACF UHTC 10" f/10 Catadioptric Telescope combines multiple technologies to produce distortion-free high-contrast images with true-color rendition across the entire flat field of view with a Dawes' resolution of just 0.456 arcsec. The scope's performance begins with the aplanatic Advanced Coma-Free (ACF) optical system, which produces a flat field of view with reduced astigmatism and zero diffraction. A low-expansion borosilicate primary mirror further reduces distortion due to temperature fluctuation, and the SCHOTT BOROFLOAT glass corrector plate aligns the light waves to correct spherical and chromatic aberrations. Meade then fully multi-coats all optical surfaces with their proprietary Ultra-High Transmission Coatings (UTHC), which increase light transmission, further improve color fidelity, and boost contrast. For long-exposure astrophotography or long-duration observation sessions, the LX200 boasts a primary mirror lock to completely cancel any residual image shift due to mirror movement.This version of the LX200 is offered here without any accessories, mount, or tripod for those who have all their gear and just want to upgrade their optical tube assembly (OTA). This large OTA weighs in at a hefty 26 pounds by itself, so make sure the mount head and tripod it gets put on can handle it in addition to the weight of any accessories. To ensure a rock-solid connection to your mount, it is outfitted with the larger Losmandy-style dovetail plate. - Optics
-
- Large 10" aperture
- f/10 focal ratio
- Long 2500mm focal length
- Advanced Coma-Free (ACF) design permits aplanatic performance, with a flatter field, reduced astigmatism, and zero diffraction spikes
- Proprietary Ultra-High Transmission Coatings (UTHC) on all optical surfaces increase light transmission while improving color rendition and contrast
- Low-expansion borosilicate primary mirror virtually eliminates distortion due to temperature changes to the mirror
- SCHOTT BOROFLOAT glass corrector plate
- Primary mirror lock: Completely cancels any residual image shift due to primary mirror movement during long-exposure astrophotography or observing
- Resolution (Dawes'): 0.456 arcsec
- Internal focusing system
- Mounting
-
- Losmandy-style dovetail plate
- OTA weight: 26 pounds
- Mount and tripod required
In the Box Meade LX200-ACF UHTC 10" f/10 Catadioptric Telescope (OTA Only) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX200-ACF UHTC 10" f 10 Catadioptric Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade LX200-ACF Specs | Optical Design | Catadioptric | | Aperture | 10.0" / 254mm | | Focal Length | 2500mm | | Focal Ratio | f/10 | | Eyepiece Barrel Diameter | N/A | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | Losmandy-style dovetail plate | | Power Source | None | | Optical Tube Dimensions | Not specified by manufacturer | | Weight | 26.0 lb / 11.8 kg | | | | Package Weight | 41.0 lb | | Box Dimensions (LxWxH) | 30.5 x 21.0 x 17.0" |
