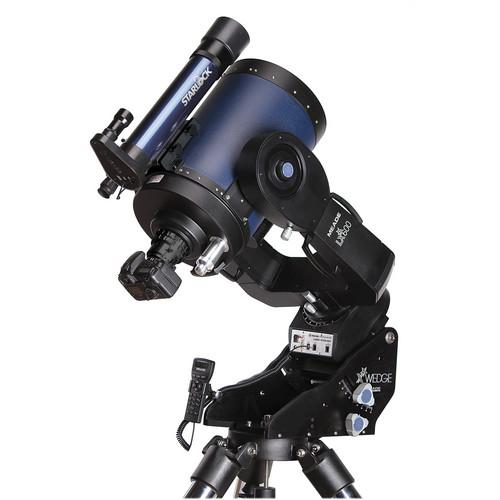

User Manual for Meade LX600-ACF 12" f 8 Cassegrain GoTo Telescope with Tripod and StarLock Click to enlarge the picture
Contents of the user manual for the Meade LX600-ACF 12" f 8 Cassegrain
- Product category: Catadioptrics (Cassegrains) Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Catadioptrics (Cassegrains)
|
User manual for the Meade LX600-ACF 12" f 8 Cassegrain contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Engineered with a large aperture and fast focal ratio to pierce far into deep space, Meade Instruments' LX600-ACF 12" f/8 Cassegrain GoTo Telescope combines multiple technologies to produce distortion-free high-contrast images with true-color rendition across the entire flat field of view. The scope's performance begins with the aplanatic Advanced Coma-Free (ACF) optical system, which produces a flat field of view with reduced astigmatism and zero diffraction. A low-expansion borosilicate primary mirror further reduces distortion due to temperature fluctuation, and the SCHOTT BOROFLOAT glass corrector plate aligns the light waves to correct spherical and chromatic aberrations. Meade then fully multi-coats all optical surfaces with their proprietary Ultra-High Transmission Coatings (UTHC), which increase light transmission, further improve color fidelity, and boost contrast. For long-exposure astrophotography or long-duration observation sessions, the LX600 boasts a primary mirror lock to completely cancel any residual image shift due to mirror movement.At the core of the LX600 Series' tracking and alignment system is Meade's StarLock technology. StarLock uses both a wide-field and a narrow-field digital camera to identify guide stars as faint as 11th magnitude. Unlike standard autoguidance systems that are controlled by computers, StarLock directly transmits specific real-time commands to each of the servo motors, resulting in maximum accuracy and faster guide corrections to within 1 arcsecond. The optical tube assembly (OTA) is attached to the dual-fork alt-az mount, which uses dual-axis micro motors to find and track objects with virtually zero vibrations. Meade outfitted it with a built-in 16-channel GPS receiver and time chip, so the mount can automatically determine the current date, time, and location within minutes of being turned on. The information is sent to the AutoStar II controller, which uses an electromagnetic sensor to determine True North and can automatically align the scope with minimal user interface. During long observation or exposure imaging sessions, the controller interfaces with the StarLock system to continuously check its orientation and tracking and adjust as needed, sending the data to the Smart Mount and Smart Drive systems. The system learns the tracking errors and adjusts itself for the future.The brain of the mount is Meade's iconic AutoStar II computer controller. This handheld unit has an internal database of over 145,000 objects, from the Moon and planets, to galaxies, nebulae, and constellations. It can calculate future events like sunrises and meteor showers, and predict solar and lunar eclipses for the next 100 years. Once set up and running, the AutoStar II can take you on guided tours of the best objects visible above, including audio tours that can be heard from the internal speaker.The mount and OTA are supported by a sturdy adjustable-height stainless steel tripod that is designed to absorb vibrations for even clearer views. To get you started, Meade includes a 1.25" visual back for the OTA and a 26mm eyepiece that yields 94x magnification. For alignment and manual star-hopping navigation, an 8x50 finderscope and mounting bracket are also included. This finderscope has an illuminated aiming reticle with variable intensity to protect night-adjusted vision. - Optical Tube
-
- Large 305mm (12") aperture
- f/8 focal ratio
- 2438mm focal length
- Schmidt-Cassegrain optical path
- Resolution: 0.38 arcsec, Dawes' Limit
- Internal 7:1 dual-speed focusing system
- 1.25" visual back for popular-sized eyepieces and accessories
- Optical Technology
-
- Advanced Coma-Free system:
- Reduces off-axis comas and astigmatism for sharper images
- Eliminates diffraction spikes for better resolution
- Aplanatic design produces flat, distortion-free images across the field of view, especially at the edges
- Ultra-High Transmission Coatings (UHTC):
- All corrector plate and mirror surfaces are fully multi-coated
- Engineered to optimize visual, photographic, and CCD imaging
- Improve light transmission across the entire visible spectrum through the optical path
- Corrector plate coatings made up of multiple layers of aluminum oxide (Al2O3), titanium dioxide (TiO2), and magnesium fluoride (MgF2)
- Mirror coatings consist of aluminum with multi-layer coatings of titanium dioxide (TiO2) and silicon dioxide (SiO2)
- StarLock Guiding System
-
- Dual digital cameras built into an 80mm f/5 refractor telescope
- Wide-field camera: 25x26mm f/1.04; 0.5" CMOS sensor; 14.72x11.78° field of view
- Narrow-field camera: 80x400mm f/5; 0.5" CMOS sensor; 57.2x45.8 arcminutes field of view
- Integrated alignment and guiding system
- Uses the GPS and time chip to determine location and time
- Takes a picture of the night sky and compares it to internal database
- Determines alignment by taking multiple pictures and aligning to multiple stars
- During long observation or astrophotography sessions, continuously checks tracking and alignment and automatically corrects tracking errors
- Automatically locks onto a star as faint as 11th magnitude
- Down to 1 arcsecond precision guiding
- Weight: 2.7 pounds (1.2kg)
- Mount and Tripod
-
- Mount:
- Motorized Alt-Az
- Heavy-duty double-tine fork configuration
- Dual-axis fine manual adjustment controls when not using motors
- Internal GPS receiver and time chip automatically determine date, time, and location, and require no user input during setup
- Control mount remotely via PC using the RS232 interface
- Runs on eight user-supplied C-cell batteries, or optional 12 VDC power supply
- Smart Mount: Improves the pointing accuracy of the computer controller and enables the AutoStar II to automatically identify and correct systematic pointing errors
- Smart Drive: Works with Autostar II to improve drive accuracy for better tracking the more it is used
- Tripod:
- Meade's largest field tripod maximizes payload capacity, stability, vibration adjustments
- Ultra-wide leg spread
- Adjustable height from 34" to 54"
- Rigid, vibration-damping chromed stainless steel legs
- Center leg brace adds stability and increases vibration reduction
- Three anti-vibration pads, one for each leg, absorb vibrations from footsteps, cars/vehicles, wind, and other forces to improve views
- Weight: 50 pounds
- AutoStar II Computer Controller
-
- Full GoTo capabilities
- Intuitive menu-driven interface
- 145,000-object database
- Tracking accuracy: ±1 arcsec
- Periodic Error Correction (PEC) and Permanent Periodic Error Correction (PPEC) train out tracking errors for more precision
- Multiple alignment procedures: Auto Align, Easy, One-star, Two-star, Align on home
- Multiple slew speeds: Variable in 0.01x increments from 0.1x to 1.0x; 1x, 2x, 8x, 16x, 64x, 128x, 1.5°/sec, 3°/sec, 8°/sec
- Tracking rates: Sidereal, Lunar, Custom: Select from 2000 incremental rates
- Calculate future dates and times for events like sunrises and sunsets; moonrises, moonsets, and Moon phases; solar and lunar eclipses for the next 100 years; meteor showers; equinoxes and solstices
- Guided tours available based on when and where scope is set up
- Guided audio tours via built-in speaker
- Auto-align procedure:
- Automatically determines the level point on the scope and determines where True North is based on GPS info
- Scope determines and moves to the "home" position, calculating the limiting positions of the telescope to avoid tangling cables and over-rotating the telescope
- Once complete, mount moves scope to two bright stars calculated by time, date, and location and user simply needs to fine adjust so the star is centered in field of view
- Database objects:
- Planets
- Stars
- Galaxies
- Nebulae
- Comets
- Satellites
- Common constellations
- Moon features like landing points, mountains, craters, and lakes
- User-defined objects
- New General Catalog (NGC): 7,840 objects
- Index Catalog (IC): 5386 objects
- Messier Catalog (M): 110 objects
- Caldwell Catalog: 109 objects
- Named Objects: 227 objects
- Herschel Catalog: 400 objects
- Abell Catalog of Galaxy Clusters: 2712 objects
- Arp Catalog of Irregular Galaxies: 645 objects
- Uppsala Galaxy Catalog: 12,940 objects
- Morphological Catalog of Galaxies: 12,939 objects
- General Catalog of Variable Stars: 28,484 objects
- SAO catalog: 17,191 objects
- Hipparcos Star Catalog: 17,325
- Physical properties:
- Two-line display with red backlight
- Red backlit control buttons
- Built-in speaker
- Included Accessories
-
- Eyepiece:
- 26mm Series 4000 Super Plössl
- Produces 94x magnification
- 52° apparent angle of view
- 18mm eye relief
- 1.25"-diameter barrel
- Fold-down rubber eyecup
- Fully multi-coated to improve light transmission, color fidelity, and contrast
- Textured rubber grip provides secure handling
- Diagonal:
- 1.25"-diameter barrel and eyepiece holder
- 90° angle provides a comfortable viewing position especially when OTA is aimed at the zenith
- Star diagonal corrects image vertically
- 8x50 Finderscope:
- Low magnification provides a wide field of view for easier object finding
- Large aperture reveals many objects smaller finders can't
- Illuminated crosshair reticle ensures proper centering without obstructing target
- Variable-intensity LED illumination
UPC: 709942502022 In the Box Meade LX600-ACF 12" f/8 Cassegrain GoTo Telescope with Tripod and StarLock #828 8x50 Rear-Focus Viewfinder (Blue) Giant Field Tripod Series 4000 26mm Super Plossl Eyepiece (1.25") 90° Star Diagonal #507 Connection Cable AutoStar II Hand Controller Hand Controller Holder 507 Connection Cable 3 x Anti-Vibration Foot Pads AutoStar Suite Software Limited 1-Year Warranty Table of Contents
|
