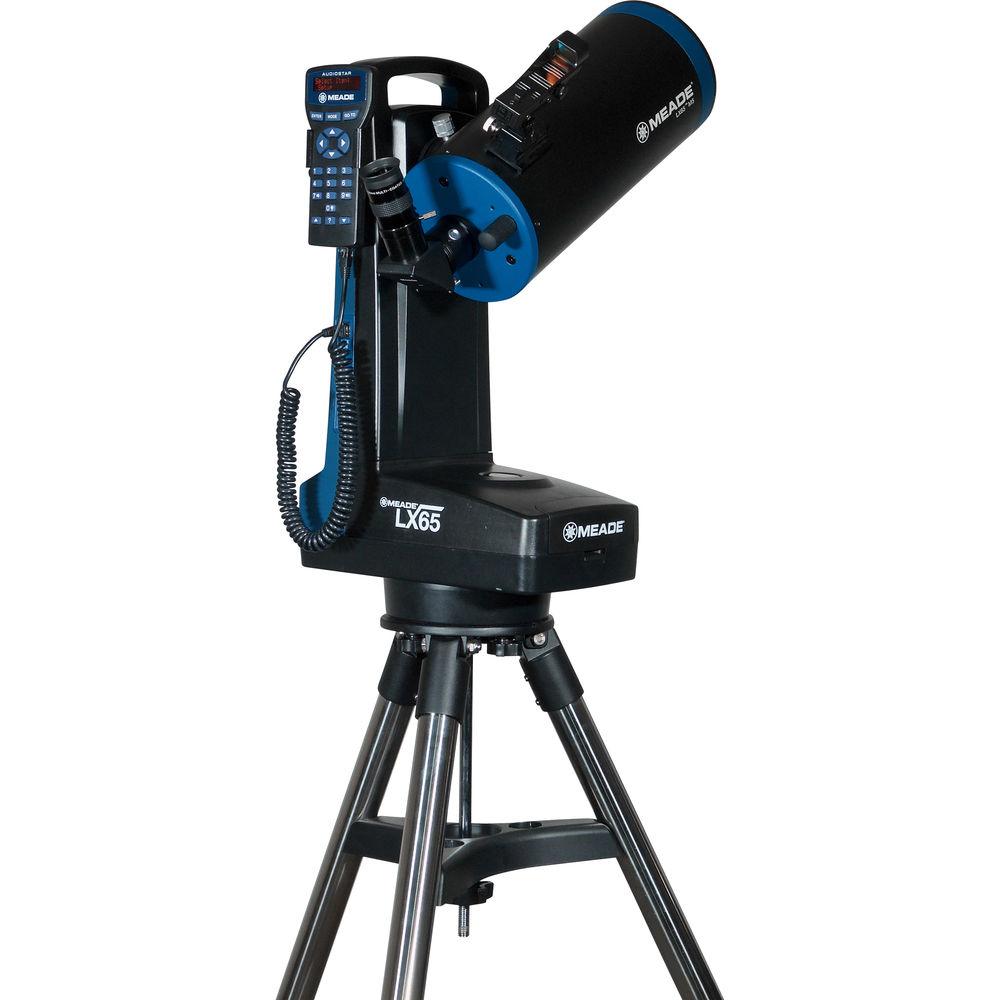

User Manual for Meade LX65 5" f 15 Maksutov-Cassegrain Telescope Click to enlarge the picture
Contents of the user manual for the Meade LX65 5" f 15 Maksutov-Cassegrain
- Product category: Catadioptrics (Cassegrains) Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Catadioptrics (Cassegrains)
 |
User manual for the Meade LX65 5" f 15 Maksutov-Cassegrain contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

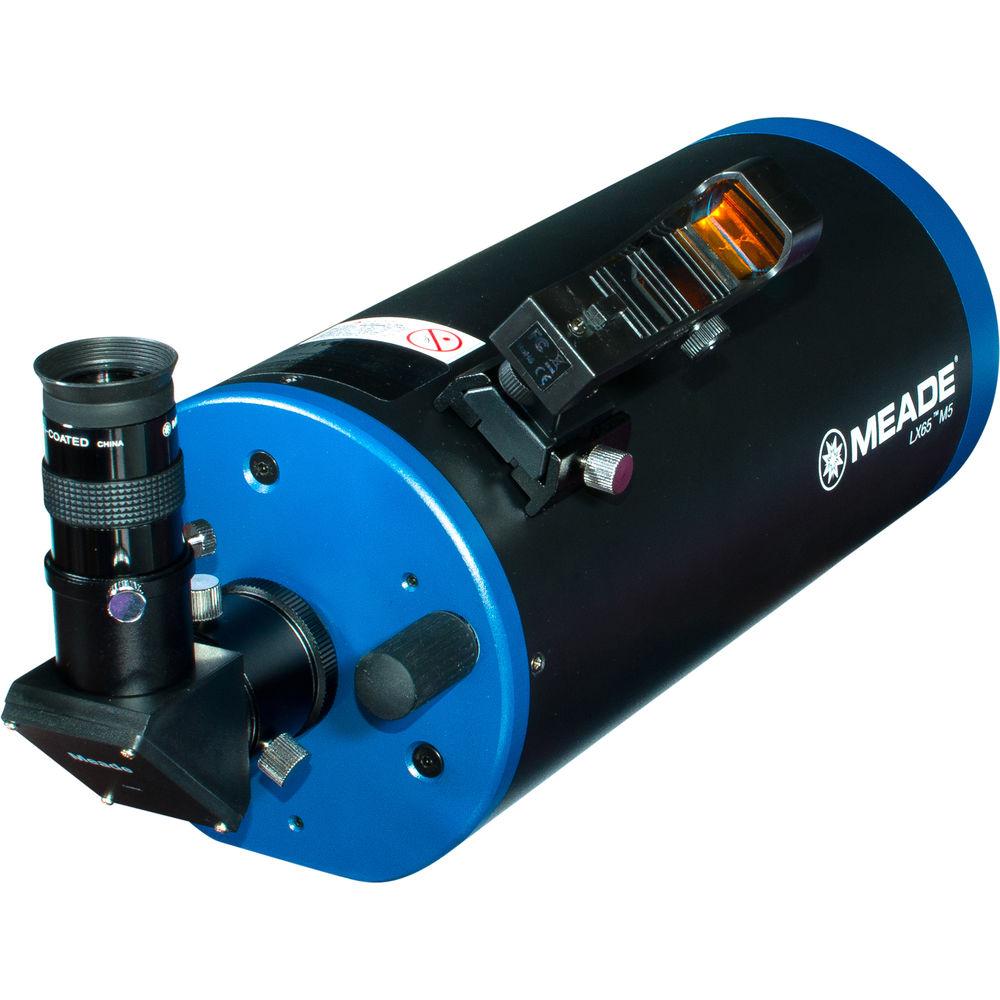

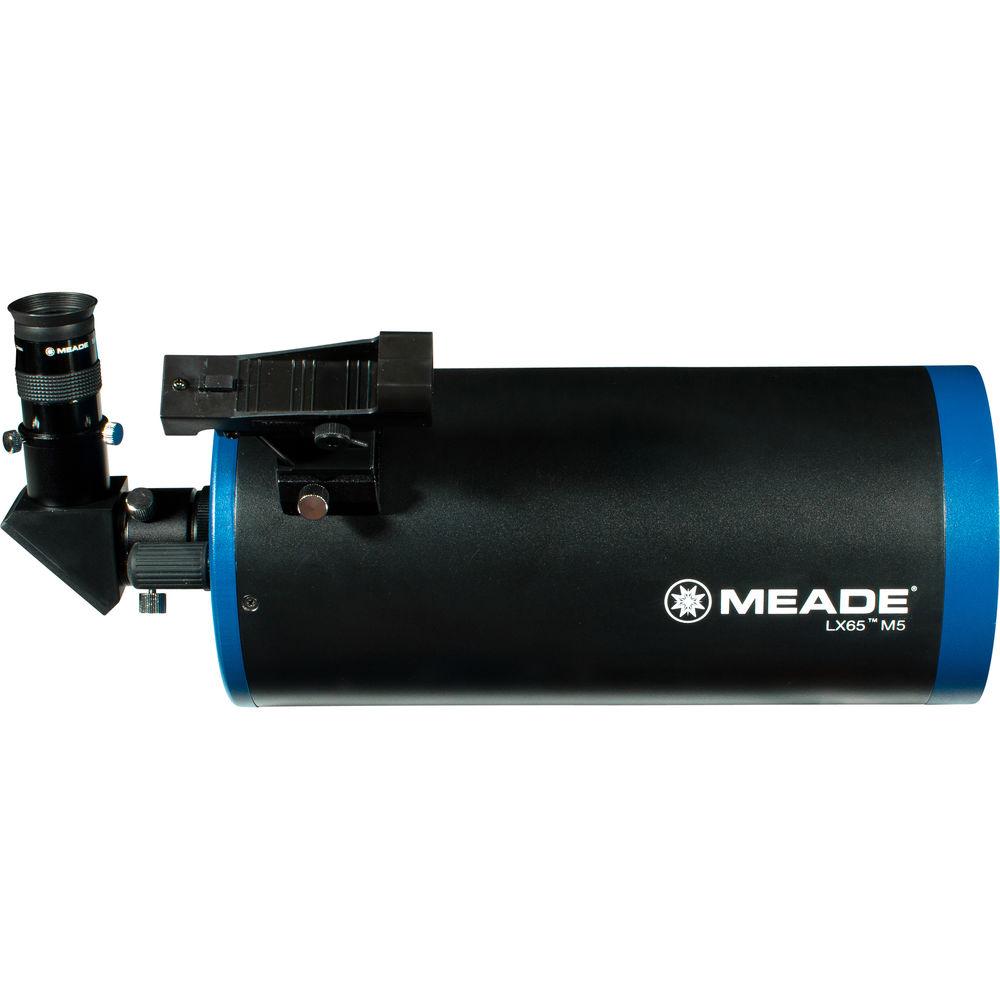

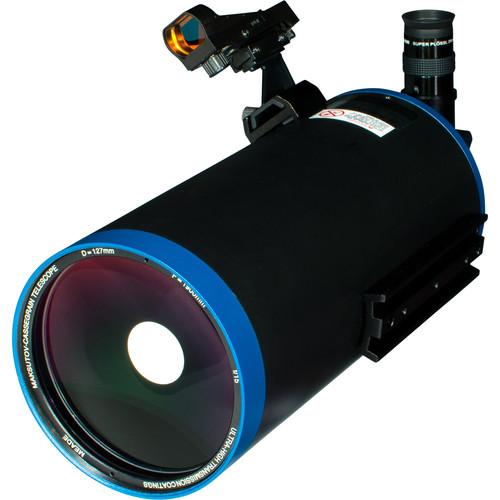

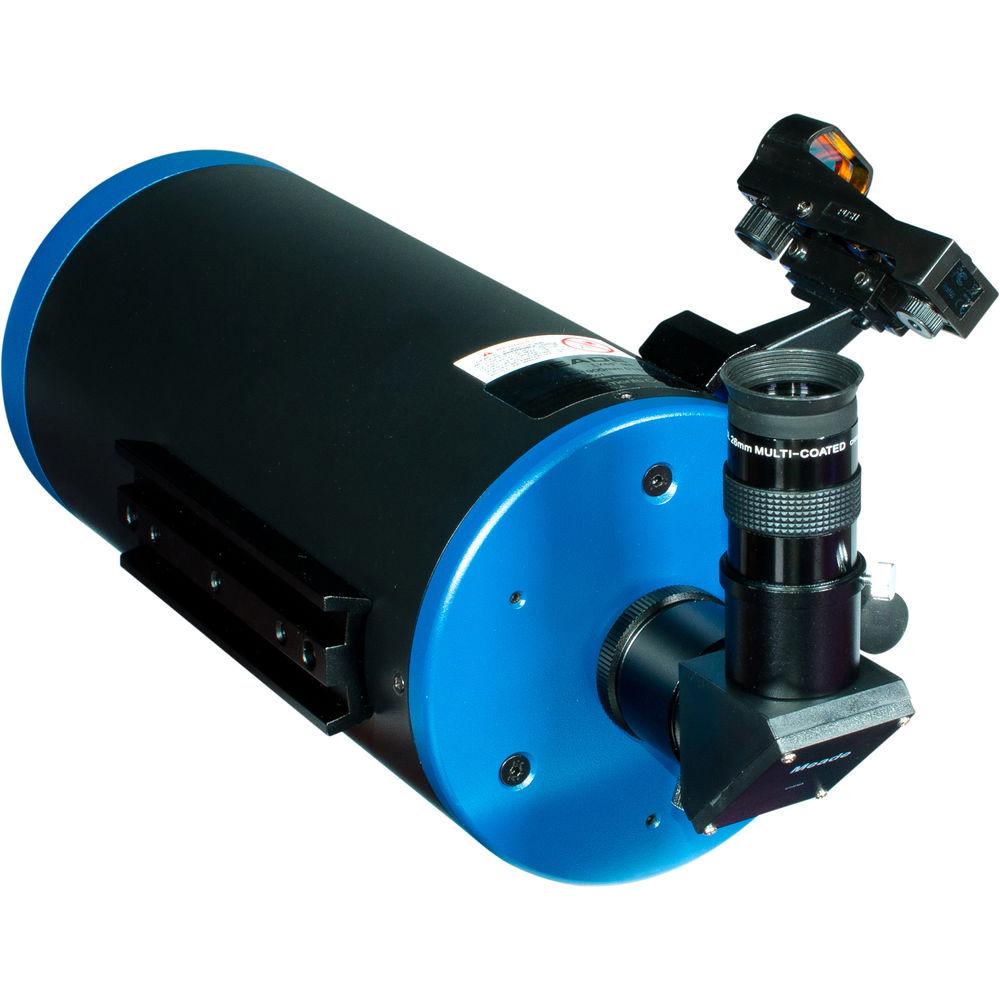

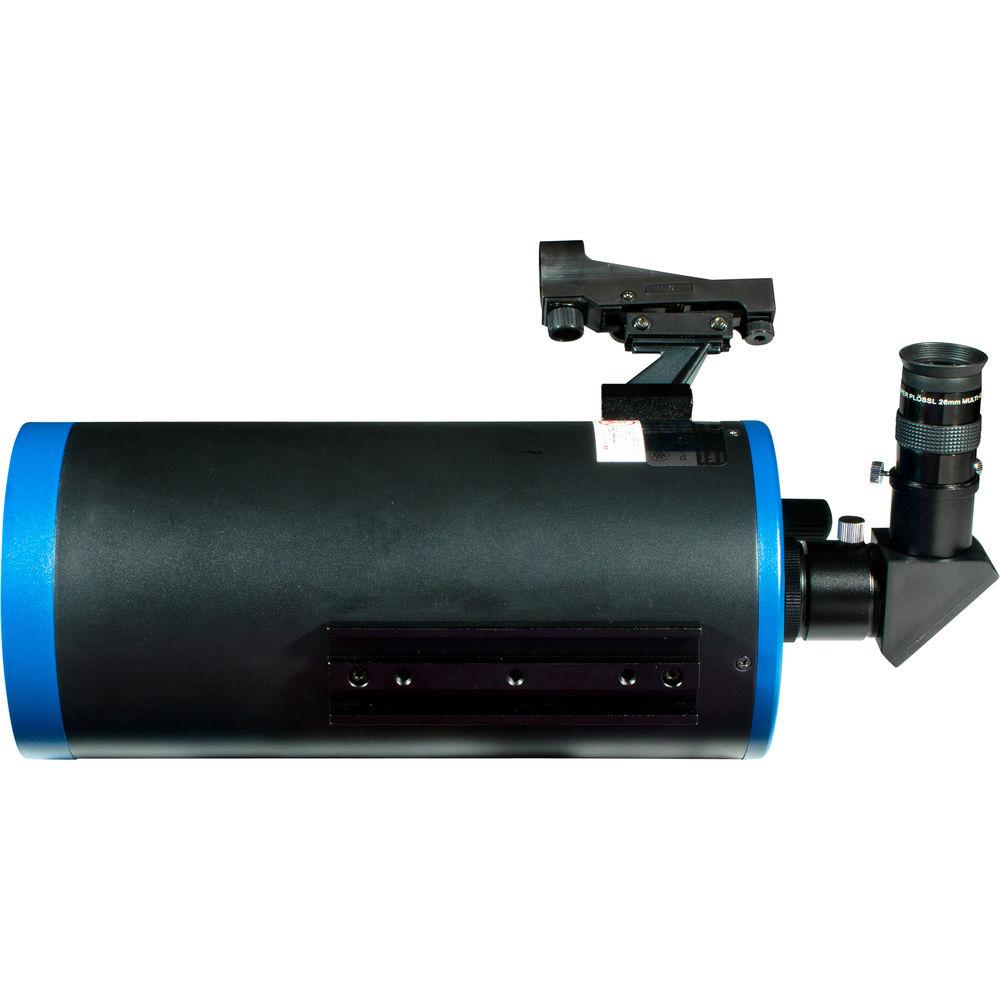

Product description Designed as a mid-level optical tube assembly (OTA) for those who already have a reliable mount and support system but want to upgrade their OTA or add another to their astronomy observation arsenal, the Meade Instruments LX65 5" f/15 Maksutov-Cassegrain Telescope gives you the ability to make detailed observations of the Moon and planets with the ability to reach outside the solar system to resolve distant objects like galaxies, nebulae, and binary or variable stars. The compact and powerful Maksutov-Cassegrain design, complemented by Meade's Ultra-High Transmission Coatings (UHTC) system, corrects off-axis aberrations like comas and chromatic aberrations to produce views with true-color rendition, high resolution, and sharp contrast.The LX65 is equipped with a Vixen-style dovetail rail that makes it compatible with a wide variety of alt-azimuth, equatorial, and GoTo mounts of all kinds by virtually every mount manufacturer in the world. This version comes with a 26mm Super Plossl eyepiece that produces a relatively low 73x, a 90° star diagonal, and a red dot finder. - Optical Tube Assembly
-
- 127mm (5") aperture gathers enough light for near- and deep-sky viewing without adding excessive weight and bulk, to maintain its portability
- Moderate f/15 focal ratio requires longer exposure times for astrophotography
- Long 1900mm focal length, despite compact form factor, provides a high magnification potential
- Maksutov-Cassegrain design has a front convex meniscus lens that corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view, with a smaller secondary mirror versus Schmidt-Cassegrains, which reduces obstructions and increases contrast
- Single-speed internal focusing mechanism with 1.25" eyepiece/accessory holder
- Ultra-High Transmission Coatings (UHTC)
-
- Maximize light transmission through the entire optical path
- Improve the appearance of brighter star clusters, give more fine detail in nebulae, and offer greater surface features on planets
- All corrector plate and mirror surfaces are fully multi-coated
- Engineered to optimize visual, photographic, and CCD imaging
- Improve light transmission across the entire visible spectrum through the optical path
- Corrector plate coatings made up of multiple layers of aluminum oxide (Al2O3), titanium dioxide (TiO2), and magnesium fluoride (MgF2)
- Mirror coatings consist of aluminum with multi-layer coatings of titanium dioxide (TiO2) and silicon dioxide (SiO2)
- Mounting
-
- Optical tube assembly (OTA) only. Mount and tripod required for proper use
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- OTA weight: 6.2 pounds
- Included Accessories
- Eyepiece:
- 1.25"-diameter barrel
- 26mm focal length produces a low 73x power for viewing the Moon and planets, and for wide-field deep-sky use
- Accepts most optional 1.25" astronomical filters to enhance views
- Fold-down rubber eyecup
Diagonal:- Star diagonal corrects view horizontally, but not vertically
- 1.25" nosepiece and eyepiece holder
Finder:- Unmagnified view ensures a wide field of view for easier alignment and faster star-hopping navigation
- Multiple intensity levels ensure reticle visibility without affecting night-adjusted vision
UPC: 709942999556 In the Box Meade LX65 5" f/15 Maksutov-Cassegrain Telescope (OTA Only) 90° Star Diagonal 26mm Super Plossl Eyepiece Red Dot Finder with Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX65 5" f 15 Maksutov-Cassegrain Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade LX65 Specs | | | Optical Design | Maksutov Cassegrain | | Aperture | 127 mm / 5" | | Focal Length | 1900 mm | | Focal Ratio | f/15 | | Focuser | Single-Speed Internal | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
