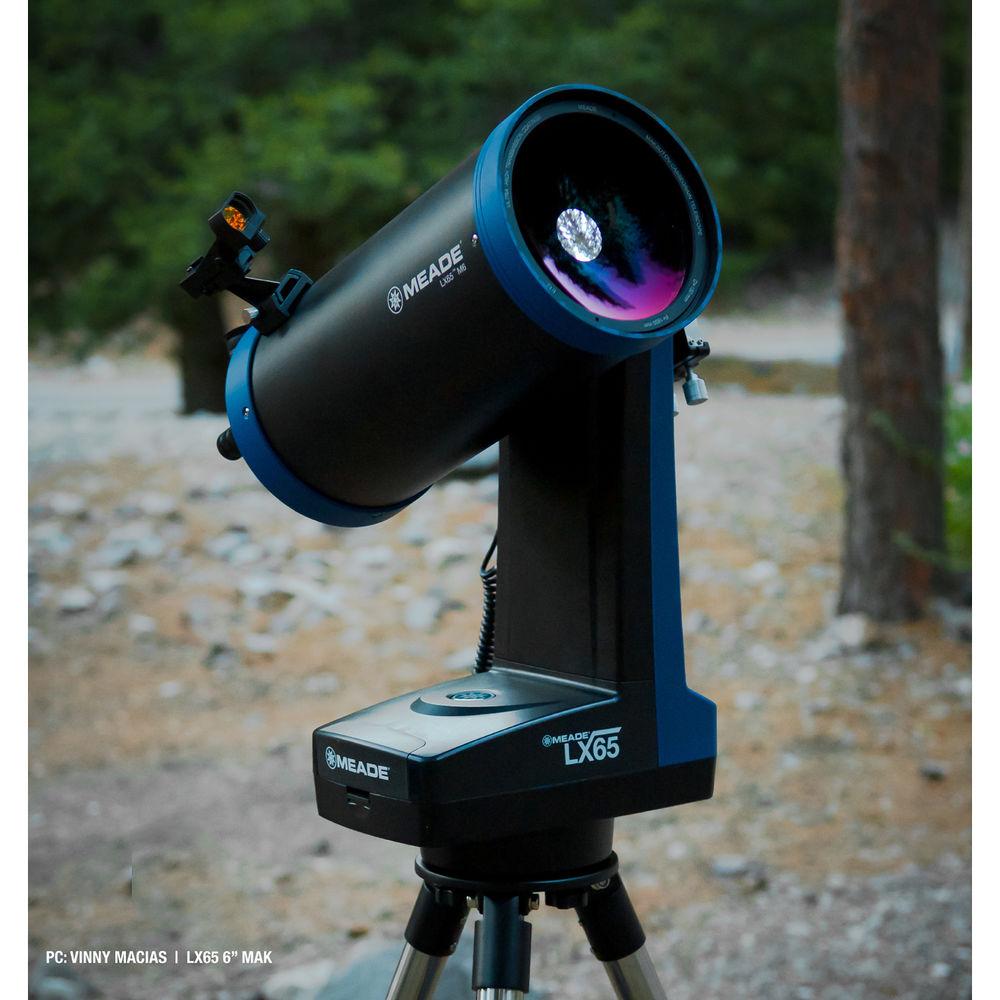

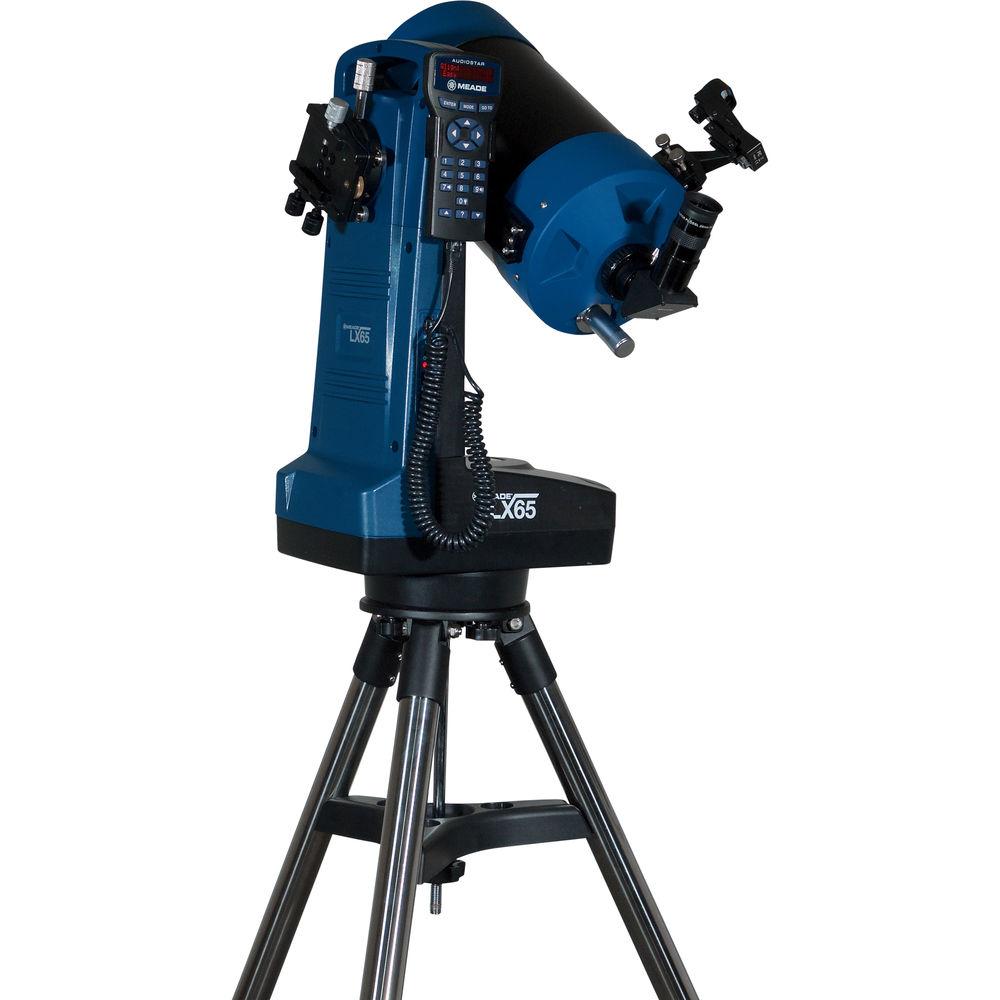

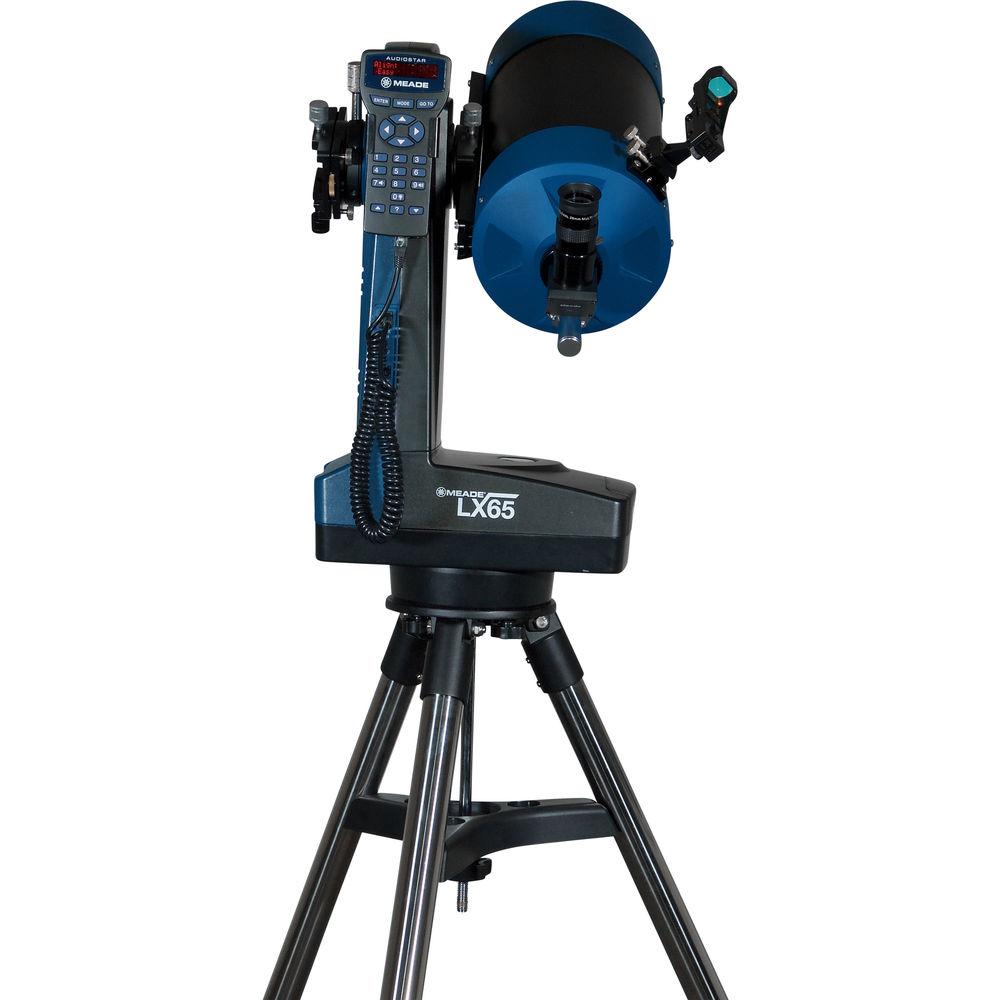

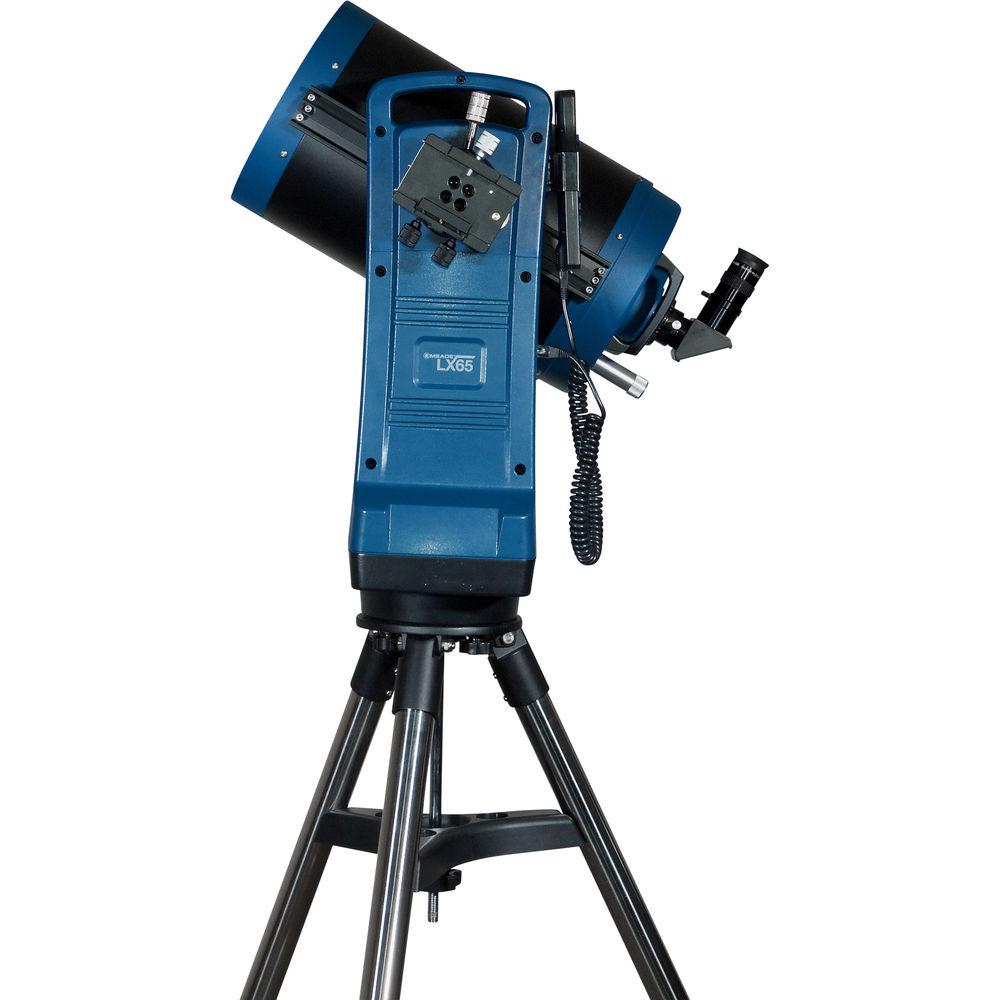

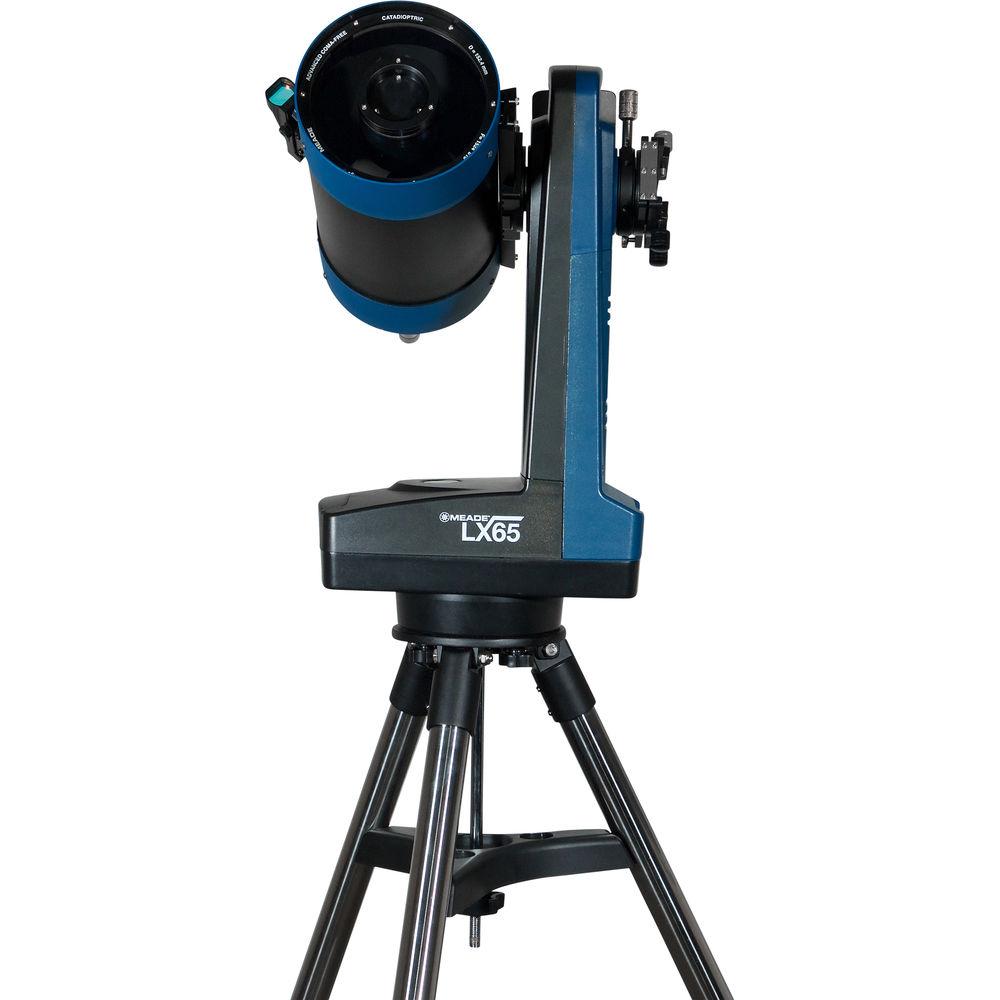

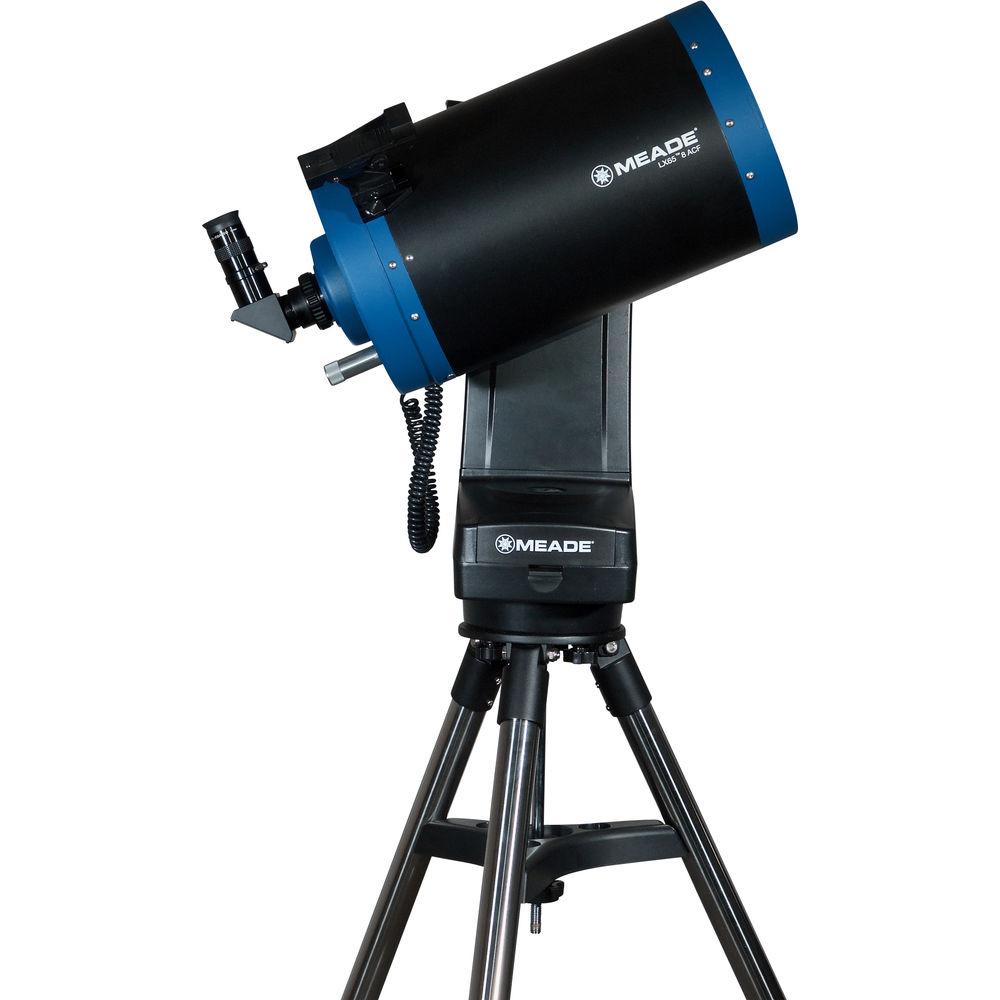

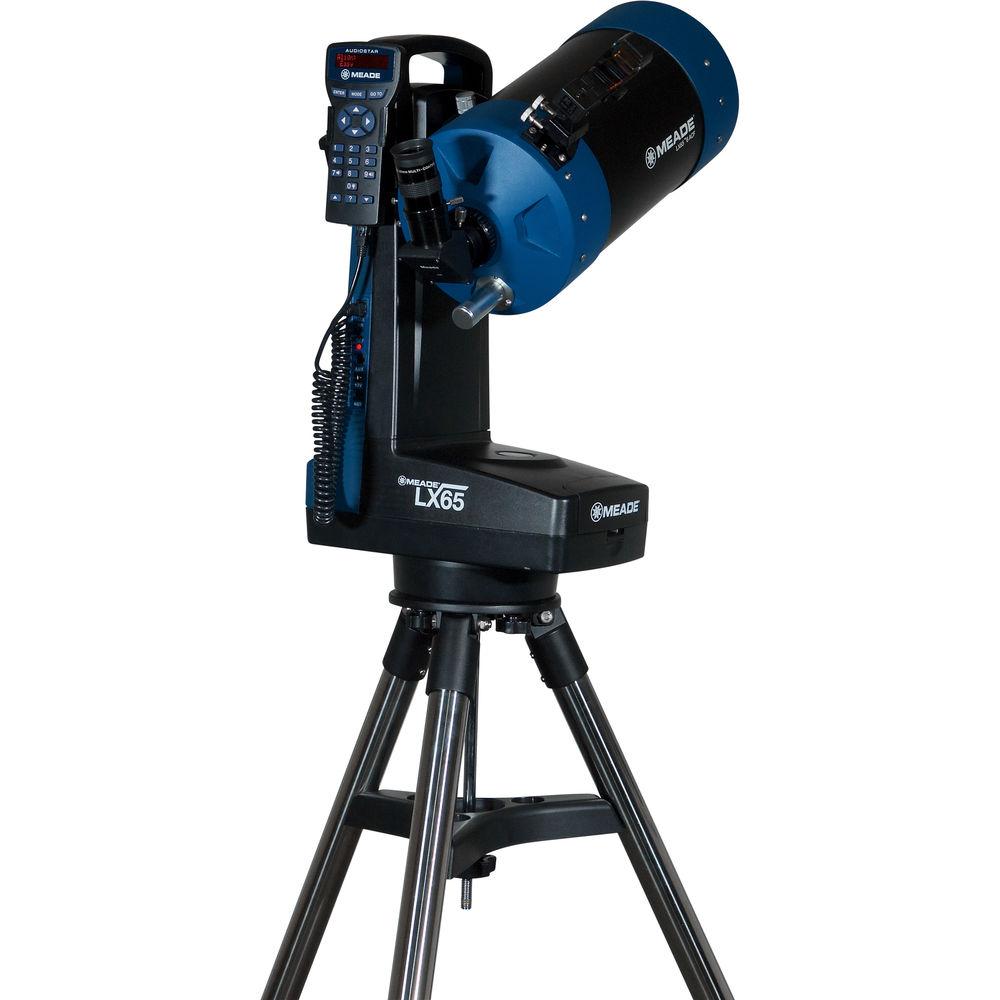

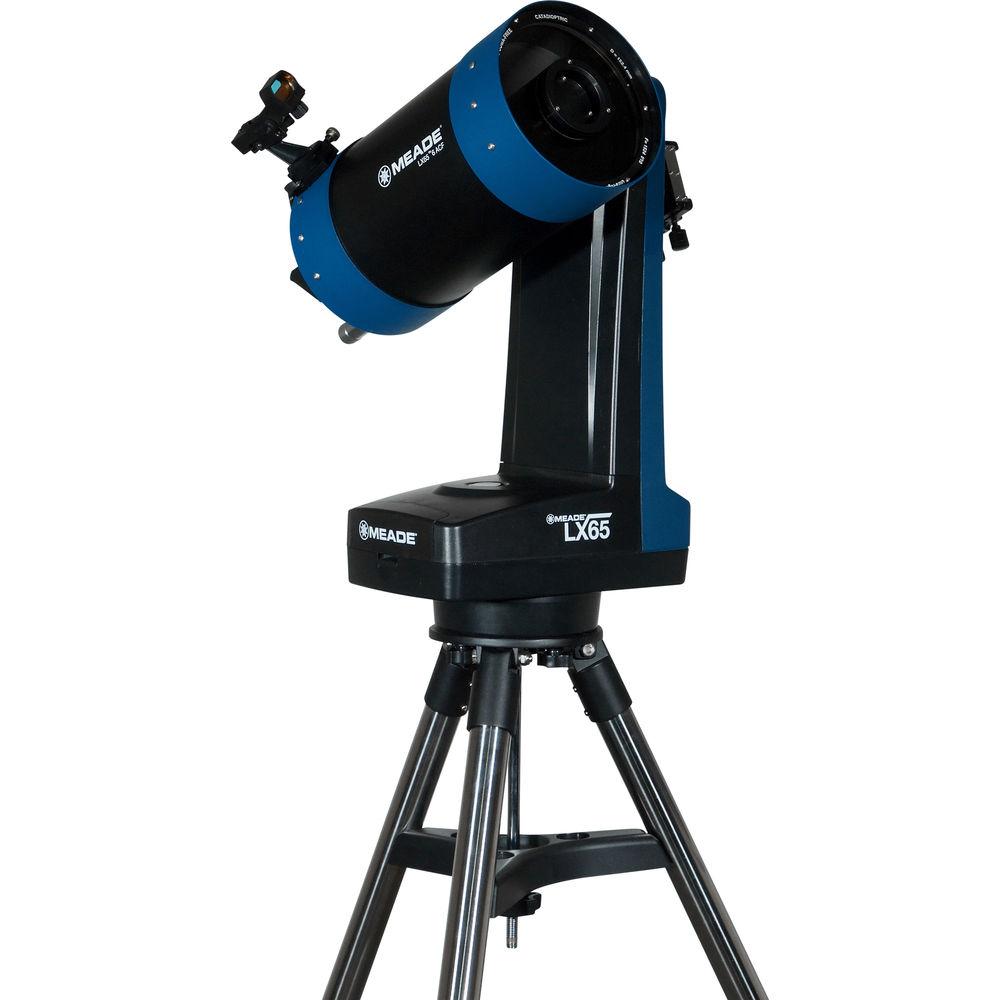

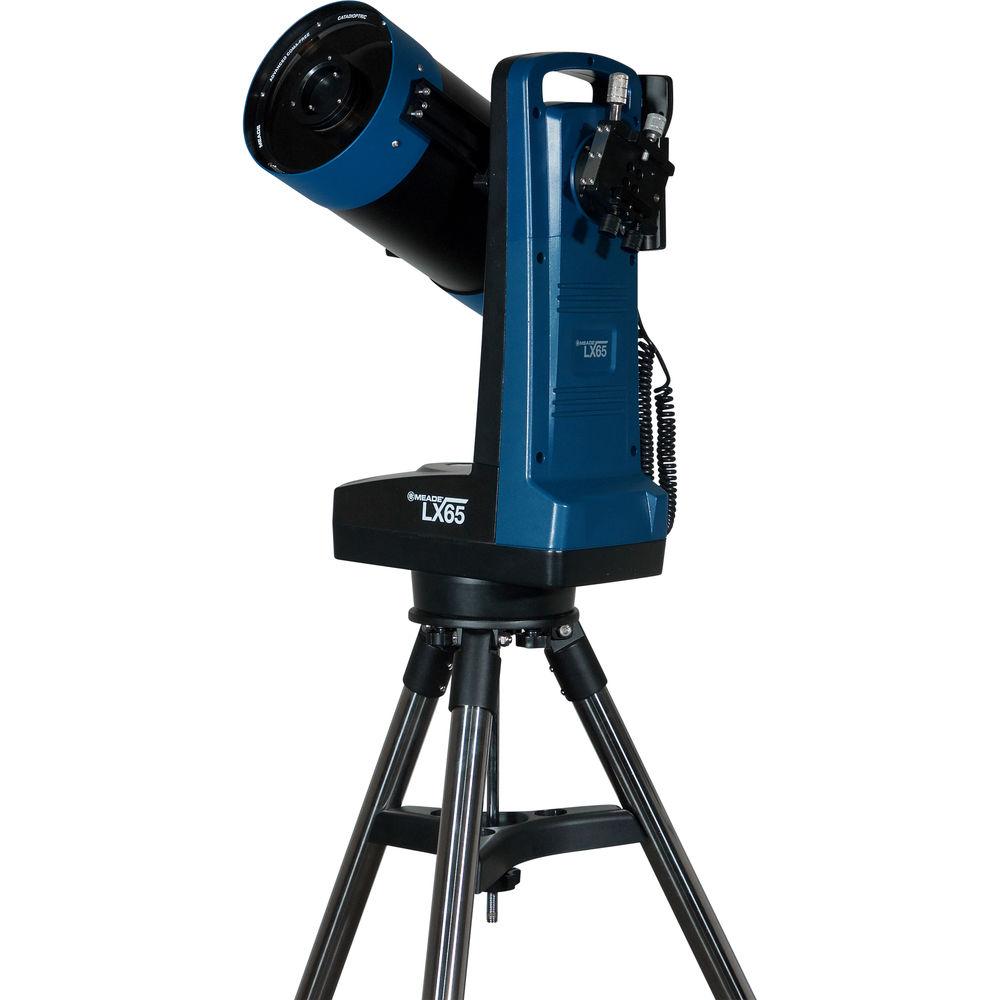

User Manual for Meade LX65 8" f 10 ACF Catadioptric Telescope Click to enlarge the picture
Contents of the user manual for the Meade LX65 8" f 10 ACF
- Product category: Catadioptrics (Cassegrains) Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Catadioptrics (Cassegrains)
 |
User manual for the Meade LX65 8" f 10 ACF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description Formerly reserved for larger-aperture near-research-grade optical tubes, Meade Instruments built the LX65 8" f/10 ACF Catadioptric Telescope utilizing their Advanced Coma-Free (ACF) catadioptric-variant design to reduce color fringing and off-axis comas and to enable it to clearly resolve dim deep-sky objects and easily split binary stars with tack-sharp clarity. Complementing the ACF system is Meade's Ultra-High Transmission Coatings (UHTC) system that improves light transmission through the entire light path across the whole visible spectrum. A combination of high-transmittance lens coatings and highly reflective mirror coatings boosts image brightness, while minimizing internal and external light loss and diffraction.The LX65 is equipped with a Vixen-style dovetail rail that makes it compatible with a wide variety of alt-azimuth, equatorial, and GoTo mounts of all kinds by virtually every mount manufacturer in the world. This version comes with a 26mm Super Plossl eyepiece that produces a low 78x, a 90° star diagonal, and a red dot finder. - Optical Tube Assembly
-
- 203mm (8") aperture gathers enough light for viewing within the solar system as well as deep-sky objects like nebula, galaxies, and globular clusters
- Moderate f/10 focal ratio requires longer exposure times for astrophotography
- Long 2032mm focal length provides a high magnification potential
- Catadioptric light path produces long effective focal lengths in a small OTA to make it powerful, yet easier to store, transport, and set up
- Advanced Coma-Free (ACF) optical design corrects astigmatism and off-axis comas better than similar Cassegrain configurations
- Single-speed internal focusing mechanism with 1.25" eyepiece/accessory holder
- Optical Technologies
- Advanced Coma-Free System:
- Reduces off-axis comas and astigmatism for sharper images
- Eliminates diffraction spikes for better resolution
- Aplanatic design produces flat, distortion-free images across the field of view—especially at the edges
Ultra-High Transmission Coatings (UHTC):- All corrector plate and mirror surfaces are fully multi-coated
- Engineered to optimize visual, photographic, and CCD imaging
- Improve light transmission across the entire visible spectrum through the optical path
- Corrector plate coatings made up of multiple layers of aluminum oxide (Al2O3), titanium dioxide (TiO2), and magnesium fluoride (MgF2)
- Mirror coatings consist of aluminum with multi-layer coatings of titanium dioxide (TiO2) and silicon dioxide (SiO2)
- Mounting
-
- Optical tube assembly (OTA) only. Mount and tripod required for proper use
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- OTA weight: 11.1 pounds
- Included Accessories
- Eyepiece:
- 1.25"-diameter barrel
- 26mm focal length produces a low 78x power for viewing the Moon and planets, and for wide-field deep-sky use
- Accepts most optional 1.25" astronomical filters to enhance views
- Fold-down rubber eyecup
Diagonal:- Star diagonal corrects view horizontally, but not vertically
- 1.25" nosepiece and eyepiece holder
Finder:- Unmagnified view ensures a wide field of view for easier alignment and faster star-hopping navigation
- Multiple intensity levels ensure reticle visibility without affecting night-adjusted vision
UPC: 709942999587 In the Box Meade LX65 8" f/10 ACF Catadioptric Telescope (OTA only) 90° Star Diagonal Red-Dot Finder with Bracket 26mm Super Pl
|
Upload User Manual
Have you got an user manual for the Meade LX65 8" f 10 ACF Catadioptric Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade LX65 Specs | | | Optical Design | Catadioptric | | Aperture | 203 mm / 8" | | Focal Length | 2032 mm | | Focal Ratio | f/10 | | Focuser | Single-Speed Internal | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90
