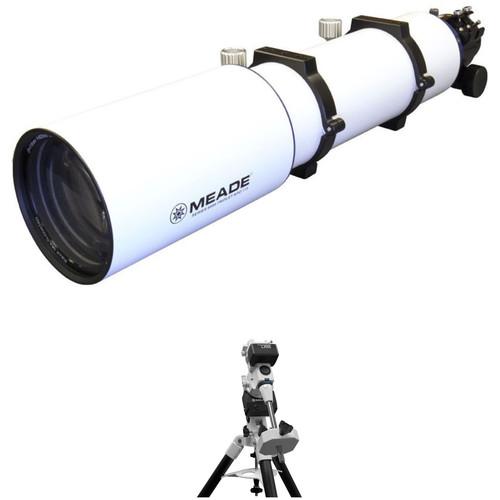

Meade LX85 115mm f 7 APO

User Manual for Meade LX85 115mm f 7 APO Refractor GoTo EQ Telescope

• Product category: Refractors Meade
• Brand: Meade
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Meade Refractors

Product description

• Meade Series 6000 115mm f/7 ED Triplet APO Refractor Telescope (OTA Only) The Series 6000 115mm f/7 ED Triplet APO Refractor Telescope from Meade Instruments features a triplet apochromatic lens system with FK61 extra-low dispersion (ED) glass and Meade's proprietary fully multi-coated optics. This combination of glass, lenses, and coatings virtually eliminates chromatic and spherical aberrations for clear and bright high-contrast images without distortion across the entire field of view, with true color rendition. This is a powerful optical tube assembly that can be used to see detailed views of celestial objects from the Moon to deep sky objects like nebulae and galaxies. It is also portable enough to be used as a grab-and-go option over larger and heavier scopes, or to be set up on a dual-mount rig for astrophotography/astroimaging, or used as a guide-scope on larger rigs.A mounting cradle-ring clamps over the optical tube assembly (OTA) and allows the user to adjust the orientation and position of the scope relative to the mount to optimize viewing comfort and balance, while avoiding interference with other equipment. The scope is offered here without a mount or tripod, but a Vixen-style dovetail plate makes it compatible with any alt-az, EQ, or GoTo mount with a Vixen-style saddle. Its two-speed Crayford-style focuser helps make fine-focusing fast and precise, while eliminating the image-shift or backlash common with rack-and-pinion style focusers.
  Optical Performance
  • • 115mm objective lens
    • 805mm focal length
    • Fast focal ratio of f/7 is ideal for astrophotography or imaging
    • Refractor-style optical design
    • Extra-low Dispersion (ED) glass
    • Triplet apochromatic lenses eliminate chromatic and spherical aberrations for true color rendition without distortion across the entire field of view
    • Fully multi-coated optics maximize light transmission, while improving color, clarity, and contrast
    • Resolution: 1.007 arcsec, Dawes' Limit
    • Retractable dew shield resists condensation build-up on the objective lens
  Focusing System
  • • Optimized for imaging
    • Crayford-style uses a friction-control system that eliminates the backlash or image-shift common to rack-and-pinion styles that can cause defocusing
    • 10:1 two-speed mechanism allows for precise focusing
    • 2.5" drawtube allows the use of larger accessories, and ensures full coverage of camera sensors without vignetting
    • 2" self-center locking ring that allows diagonals or cameras to be well centered to the optical train every time the locking ring is engaged
    • Focuser lock knob locks the focuser in-place for long-exposure astrophotography
    • Etched millimeter markings on the drawtube enables repeatable results
  Mounting
  • • Optical tube assembly only - mount and tripod required for proper use
    • Vixen-style dovetail plate
    • Cradle-ring assembly allows the scope orientation to be adjusted to avoid interference with gear or accessories, or on mount configuration
    • Weight: 12.2 pounds
  Carrying Case
  • • Hard aluminum exterior with reinforced edges and corners
    • Hinged carry handles
    • Over-center latches pulls the lid down for maximum security
    • Custom-cut foam-lining protects OTA and accessories
  UPC: 709942999082
• Meade LX85 German Equatorial GoTo Mount Engineered for portability, while still easy to use for astrophotography, the Meade Instruments LX85 German Equatorial GoTo Mount delivers the performance required for clear views and images through the use of dual-axis low-cog DC servo motors with backlash compensation. Added to this is Meade's proprietary Smart Drive system that records and constantly refines its Permanent Periodic Error Correction (PPEC) to improve positioning and tracking precision and ensure your target object stays centered for long-exposure photography. Supporting the mount is a 1.75" stainless steel tripod that has a wide stance for stability on most terrain, and a center tray that holds eyepieces and accessories and acts as a leg lock to further stabilize while helping to minimize vibrations.Controlling the mount is the next generation iteration of the iconic AutoStar system: the AudioStar. This computer controller is equipped with a database of over 30,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog; it can also be programmed with up to 100 custom user-defined objects with filters to create custom object lists. An integrated speaker and Astronomer Inside system is packed with over four hours of commentary that is customized to objects that are visible in the night sky on any given day and time. Its intuitive menu-driven user interface makes observing the heavens fast and easy, and multiple alignment options make the controller an invaluable tool to new users and experienced stargazers alike.
  Mount
  • • 33-pound payload capacity is ideal for large-aperture and/or heavy optical tubes and accessories like astrophotography rigs
    • German equatorial mount allows accurate tracking for long-duration observation sessions
    • Ideal for astrophotography as single right ascension tracking eliminates field rotation that causes fuzzy and blurry primary images and streaking of star fields
    • Controlled by AudioStar hand controller to limit vibration and improve movement accuracy
    • Low-cog 12 VDC servo motors enable precision GoTo and tracking accuracy with limited vibrations
    • Vixen-style dovetail saddle is compatible with many optical tube assemblies
    • Includes a 9-pound counterweight with shaft
    • Dual-axis manual clutch releases for movement without the use of the hand controller
    • Integrated bull's-eye bubble level to aid setup, alignment, and tracking accuracy
  AudioStar GoTo Controller
  • • 2-line LED display
    • 20-key alphanumeric keypad, red LED backlight
    • 68HC11, 8 MHz processor
    • Built-in red utility light
    • 30,000+ object database
    • User-friendly menu-driven system navigation
    • Slew speeds: 1x, 2x, 8x, 16x, 64x, 0.5°/sec, 1°/sec, 1.5°/sec, 4°/sec (max)
    • Assisted alignment procedures: Easy (Two-Star), One-star, Two-star, Three-star
    • Customizable guided tours for specific date, time, and location
    • Built-in speaker with Astronomer Inside plays over four hours of educational content about the celestial objects you view
    • Predicts events to plan future astronomy sessions such as sunrise/sunset, moon phases/moonrise/moonset, meteor showers, lunar/solar eclipses, equinoxes/solstices
    • Smart Drive records permanent periodic error correction (PPEC) to improve tracking accuracy over time
    • Backlash compensation allows user to train out the intrinsic play between gears to improve GoTo and tracking accuracy
    • Powered by mount to be lighter and easier to use
    • 24" coiled cord
    • Updatable via Internet using RS-232 port
    Database Details:
    • Solar system, including Moon, Sun, planets
    • Comets and asteroids
    • 88 major constellations
    • Popular named objects
    • Galaxies, quasars, and nebulae
    • Multiple catalogs including Messier, Caldwell, and NGC
    • Stars, including named stars, SAO catalog, double stars, variable stars
    • Satellites, including the International Space Station (ISS), and Hubble Space Telescope (HST)
    • User-defined astronomical and terrestrial objects
  Tripod
  • • Adjustable height from 31.5" to 43.5" accommodates a wide variety of optical tube assemblies and viewing positions
    • Lightweight and durable cast aluminum mount base
    • 1.75" diameter stainless steel legs
    • 39.5x6.25x5.75" collapsed size, for easier portability
    • Tray keeps accessories accessible and off the ground
    • Weight: 12.4 pounds
  UPC: 709942998733

• Series 6000 115mm f/7 ED Triplet APO Refractor Telescope (OTA Only) awtcdcsuszzzdrsrwbdbdr
• Mounting Rings with Vixen-Style Dovetail
• Hard Carrying Case
• Limited 1-Year Warranty

• LX85 German Equatorial GoTo Mount

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Meade Series 6000 115mm f/7 ED Triplet APO Refractor Telescope (OTA Only)

  Optical Design	Apochromatic Triplet Refractor
  Aperture	115 mm / 4.5"
  Focal Length	805 mm
  Focal Ratio	f/7
  Resolution	1 Arcsec (Dawes)
  Focuser	Dual-Speed Crayford
  Eyepiece Barrel Diameter	2"
  Diagonal	None
  Finderscope	None
  Mounting System	Vixen Style
  Optical Tube Dimensions	29.5 x 5.3" / 74.9 x 13.5 cm

  Batteries	None
  GPS	None
  Wi-Fi	None
  Weight	12.2 lb / 5.5 kg

  Box Dimensions (LxWxH)	31.5 x 12.0 x 10.0"

• Meade LX85 German Equatorial GoTo Mount

  Mount Type	German equatorial
  Load Capacity	33.0 lb / 15.0 kg
  Motor	2 x 12 VDC low-cog stepper
  GoTo Capability	Yes, Audiostar hand controller
  Altitude / Latitude Adjustment	Not specified by manufacturer
  Polar Axis Scope	None
  Includes Tripod/Pier	31.5" to 43.5" adjustable height Cast aluminum mount base 1.75" stainless steel legs
  Power Source	12 VDC
  Dimensions	Mount Head: 13.2 x 12.4 x 4.8" / 33.5 x 31.4 x 12.2 cm Tripod, Collapsed: 39.5 x 6.25 x 5.75" / 100.3 x 8.3 x 14.6 cm Fully Assembled: 47.2 x 47.2 x 5.8" / 119.9 x 119.9 x 14.7 cm
  Weight	Mount Head: 10.9 lb / 4.9 kg Tripod: 12.4 lb / 5.6 kg Fully Assembled: 34.1 lb / 15.5 kg

  Box Dimensions (LxWxH)	40.6 x 20.2 x 9.9"
