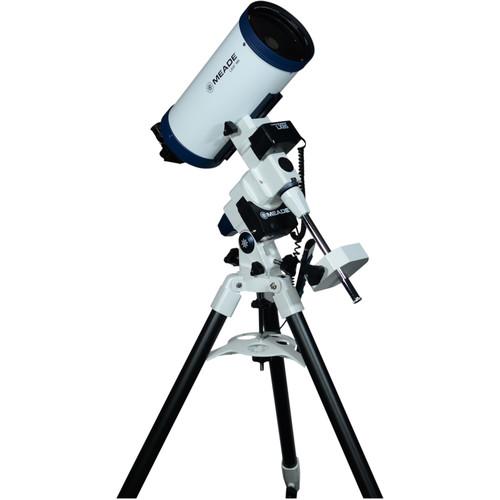

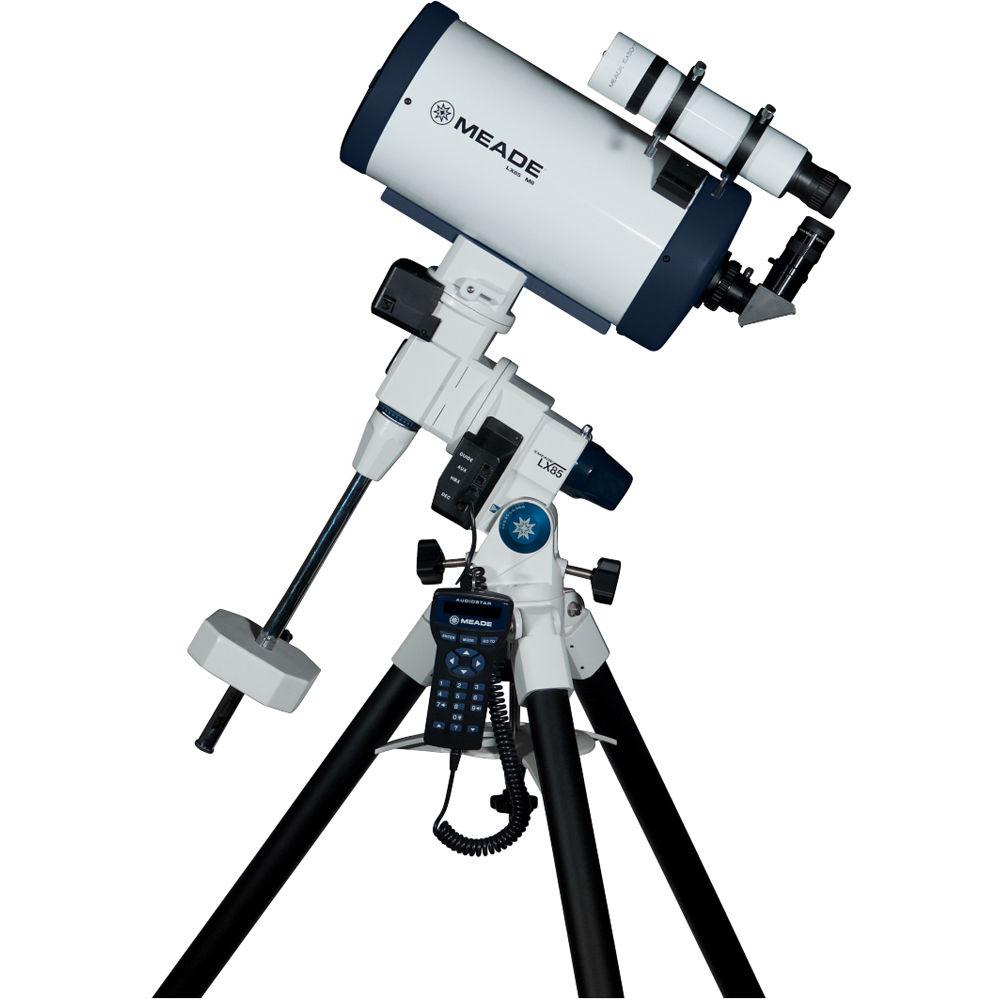

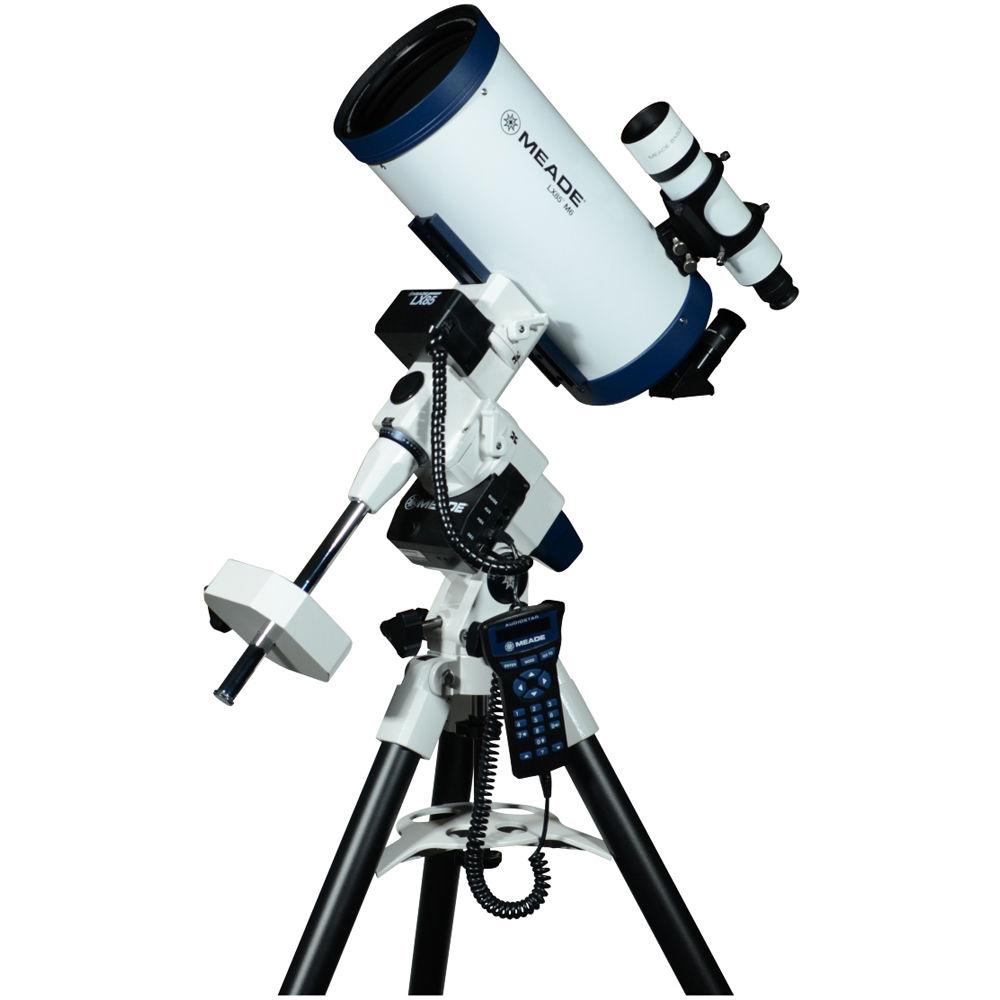

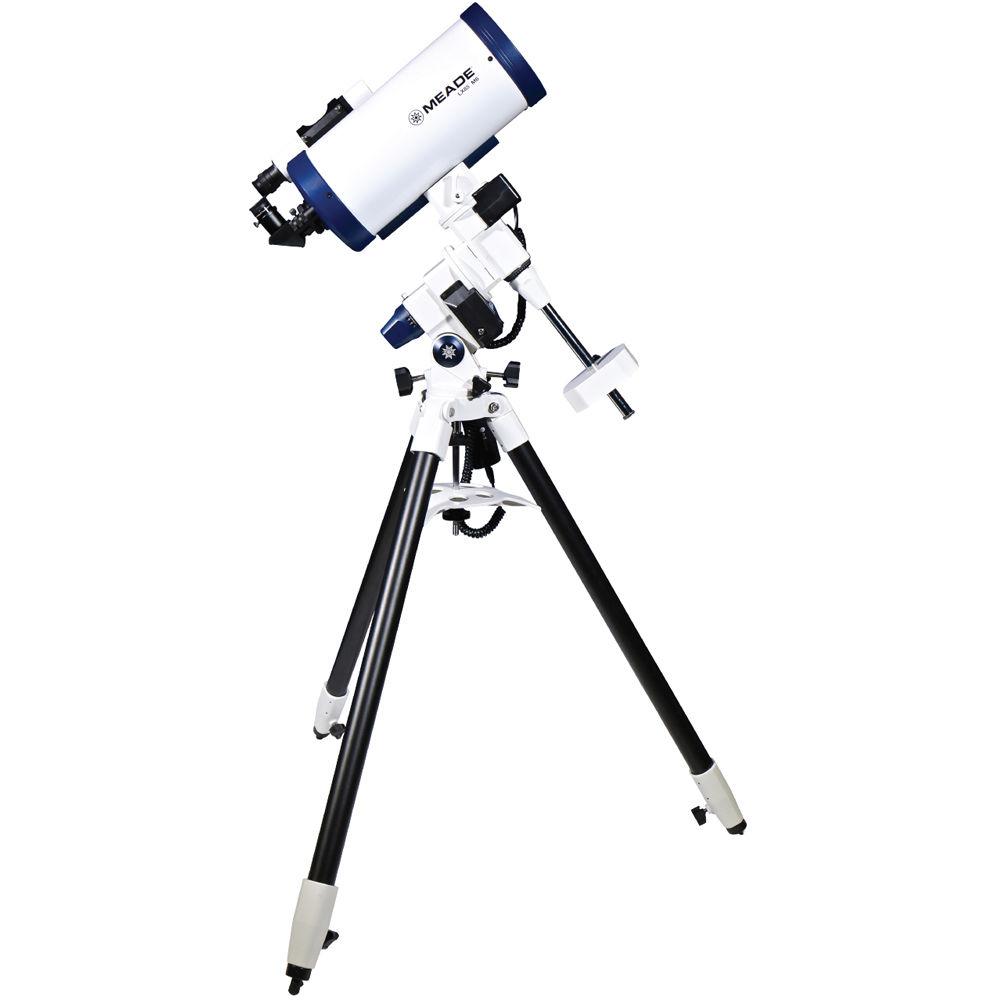

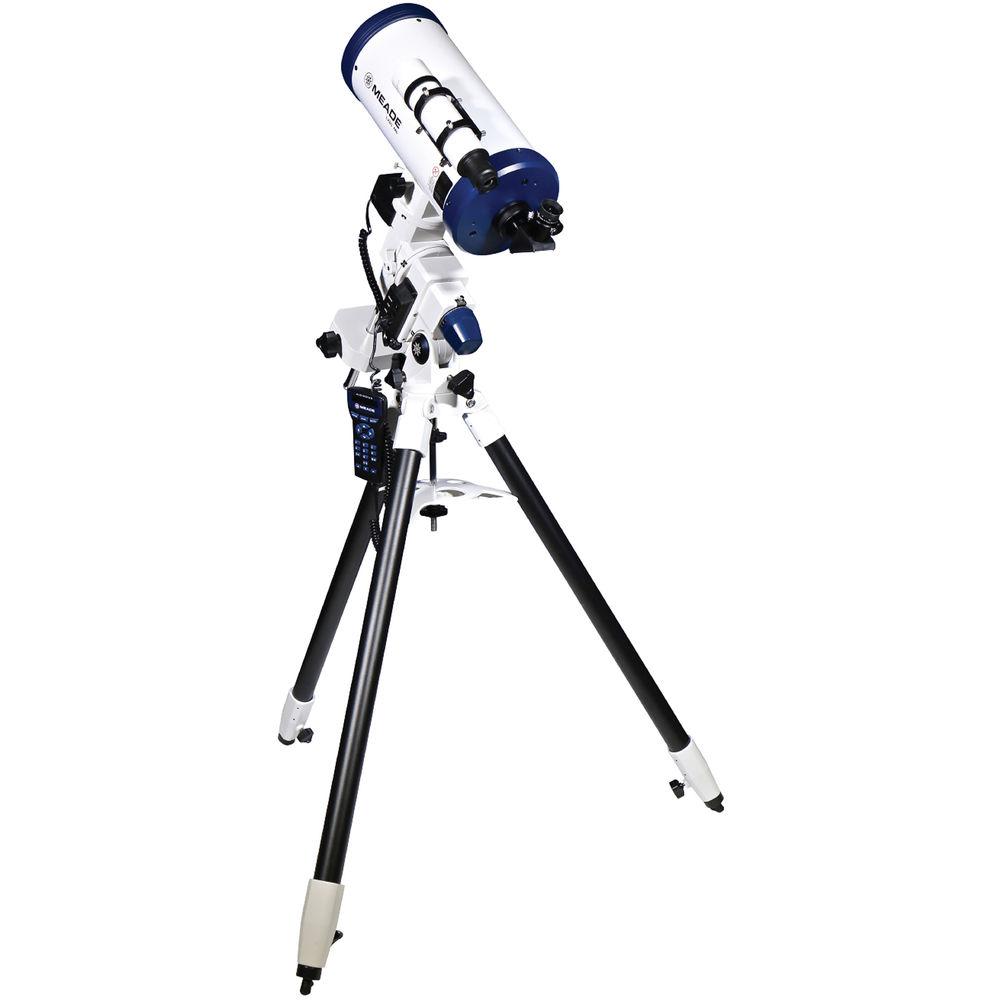

User Manual for Meade LX85 150mm f 12 Maksutov-Cassegrain GoTo EQ Telescope

• Product category: Catadioptrics (Cassegrains) Meade
• Brand: Meade
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Meade Catadioptrics (Cassegrains)

Product description

• Meade LX85 6" f/12 Maksutov-Cassegrain Telescope (OTA Only) The Meade Instruments LX85 6" f/12 Maksutov-Cassegrain Telescope has a large aperture and long focal length, despite its short optical tube length, to allow you to make detailed observations of near and deep-sky objects.Utilizing a convex meniscus lens, a large primary mirror, and a smaller secondary mirror, the Maksutov-Cassegrain optical configuration limits obstruction and increases contrast and sharpness versus the more popular Schmidt-Cassegrain configuration. Performance is further improved with Meade's proprietary Ultra-High Transmission Coatings (UHTC) system, which improves light transmission through the light path across the entire visible spectrum. A combination of high-transmittance lens coatings and highly reflective mirror coatings boosts image brightness, while minimizing external light loss and internal diffraction.This LX85 is offered here without a mount or tripod for users who already have a reliable support system and are looking to upgrade their optical tube assembly (OTA) or add another to their astronomy kit. It comes outfitted with a Vixen-style dovetail rail to make it compatible with a wide variety of alt-azimuth, equatorial, and GoTo mounts available from most manufacturers. To help get you started, Meade includes two eyepieces that produce low and high magnifications, a 90° star diagonal, and an 8x50 finderscope.
  Optical Tube Assembly
  • • Large 150mm (6") aperture is ideal for viewing inside the solar system and far outside it
    • f/12 focal ratio
    • Long 1800mm focal length enables high magnifications for detailed lunar and planetary viewing
    • Front convex meniscus lens corrects spherical and chromatic aberrations and comas (off-axis aberrations) across the entire field of view
    • Small secondary mirror attached to rear of lens reduces obstructions and increases contrast
    • Ultra-High Transmission Coatings (UHTC) system
    • Single-speed internal focusing mechanism moves the primary mirror forward and back to achieve tack-sharp images with virtually zero backlash
    • 2" visual back allows the use of larger eyepieces and accessories, and a 1.25" reducer adapter further expands compatibility
  Ultra-High Transmission Coatings (UHTC)
  • • All corrector plate and mirror surfaces are fully multi-coated
    • Engineered to optimize visual, photographic, and CCD imaging
    • Improve light transmission across the entire visible spectrum through the optical path
    • Corrector plate coatings made up of multiple layers of aluminum oxide (Al2O3), titanium dioxide (TiO2), and magnesium fluoride (MgF2)
    • Mirror coatings consist of aluminum with multi-layer coatings of titanium dioxide (TiO2) and silicon dioxide (SiO2)
  Mounting
  • • Optical tube assembly (OTA) only. Mount and tripod required for proper use
    • Vixen-style dovetail plate is compatible with a wide variety of mounts
    • OTA weight: 12.4 pounds
  Included Accessories
  • Eyepieces:
    • 1.25"-diameter nosepiece accepts most astronomical filters
    • 9mm eyepiece produces a high 200x power
    • 26mm eyepiece yields a low 69x magnification
    Diagonal:
    • 2" nosepiece and holder allow the use of larger eyepieces and accessories like Barlow lenses
    • 90° angle places user's head in a more comfortable position when the scope is pointed directly overhead
    • Star configuration corrects viewing horizontally, but not vertically
    • Use included reducer for the included eyepieces or other 1.25" accessories
    Finder:
    • Low 8x power ensures a wide field of view for faster alignment and easier star-hopping navigation
    • Large 50mm aperture produces bright images to more easily find alignment stars
    • Crosshair reticle enables precision centering, requiring less fine-tuning in eyepiece
    • Includes mounting bracket
  UPC: 709942999228
• Meade LX85 German Equatorial GoTo Mount Engineered for portability, while still easy to use for astrophotography, the Meade Instruments LX85 German Equatorial GoTo Mount delivers the performance required for clear views and images through the use of dual-axis low-cog DC servo motors with backlash compensation. Added to this is Meade's proprietary Smart Drive system that records and constantly refines its Permanent Periodic Error Correction (PPEC) to improve positioning and tracking precision and ensure your target object stays centered for long-exposure photography. Supporting the mount is a 1.75" stainless steel tripod that has a wide stance for stability on most terrain, and a center tray that holds eyepieces and accessories and acts as a leg lock to further stabilize while helping to minimize vibrations.Controlling the mount is the next generation iteration of the iconic AutoStar system: the AudioStar. This computer controller is equipped with a database of over 30,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog; it can also be programmed with up to 100 custom user-defined objects with filters to create custom object lists. An integrated speaker and Astronomer Inside system is packed with over four hours of commentary that is customized to objects that are visible in the night sky on any given day and time. Its intuitive menu-driven user interface makes observing the heavens fast and easy, and multiple alignment options make the controller an invaluable tool to new users and experienced stargazers alike.
  Mount
  • • 33-pound payload capacity is ideal for large-aperture and/or heavy optical tubes and accessories like astrophotography rigs
    • German equatorial mount allows accurate tracking for long-duration observation sessions
    • Ideal for astrophotography as single right ascension tracking eliminates field rotation that causes fuzzy and blurry primary images and streaking of star fields
    • Controlled by AudioStar hand controller to limit vibration and improve movement accuracy
    • Low-cog 12 VDC servo motors enable precision GoTo and tracking accuracy with limited vibrations
    • Vixen-style dovetail saddle is compatible with many optical tube assemblies
    • Includes a 9-pound counterweight with shaft
    • Dual-axis manual clutch releases for movement without the use of the hand controller
    • Integrated bull's-eye bubble level to aid setup, alignment, and tracking accuracy
  AudioStar GoTo Controller
  • • 2-line LED display
    • 20-key alphanumeric keypad, red LED backlight
    • 68HC11, 8 MHz processor
    • Built-in red utility light
    • 30,000+ object database
    • User-friendly menu-driven system navigation
    • Slew speeds: 1x, 2x, 8x, 16x, 64x, 0.5°/sec, 1°/sec, 1.5°/sec, 4°/sec (max)
    • Assisted alignment procedures: Easy (Two-Star), One-star, Two-star, Three-star
    • Customizable guided tours for specific date, time, and location
    • Built-in speaker with Astronomer Inside plays over four hours of educational content about the celestial objects you view
    • Predicts events to plan future astronomy sessions such as sunrise/sunset, moon phases/moonrise/moonset, meteor showers, lunar/solar eclipses, equinoxes/solstices
    • Smart Drive records permanent periodic error correction (PPEC) to improve tracking accuracy over time
    • Backlash compensation allows user to train out the intrinsic play between gears to improve GoTo and tracking accuracy
    • Powered by mount to be lighter and easier to use
    • 24" coiled cord
    • Updatable via Internet using RS-232 port
    Database Details:
    • Solar system, including Moon, Sun, planets
    • Comets and asteroids
    • 88 major constellations
    • Popular named objects
    • Galaxies, quasars, and nebulae
    • Multiple catalogs including Messier, Caldwell, and NGC
    • Stars, including named stars, SAO catalog, double stars, variable stars
    • Satellites, including the International Space Station (ISS), and Hubble Space Telescope (HST)
    • User-defined astronomical and terrestrial objects
  Tripod
  • • Adjustable height from 31.5" to 43.5" accommodates a wide variety of optical tube assemblies and viewing positions
    • Lightweight and durable cast aluminum mount base
    • 1.75" diameter stainless steel legs
    • 39.5x6.25x5.75" collapsed size, for easier portability
    • Tray keeps accessories accessible and off the ground
    • Weight: 12.4 pounds
  UPC: 709942998733

• LX85 6" f/12 Maksutov-Cassegrain Telescope (OTA Only) edtfutzfzbft
• 1.25" 9mm Eyepiece
• 1.25" 26mm Eyepiece
• 2" 90° Diagonal
• 1.25" Eyepiece Reducer Adapter
• 8x50 Finderscope with Bracket
• Limited 1-Year Warranty

• LX85 German Equatorial GoTo Mount edtfutzfzbft

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Meade LX85 6" f/12 Maksutov-Cassegrain Telescope (OTA Only)

  Optical Design	Maksutov Cassegrain
  Aperture	150 mm / 6"
  Focal Length	1800 mm
  Focal Ratio	f/12
  Focuser	Single-Speed Internal
  Eyepiece Barrel Diameter	1.25", 2"
