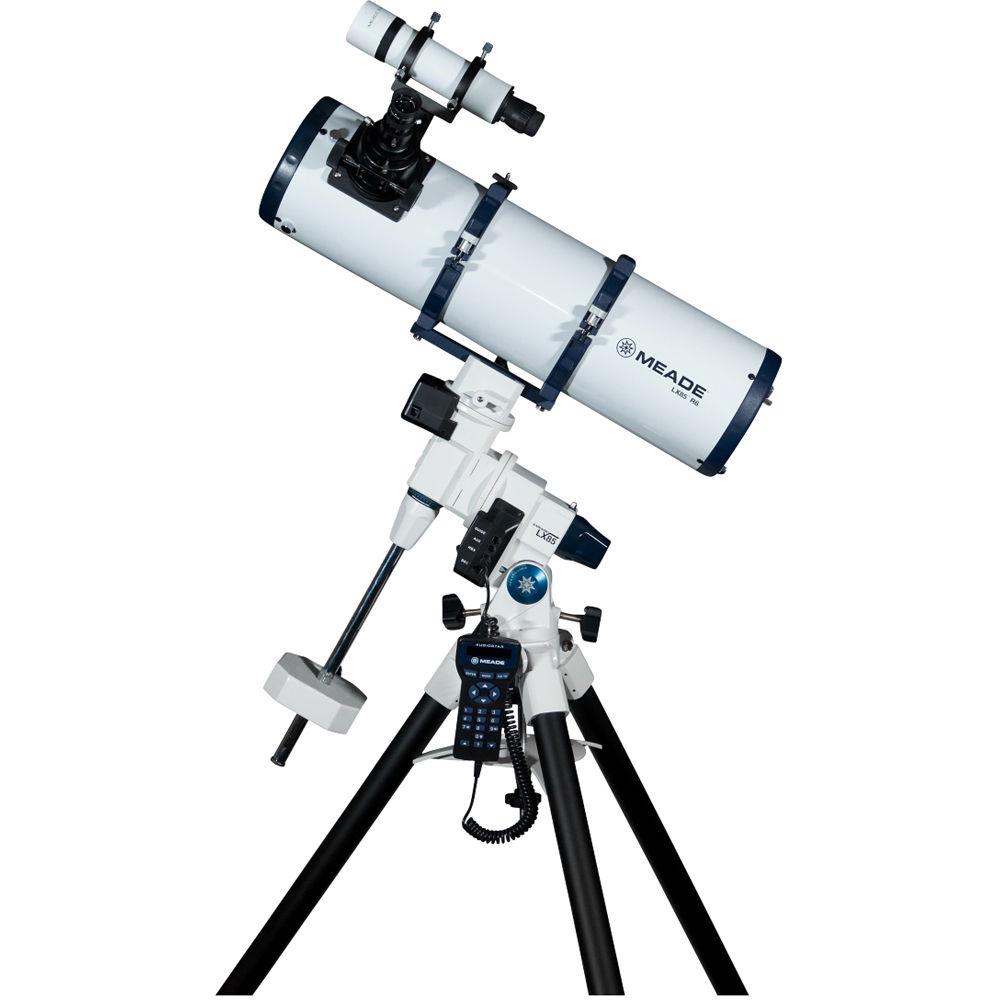

User Manual for Meade LX85 150mm f 5 Reflector GoTo EQ Telescope Click to enlarge the picture
Contents of the user manual for the Meade LX85 150mm f 5 Reflector
- Product category: Reflectors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Reflectors
|
User manual for the Meade LX85 150mm f 5 Reflector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|

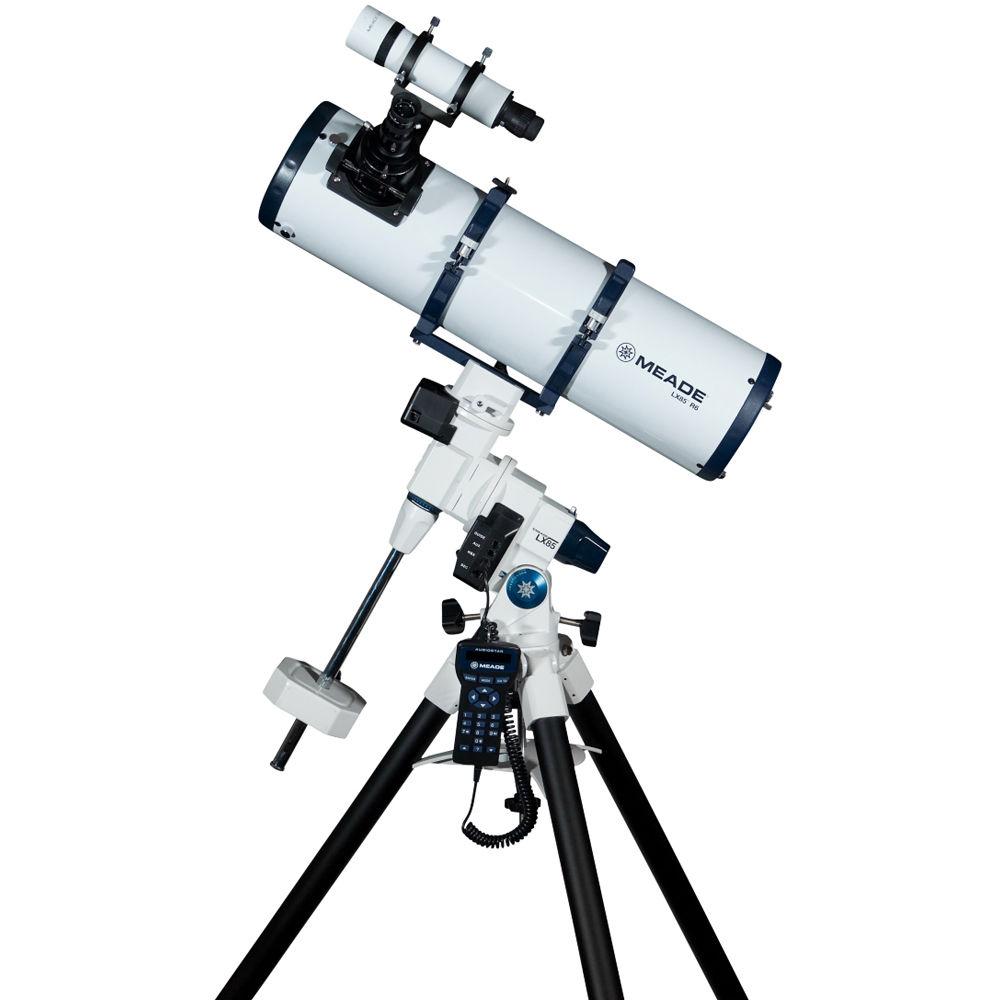

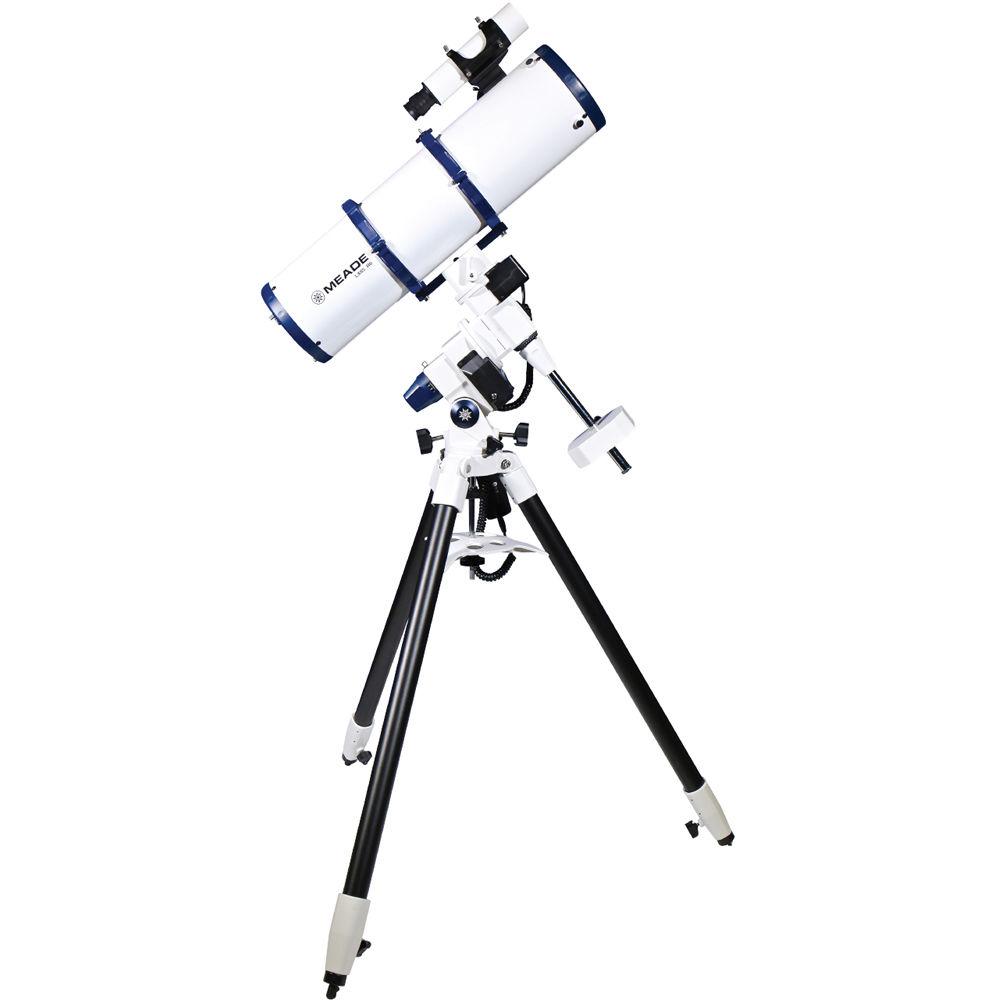

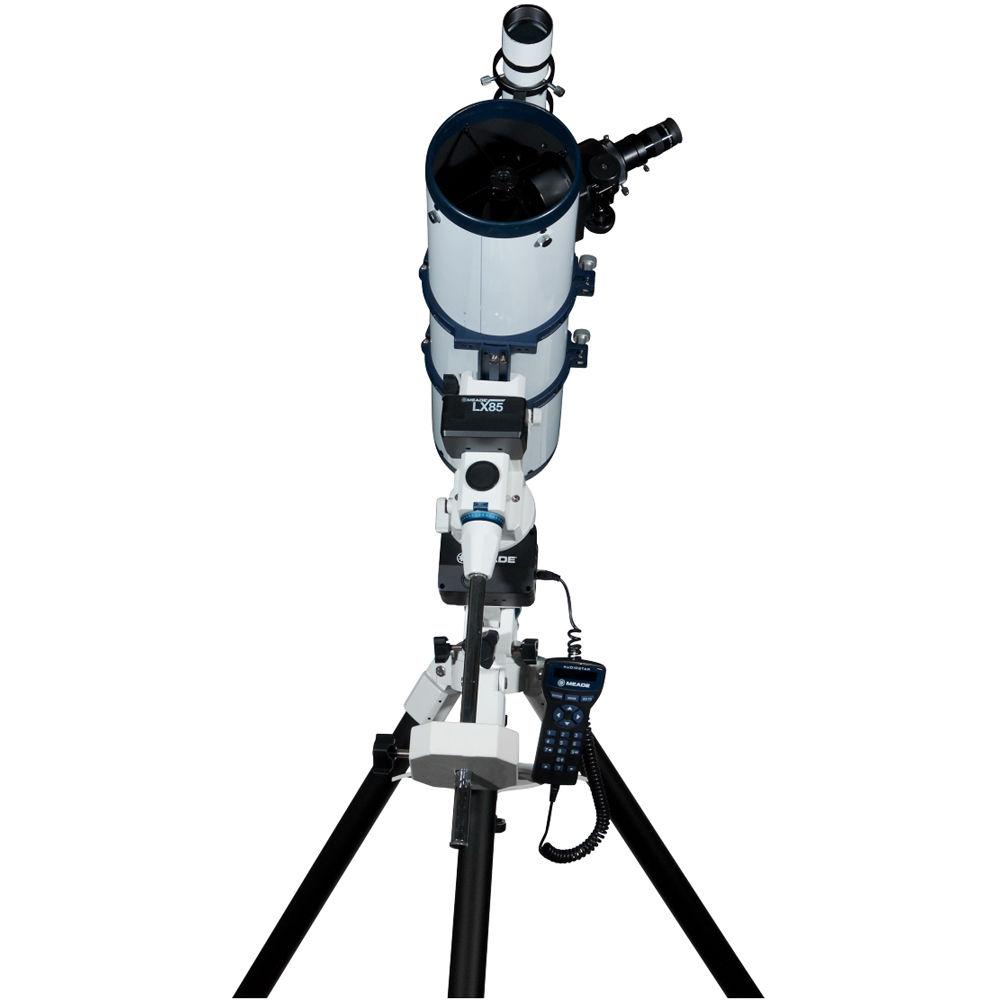

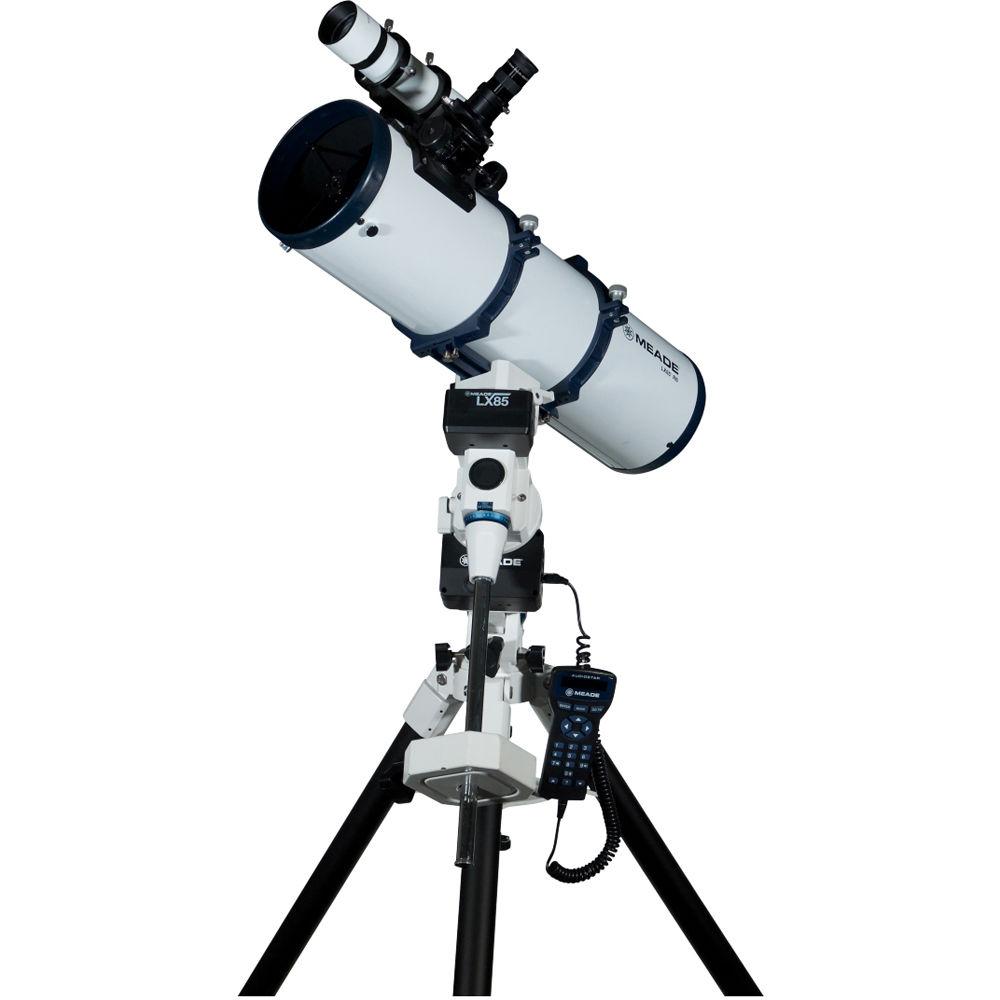

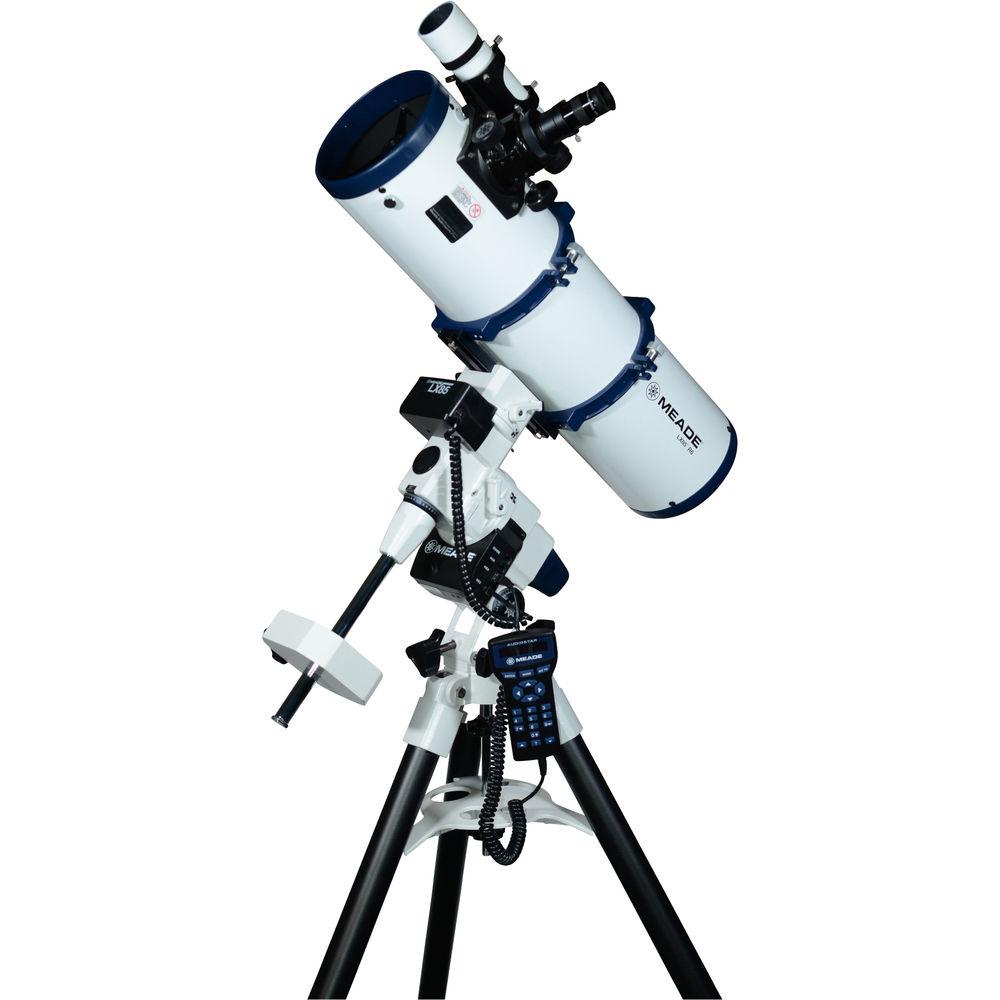

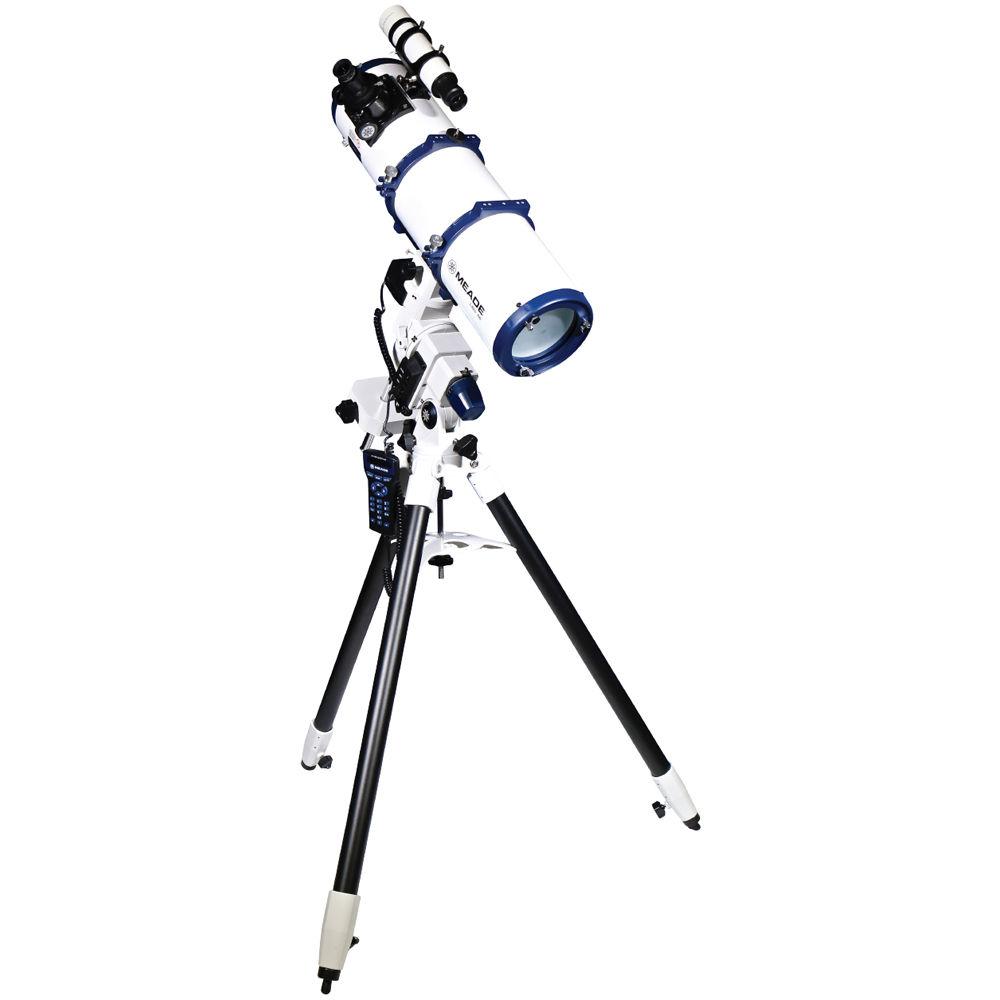

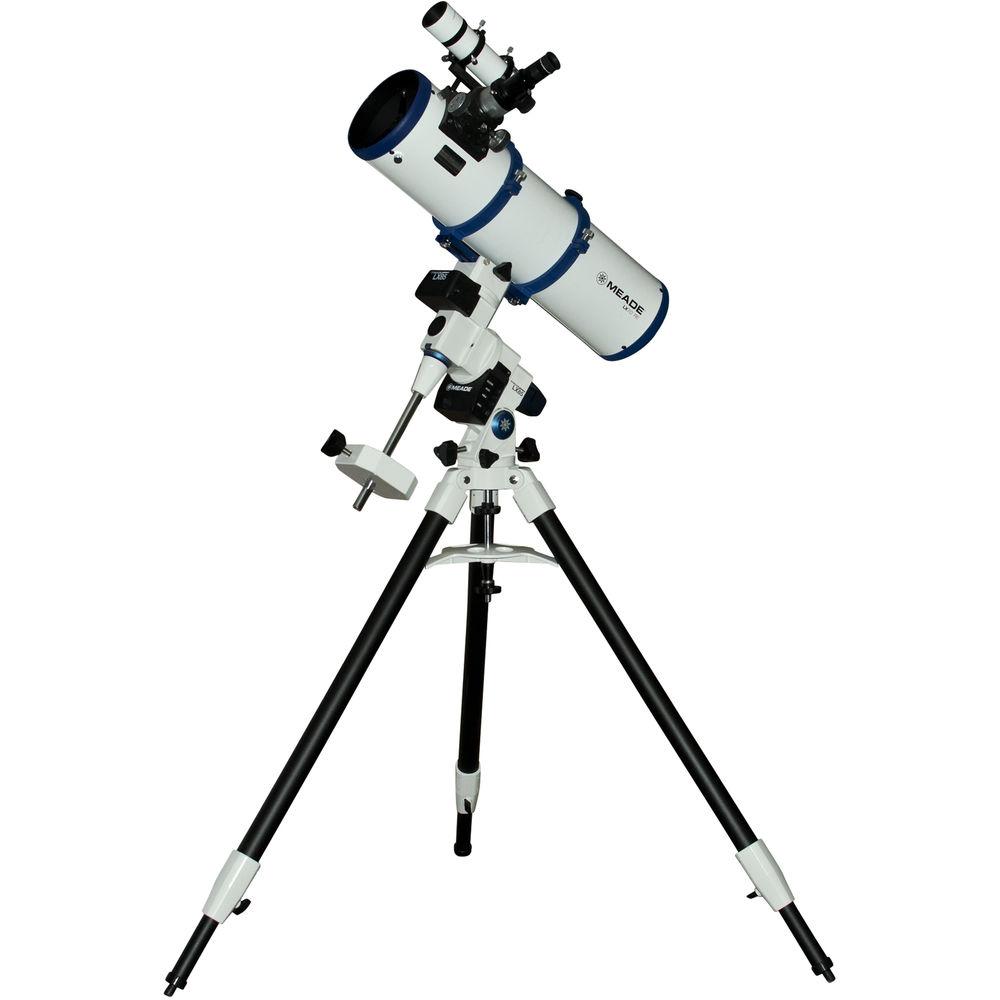

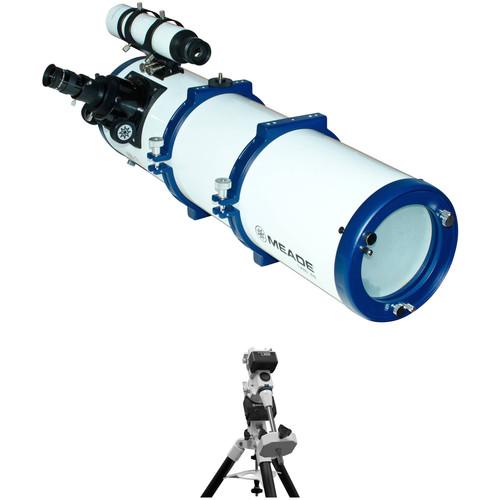

Product description The Meade Instruments LX85 150mm f/5 Reflector GoTo EQ Telescope utilizes a highly-reflective parabolic primary mirror to produce bright and clear views of difficult-to-see deep-sky objects like wispy nebulae, and features a full GoTo computer-controlled motorized equatorial mount that is required for long-duration observation and astrophotography sessions.The Newtonian reflector design enables larger apertures than are practical in conventional refractors, allowing novices and intermediate astronomers to reach out into the universe with ease to enjoy wonders like galaxies, nebulae, globular clusters, and more. Added to this already impressive performance is a sturdy rack-and-pinion focuser that is outfitted with a 2" holder for eyepieces and accessories. A 1.25" reducer adapter is also provided to use smaller eyepieces and accessories. To help get new users started, Meade includes two eyepieces that produce low and high magnifications, along with an 8x50 finderscope.The mount delivers the performance required for clear views and images with dual-axis low-cog DC servo motors with backlash compensation. Added to this is Meade's proprietary Smart Drive system that records and constantly refines its Permanent Periodic Error Correction (PPEC) to improve positioning and tracking precision and ensure your target object stays centered for long-exposure photography. Supporting the mount is a 1.75" stainless steel tripod that has a wide stance for stability on most terrain, and a center tray that holds eyepieces and accessories and acts as a leg lock to further stabilize while helping to minimize vibrations.Controlling the mount is the next generation iteration of the iconic AutoStar system: the AudioStar. This computer controller is equipped with a database of over 30,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog; it can also be programmed with up to 100 custom user-defined objects with filters to create custom object lists. An integrated speaker and Astronomer Inside system is packed with over four hours of commentary that is customized to objects that are visible in the night sky on any given day and time. Its intuitive menu-driven user interface makes observing the heavens fast and easy, and multiple alignment options make the controller an invaluable tool to new users and experienced star-gazers alike. - Meade LX85 6" f/5 Reflector Telescope (OTA Only) The Meade Instruments LX85 6" f/5 Reflector Telescope utilizes a highly-reflective parabolic primary mirror to produce bright and clear views of difficult-to-see deep-sky objects like wispy nebulae.The Newtonian reflector design enables larger apertures than are practical in conventional refractors, allowing novices and intermediate astronomers to reach out into the universe with ease to enjoy wonders like galaxies, nebulae, globular clusters, and more. Added to this already impressive performance is a sturdy rack-and-pinion focuser that is outfitted with a 2" holder for eyepieces and accessories. A 1.25" reducer adapter is also provided to use smaller (and more common) eyepieces and accessories. To help get new users started, Meade includes two eyepieces that produce low and high magnifications, along with an 8x50 finderscope.This version of the LX85 is offered here without a mount or tripod for users who already have a reliable support system and are looking to upgrade their OTA, or add another to their astronomy kit. It is outfitted with a Vixen-style dovetail rail to make it compatible with a wide variety of mounts from virtually any manufacturer.
- Optical Tube Assembly
-
- Large 6" (150mm) aperture is ideal for viewing and imaging of deep-sky objects like nebulae, as well as the moon and planets
- Fast f/5 focal ratio helps to preserve a wide field of view, image brightness, and resolution
- 750mm focal length maintains a generous field of view with a moderate magnification potential
- Newtonian reflector design reduces chromatic aberration and fringing, while allowing larger apertures versus refractor models
- Aluminum and SiO2 optical coatings on the primary parabolic mirror maximize light transmission through the light path to ensure bright and crisp views
- Single-speed 2" rack-and-pinion focuser allows the use of larger eyepieces and accessories
- Mounting
-
- Optical tube assembly (OTA) only; mount and tripod required for proper use
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- OTA weight: 11.4 pounds
- Included Accessories
- Eyepieces:
- 1.25" diameter nosepiece accepts most astronomical filters
- 9mm eyepiece produces a high 83x power
- 26mm eyepiece yields a low 29x magnification
- Use with included reducer to fit into the larger 2" drawtube holder
Finder:- Low 8x power ensures a wide field of view for faster alignment and easier star-hopping navigation
- Large 50mm aperture produces bright images to more easily find alignment stars
- Crosshair reticle enables precision centering, requiring less fine-tuning in eyepiece
- Includes mounting bracket
UPC: 709942999204 - Meade LX85 German Equatorial GoTo Mount Engineered for portability, while still easy to use for astrophotography, the Meade Instruments LX85 German Equatorial GoTo Mount delivers the performance required for clear views and images through the use of dual-axis low-cog DC servo motors with backlash compensation. Added to this is Meade's proprietary Smart Drive system that records and constantly refines its Permanent Periodic Error Correction (PPEC) to improve positioning and tracking precision and ensure your target object stays centered for long-exposure photography. Supporting the mount is a 1.75" stainless steel tripod that has a wide stance for stability on most terrain, and a center tray that holds eyepieces and accessories and acts as a leg lock to further stabilize while helping to minimize vibrations.Controlling the mount is the next generation iteration of the iconic AutoStar system: the AudioStar. This computer controller is equipped with a database of over 30,000 objects, including the planets, stars, nebulae, galaxies, and the complete Messier catalog; it can also be programmed with up to 100 custom user-defined objects with filters to create custom object lists. An integrated speaker and Astronomer Inside system is packed with over four hours of commentary that is customized to objects that are visible in the night sky on any given day and time. Its intuitive menu-driven user interface makes observing the heavens fast and easy, and multiple alignment options make the controller an invaluable tool to new users and experienced stargazers alike.
- Mount
-
- 33-pound payload capacity is ideal for large-aperture and/or heavy optical tubes and accessories like astrophotography rigs
- German equatorial mount allows accurate tracking for long-duration observation sessions
- Ideal for astrophotography as single right ascension tracking eliminates field rotation that causes fuzzy and blurry primary images and streaking of star fields
- Controlled by AudioStar hand controller to limit vibration and improve movement accuracy
- Low-cog 12 VDC servo motors enable precision GoTo and tracking accuracy with limited vibrations
- Vixen-style dovetail saddle is compatible with many optical tube assemblies
- Includes a 9-pound counterweight with shaft
- Dual-axis manual clutch releases for movement without the use of the hand controller
- Integrated bull's-eye bubble level to aid setup, alignment, and tracking accuracy
- AudioStar GoTo Controller
-
- 2-line LED display
- 20-key alphanumeric keypad, red LED backlight
- 68HC11, 8 MHz processor
- Built-in red utility light
- 30,000+ object database
- User-friendly menu-driven system navigation
- Slew speeds: 1x, 2x, 8x, 16x, 64x, 0.5°/sec, 1°/sec, 1.5°/sec, 4°/sec (max)
- Assisted alignment procedures: Easy (Two-Star), One-star, Two-star, Three-star
- Customizable guided tours for specific date, time, and location
- Built-in speaker with Astronomer Inside plays over four hours of educational content about the celestial objects you view
- Predicts events to plan future astronomy sessions such as sunrise/sunset, moon phases/moonrise/moonset, meteor showers, lunar/solar eclipses, equinoxes/solstices
- Smart Drive records permanent periodic error correction (PPEC) to improve tracking accuracy over time
- Backlash compensation allows user to train out the intrinsic play between gears to improve GoTo and tracking accuracy
- Powered by mount to be lighter and easier to use
- 24" coiled cord
- Updatable via Internet using RS-232 port
Database Details:- Solar system, including Moon, Sun, planets
- Comets and asteroids
- 88 major constellations
- Popular named objects
- Galaxies, quasars, and nebulae
- Multiple catalogs including Messier, Caldwell, and NGC
- Stars, including named stars, SAO catalog, double stars, variable stars
- Satellites, including the International Space Station (ISS), and Hubble Space Telescope (HST)
- User-defined astronomical and terrestrial objects
- Tripod
-
- Adjustable height from 31.5" to 43.5" accommodates a wide variety of optical tube assemblies and viewing positions
- Lightweight and durable cast aluminum mount base
- 1.75" diameter stainless steel legs
- 39.5x6.25x5.75" collapsed size, for easier portability
- Tray keeps accessories accessible and off the ground
- Weight: 12.4 pounds
UPC: 709942998733 In the Box - LX85 6" f/5 Reflector Telescope (OTA Only) edtfutzfzbft
- 9mm Eyepiece
- 26mm Eyepiece
- 1.25" Eyepiece Reducer Adapter
- 8x50 Finderscope with Bracket
- Limited 1-Year Warranty
- LX85 German Equatorial GoTo Mount edtfutzfzbft
Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX85 150mm f 5 Reflector GoTo EQ Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Meade LX85 6" f/5 Reflector Telescope (OTA Only)
| Optical Design | Newtonian Reflector | Aperture | 150 mm / 6" | Focal Length | 750 mm | Focal Ratio | f/5 | Focuser | Single-Speed Rack-and-Pinion | Eyepiece Barrel Diameter | 1.25", 2" | Diagonal | None | Finderscope | Yes | Mounting System | Vixen Style | Optical Tube Dimensions | 27.6 x 7.4" / 70.1 x 18.8 cm | | Batteries | None | GPS | None | Wi-Fi | None | Weight | 11.4 lb / 5.2 kg | | Box Dimensions (LxWxH) | 34.5 x 12.5 x 12.5" | - Meade LX85 German Equatorial GoTo Mount
Mount Type | German equatorial | Load Capacity | 33.0 lb / 15.0 kg | Motor | 2 x 12 VDC low-cog stepper | GoTo Capability | Yes, Audiostar hand controller | Altitude / Latitude Adjustment | Not specified by manufacturer | Polar Axis Scope | None | Includes Tripod/Pier | 31.5" to 43.5" adjustable height Cast aluminum mount base 1.75" stainless steel legs | Power Source | 12 VDC | Dimensions | Mount Head: 13.2 x 12.4 x 4.8" / 33.5 x 31.4 x 12.2 cm Tripod, Collapsed: 39.5 x 6.25 x 5.75" / 100.3 x 8.3 x 14.6 cm Fully Assembled: 47.2 x 47.2 x 5.8" / 119.9 x 119.9 x 14.7 cm | Weight | Mount Head: 10.9 lb / 4.9 kg Tripod: 12.4 lb / 5.6 kg Fully Assembled: 34.1 lb / 15.5 kg | | Box Dimensions (LxWxH) | 40.6 x 20.2 x 9.9" |
