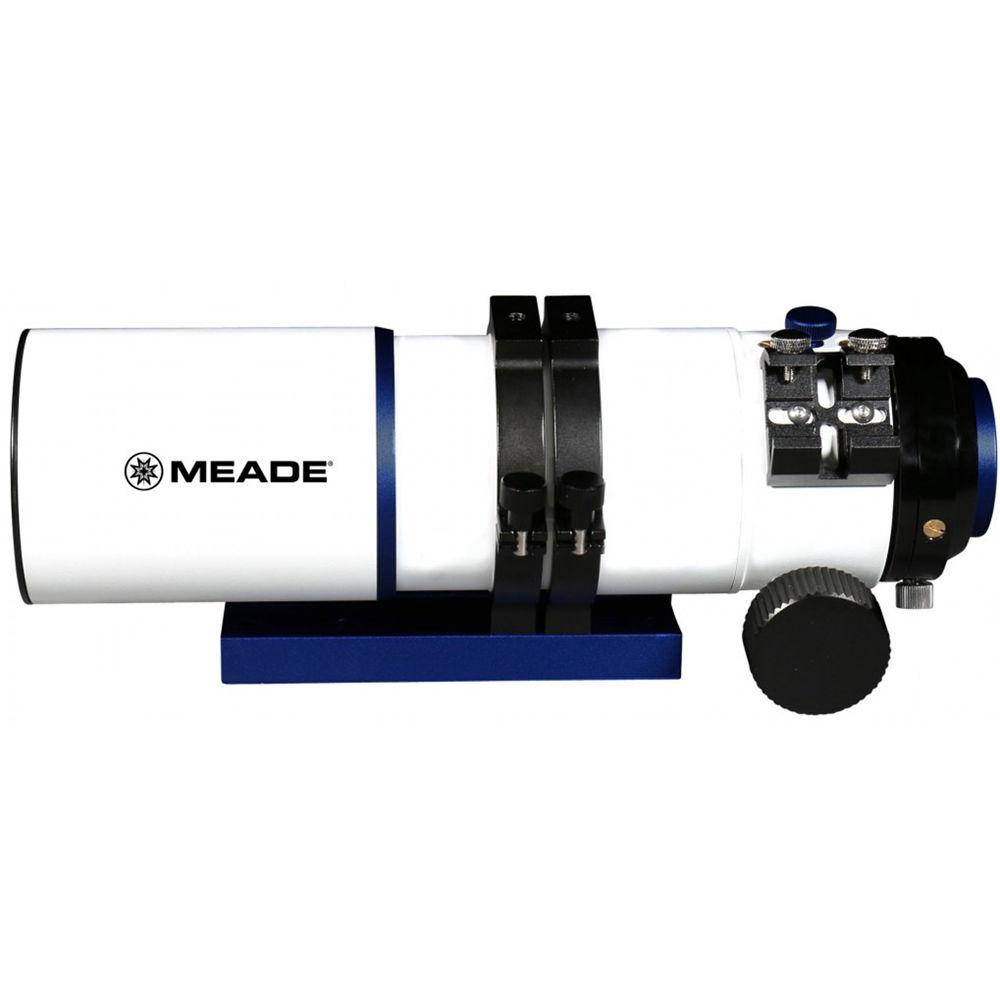

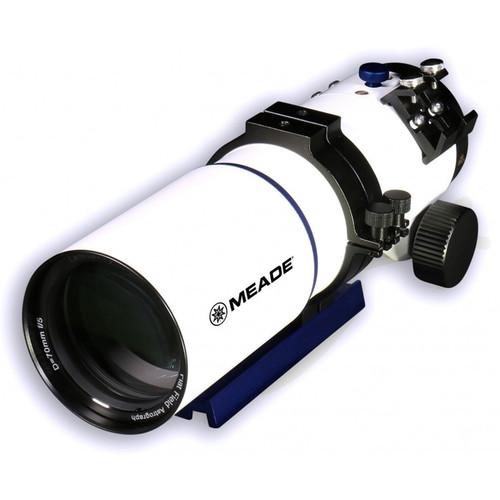

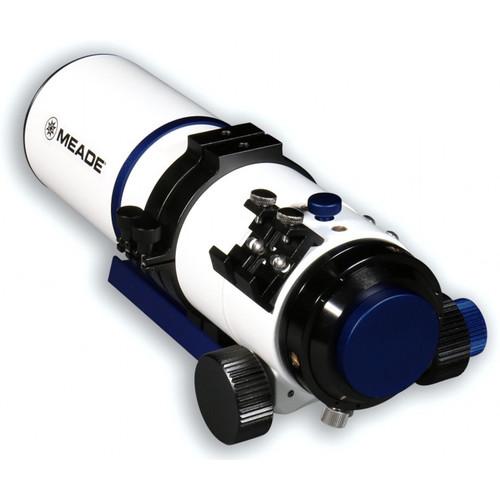

Product description The LX85 70mm f/5 Quadruplet ED APO Astrograph from Meade Instruments is a purpose-built telescope for astrophotography and astro-imaging, with an imaging circle designed to completely cover the larger sensors of today's DSLR cameras. Optically it is designed with fully multi-coated FPL-53 extremely low-dispersion (ED) glass in a quadruplet apochromatic lens configuration that corrects for spherical and chromatic aberrations, astigmatism, and off-axis comas. This correction creates a wide flat field of view without distortion and removes the blue-tinted "halo" affect for true high-contrast color transmission.The OTA can be used for multiple astrophotography techniques, with a 42mm fully illuminated image circle that will cover a 35mm full frame sensor. Meade utilizes a precise dual-speed rack-and-pinion focusing mechanism that enables tack-sharp focusing with the ability to handle heavier loads versus other systems, such as a Crayford. While the astrograph is offered here without a mount or tripod for users that have a reliable support system, a set of mounting rings and a Vixen-style dovetail plate are included. For safe transport and storage, Meade includes a hard aluminum carrying case with a custom-cut foam lining. - Optical Performance
-
- 70mm objective lens
- 350mm focal length
- Fast focal ratio of f/5 is ideal for astrophotography or imaging
- Refractor-style optical design
- FPL-53 extremely low-dispersion glass limits spherical and chromatic aberrations, astigmatism and off-axis comas
- Quadruplet apochromatic lenses further correct chromatic and spherical aberrations for true color rendition without distortion across the entire field of view
- Fully multi-coated optics maximize light transmission, while improving color, clarity, and contrast
- Colors are faithfully rendered by eliminating the blue "halo" effect of chromatic aberrations
- Resolution: 1.655 arcsec, Dawes' Limit
- Retractable dew shield resists condensation build-up on the objective lens
- Focusing System
-
- Optimized for imaging
- Rack-and-pinion design is able to carry heavier loads without shifting or flexing versus Crayfords
- 10:1 two-speed mechanism allows for precise focusing
- 2.5" drawtube allows the use of larger accessories, and ensures full coverage of camera sensors without vignetting
- Focuser lock knob locks the focuser in place for long-exposure astrophotography
- Mounting
-
- Optical tube assembly only - mount and tripod required for proper use
- Vixen-style dovetail plate
- Cradle-ring assembly allows the scope orientation to be adjusted to avoid interference with gear or accessories, or on mount configuration
- Weight: 4.5 pounds

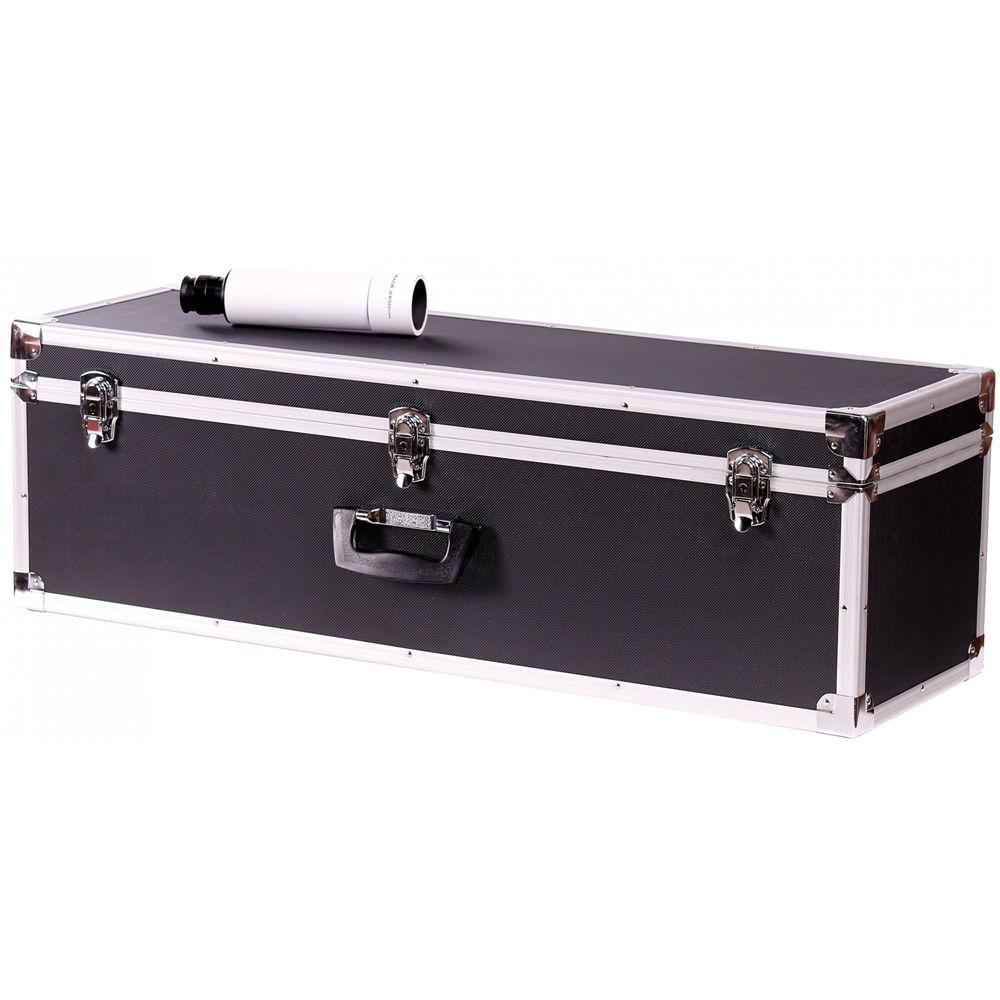

- Carrying Case
-
- Hard aluminum exterior with reinforced edges and corners
- Hinged carry handles
- Over-center latches pulls the lid down for maximum security
- Custom-cut foam-lining protects OTA and accessories
UPC: 709942999068 In the Box Meade LX85 70mm f/5 Quadruplet ED APO Astrograph (OTA Only) Mounting Rings with Vixen-Style Dovetail Hard Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX85 70mm f 5 Quadruplet ED APO Astrograph in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade 261000 Specs | Optical Design | Refractor | | Aperture | 70mm | | Focal Length | 350mm | | Focal Ratio | f/5 | | Eyepiece Barrel Diameter | N/A | | Diagonal | None | | Finderscope | None | | Tripod | None | | Mount Type | Vixen-style dovetail | | Optical Tube Dimensions | 12.25 x 4.5" / 31.1 x 14.4 cm | | Weight | 4.5 lb / 2.0 kg | | | | Package Weight | 11.445 lb | | Box Dimensions (LxWxH) | 17.65 x 12.7 x 8.95" |
