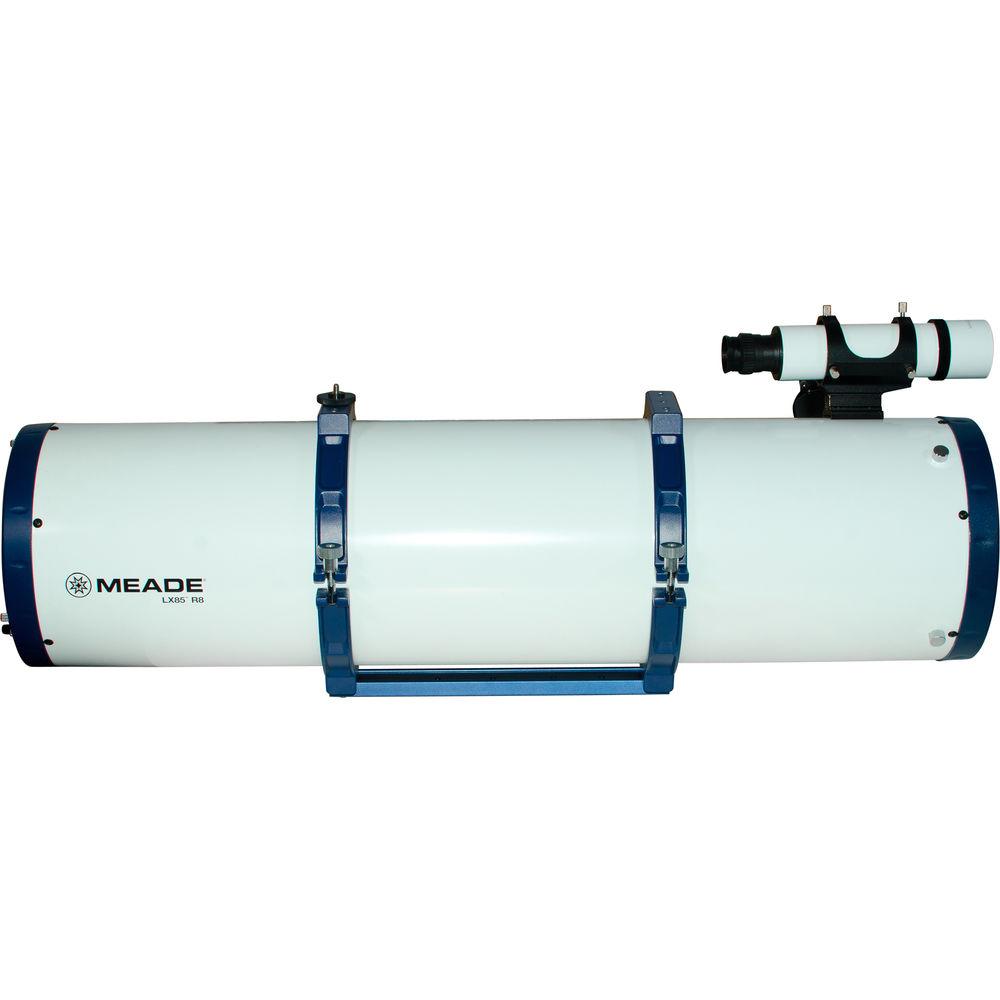

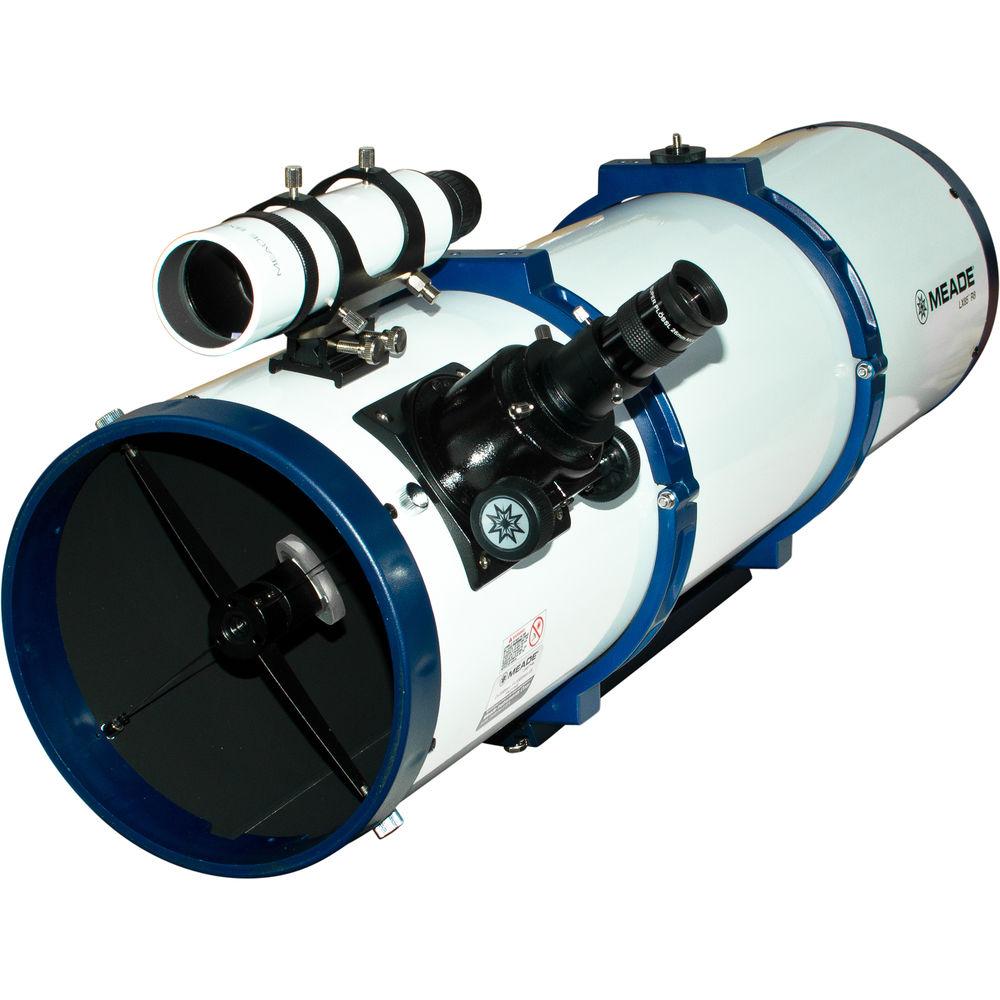

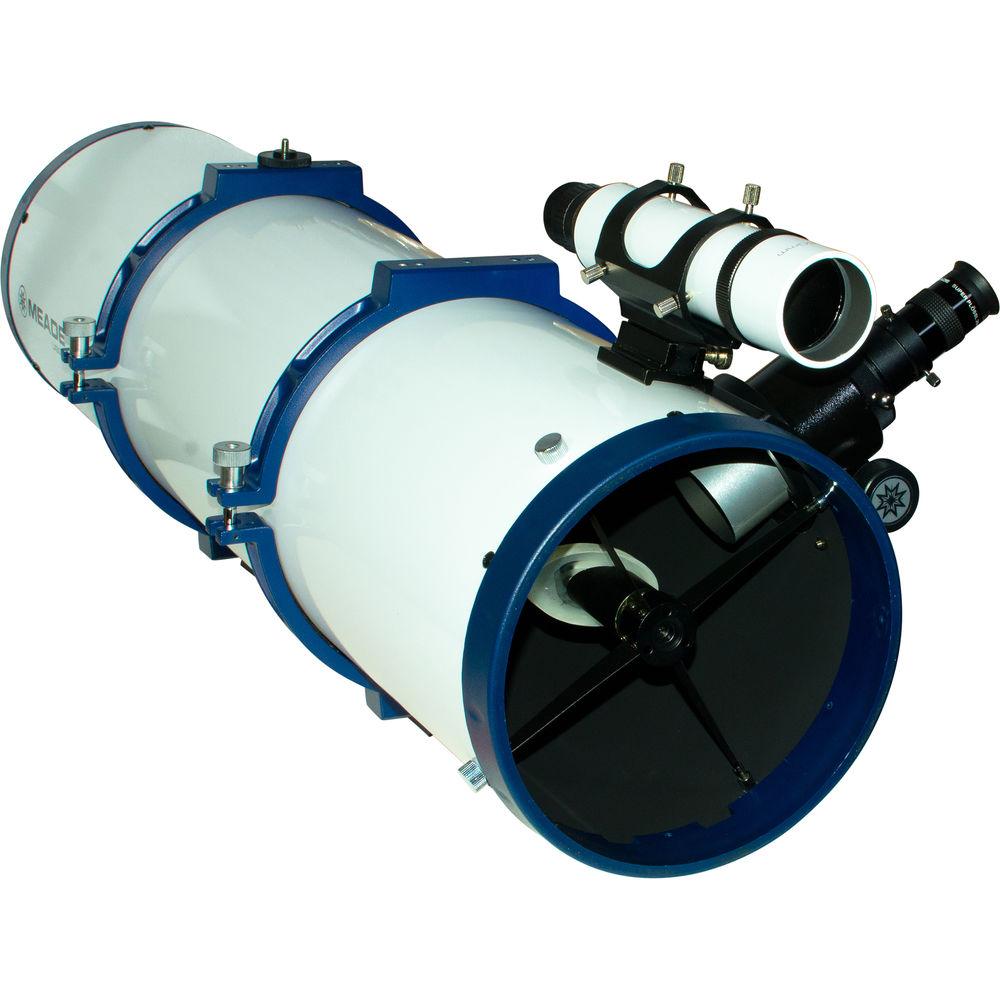

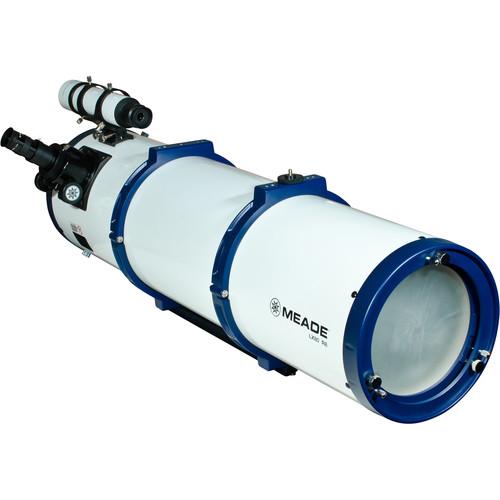

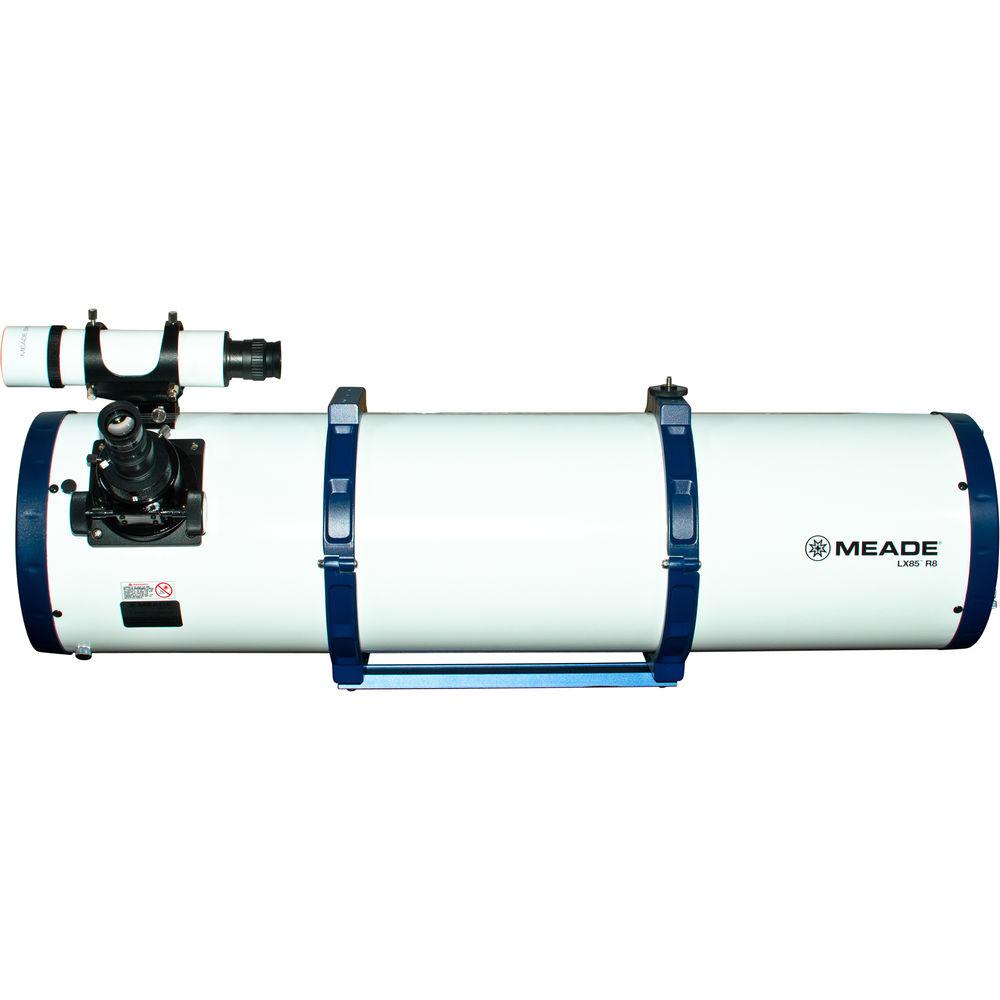

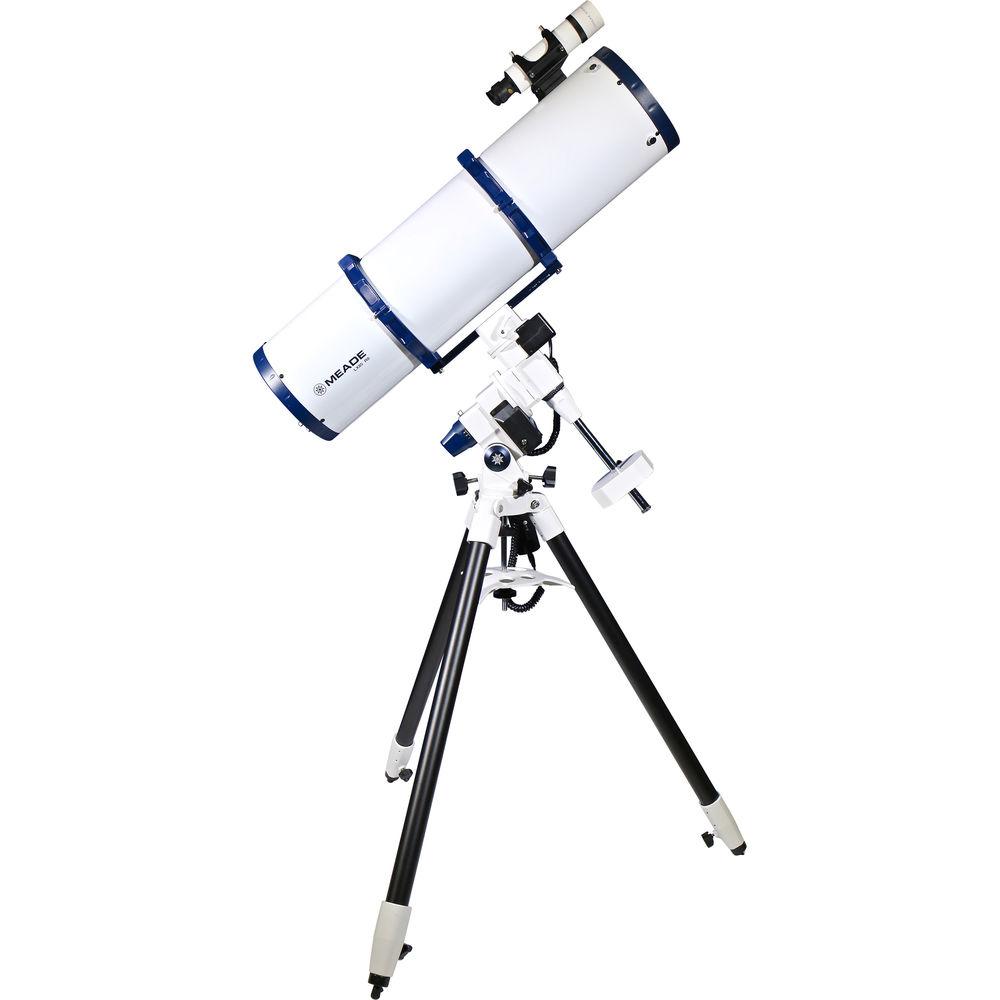

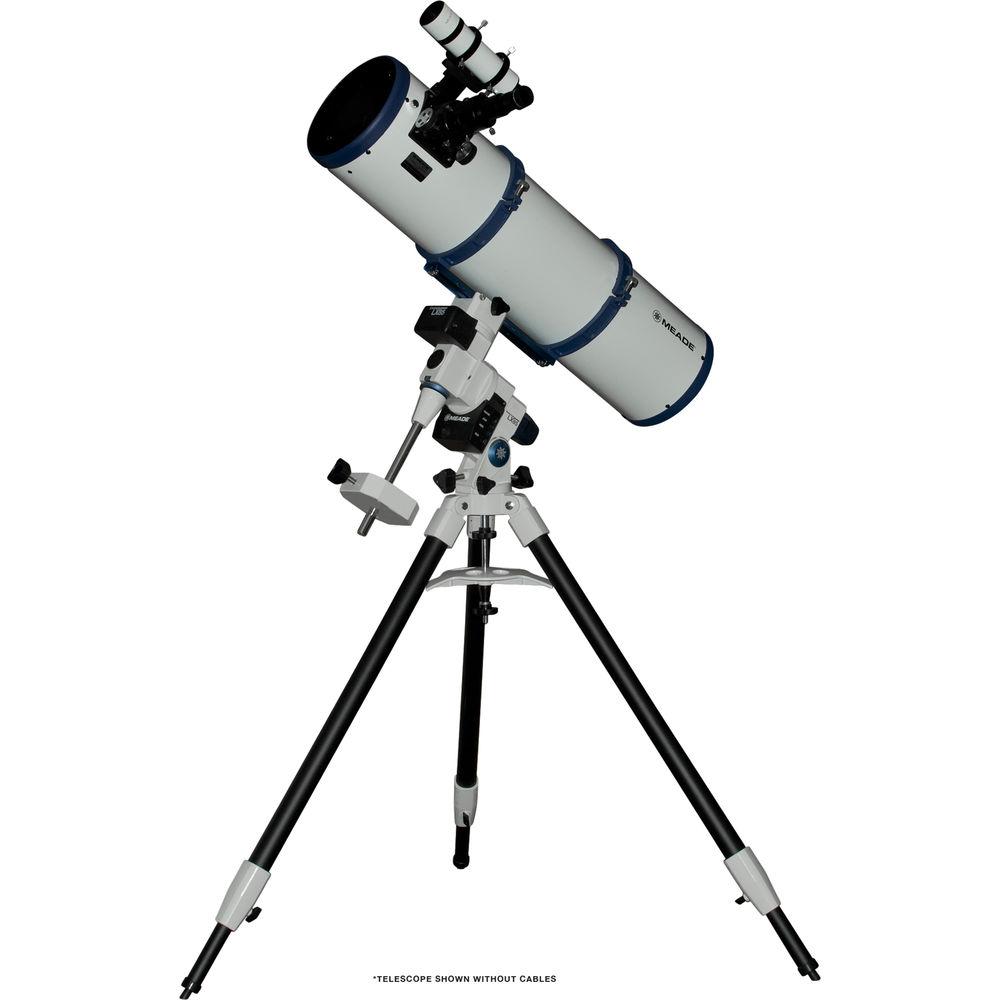

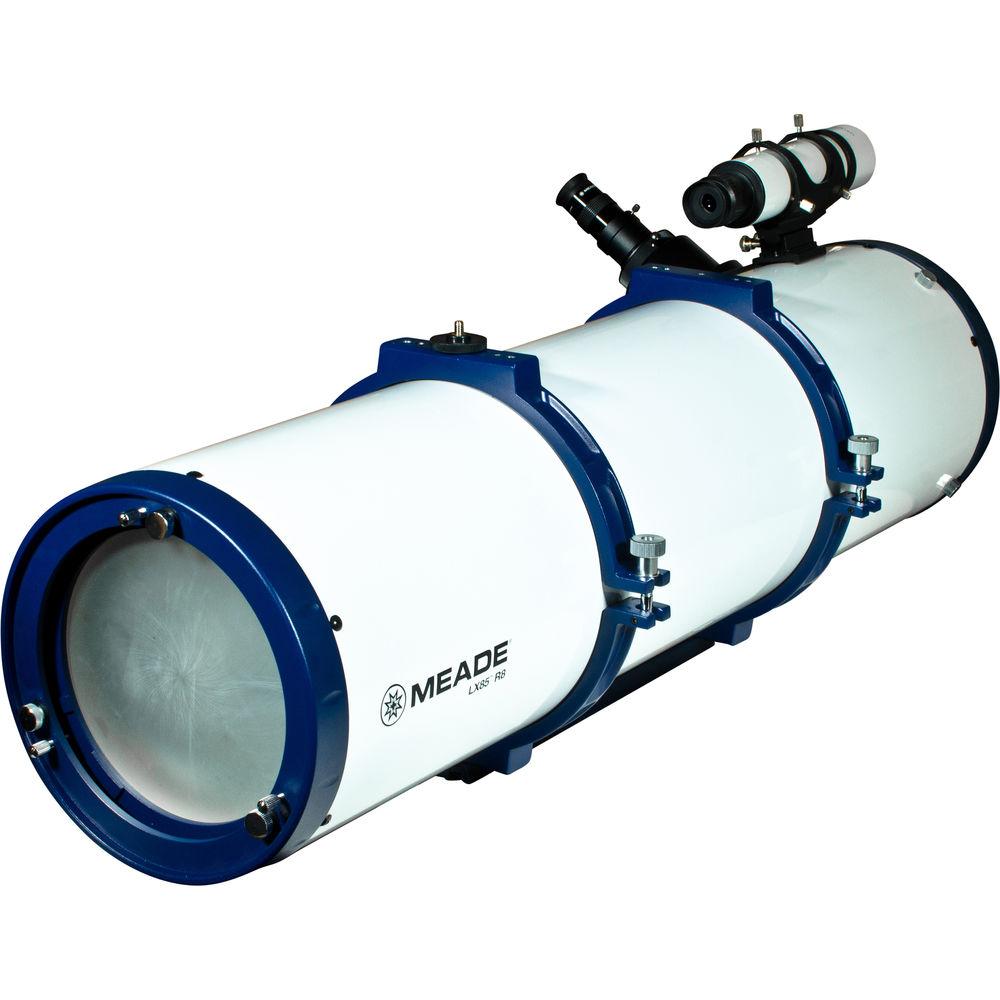

User Manual for Meade LX85 8" f 5 Reflector Telescope Click to enlarge the picture
Contents of the user manual for the Meade LX85 8" f 5 Reflector
- Product category: Reflectors Meade
- Brand: Meade
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Meade Reflectors
 |
User manual for the Meade LX85 8" f 5 Reflector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Meade product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Meade user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Meade product will considerably shorten its lifespan!
|
Product description The Meade Instruments LX85 8" f/5 Reflector Telescope utilizes a large aperture, long focal length, and a highly-reflective parabolic primary mirror to produce bright and clear views of objects such as the moon and planets, as well as difficult-to-see deep-sky objects like wispy nebulae.The Newtonian reflector design enables larger apertures than are practical in conventional refractors, allowing novices and intermediate astronomers to reach out into the universe with ease to enjoy wonders like galaxies, nebulae, globular clusters, and more. Added to this already impressive performance, is a sturdy rack-and-pinion focuser that is outfitted with a 2" holder for eyepieces and accessories. A 1.25" reducer adapter is also provided to use smaller (and more common) eyepieces and accessories. To help get new users started, Meade includes two eyepieces that produce low and high magnifications, along with an 8x50 finderscope.This version of the LX85 is offered here without a mount or tripod for users who already have a reliable support system and are looking to upgrade their OTA, or add another to their astronomy kit. It is outfitted with a Vixen-style dovetail rail to make it compatible with a wide variety of mounts from virtually any manufacturer. - Optical Tube Assembly
-
- Large 8" (200mm) aperture is ideal for viewing and imaging of deep-sky objects like nebulae, as well as the moon and planets
- Fast f/5 focal ratio helps to preserve a wide field of view, image brightness, and resolution
- Long 1000mm focal length maintains a generous field of view with a high magnification potential
- Newtonian reflector design reduces chromatic aberration and fringing, while allowing larger apertures versus refractor models
- Aluminum and SiO2 optical coatings on the primary parabolic mirror maximize light transmission through the light path to ensure bright and crisp views
- Single-speed 2" rack-and-pinion focuser allows the use of larger eyepieces and accessories
- Mounting
-
- Optical tube assembly (OTA) only; mount and tripod required for proper use
- Vixen-style dovetail plate is compatible with a wide variety of mounts
- OTA weight: 18.4 pounds
- Included Accessories
- Eyepieces:
- 1.25" diameter nosepiece accepts most astronomical filters
- 9mm eyepiece produces a high 111x power
- 26mm eyepiece yields a low 38x magnification
- Use with included reducer to fit into the larger 2" drawtube holder
Finder:- Low 8x power ensures a wide field of view for faster alignment and easier star-hopping navigation
- Large 50mm aperture produces bright images to more easily find alignment stars
- Crosshair reticle enables precision centering, requiring less fine-tuning in eyepiece
- Includes mounting bracket
UPC: 709942999211 In the Box Meade LX85 8" f/5 Reflector Telescope (OTA Only) 9mm Eyepiece 26mm Eyepiece 1.25" Eyepiece Reducer Adapter 8x50 Finderscope with Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Meade LX85 8" f 5 Reflector Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMeade LX85 Specs | | | Optical Design | Newtonian Reflector | | Aperture | 200 mm / 7.9" | | Focal Length | 1000 mm | | Focal Ratio | f/5 | | Focuser | Single-Speed Rack-and-Pinion | | Eyepiece Barrel Diameter | 1.25", 2" | | Diagonal | None | | Finderscope | Yes | | Mounting System | Vixen Style | | Optical Tube Dimensions | 39.8 x 9.4" / 101.1 x 23.9 cm | | | | Batteries | None | | GPS | None | | Wi-Fi | None | | Weight | 18.4 lb / 8.3 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 45.5 x 17.0 x 16.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
