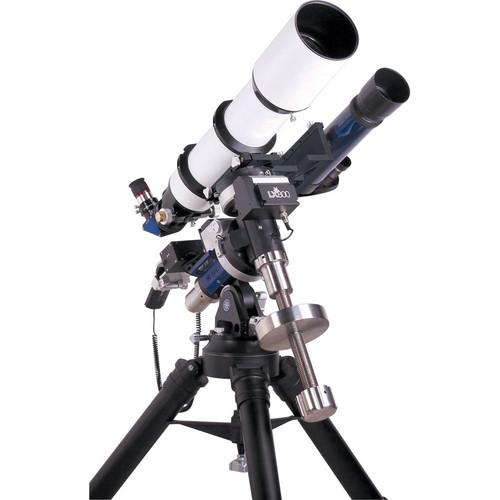

Product description The Meade Instruments LX850-ACF 130mm f/7 Triplet APO Refractor Telescope System features a 130mm Series 6000 ED (Extra-low Dispersion) glass Triplet APO telescope with StarLock automatic guider and the LX850 German Equatorial Mount.
The OTA (Optical Tube Assembly) comes with a 5.1” (130mm) diameter fully multi-coated triplet objective lens made from ED glass for good contrast and sharpness, as well as near zero detectable chromatic aberration or color fringing. The OTA features a precise dual-speed 3" Crayford focuser with 10:1 gear reduction for fine focus control. The OTA has a focal length of 910mm, f/7. The telescope comes equipped with a Meade Series 5000 2" (5.08 cm) diagonal prism featuring 99% reflectivity, a Series 5000 HD-60 25mm eyepiece, and an 8 x 50 viewfinder with a quick-release bracket.The system comes with a StarLock dual imager with an integrated full time guider, ultra precision pointing and assisted drift alignment, 5.8" (14.73cm) 225-tooth polished bronze worm/gear drives with low periodic error, internal cable routing, GPS receiver, AutoStar II GoTo system with over 144,000 object library, heavy-duty adjustable-height tripod with anti-vibration pads, 12V universal AC adapter, Meade zero image shift electronic micro-focuser, telescope to computer USB cable, and AutoStar Suite software.
The StarLock autoguider makes target acquisition on your imaging sensor, and accurate guiding during exposures completely automatic. With Meade's LightSwitch technology at its core, StarLock uses an 80 mm f/5 optic and two camera sensor system to provide computer assisted polar alignment using the drift method. Once aligned the StarLock guides the mount in real time, and even automatically programs periodic error correction, achieving a guiding accuracy of up to 1 arcsecond in good seeing, and with the capability of guiding on stars as faint as 11th magnitude. StarLock requires no calibration, no user focusing or guide star selection.
The LX850 mount, constructed of machined stainless steel and aircraft grade aluminum is a solid platform with a 90 lb (40.82 kg) payload capacity and pointing accuracy as good as 1 arcminute. Features include precision roller bearings on each axis, a 1.75” (4.44 cm) stainless steel RA shaft, 5.8" (14.73 cm) main gears, fine manual adjustment controls on both axis, and illuminated reticle output port. The mount’s main body weight is 55 lb (24.94 kg). The tripod’s height can vary from 29 to 45” (73.66 to 114.3 cm), and has 3" (7.62 cm) diameter stainless steel legs. The tripod weighs 36 lb (16.32 kg). The tripod comes with two 26 lb (11.79 kg) stainless steel counterweight. You can add additional counterweights (sold separately) to attach additional payload to the mount. The tripod features 3 anti-vibration pads to reduce vibrations and shorten damp-down time. Note: The Meade LX850 Telescope is not meant to look at the Sun. Looking at or near the Sun will cause instant and irreversible damage to your eye. Eye damage is often painless, so there is no warning to the observer that damage has occurred until it is too late. Do not point the telescope at or near the Sun. Do not look through the telescope or Finder Scope as it is moving. OTA - 130mm 3-element, air-spaced apochromatic f/7 refractor with 3" Crayford-style 10:1 focuser
- Vixen-style mounting plate
Mount - Mount body machined from solid 6061-T6 aircraft-grade aluminum and stainless steel
- AutoStar II Handbox is used to command the telescope to automatically slew to objects in the night sky
- Handbox holder provides a convenient place to place your AutoStar II box, and keeps it at the ready
- Starlock Permanent Periodic Error Correction: Correction is retained in AutoStar's memory until overwritten
- StarLock Narrow Field OTA feature is used to precisely guide LX850 StarLock system
- StarLock Widefield OTA is used to orient the telescope in relation to the sky
- Telescope control panel with an on/off switch, 12VDC power connector, electronic focus port, illuminated reticle eyepiece port, 12VDC output, handbox port, RS232 port, StarLock port, auxiliary autoguider port
- Double line, 16 character LCD; 20 backlit LED buttons
- Semi-automatic drift align procedure for precise polar alignment
- Latitude adjustment and lock knobs
- Altitude scale allows you set the latitude of the observing site using the latitude adjustment knob
- GPS sensor can be used to get the precise date, time, and location of your observing site using global positioning satellites
- DC servo motors with encoders on both axes
- RA drive helps precisely move the telescope around the RA axis
- Dovetail rail safety bolt for secure attachment of the safety knob
- Dovetail Adapter Attachment Rails: The mount's dovetail adapter will accept both the Losmandy, and Vixen style dovetails
- Carry handles to help move the LX850 mount from one location to another
- Leg lock for locking leg extension in place
- Spreader bar rigidly holds legs open
- Tension hub locates extension arms
- Extension arms locate tripod legs
- Anti-vibration pads to reduce vibrations and shorten damp-down time
UPC: 709942600643 In the Box Meade LX850-ACF 130mm f/7 Triplet APO Refractor Telescope LX850-ACF 130mm f/7 Triplet APO Refractor Telescope #829 8x50 Rear-Focus Viewfinder (White) fvqstardyfwctcbwsdwyrztsfx Series 5000 HD-60 25mm Eyepiece (1.25") Series 5000 2" Enhanced Diagonal LX850 GoTo EQ Mount with StarLock Autoguider StarLock Optical Tube and Sensor Assembly 26 lb Stainless Steel Counterweight for LX850 Telescope Counterweight Shaft with Safety Nut LX850 Field Tripod LX850 Accessories LX850 Control Panel Autostar II Hand Controller StarLock Cable StarLock Counterweight Custom Utility Tool 5/16" Hex Head Wrench DVD with AutoStar Suite and Software #507 Connecting Cable with USB Adapter Internal Cable Fish Tool 3 x Anti-Vibration Pad Limited 1-Year Warranty Table of Contents
|
